Consew Model 146RBL-3A-1

146RBL-3A-1
Consew Model 146RBL-3A-1

Overview

Single Needle, Drop Feed, Walking Foot, Long Arm, Zig-Zag Lockstitch Machine

With: Horizontal Axis Transverse Rotary Hook, Large Bobbin, Wide Zig-Zag, Reverse Feed

Applications

  • Four step/three stitch zig-zag
  • For sewing elastic and other stretch materials
  • For stitching such products as boat and truck covers, tents, awnings, sails, parachutes, tarpaulins and similar products
  • Used on such materials as canvas, nylon, vinyl, leather, synthetics and similar materials.
  • 30" long arm for 30 inches of workspace.

Features

  • Large bobbin and horizontal axis transverse rotary hook
  • Wide zig-zag
  • Upper feed mechanism helps avoid slippage when sewing
  • Reverse stitching
  • Stitches per minute - 2500*

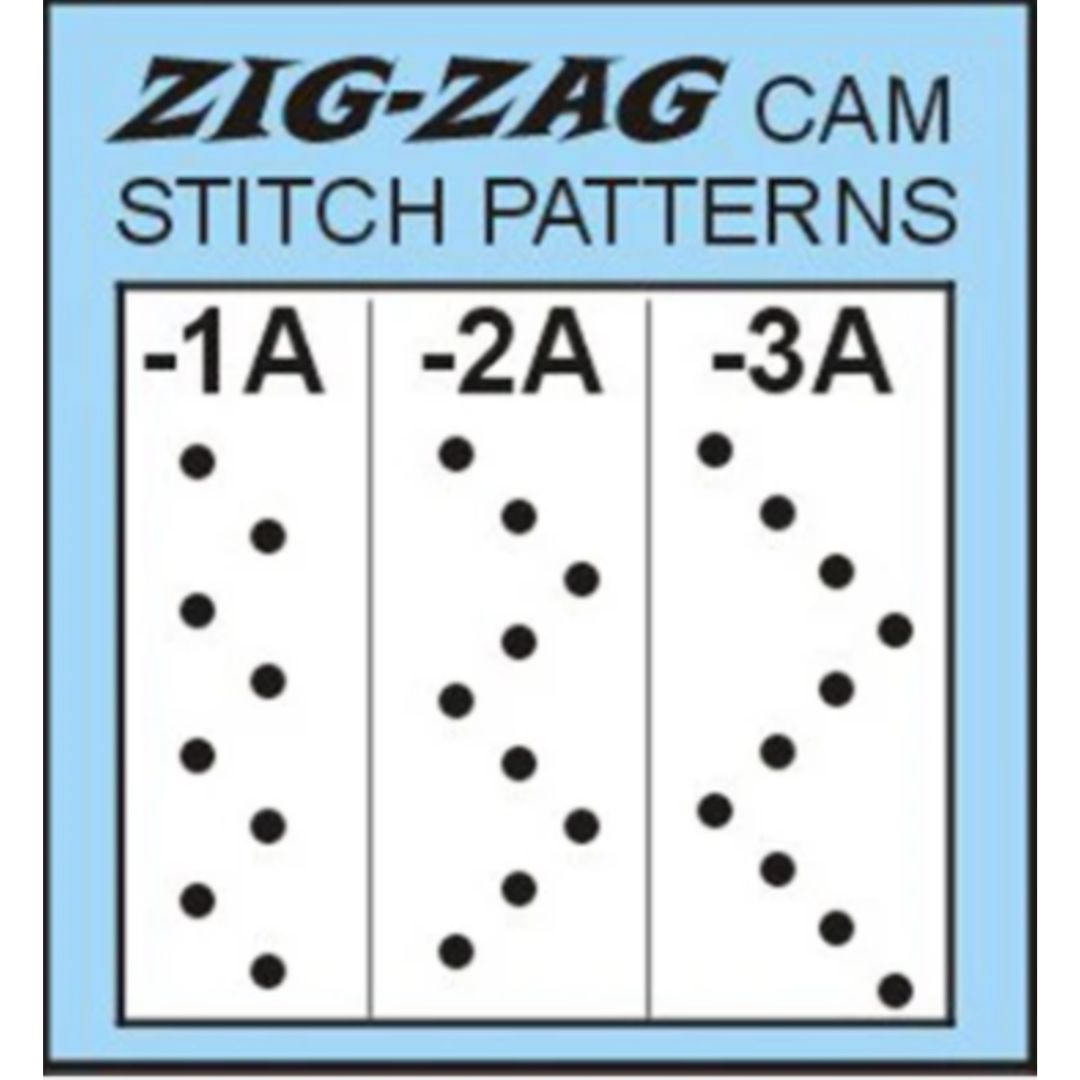

  • Optional: Interchangeable between 1A, 2A & 3A stitches; Additional parts required (not included).

ADDITIONAL INFORMATION

Specifications

Number of Needles 1 (Single)
Feeding Mechanism Walking Foot
Workspace Long Arm
Standard or Full Function Standard Functions
Speed, Max (S.P.M.) 2500
Clearance Under Presser Foot 25/64" (10mm)
Stitch Length 5 s.p.i. (5mm)
Work Space 30" (765mm)
Needle 135 x 17
Bobbin Metal 212O34-312
Pre-wound M
Bed Size 7" x 33 1/4" (178mm x 848mm)
Weight 266 lbs
Needle Bar Stroke 1-11/32" (34mm)
Hook B79
Zig-Zag Stitch Width 3/8" (9.5mm)
