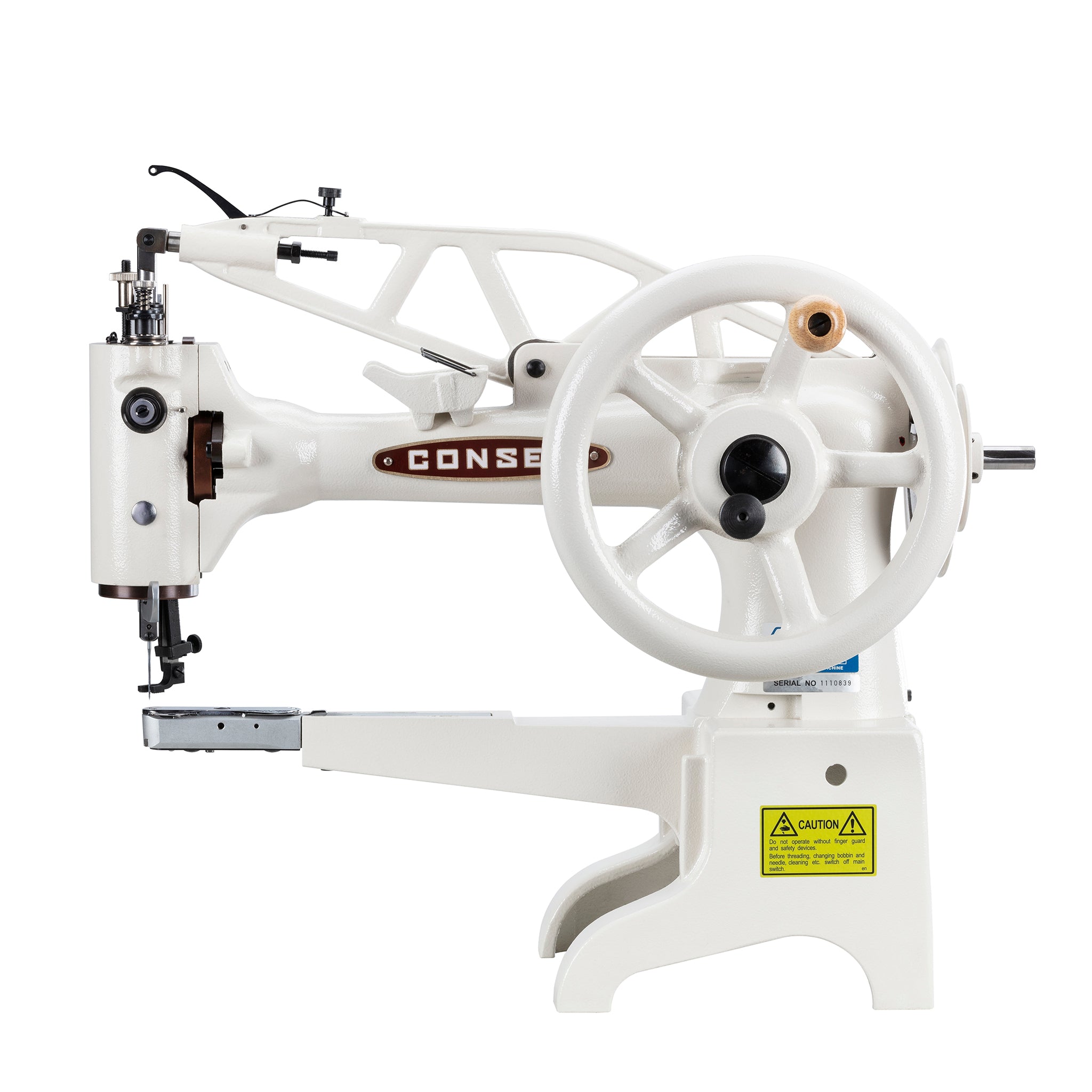

Consew Model 29B

29B

Overview

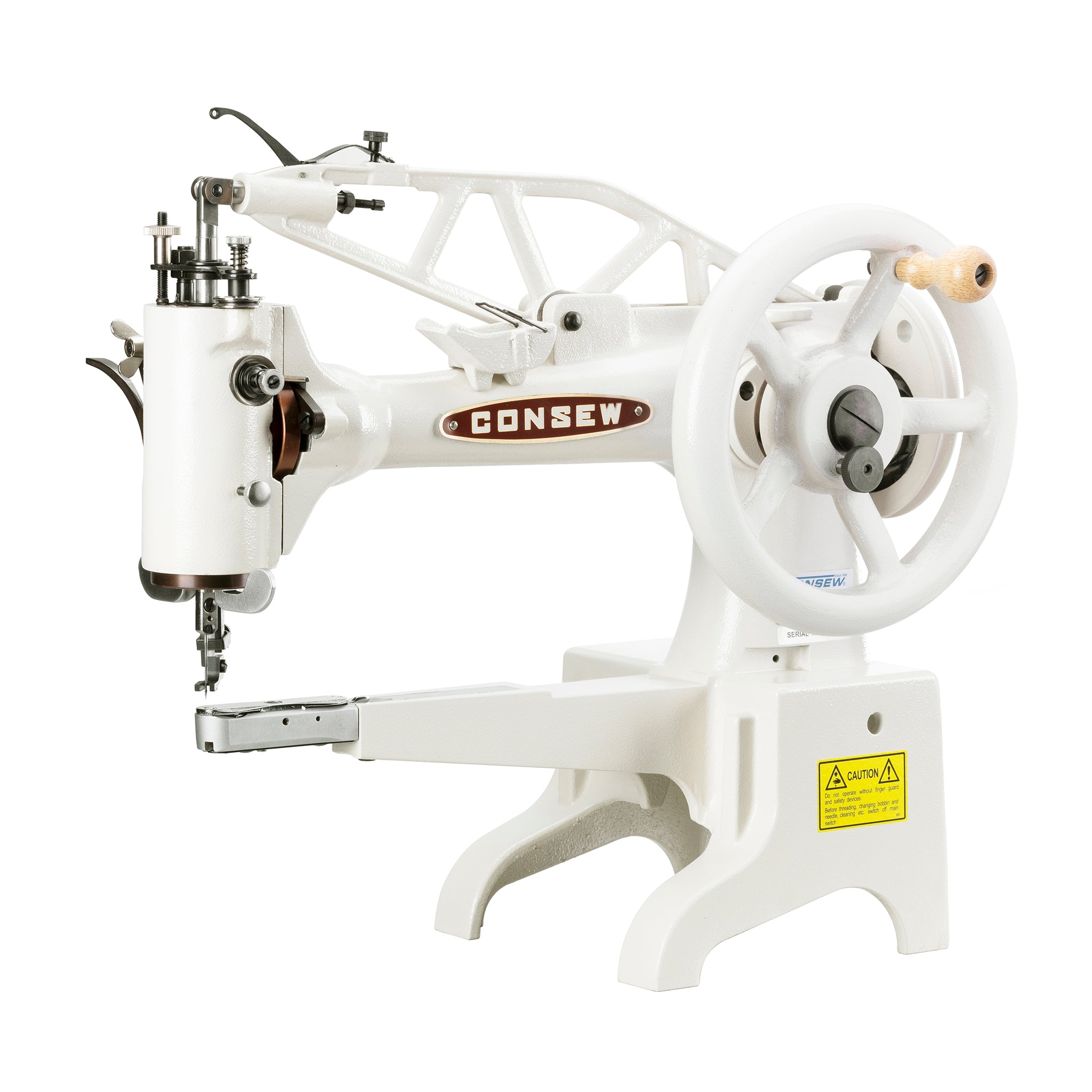

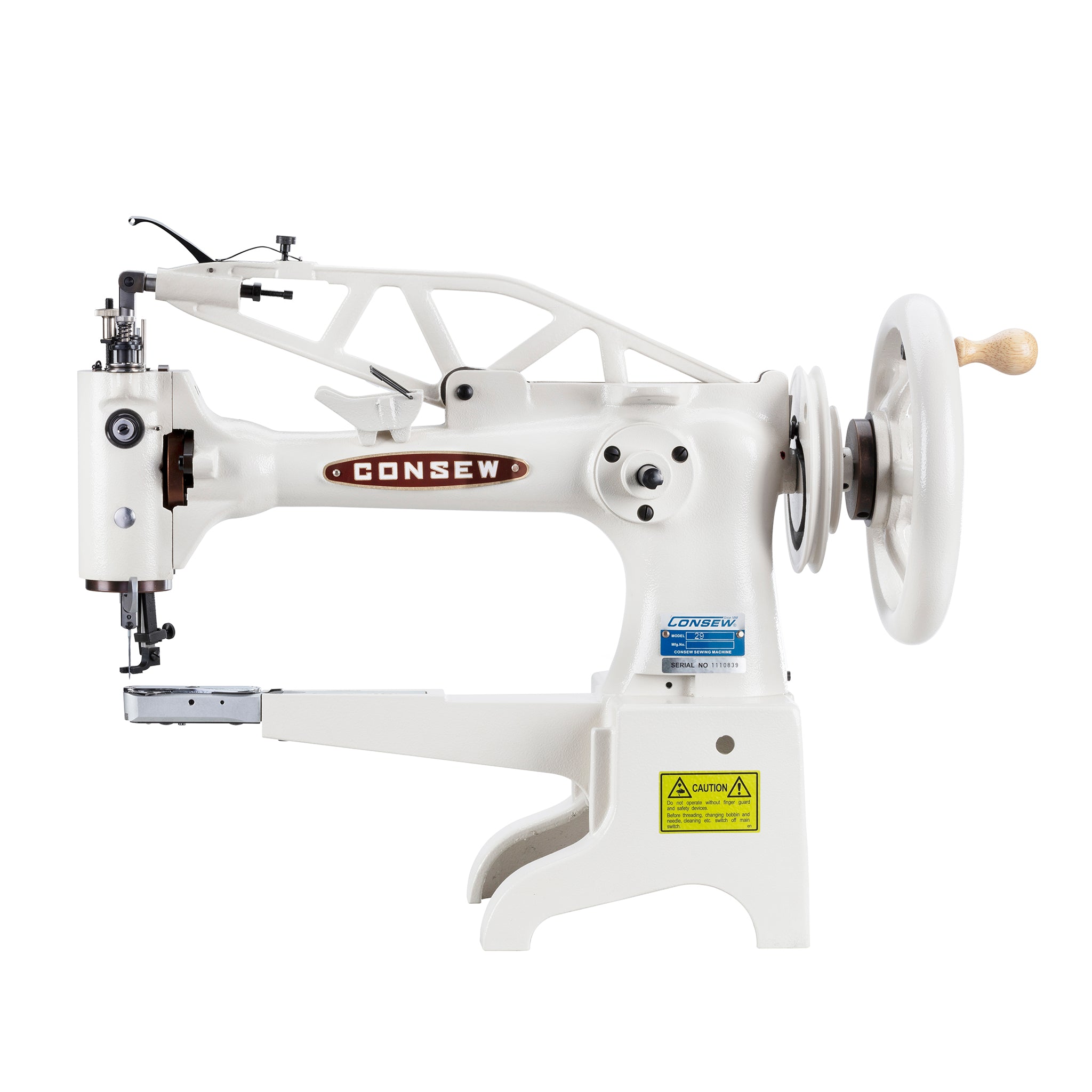

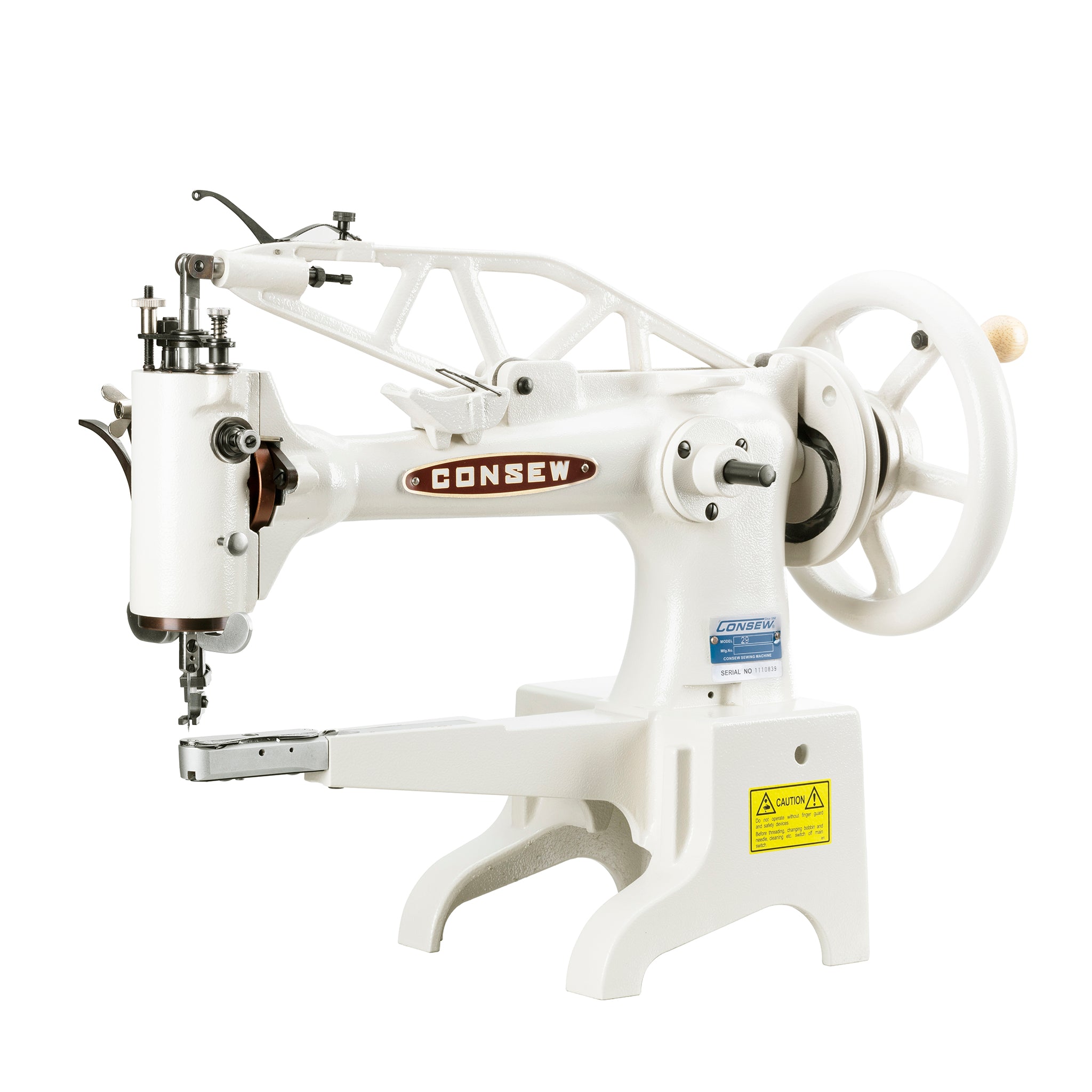

The 29B is a 12" Cylinder Arm Single Needle machine with Large Bobbin for Shoe Repair and Mending,  Lockstitch Machine
(see the 29BL for the 18" long arm)

With: Oscillating Shuttle, Extra Small Cylinder Bed, Universal Upper Feed, Double Ended Needle Plate, Large Bobbin Available

APPLICATIONS

Repairing of leather materials and shoe uppers.

Features

  • Extra small cylinder bed
  • Oscillating Shuttle

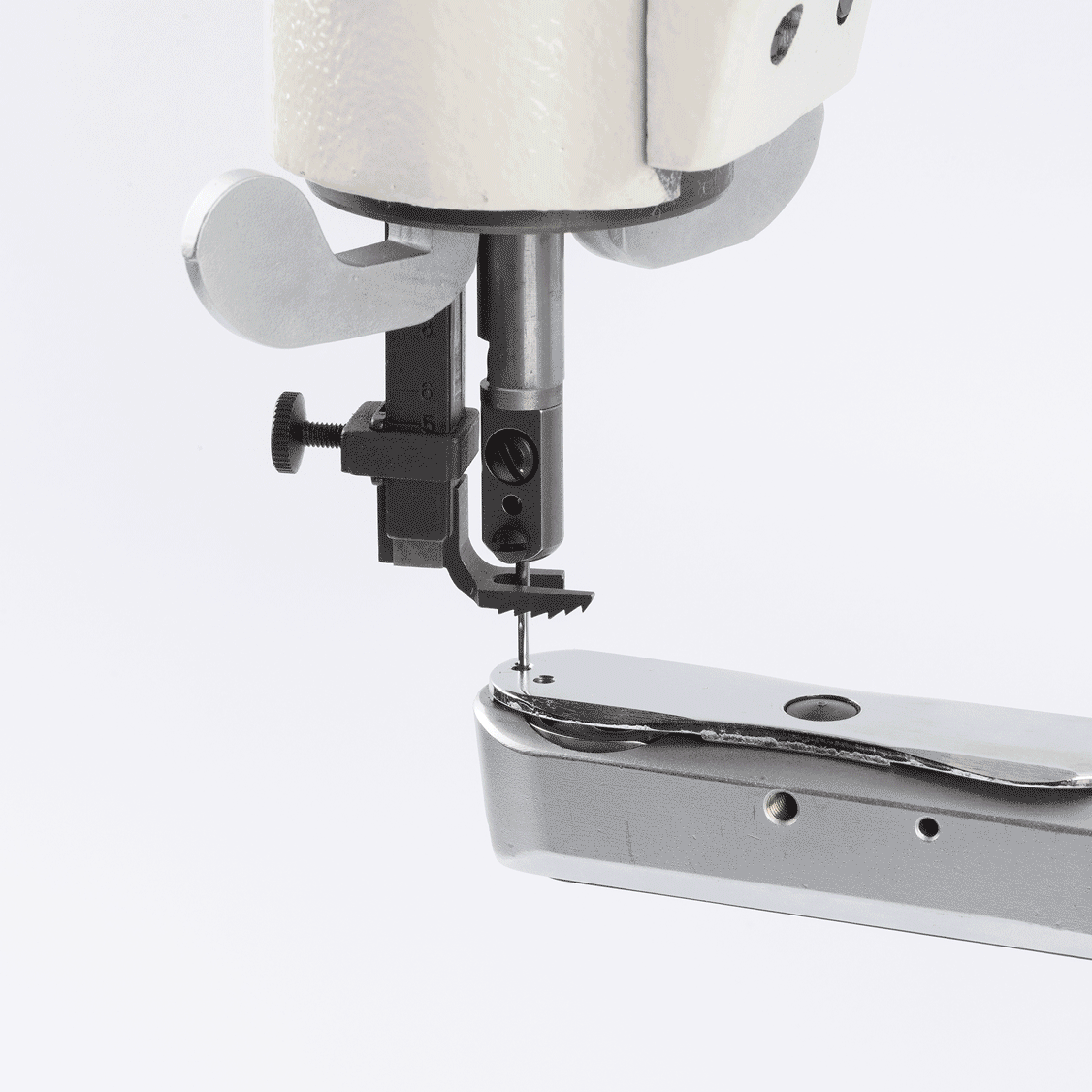

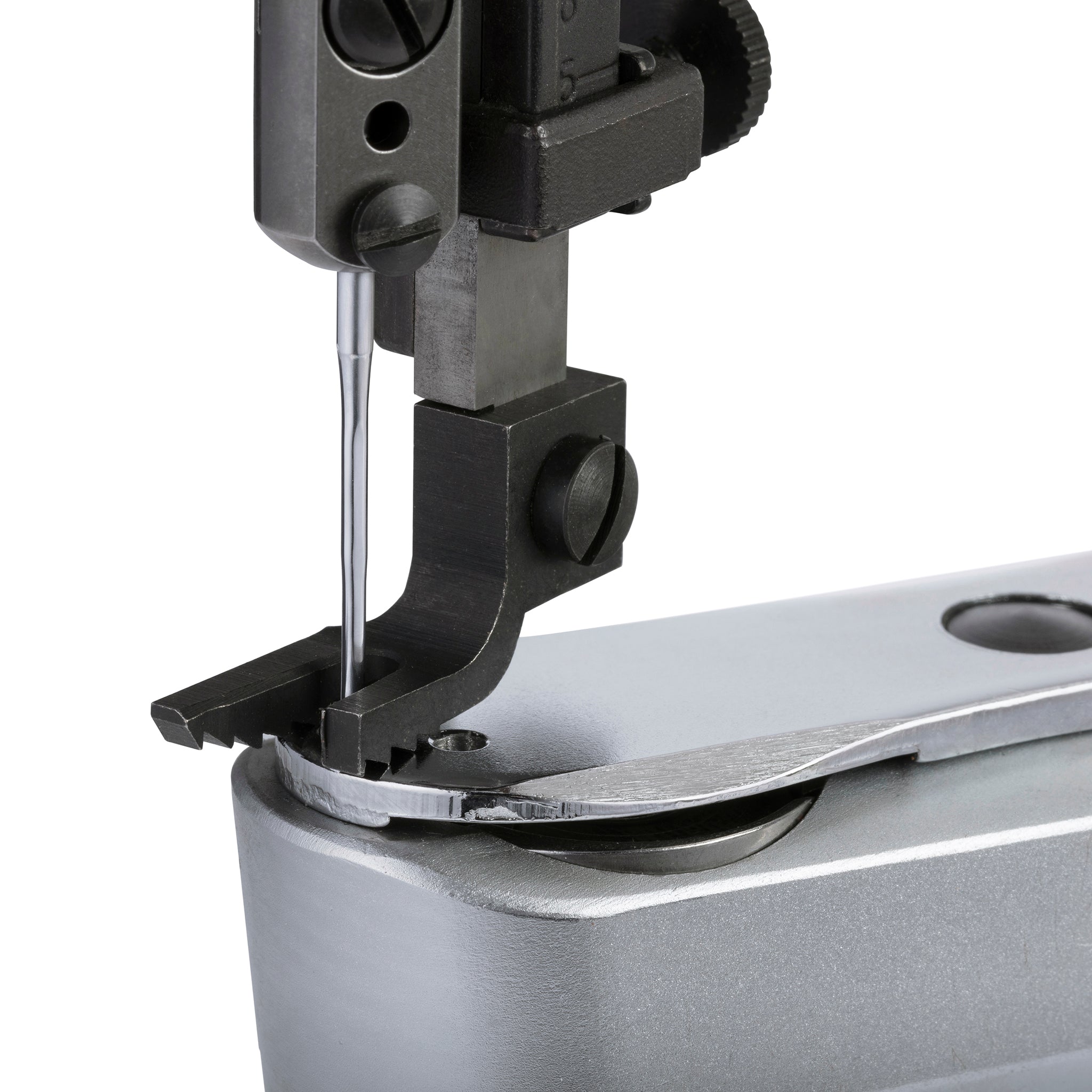

  • Universal upper feed for stitching in any direction without turning work

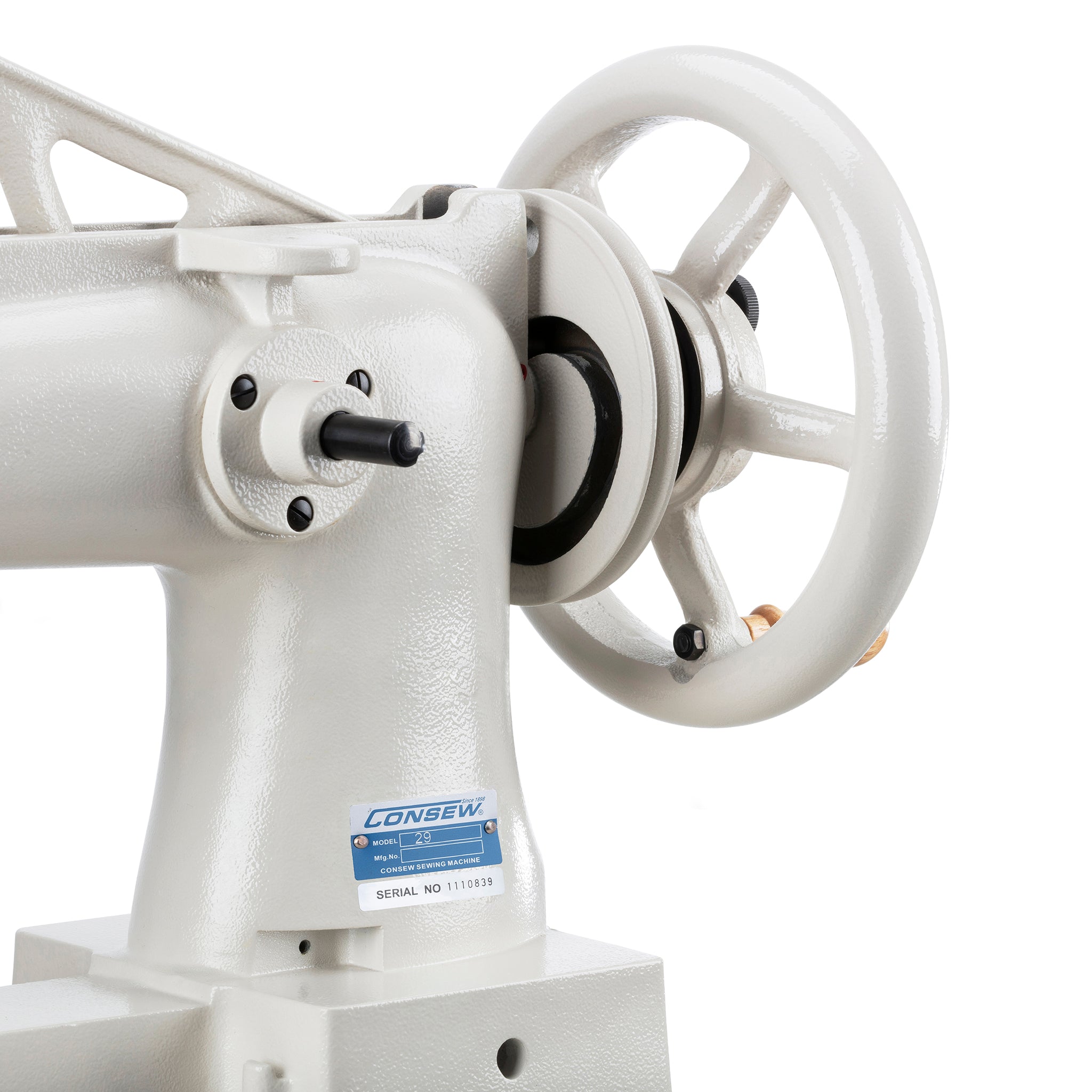

  • Handwheel can be mounted on front or right end of machine
  • Wheel pulley "V" groove for motor drive

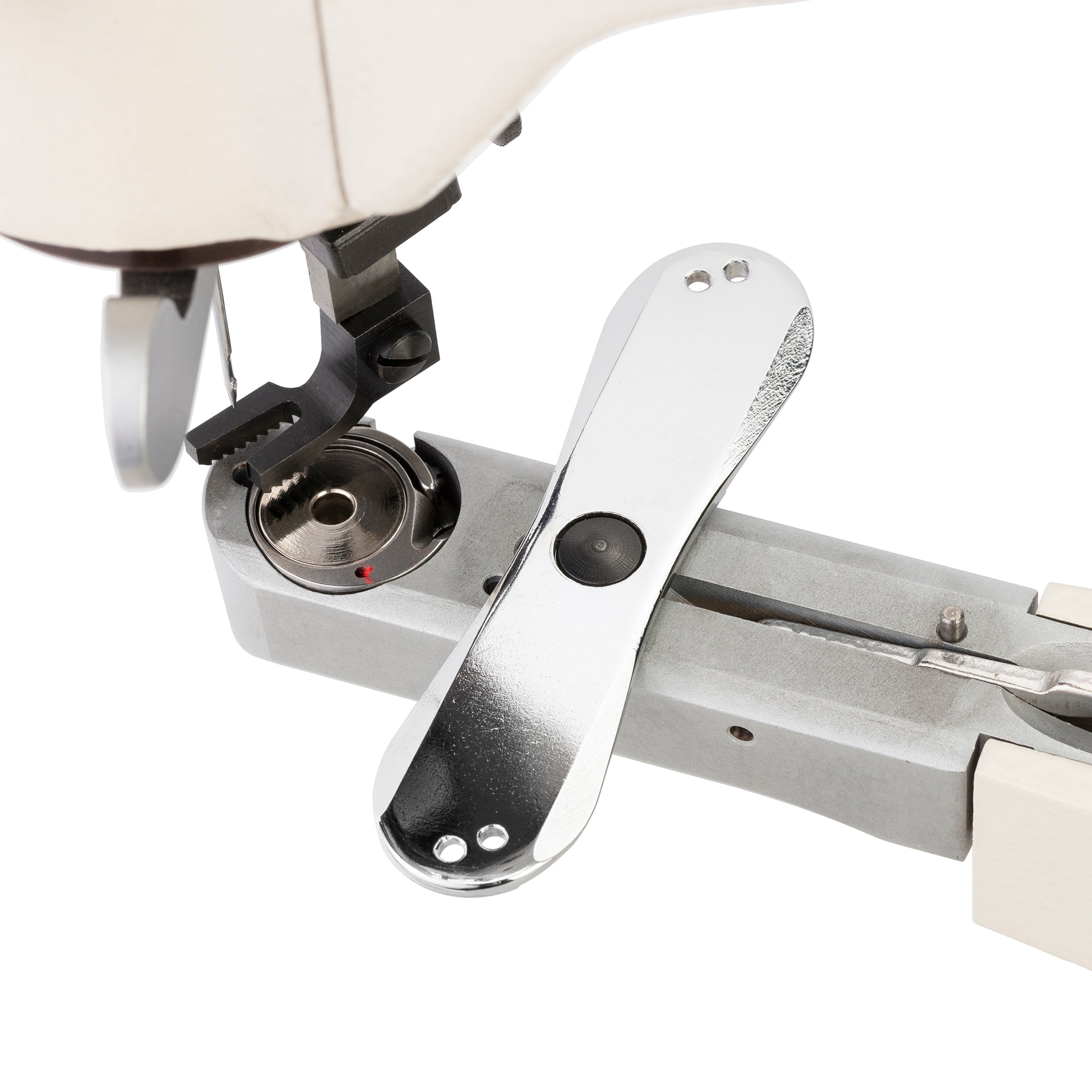

  • Double ended needle plate with different size holes at back end to accommodate various size needles
  • Adjustable thread take-up lever
  • Adjustable presser foot pressure and thread tension
  • Machine can be driven by foot treadle, hand crank or electric motor

INFORMATION

Specifications

Number of Needles 1 (Single)
Feeding Mechanism Universal
Workspace Standard Workspace
Standard or Full Function Standard Functions
Speed, Max (S.P.M.) 500
Clearance Under Presser Foot 13/32 s.p.i. (10.5mm)
Stitch Length 3.5 s.p.i. (1-7mm)
Hook Size Large
Work Space 12" (310mm)
Width of Cylinder Bed 1 5/32" (27.8mm)
Needle TVX5 (149X5)
Depth of Cylinder Bed 1 3/32" (29.4mm)
Net Weight 62 lbs. (28kgs)
Total Carton Size 3.2 ft3 (.09cbm)
