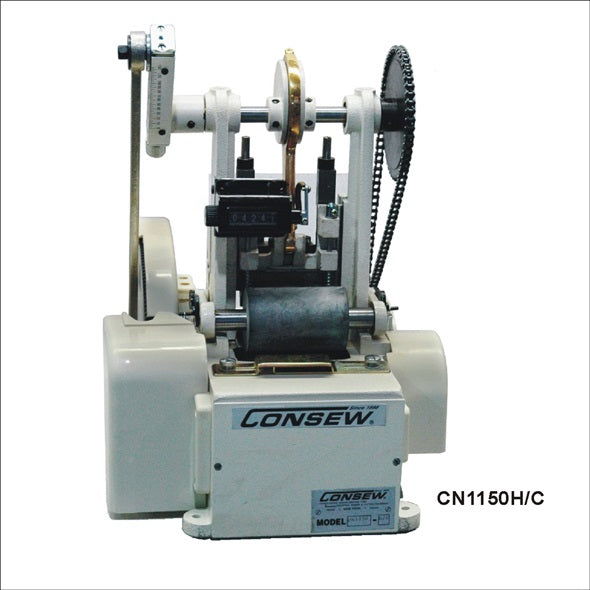

Consew Model CN1150H/C

CN1150H/C
Consew Model CN1150H/C

Overview

Hot Knife Strip Cutter, Straight Cuts To Any Length Up To 60" (150cm), Any Width Of Tape Up To 2-1/8" (55mm), Digital Cut Counter With Reset, Transparent Plastic Knife Shield

Applications

  • Use for most non-elastic materials such as tapes, ribbons, lace, spaghetti, belts, straps, cords and webbing.
  • Eliminates tedious manual labor, assures accuracy and uniformity of cuts.

Features

  • Shearing Action Of Guillotine Type Knives, Make Straight Cuts To Any Length Up To 60" (150cm).
  • Any Width Of Tape Up To 2-1/8" (55mm).
  • Simplest Screw Adjustment For Changing Length Of Cut.  No Tools Required.
  • Equipped With:
    • Digital Resettable Cut Counter
    • Fixed Ratio Speed Reducer
    • Tape Reel
    • Transparent Plastic Knife Shield
  • Can Be Furnished With Pre-feeding Device For Most Accurate Cuts Of Elastic Materials (optional)
  • Available as a complete assembled unit with heavy duty steel stand, formica-type table top and 110 vac motor.
  • Also available with 220v. 3-phase motor

Specifications

Cutting Size Up to 60" length
Up to 2 1/8" width
Cutting Speed 30-80 pieces per minute (depending on length and thickness)
