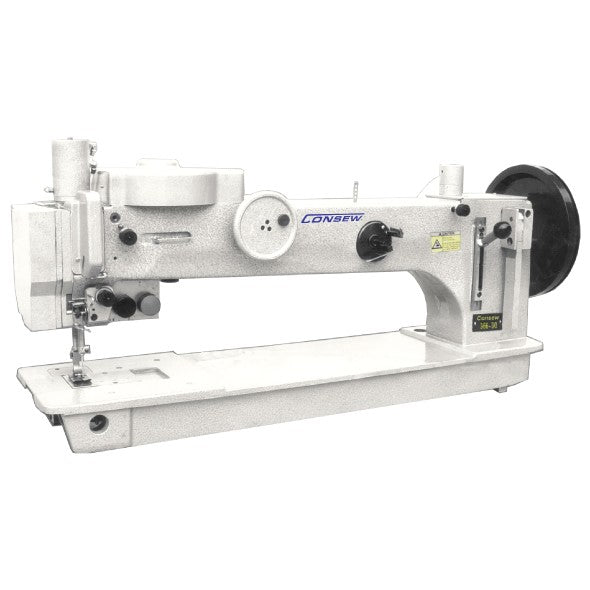

Consew 366-30

Great for sewing various kinds of leather, synthetic, vinyl, canvas and working on large pieces.  The zig-zag operation is particularly suited for the production of sails, tents, tarpaulins & leather goods.

• Straight Stitch up to 10mm stitch length
• Zig-Zag: 1-step, 2-step & 3-step operation
• Control cams for 1-step and 3-step zig-zag included
• Fast conversion to different stitches and needle sizes
• Stitch control cams, hook, bobbin and shuttle race     can be easily
•  accessed by loosening a knurled nut
• Large transverse shuttle hook and bobbin
• Bobbin winder on top of machine head
• Presser foot lift up to 20 mm
• Large handwheel for increased sew-through capability
• Coordinated foot pressure and foot lift for easy control
• Push-button control for intermittent tacking and ½ stitch needle adjustment
• Permanently lubricated roller bearings for long life
• Needle guard and bar designed for sewing safety when using very thick threads
• Optional top and bottom puller feed available

Number of Needles: 1 (Single)

Feeding Mechanism: Drop Feed

Workspace: Long Arm

Speed, Max (R.P.M.): 600

Clearance Under Presser Foot: By Hand: 13mm, By Knee: 20mm

Stitch Length: 10mm

Work Space: 760mm x 175mm

Needle: DY x 3 25#

Bobbin: KSP-204N

Bed Size: Not Specified

Weight: Not Specified

Needle Bar Stroke: 50.8mm

Hook: KSP-204N

Zig-Zag Stitch Width: 0-12mm

Lubrication: Manual

Motor: 750W Clutch Motor

Thread Take-Up Stroke: 96mm
