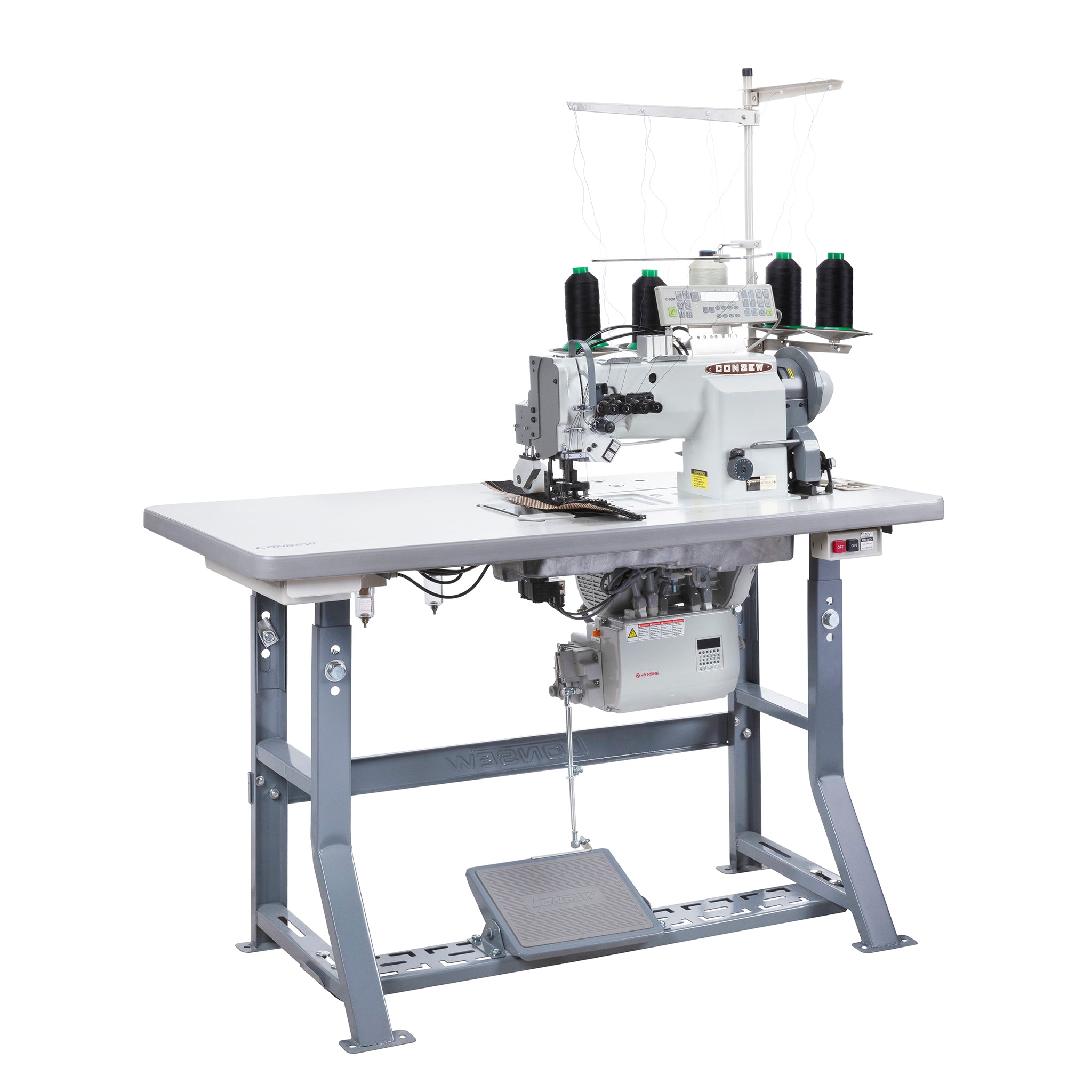

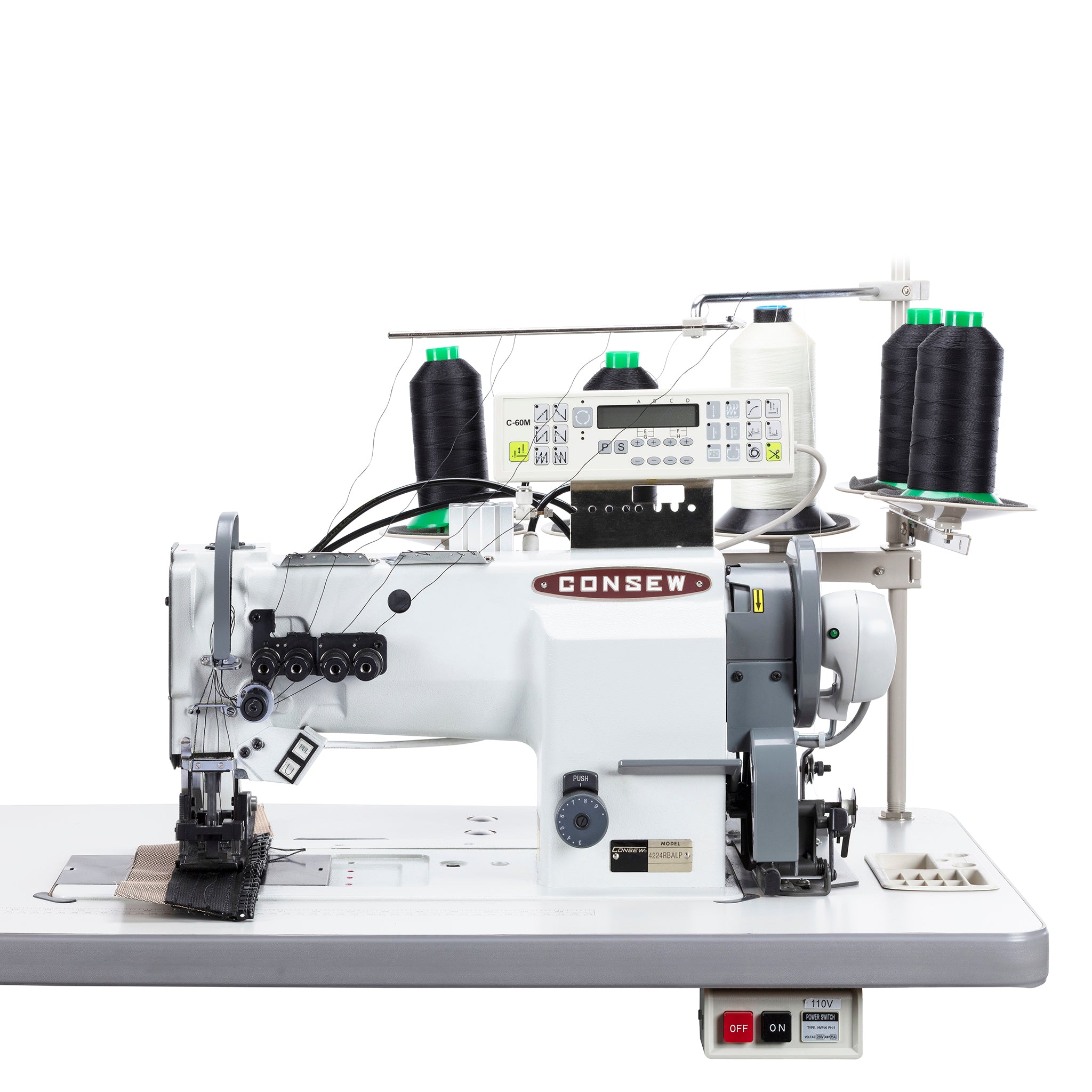

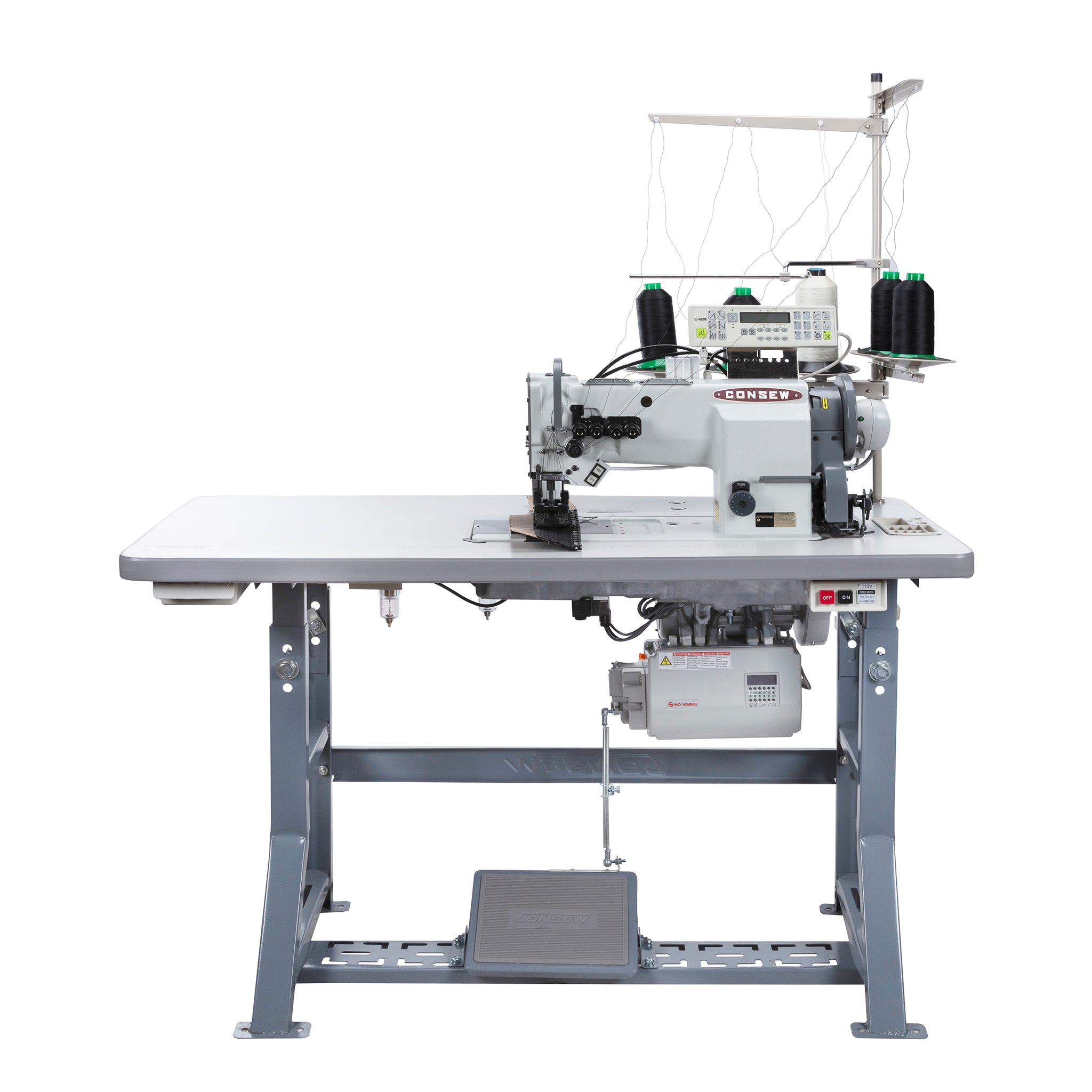

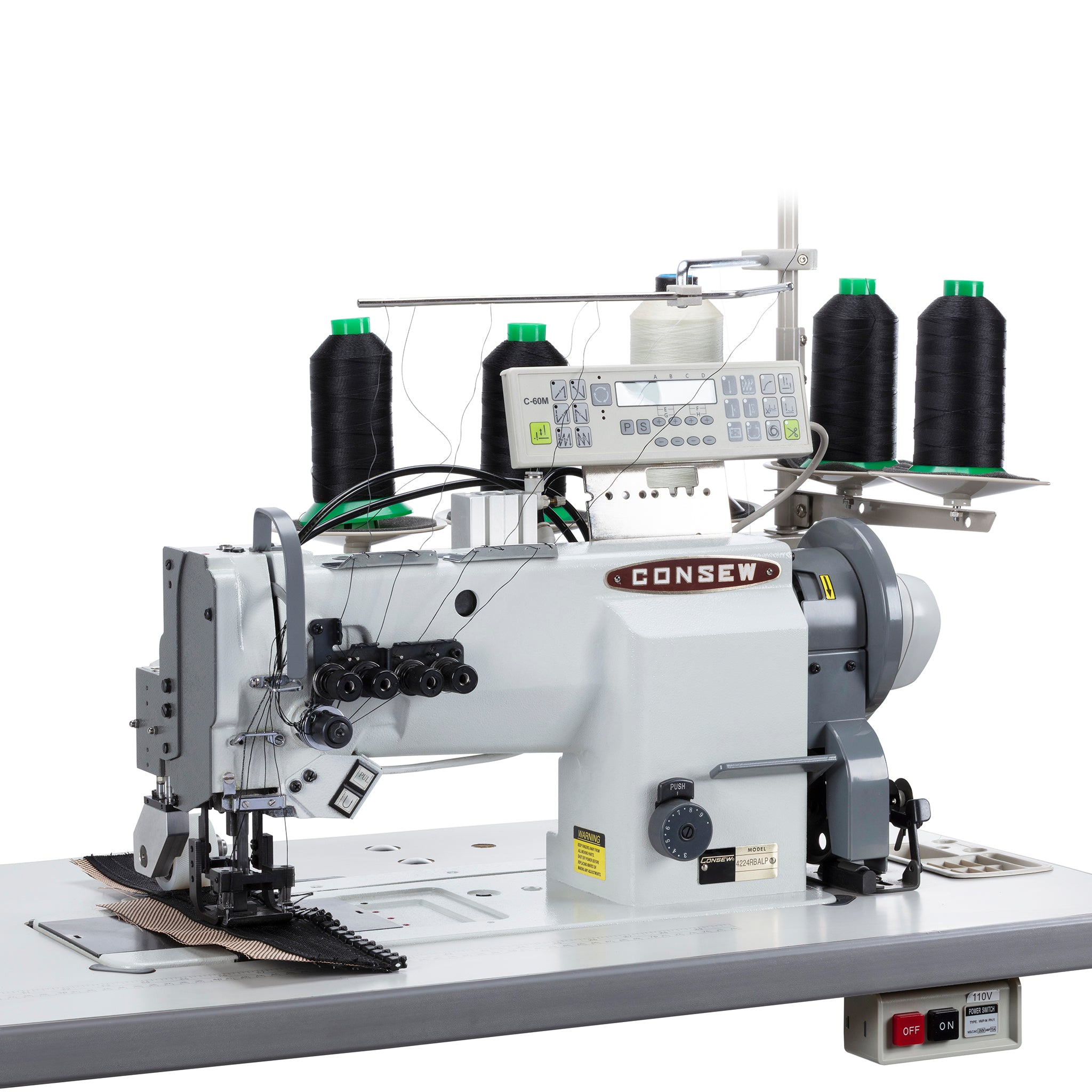

Consew 4224RBALP

• The 4244RBALNP is a compound feed, four needle lockstitch machine, with big hooks and bobbins, and puller. It is great for sewing wide elastic bands and webbing bands that require strong reinforcing.
• Great for decorative stitching on canvas and leather goods.

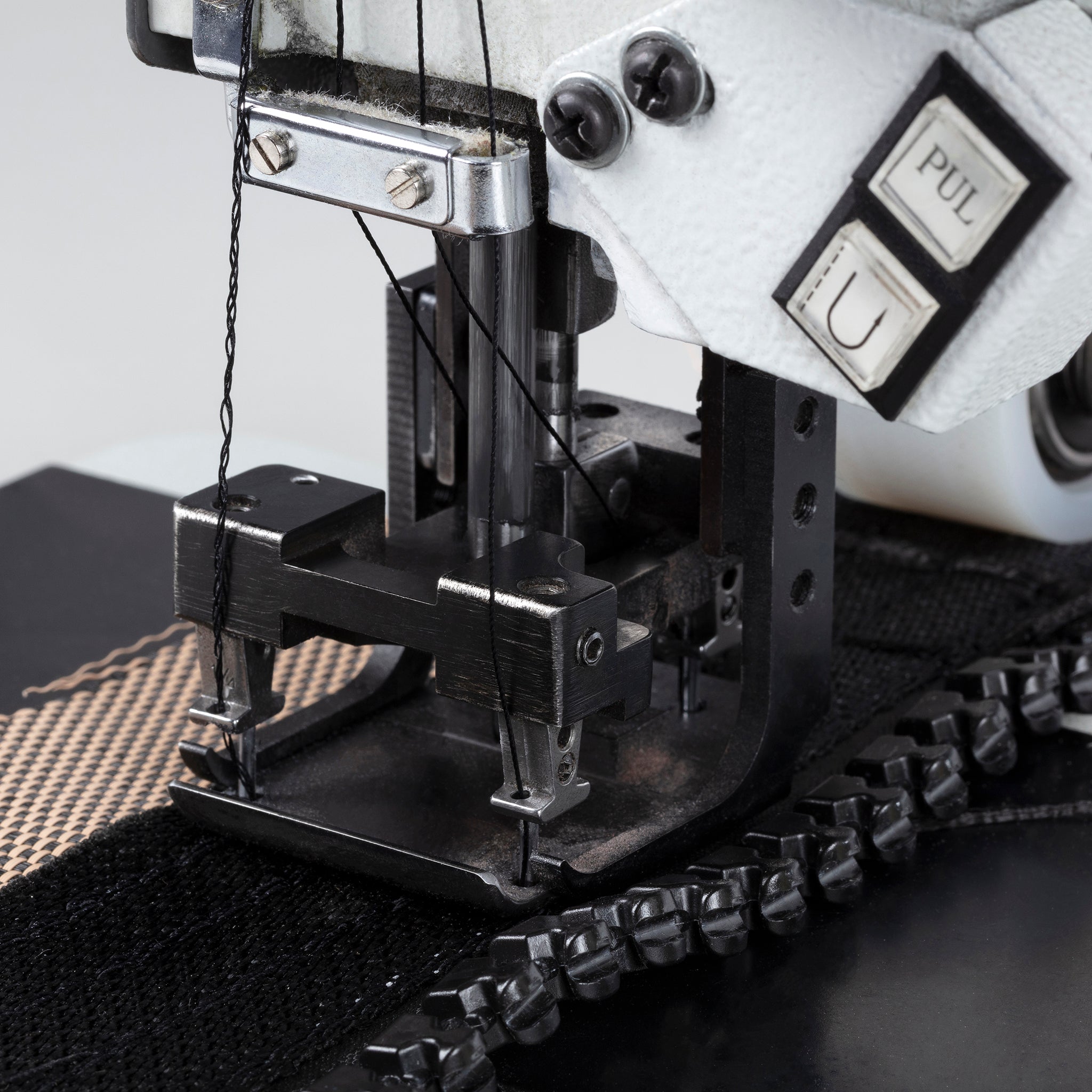

• With four straight needles, feed dog and walking foot, it produces four parallel lines of even and beautiful lockstitches.

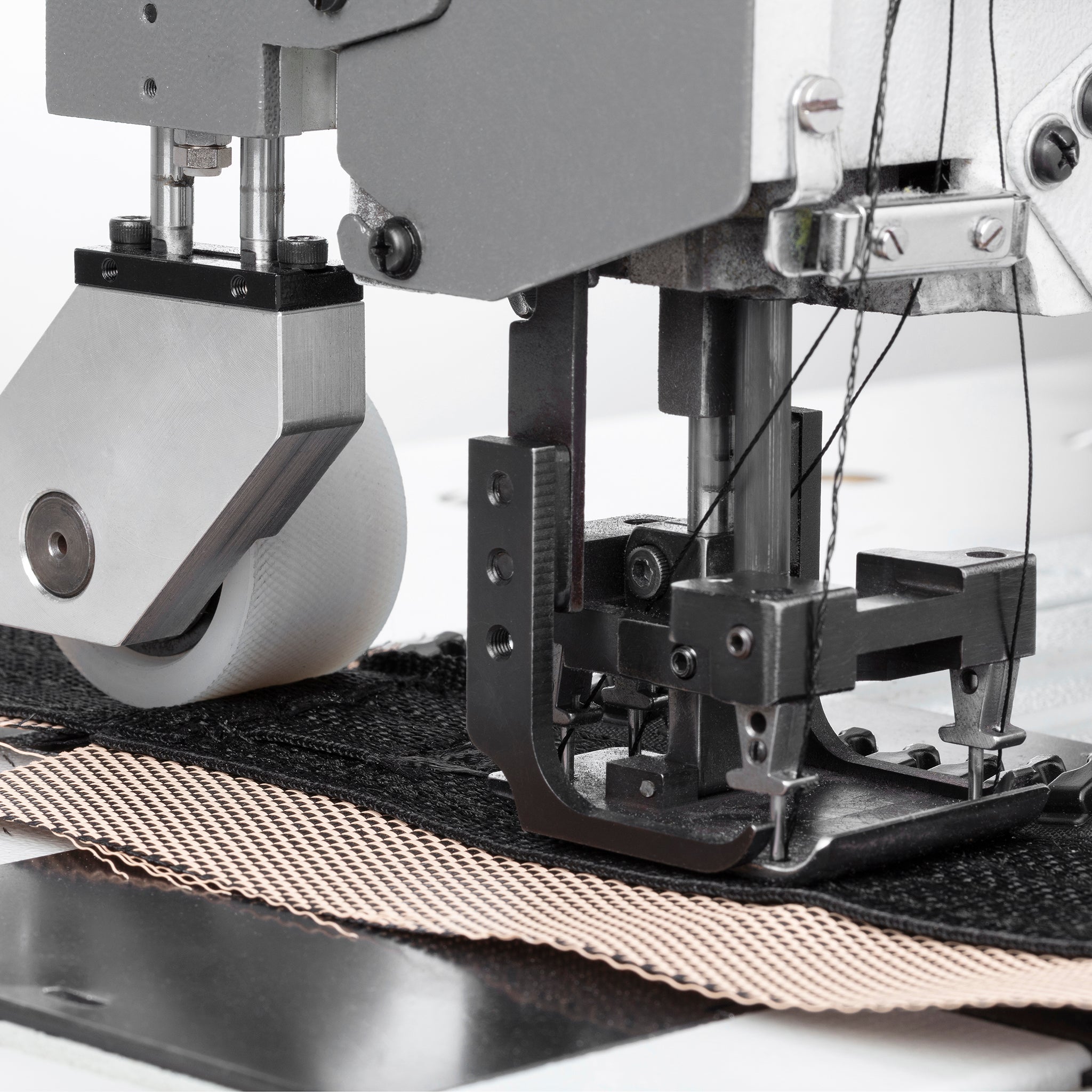

• The Puller feeder, for sewing heavy weight materials is very effective in achieving positive feeding of heavy and difficult materials It gives you the ability to make uniform seams without a struggle.

• Sews four parallel rows of strong lockstitching
• Easily adjustable stitch length.
• Puller feed for heavy fabric.
• Comes with air foot lift and reverse button near the needles
• Wide range of available gauges enhances versatility.
• Large maximum needle distance - 38.1 mm
• Heavy duty 750W servo motor, 110V or 220V
• Variable distance between the two middle needles using special gauges allows for flexibility in accomplishing special sewing tasks.
• Maximum width of the four needles can be up to 50 mm.

• Max. sewing speed: 1800 r.p.m. *
• Stitch length: 0 — 10 mm
• Needle bar stroke: 36 mm
• Thread take-up lever stroke: 74.5 mm
• Presser foot lift: by hand 8mm / by knee 15mm
• Presser foot alternation: 2–6mm
• Needle size: DP x 17 23*
• Rotating hook: Large vertical hook (2 times)
• Lubrication: Auto lubricated
• Motor: 110V or 220V, 750W servo motor
• Needle gauge:

- Standard 6.4 — 6.4 — 6.4 mm

- Special 6.4 — 25.4 — 6.4 mm

• Consew Model 4224RBALP Demo
