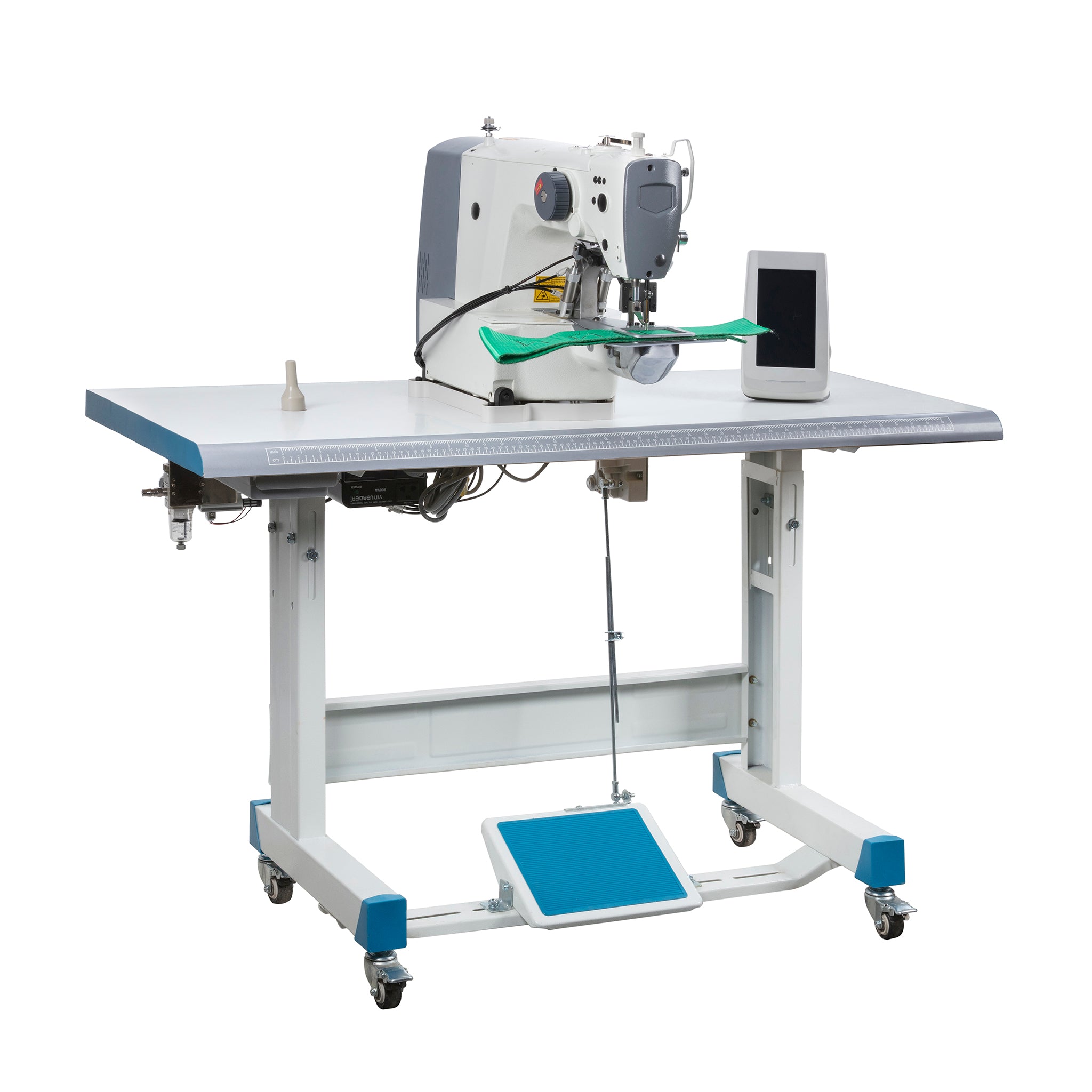

Consew CM-1900HS-XL

Name: Consew CM-1900HS-XL
Brand: My Store
SKU: CM-1900HS-XL
Availability: InStock

SKU: CM-1900HS-XL

Overview

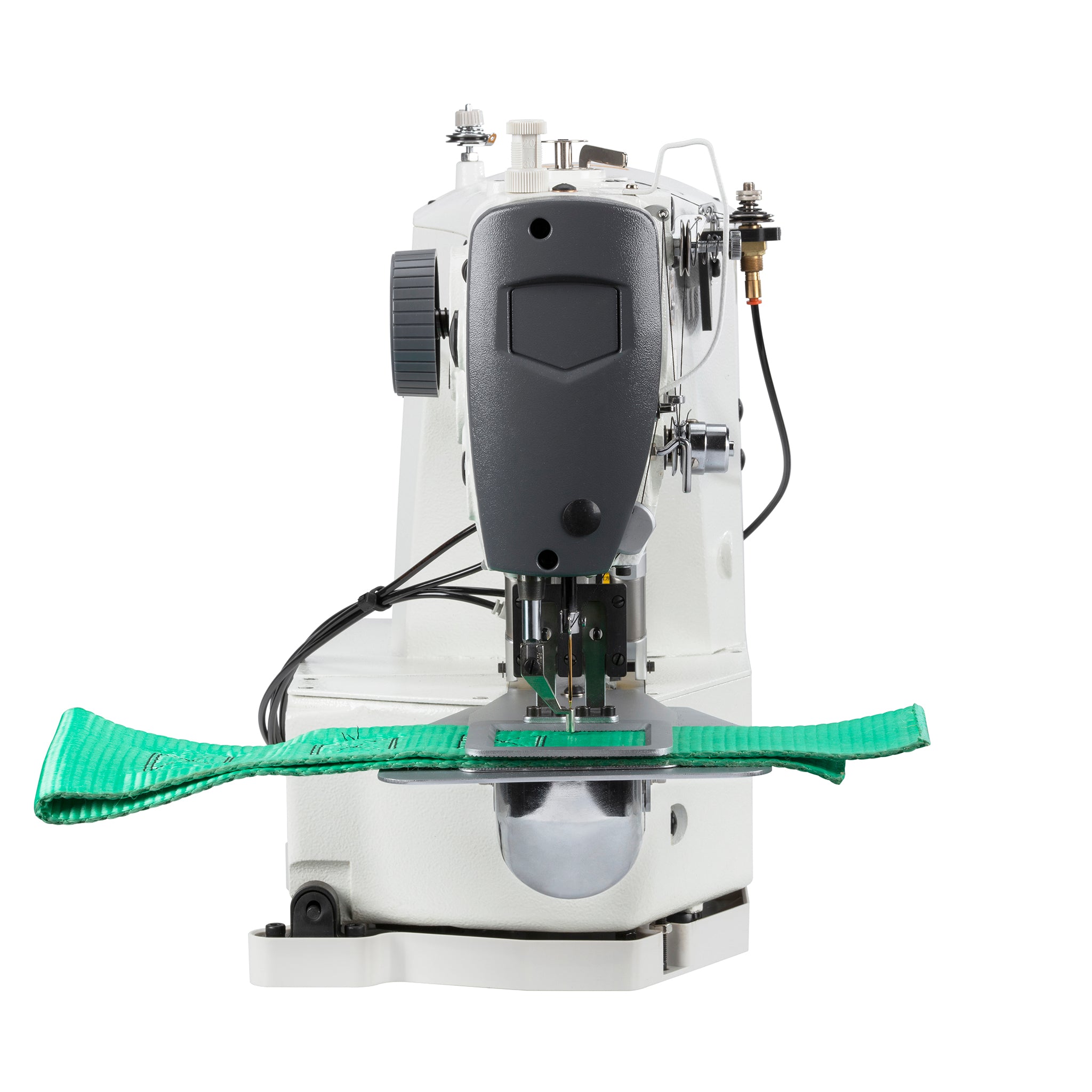

Fully automatic, direct-drive, computer-controlled, single-needle bar tacking machine with programmable sewing patterns, large internal pattern storage, USB port for additional pattern storage, and LED needle light. For Standard and heavy material with extra-large 50mmx60mm sew field. Roll-in Tuck feature.

Product Resources

Download Parts Book Download Catalog Page How To Videos

Applications

Large sewing area allows sewing complex sewing patterns such as lengthwise bartacking. Large memory capacity allows storage of many different scale ratios, numbers of stitches and numbers of sewing patterns. USB port provided.
Designed for stitching such products as auto, boat and furniture upholstery, tarpaulins, covers, awnings, tents, handbags, luggage, sports and camping equipment, outdoor clothing, footwear, orthopedic appliances, ballistic armor, parachute containers, etc.

Features

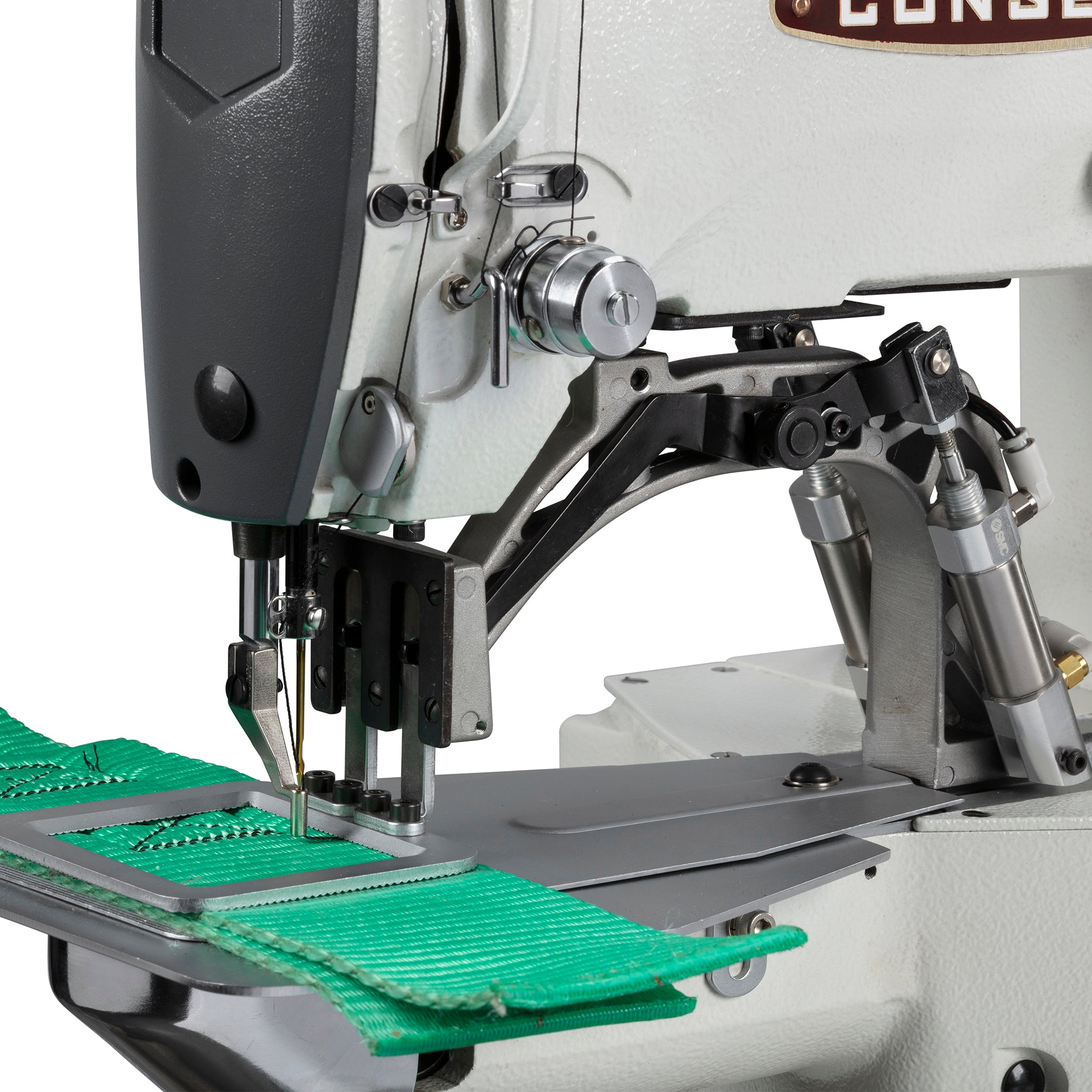

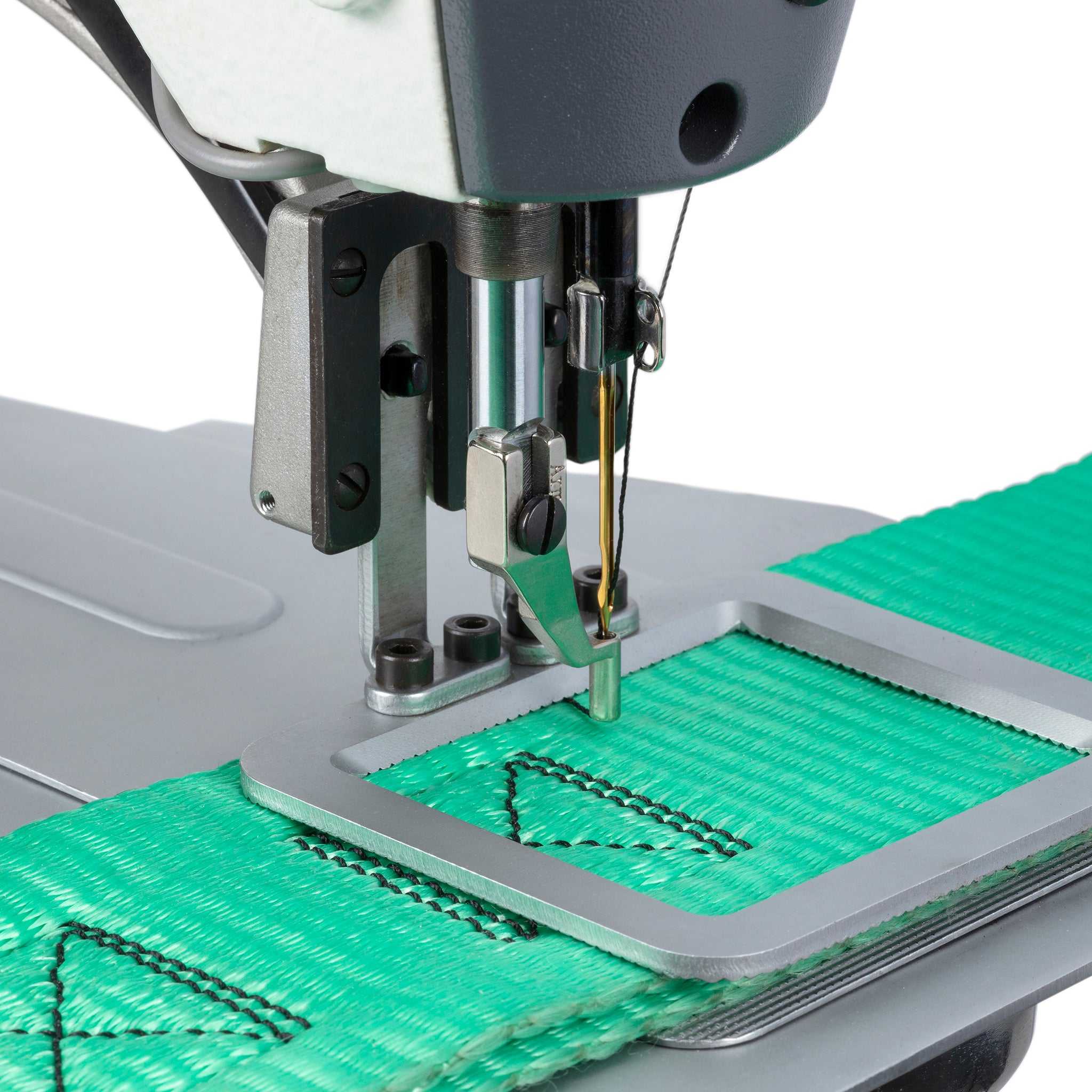

Large Sewing Area: 50mm (W) × 60mm (L)
Direct Drive Motor (no belt connection required)
Stitch data contained in a pattern number can be easily changed by using the pattern enlargement / reduction function. Just enter the scale ratio through the operating screen.
The CM-1900SS and CM-1900HS come with 100
pre-programmed stitch patterns and you can program custom patterns yourself.
The CM-1900HS-XL can be programmed with up to 200 stitch patterns.

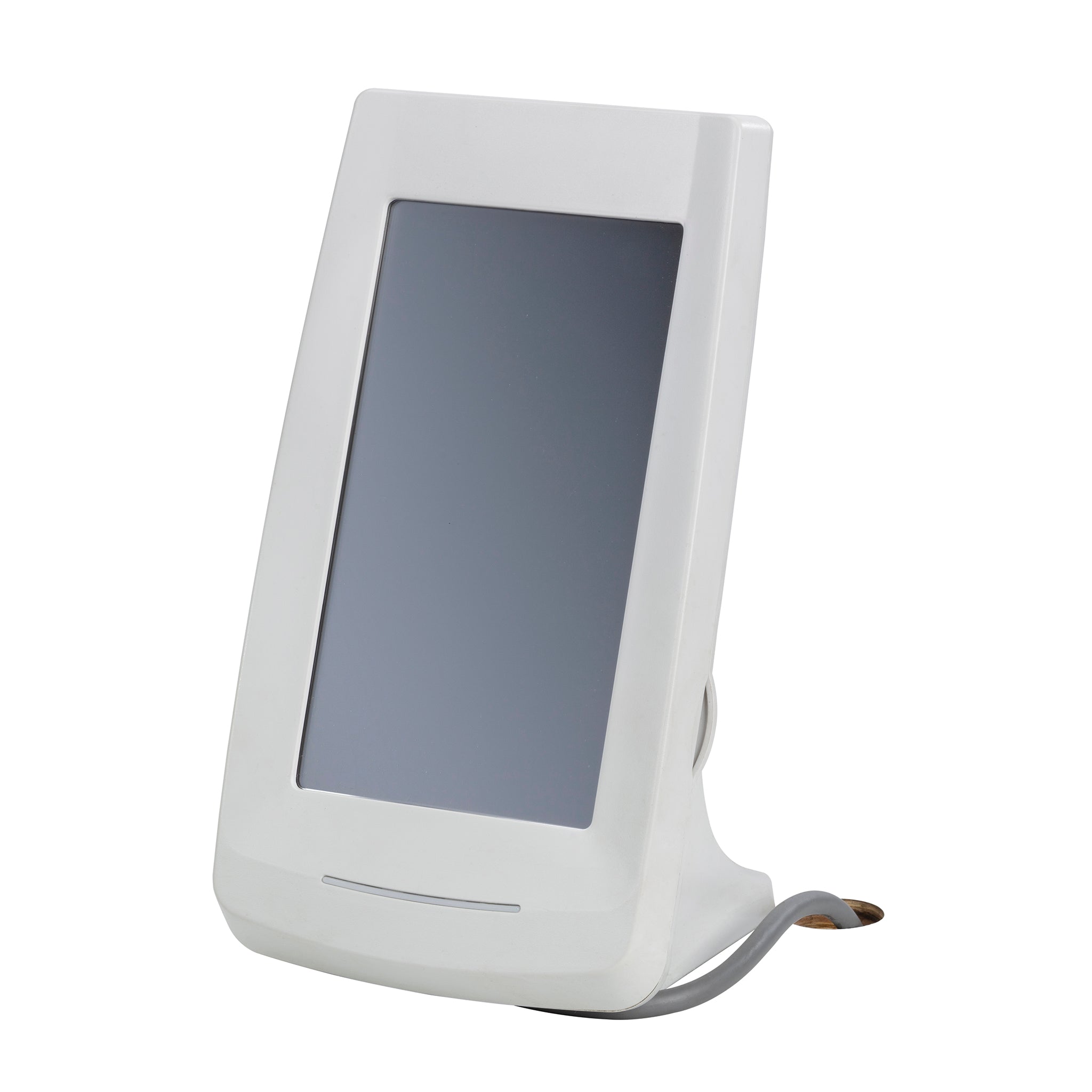

The USB port on the operating panel provides easy storage of important data and access to saved patterns.
CM-1900HS-XL model comes with a roll-in-tuck feature. Tucks top thread underneath when starting
Standard attachments can be easily installed

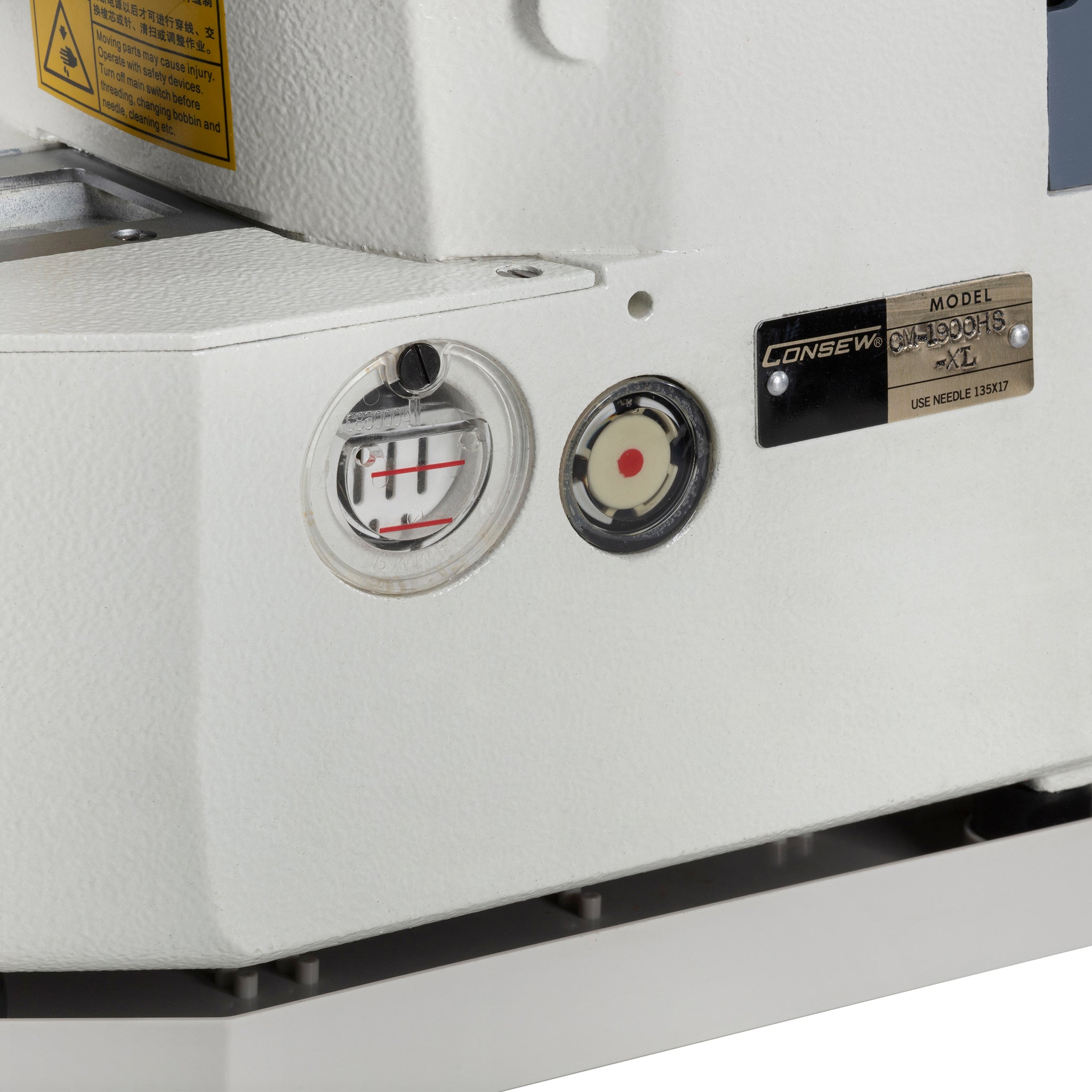

Semi-dry head Lubrication (Hook: minute-quantity lubrication)

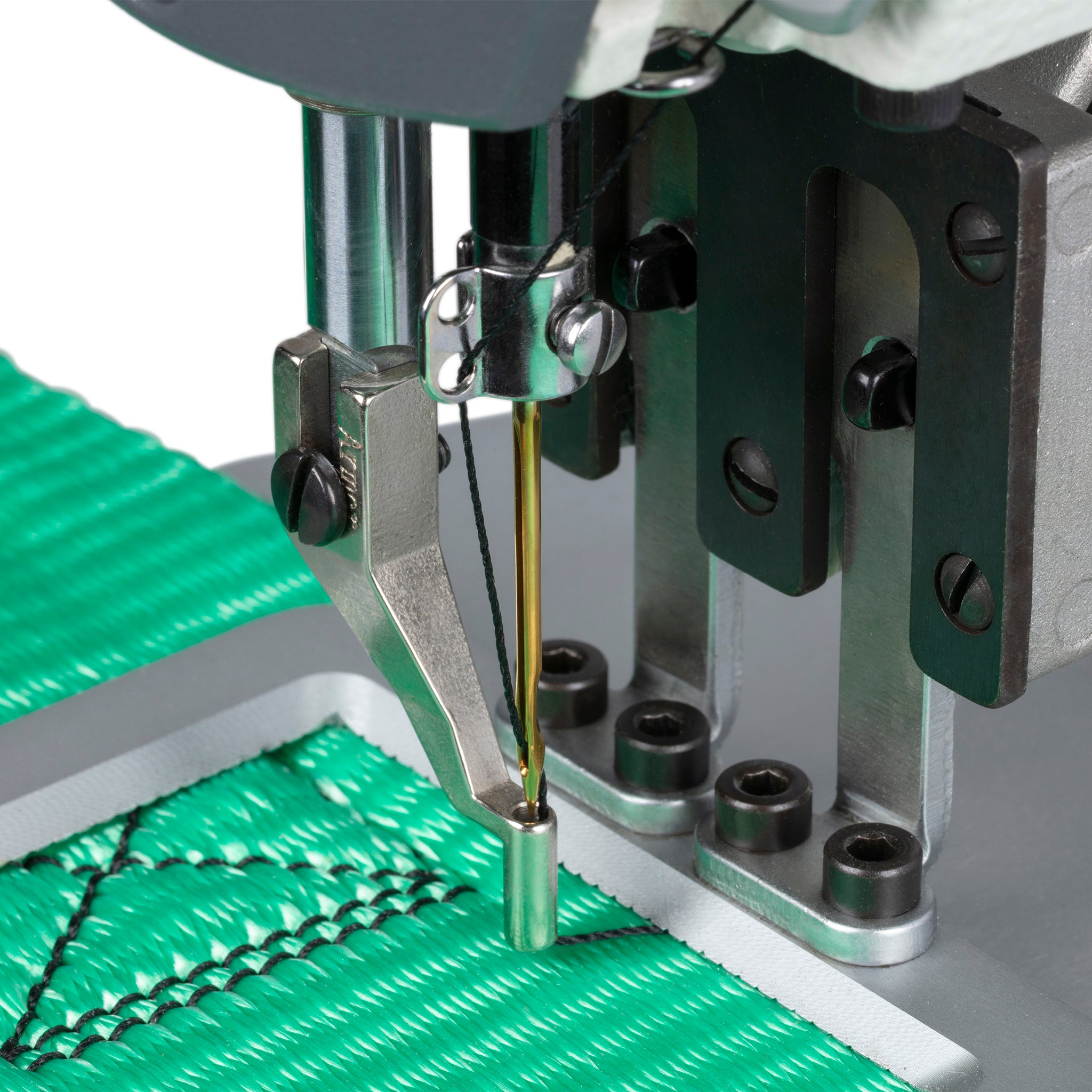

Diamond Like needle bar coating (DLC). Advanced needle cooling system

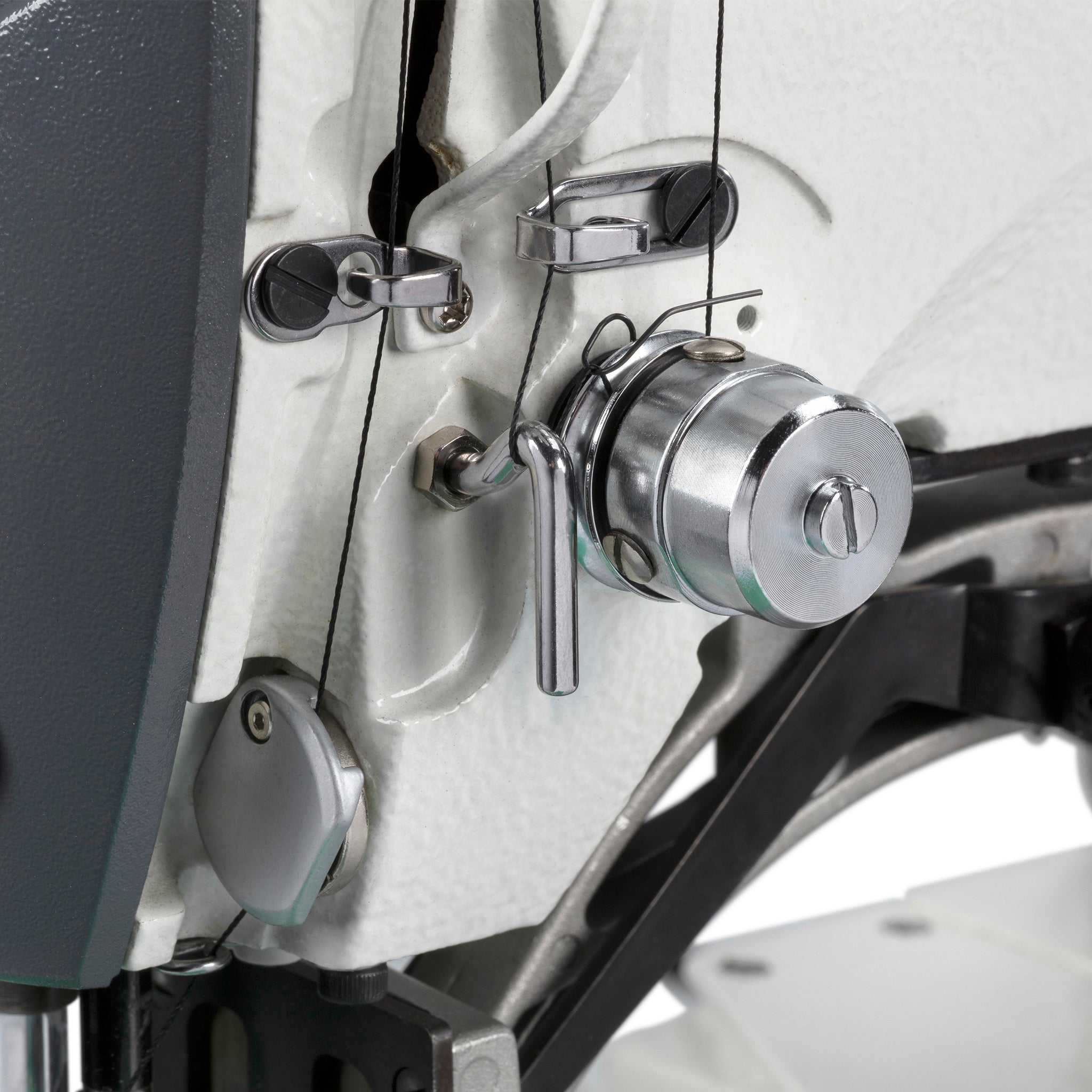

Active Tension (AT). Electronically controlled digital tension
Only available 220 Volt 1 phase. (110 V transformers are sold separately)

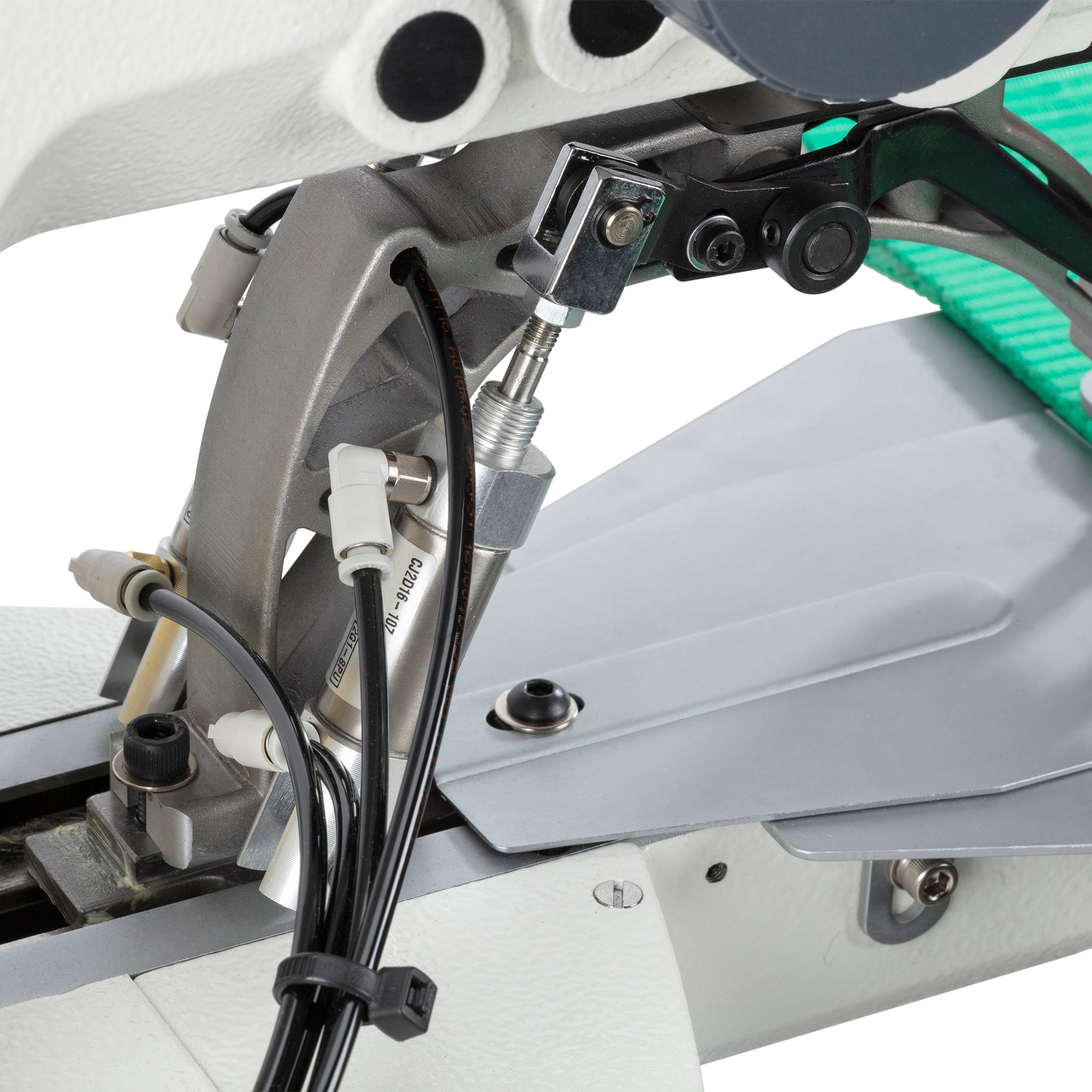

Optional : Air presser foot (clamp) lifter. (Requires compressed air)

Specifications

Number of Needles: 1 (Single)
Workspace: Standard Workspace
Standard or Full Function: [Not specified]
Stitch Type: [Not specified]
Speed (Max S.P.M.): 2500
Max Stitch Length: 12 mm
Needle Bar Stroke: [Not specified]
Needle Used: DPX17 (standard), DPX5 (optional)
Number of Stitches: [Not specified]
Looper: [Not specified]
Clearance Under Foot: 33/64" (13mm), 17mm with reverse-rotation needle-up function
Power: 220V (110V converter available as an option)

Educational Videos

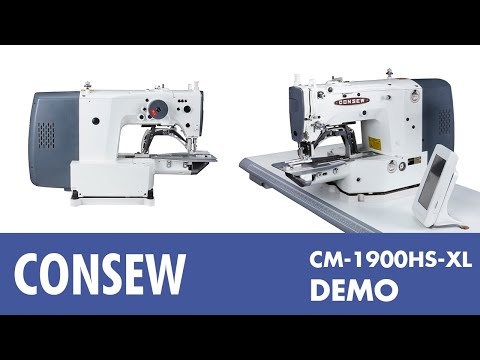

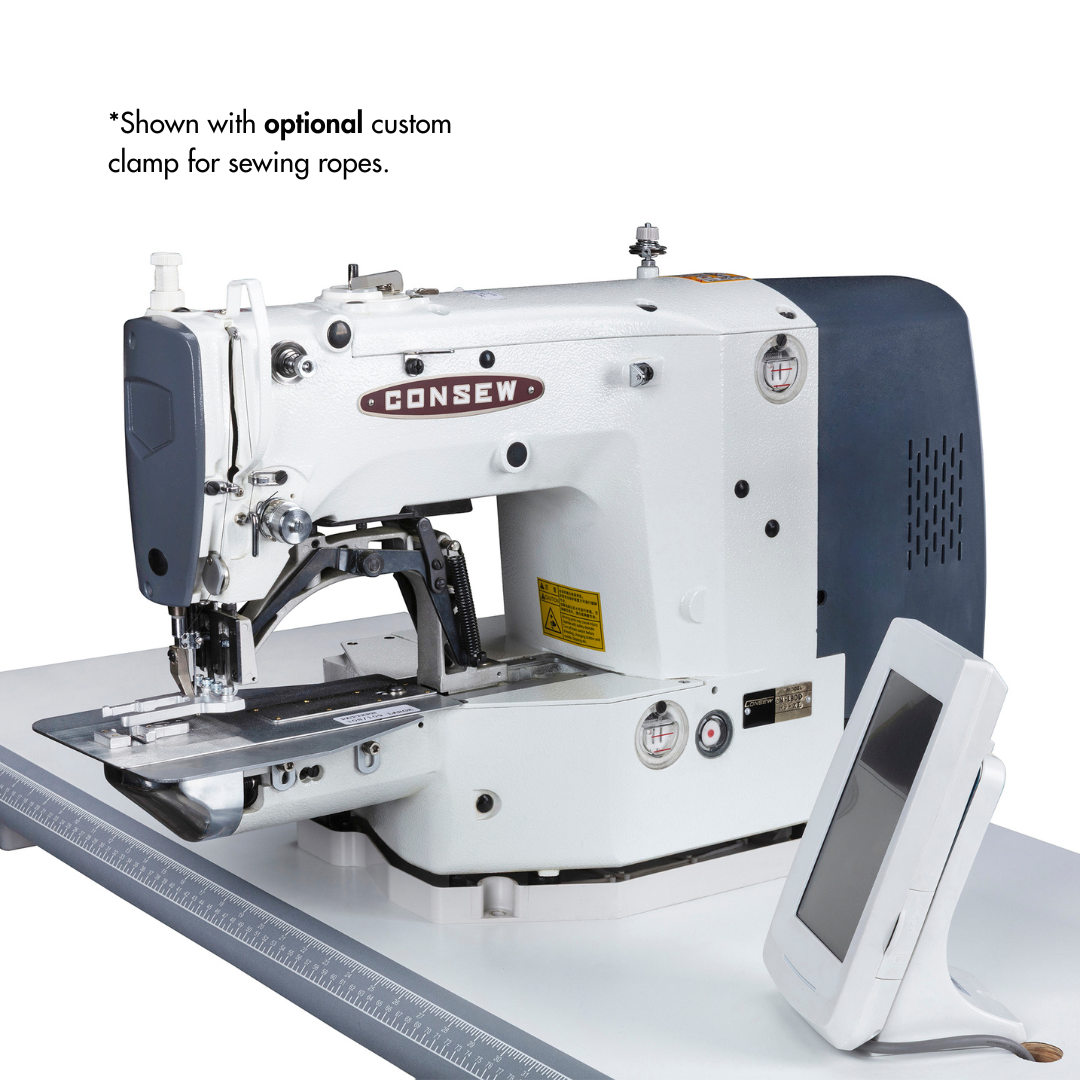

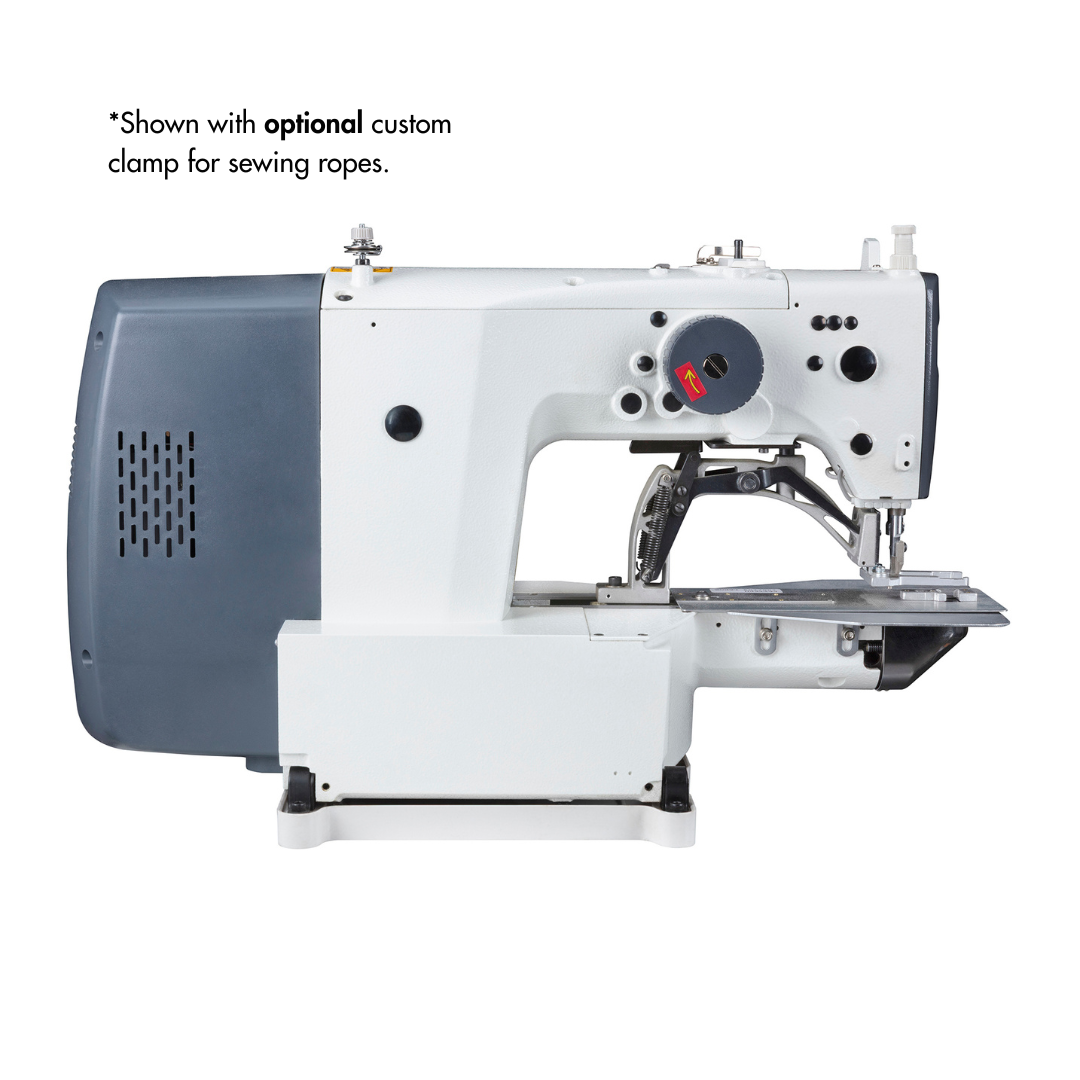

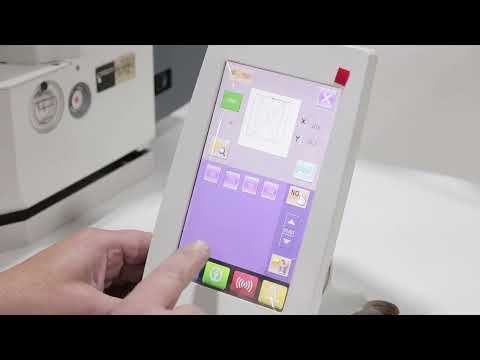

Consew Model CM-1900HS-XL With Custom Rope Sewing Clamp Demo
