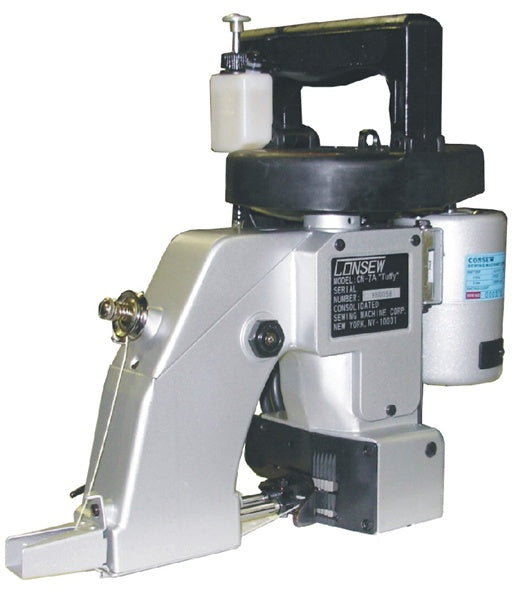

Consew CN7A

Consew CN7A

SKU: CN7A

Overview

Heavy Duty, Single Thread, Chainstitch, Bag Closing Machine
Featuring an Extra Heavy Feed Dog
with Oil Lubrication System.
"NEWLONG" STYLE

Product Resources

Download Manual Download Parts Book Download Catalog Page

Applications

Designed to close bags made of materials such as jute, cotton, linen, paper, burlap, plastic, and waterproofed materials
Suitable for plain and folded top closures
Used by packers of flour, grain, fertilizer, feed, chemicals, seed, coffee, sugar, salt, grocery staples, minerals, and other products

Features

Portable
Uses standard needles
Uses popular type thread cones
Protected cutting blades sever the thread after the bag is closed
Easily adapted for stationary or suspended use without loss of portable features
Starts sewing any thickness without raising presser foot

Specifications

Number of Needles: 1 (Single)
Feeding Mechanism: Drop Feed
Workspace: Standard Workspace
Standard or Full Function: Standard Functions
Stitch Type: 101
Speed, Max (S.P.M.): 1600-1800
Max Stitch Length: 9/32" (7.2mm)
Needle Used: 92 x 1 - 25
Looper: a-300
Net Weight: 12lbs. (5.4kg.)
Motor: 110 vac (220 available)

Also Available

Model CN-7A/220 is for 220 volts
Model CN-27A Two Thread Bag Closer
Model CN-27A/220 is for 220 volts
"Newlong" style: Most Parts Are Interchangeable with Newlong Bag Closing Machine parts
