Consew CM-101-DD

Consew CM-101-DD

Consew CM-101-DD

Consew CM-101-DD

Consew CM-101-DD

Consew CM-101-DD

SKU: CM101-DD

Overview

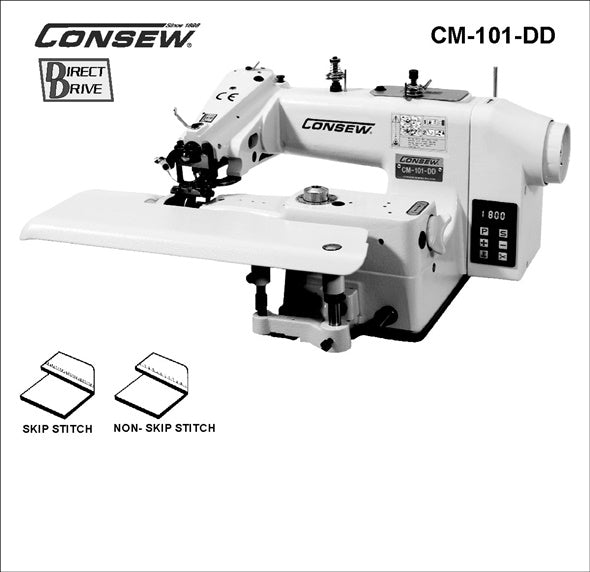

Single Thread, Chainstitch, Blindstitch Machine, Direct Drive

(see also: Consew Model CM-101-7DD with more automatic functions)

Product Resources

Download Parts Book Download Catalog Page

Applications

Perfect for sewing all weights of materials including synthetics, woolens, cottons, fabrics, and knits
1 to 1 non-skip stitches, typical operations include felling edge tapes, bottoms of trousers, cuffs, wigging in sleeves, facings to canvas and knit goods, turned-up bottoms of fully lined coats, padding collars and lapels, and reinforcing trouser seats
2 to 1 skip stitch for hemming dresses, skirts, slacks, trousers, sportswear, ladies coats, draperies, blouses, and other articles
Suitable for felling operations requiring a skip stitch to simulate hand-stitching
2 to 1 skip stitch is recommended for synthetics and other lightweight materials and 1 to 1 non-skip stitch for heavier cotton, woolen, and linen goods

Features

Internal Direct Drive Motor

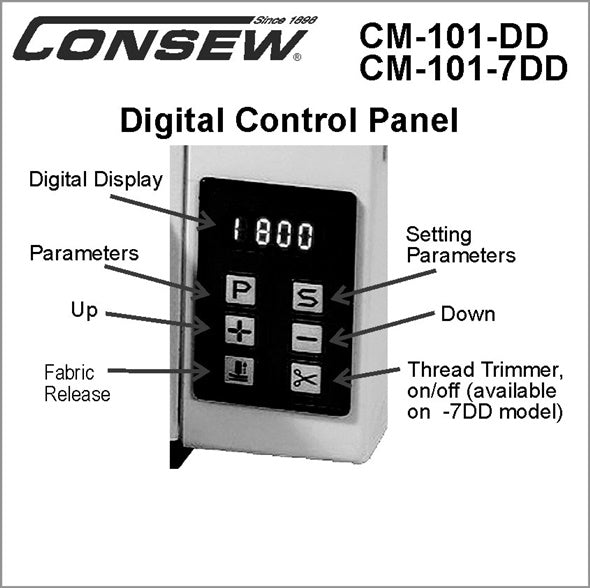

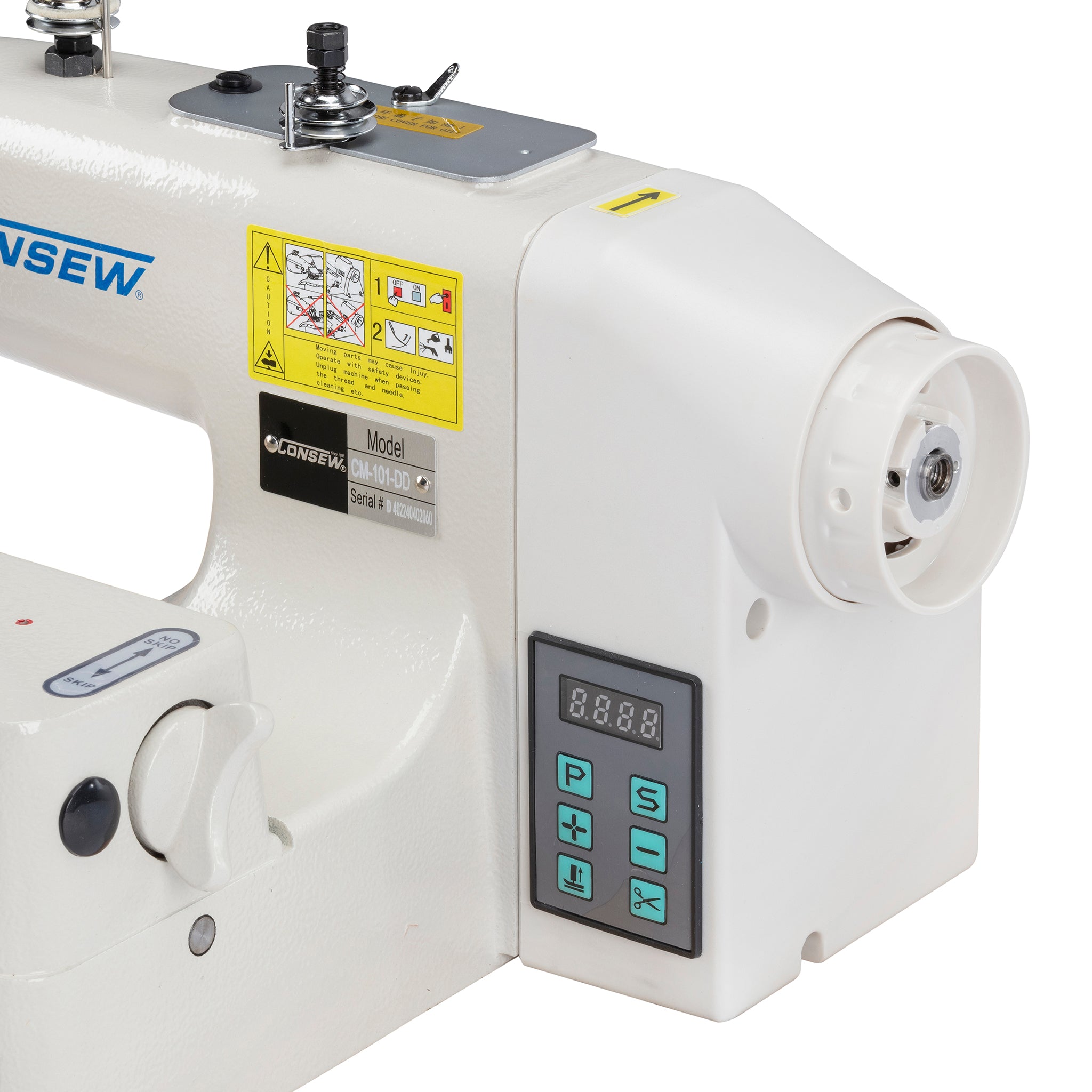

Digital Control Panel
Skip and non-skip stitch lever
Adjustable thread tension
1 to 1 non-skip stitch and 2 to 1 skip stitch

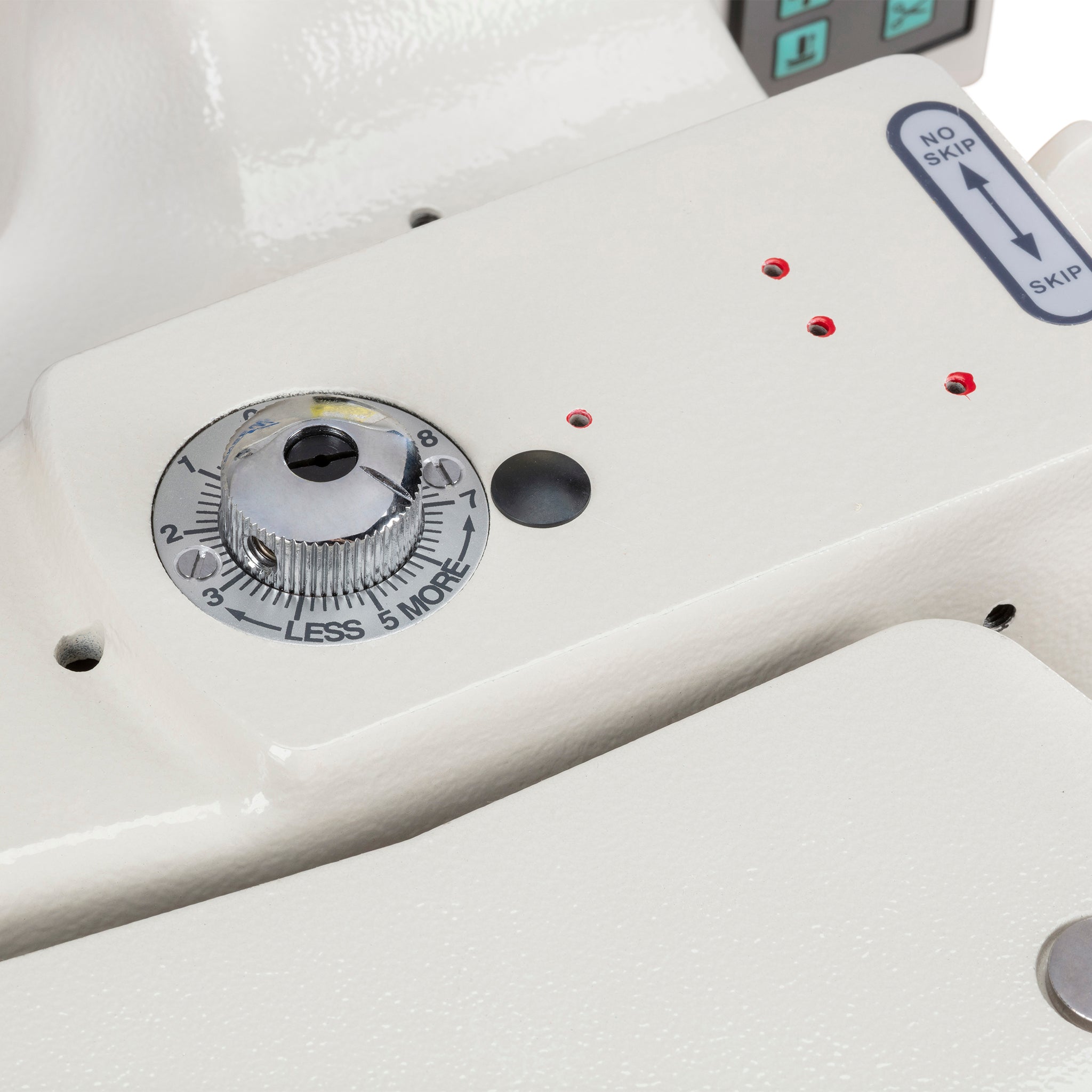

Stitch depth penetration and stitch length adjustment dials
Swing-away work plate for extended working space
Knee-operated feed plate lowers for insertion and removal of work piece

Specifications

Number of Needles: 1 (Single)
Feeding Mechanism: Drop Feed
Workspace: Standard Workspace
Standard or Full Function: Standard Functions
Stitch Type: 103
Speed, Max (S.P.M.): 2500
Max Stitch Length: 1/4" - 3/8" . (3-8mm)
Work Space: 7" (180mm)
Looper: 162

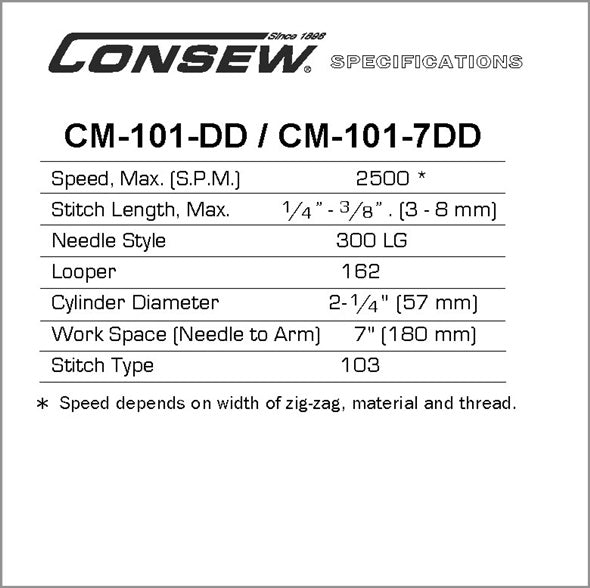

See picture of CM101-DD specifications box for more information
PDF Flyer of CM101-DD and CM101-7DD available
