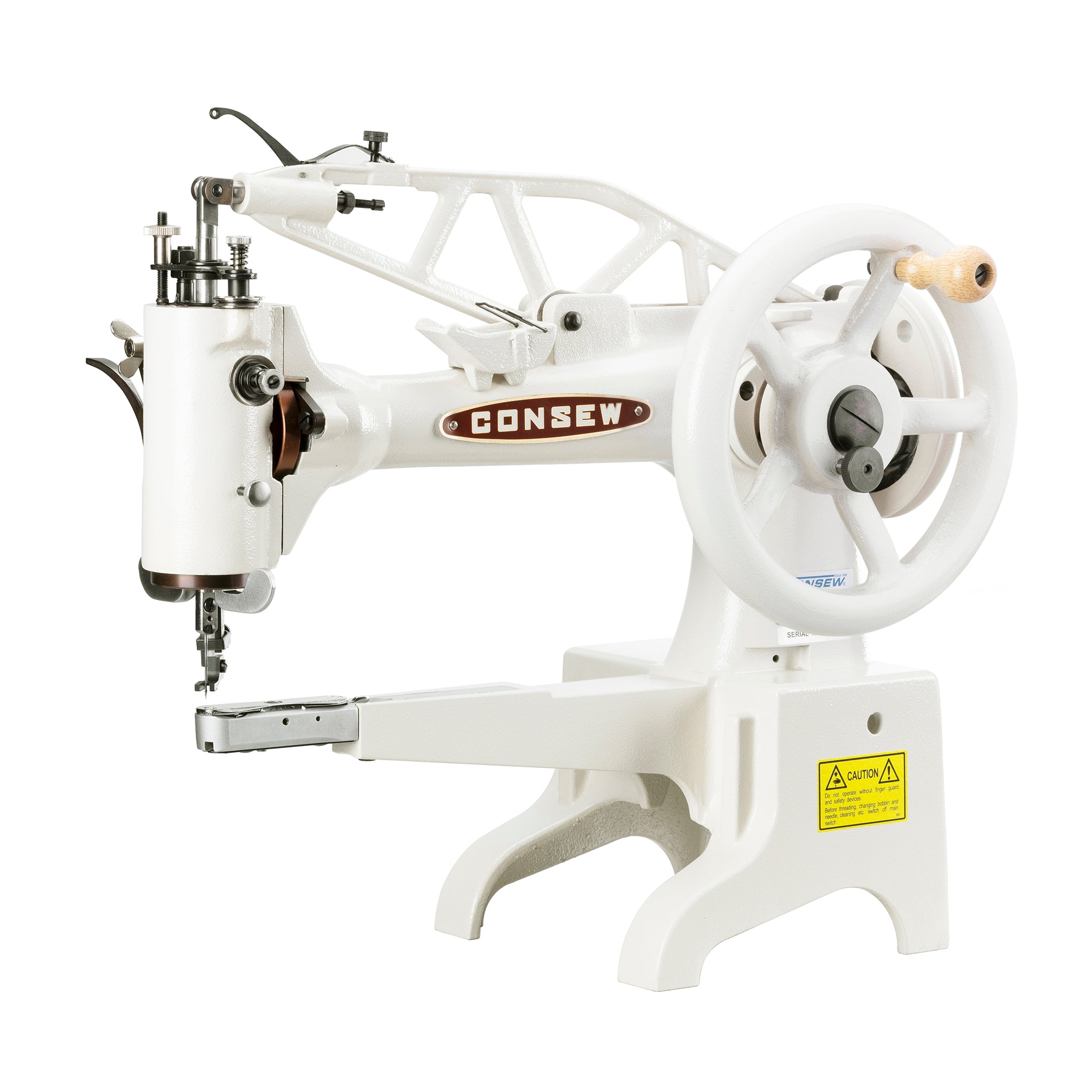

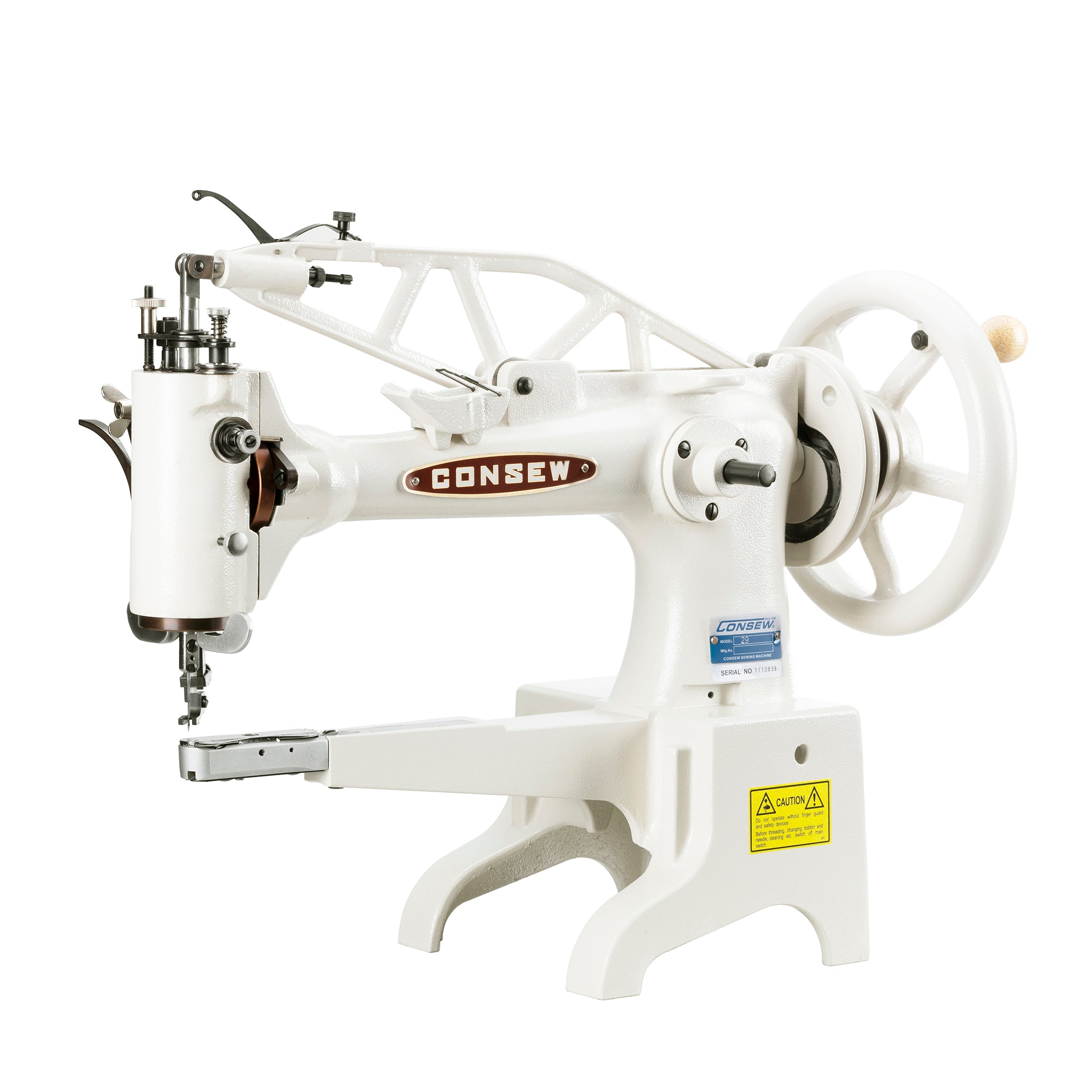

Consew 29

• Repairing leather materials and shoe uppers

• Universal Upper Feed: Enables stitching in any direction without turning the work

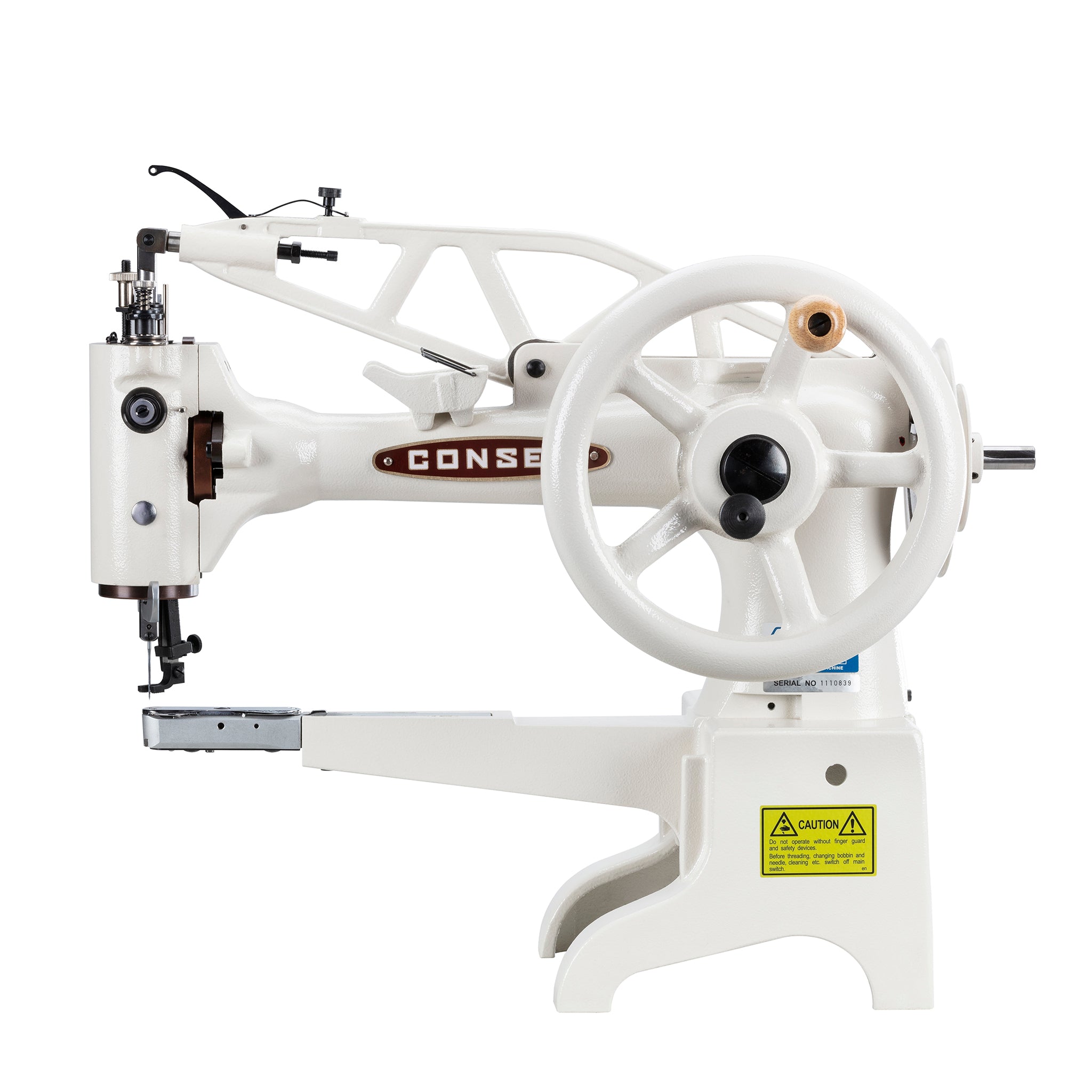

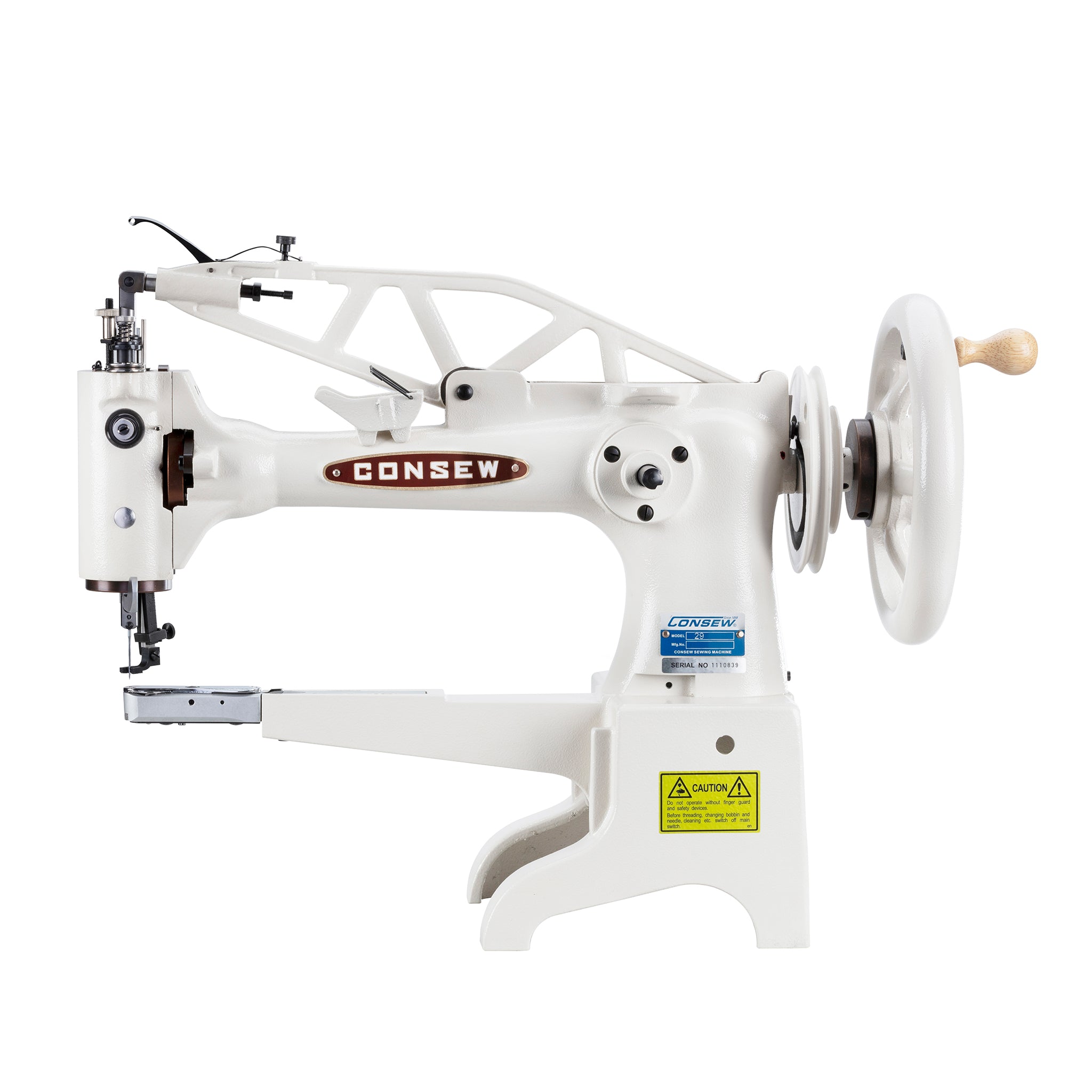

• Handwheel Mounting: Can be positioned on the front or right end of the machine

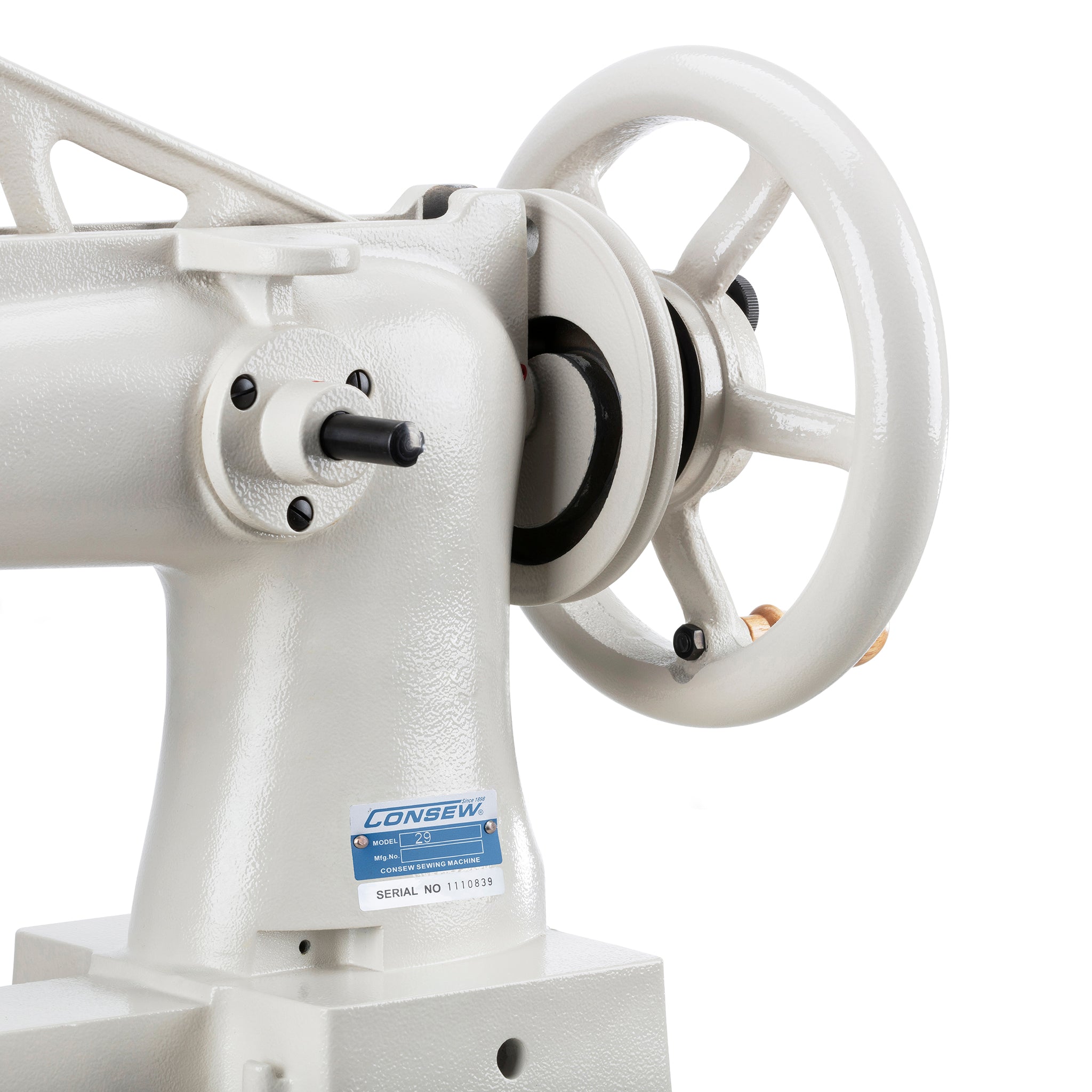

• Wheel Pulley "V" Groove: Facilitates motor drive efficiency

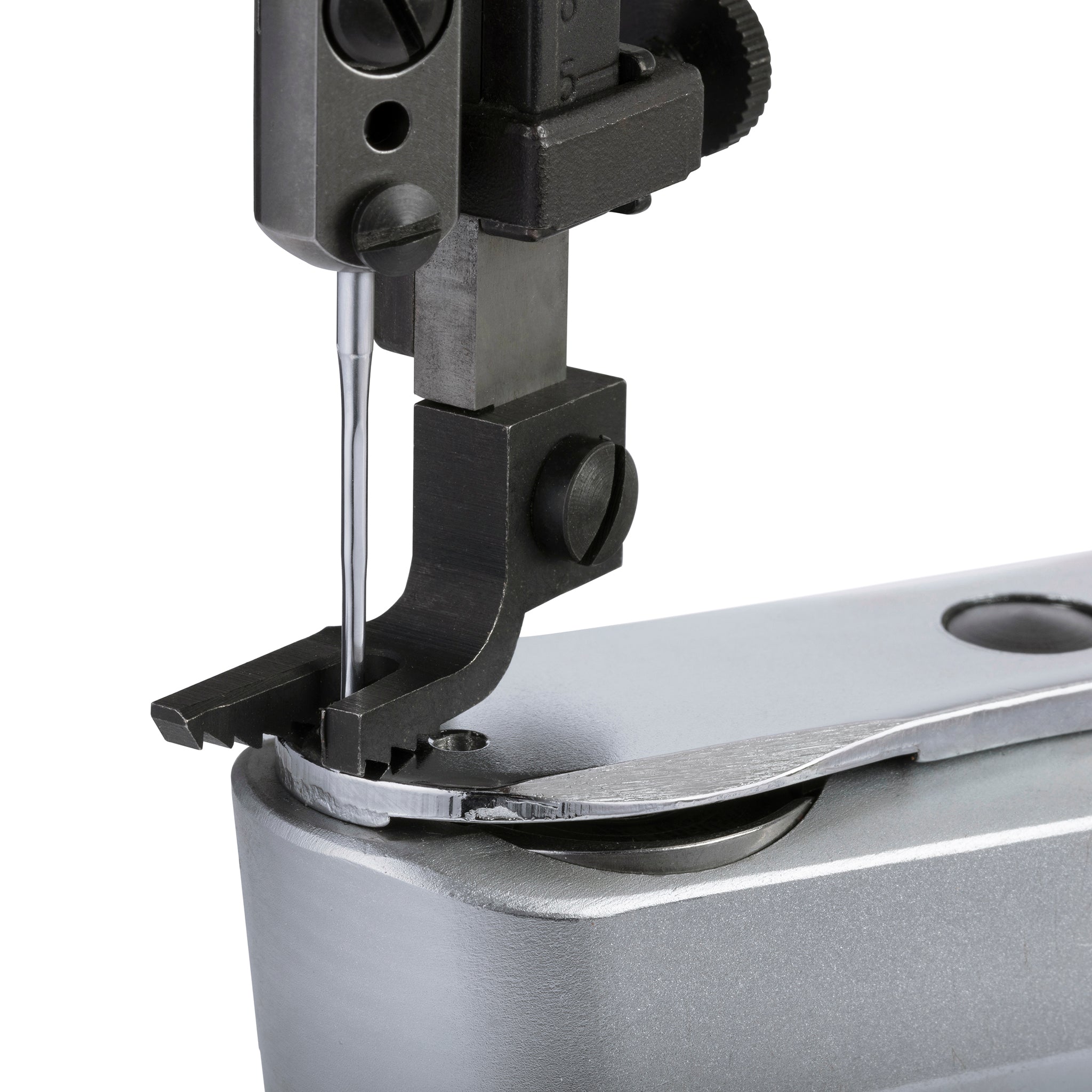

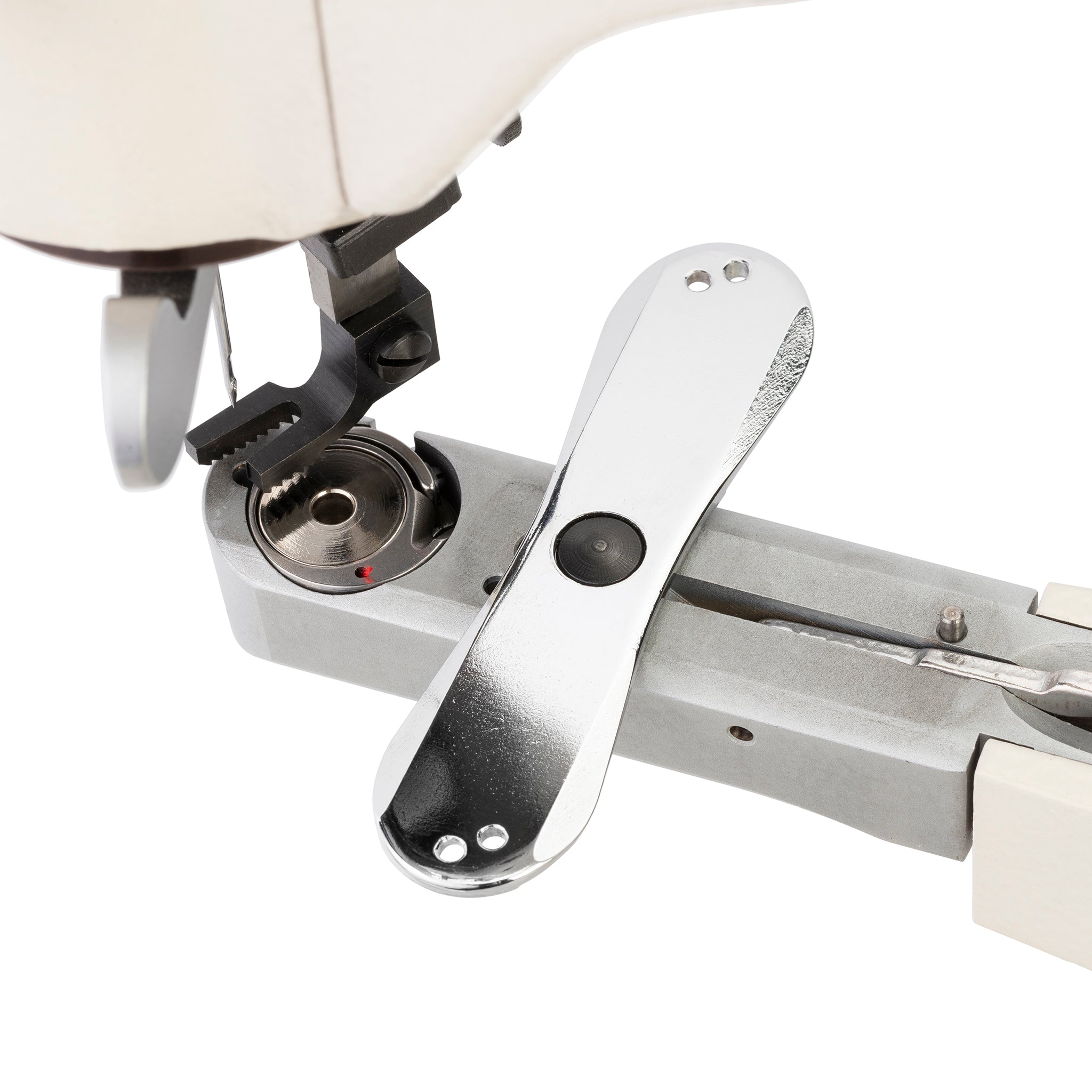

• Double Ended Needle Plate: Accommodates various needle sizes with holes at the back end
• Adjustable Thread Take-up Lever: Allows for fine control of thread tension

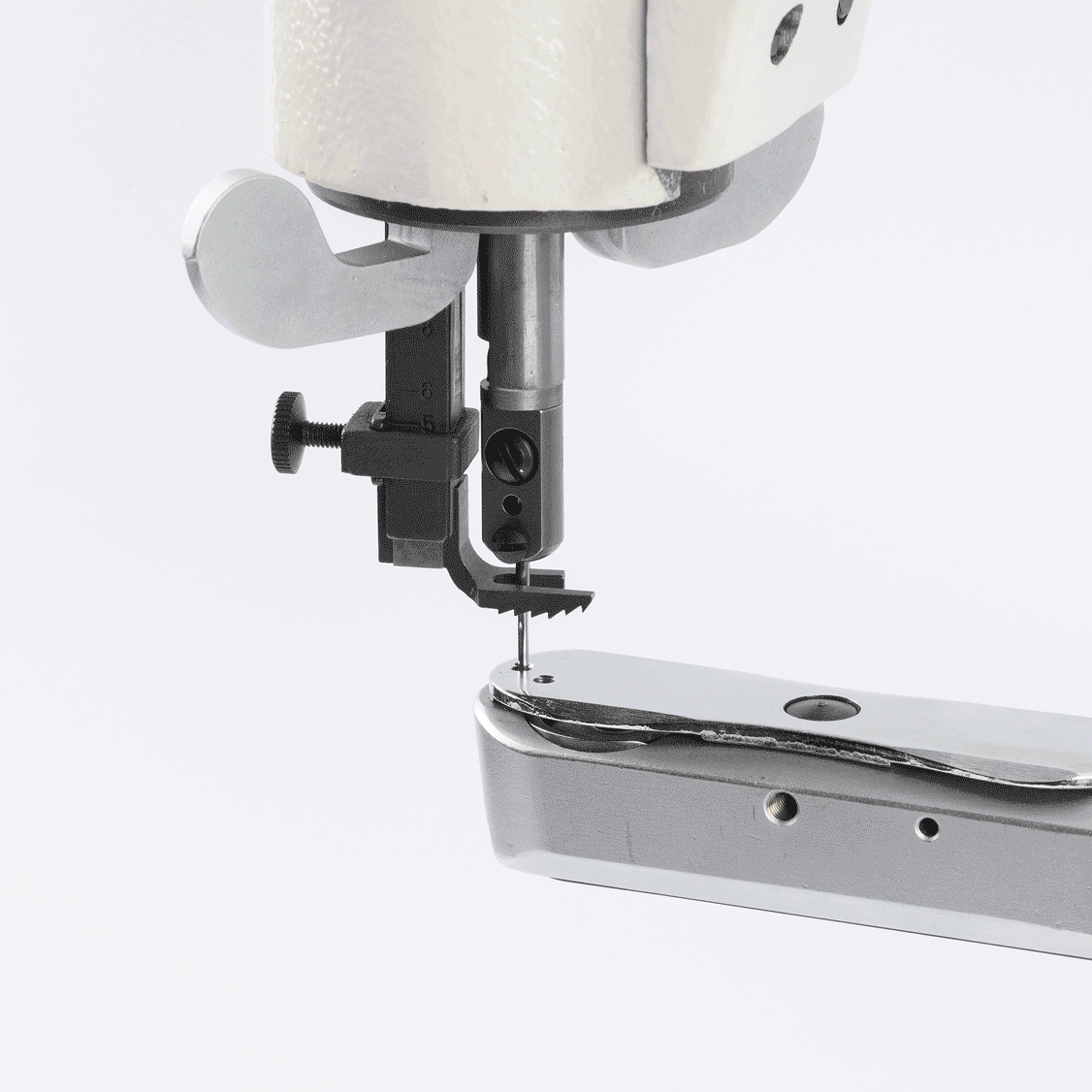

• Adjustable Presser Foot Pressure: Customizable to handle different material thicknesses
• Drive Options: Can be powered by foot treadle, hand crank, or electric motor

Number of Needles: 1 (Single)

Feeding Mechanism: Universal

Workspace: Standard Workspace

Standard or Full Function: Standard Functions

Speed, Max (S.P.M.): 500

Clearance Under Presser Foot: 13/32 s.p.i. (10.5mm)

Stitch Length: 3.5 s.p.i. (1-7mm)

Hook Size: Small

Work Space: 12" (310mm)

Width of Cylinder Bed: 1" (25.4mm)

Needle: 135X17 (newer machines) or 29X3 (older machines)

Depth of Cylinder Bed: 7/8" (22.2mm)

Net Weight: 62 lbs. (28kgs)

Total Carton Size: 3.2 ft³ (.09cbm)
