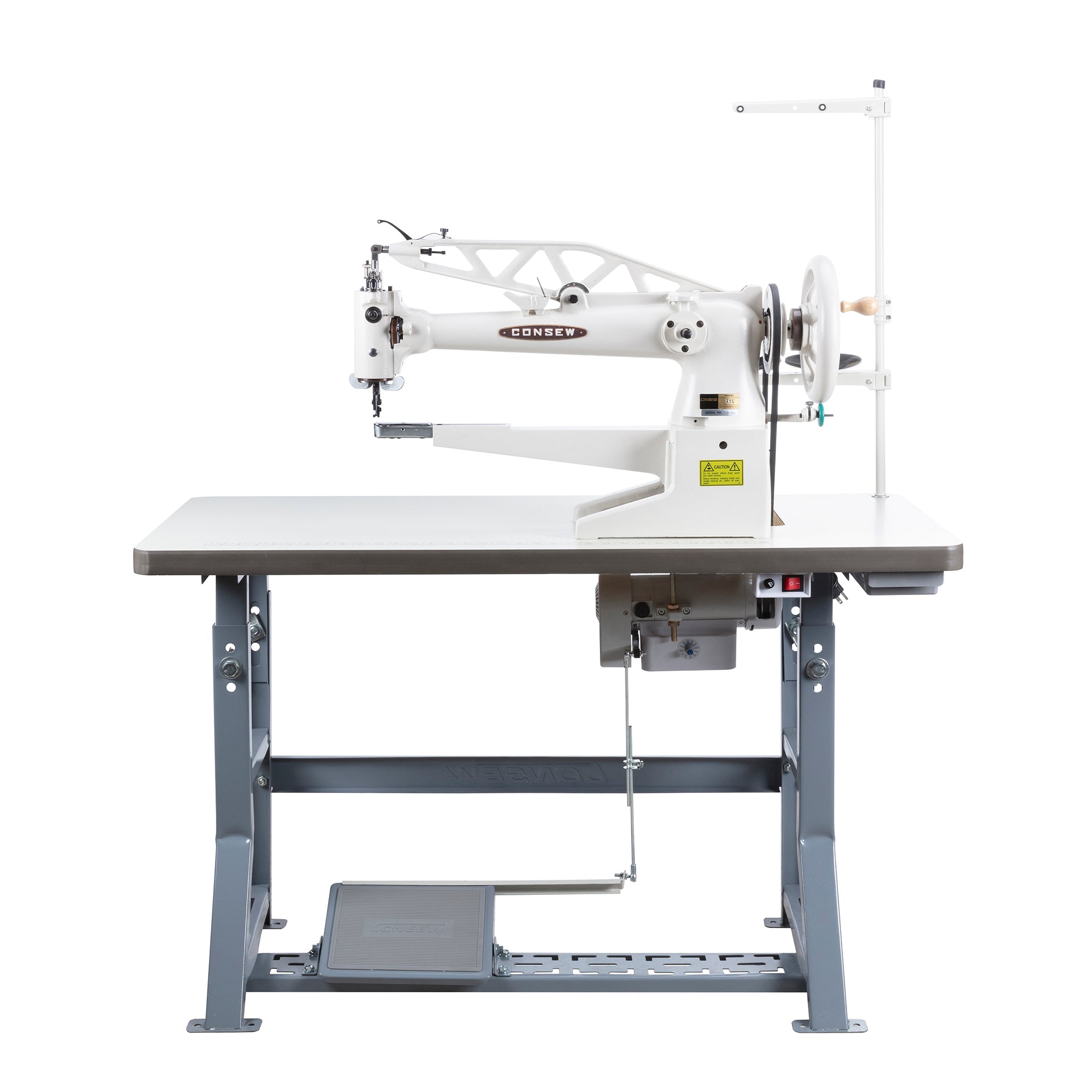

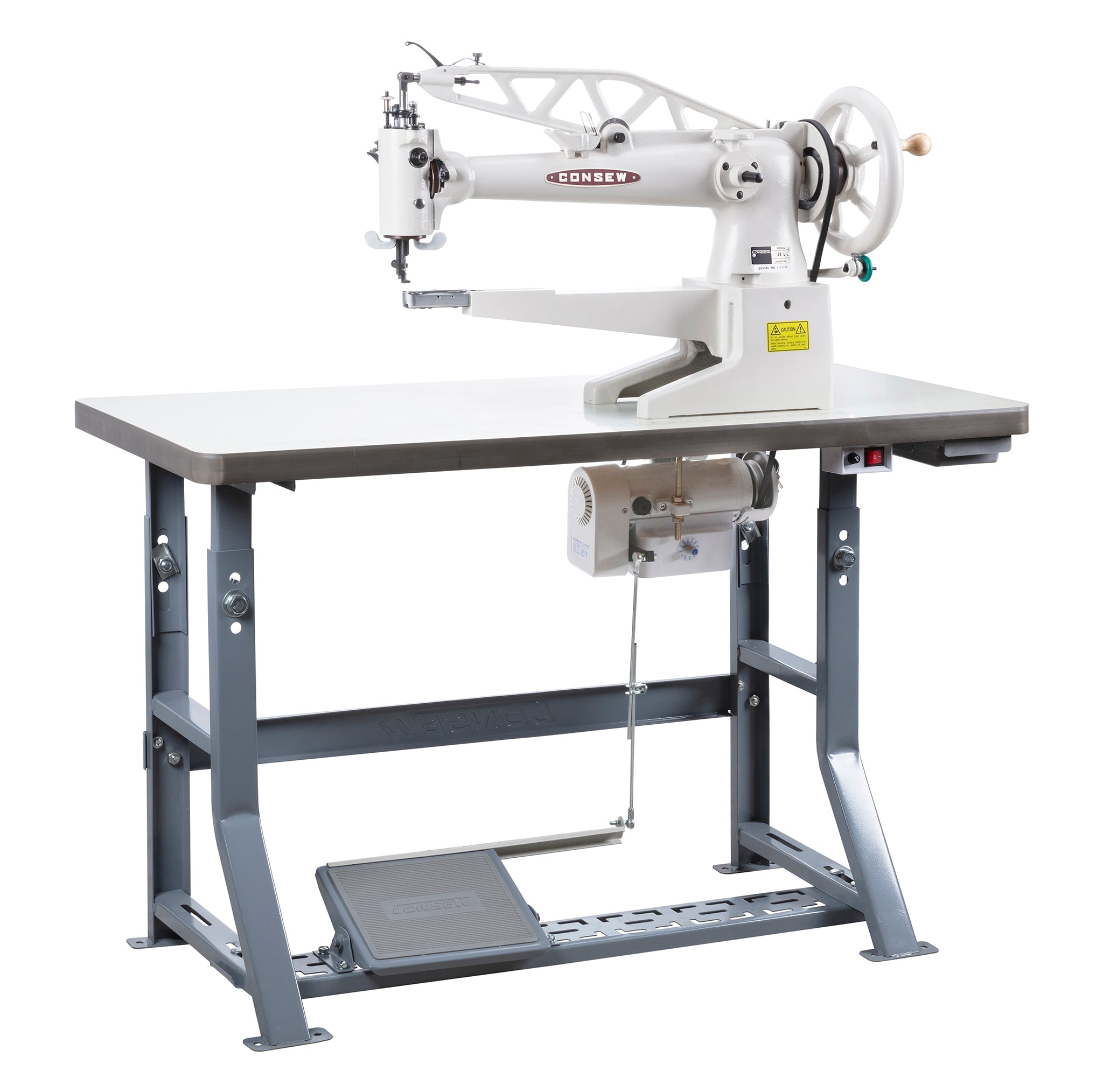

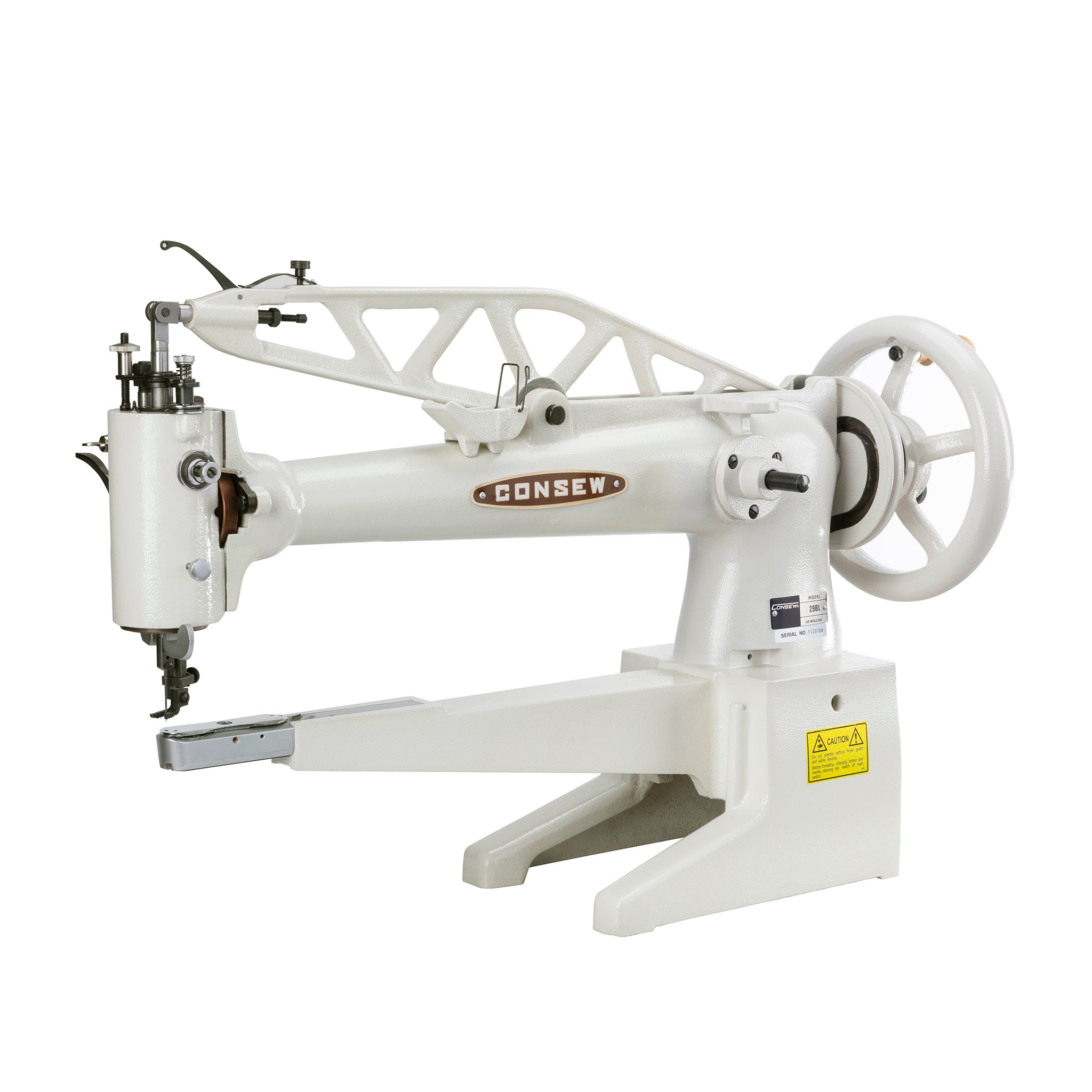

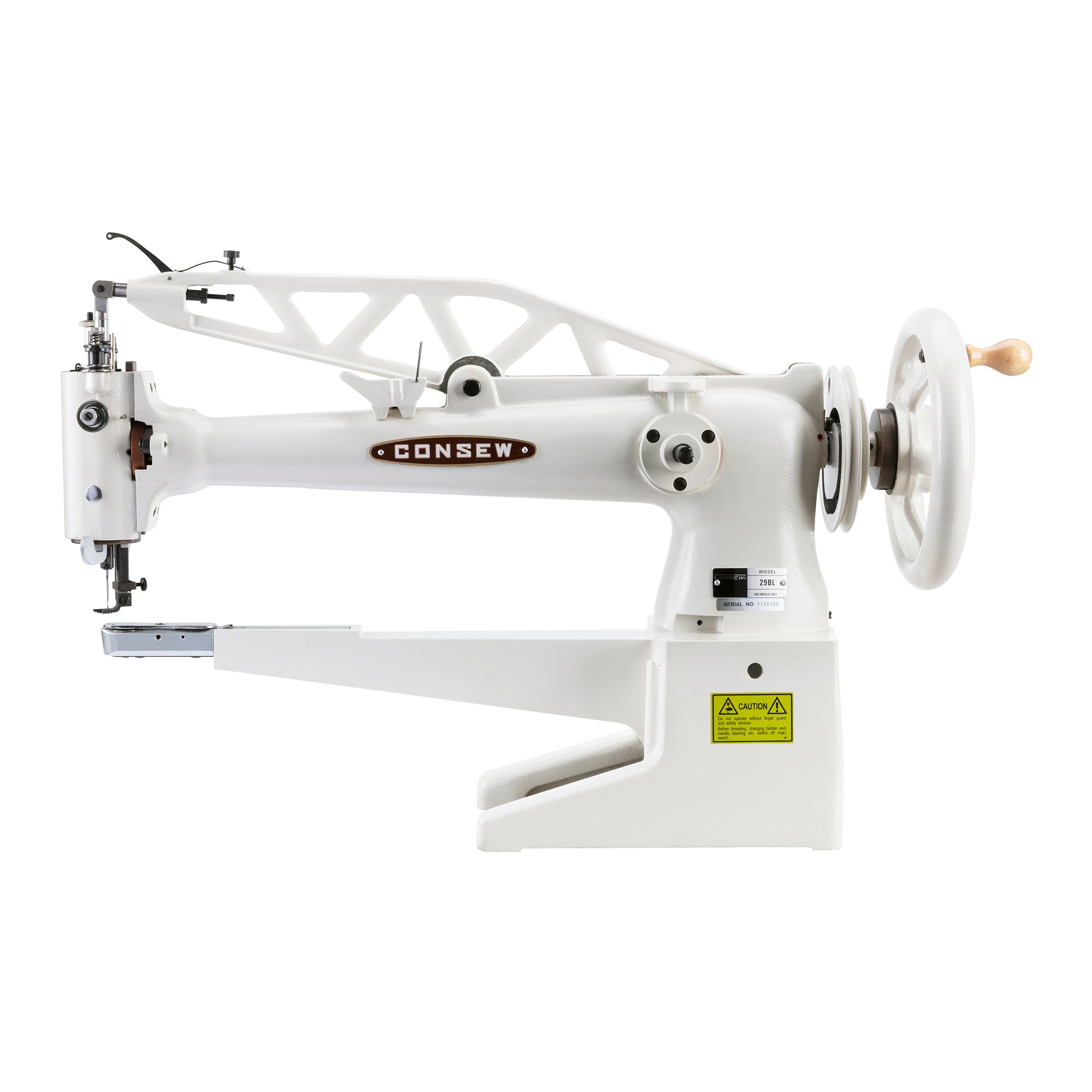

Consew 29L

Repairing of leather materials and shoe uppers.

• Extra small cylinder bed
• Oscillating Shuttle
• Universal upper feed for stitching in any direction without turning work

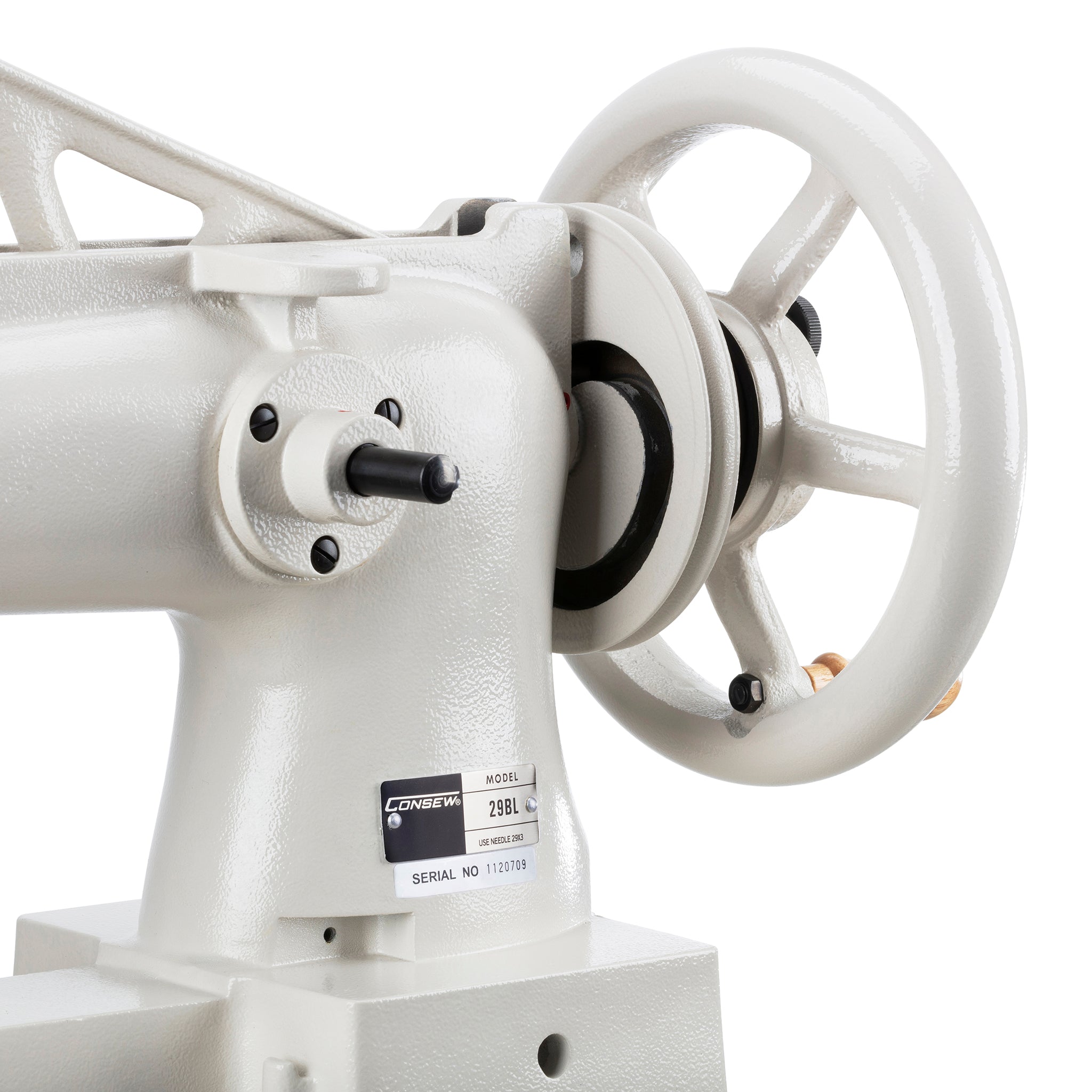

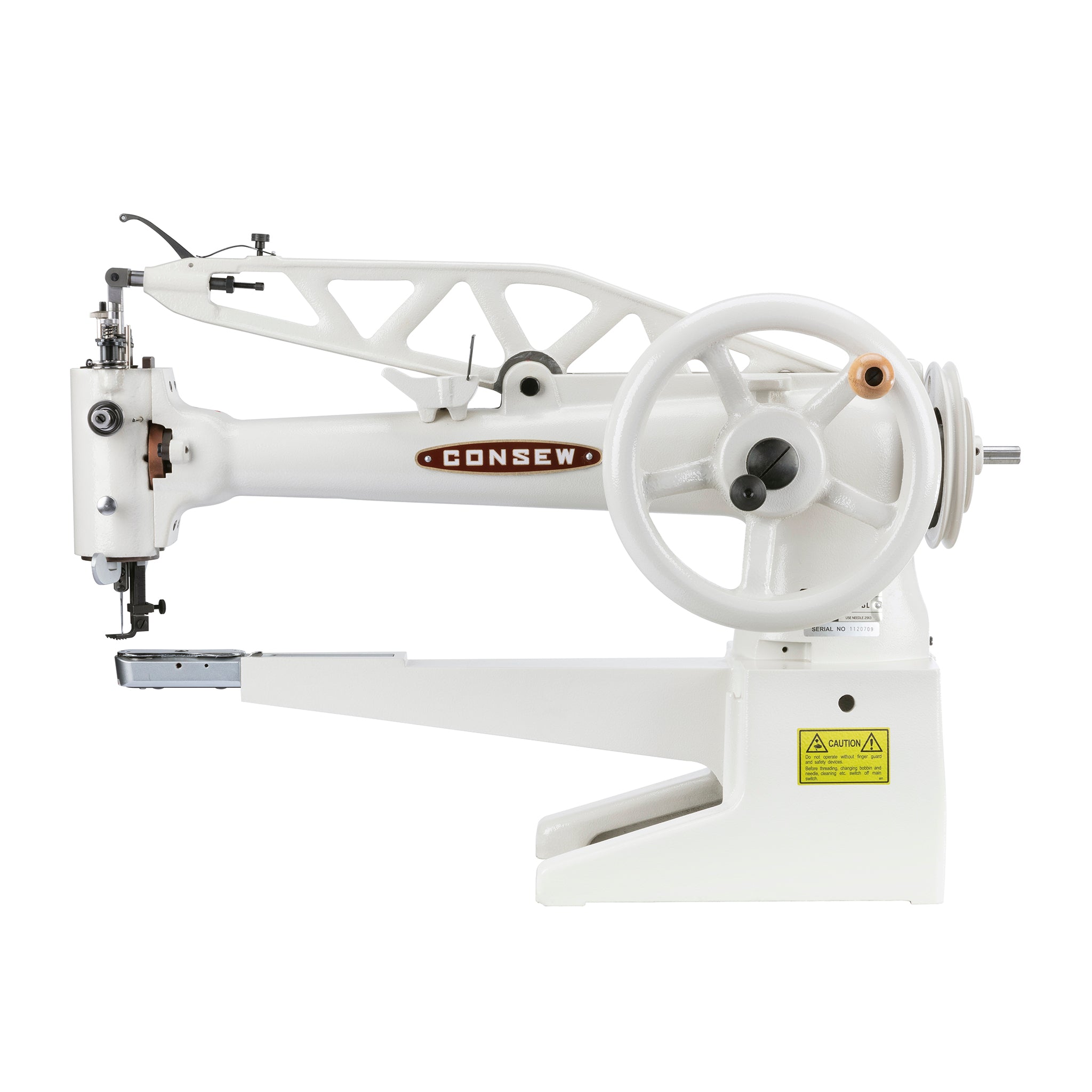

• Handwheel can be mounted on front or right end of machine
• Wheel pulley "V" groove for motor drive

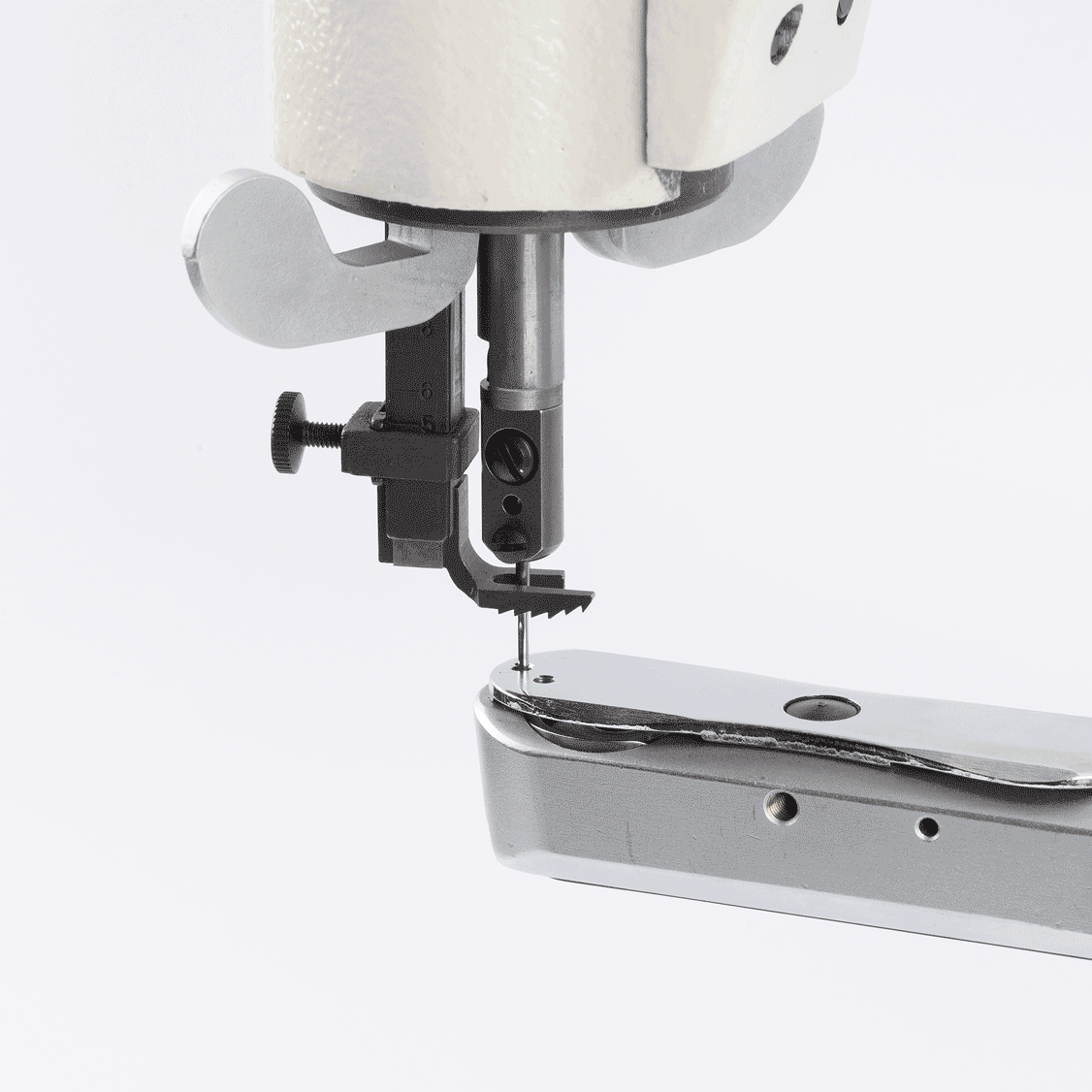

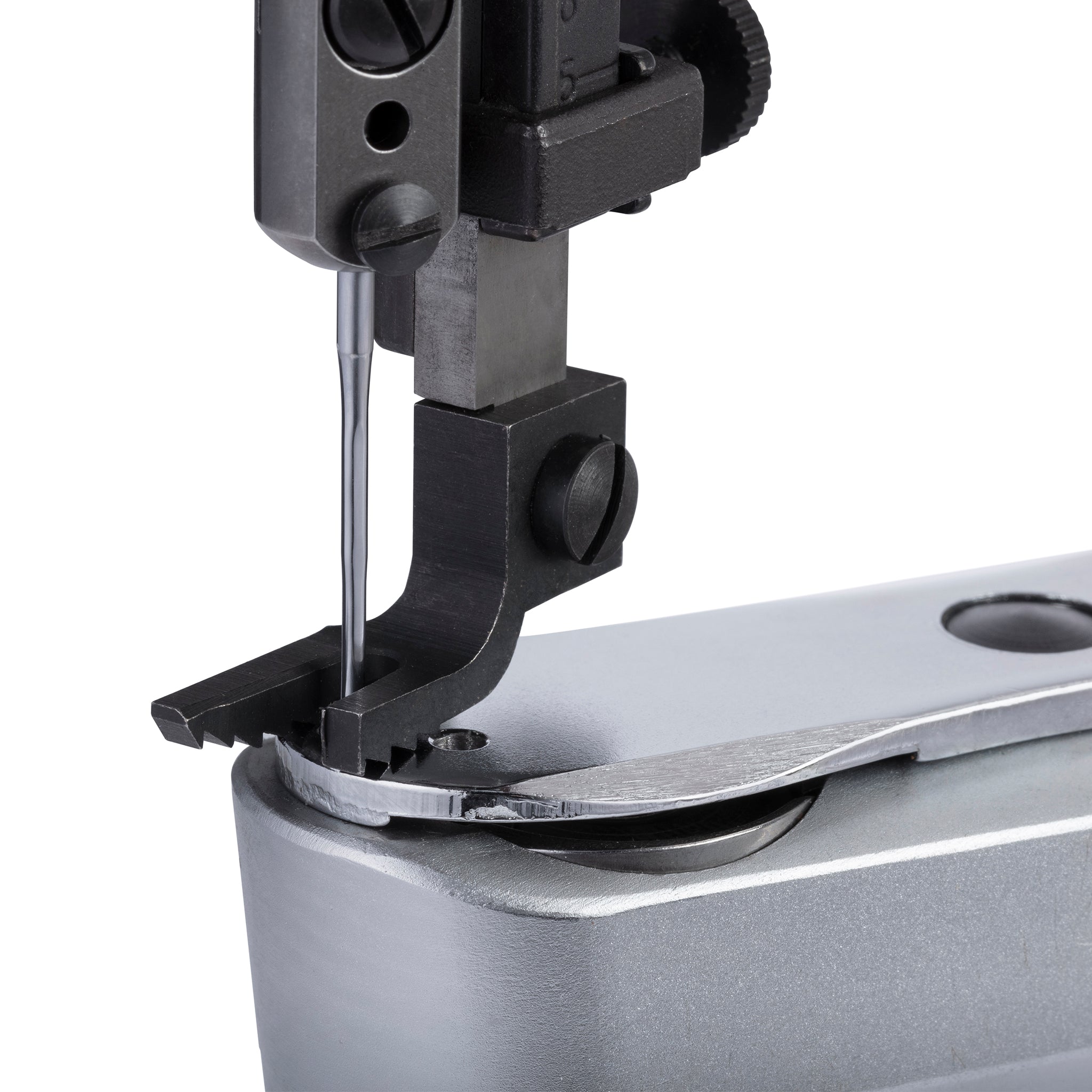

• Double ended needle plate with different size holes at back end to accommodate various size needles

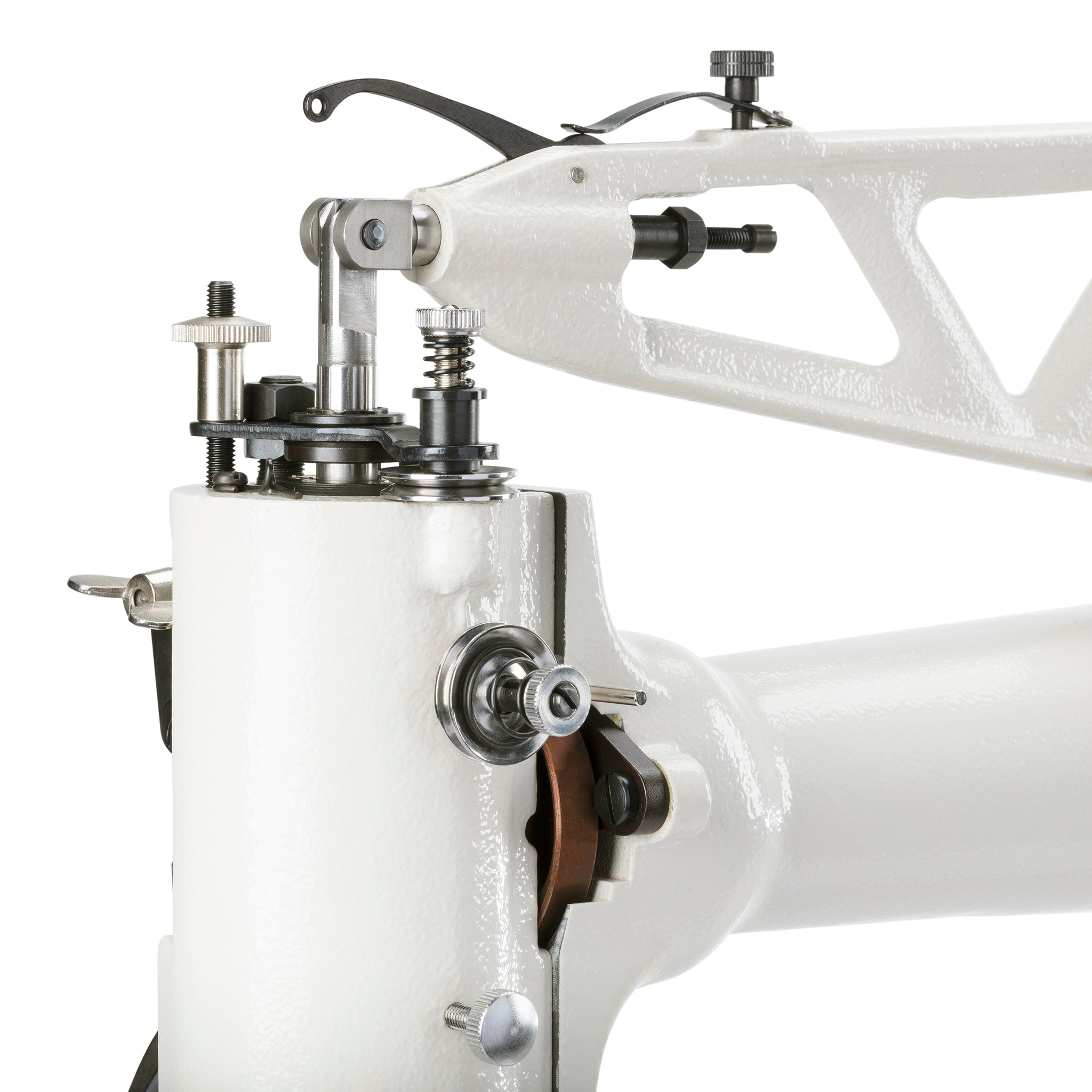

• Adjustable thread take-up lever

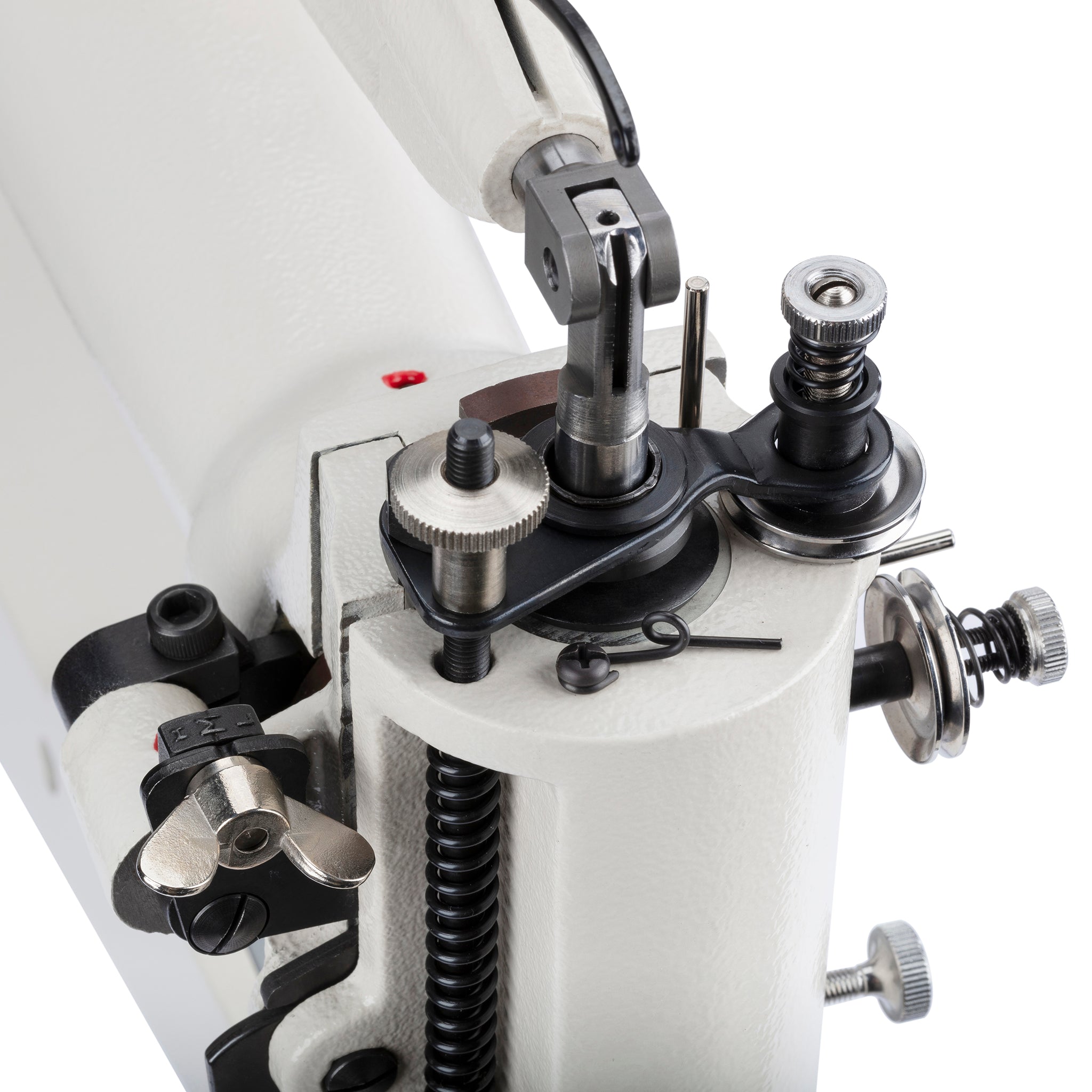

• Adjustable presser foot pressure and thread tension

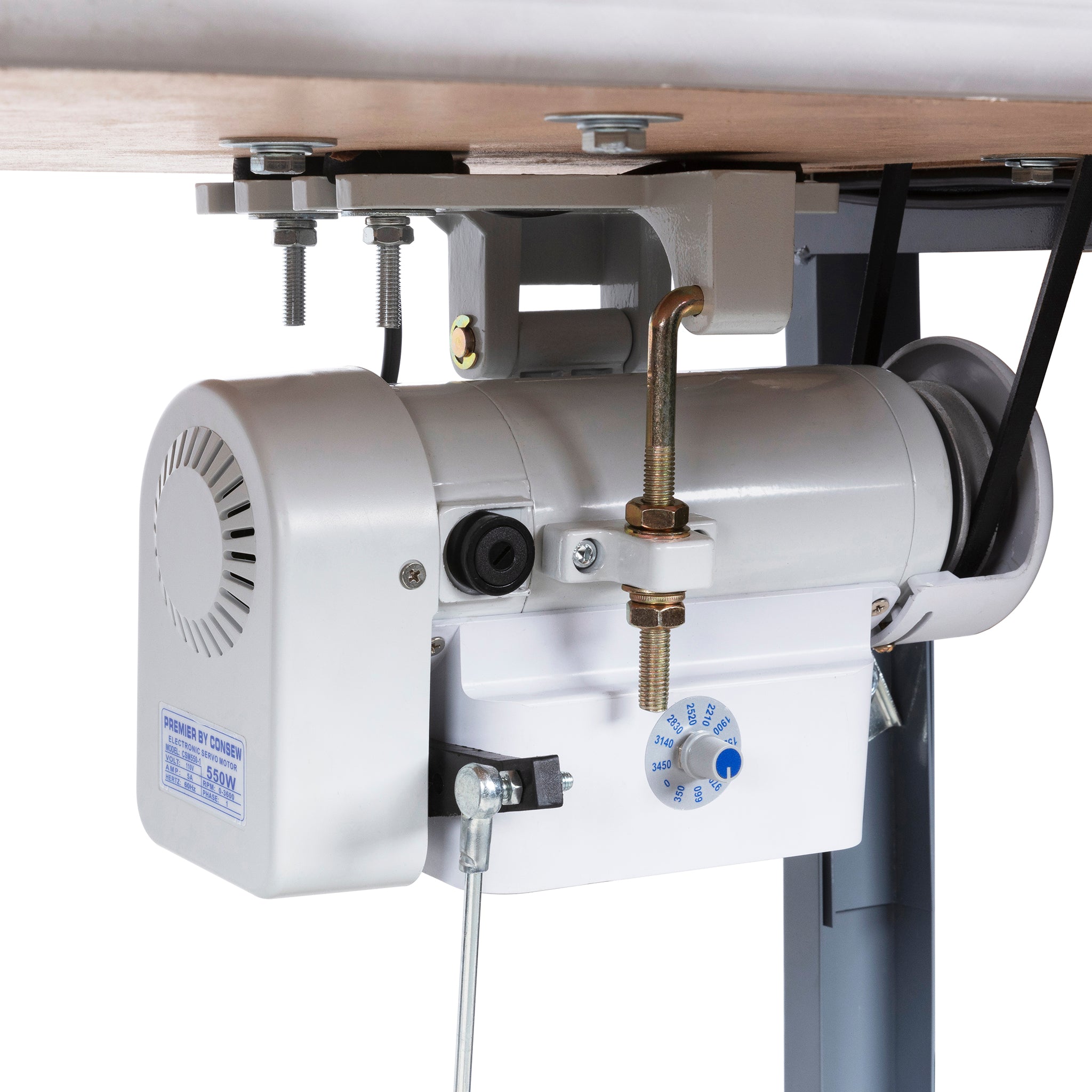

• Machine can be driven by foot treadle, hand crank or electric motor

• Number of Needles: 1 (Single)
• Feeding Mechanism: Universal
• Workspace: Long Arm
• Standard or Full Function: Standard Functions
• Speed, Max (S.P.M.): 500
• Clearance Under Presser Foot: 13/32 s.p.i. (10.5mm)
• Stitch Length: 3.5 s.p.i. (1-7mm)
• Hook Size: Small
• Work Space: 18" (460mm)
• Width of Cylinder Bed: 1" (25.4mm)
• Needle: 135X17 (newer machines) or 29X3 (older machines)
• Depth of Cylinder Bed: 7/8" (22.2mm)
• Net Weight: 77 lbs. (35kgs)
