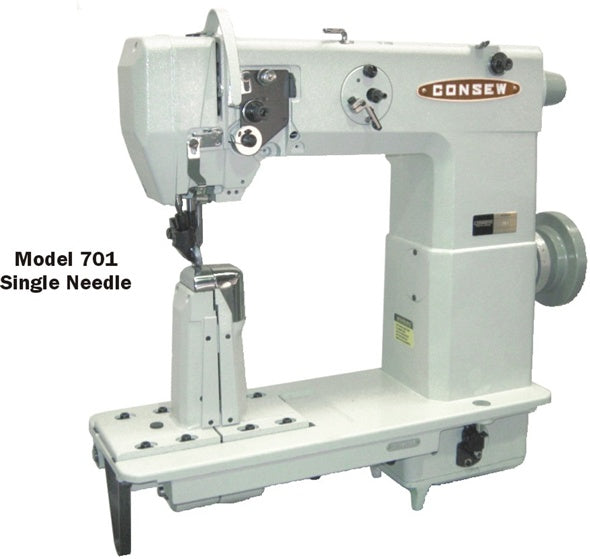

Consew 701LP

• Lower and driven presser wheel feeding action combined with needle feed provides powerful transport for slippery materials, leather, vinyl, polyethylene plastics, oil cloth, coated and laminated fabrics
• Suitable for stitching hollow, tubular, and curved articles
• Climbs over thick sections while maintaining constant stitch length

• As many as 29 anti-friction ball and needle roller bearings (depending on model) for easy maintenance
• Continuous lubrication from a large reservoir
• Vertical axis rotating hooks
• Triple feeding mechanism ensures even feeding of difficult-to-sew materials

• 701 - Single needle, lower wheel feed, driven upper wheel feed, needle feed
• 701LP - Left hand post
• 701U - Same as basic model, modified for maximum stitch length up to 21/64 (8mm)
• 701X - Same as basic model, modified for very heavy thread
• 701UX - Same as basic model, modified for maximum stitch length and heavy thread
• 701ATCL - Fitted with automatic thread trimmer and presser lift
• 702 - Two needle, all other features same as Model 701
• 702ATCL - Fitted with automatic thread trimmer and presser lift

Number of Needles: 1 (Single)

Feeding Mechanism: Needle Feed

Workspace: Standard Workspace

Standard or Full Function: Standard Functions

Speed, Max (S.P.M.): 3500

Clearance Under Presser Foot: 9/32" (7mm)

Stitch Length: 5 (5mm)

Needle: 135x7 (cat.1955)

Bed Size: 7" x 20 3/8" (177 x 518mm)

Stitch Type: 301

Needle Bar Stroke: 1 1/2" (38mm)

Hook: 38032

Post Height: 7" (178mm)

Work Surface: 2" x 2 13/32" (52 x 61mm)
