Consew 702

Name: Consew 702
Brand: My Store
SKU: 702
Availability: InStock

SKU: 702

Overview

High Speed, double needle, post bed, lockstitch machine with top and bottom driven roller feed.

With: Vertical Axis Rotary Hooks, Intermittent Wheel Feed, Intermittent Positively Driven Roller Presser, Simplified Semi-automatic Lubrication, Anti-Friction Ball and Roller Bearings, Built-In Bobbin Winder.

Product Resources

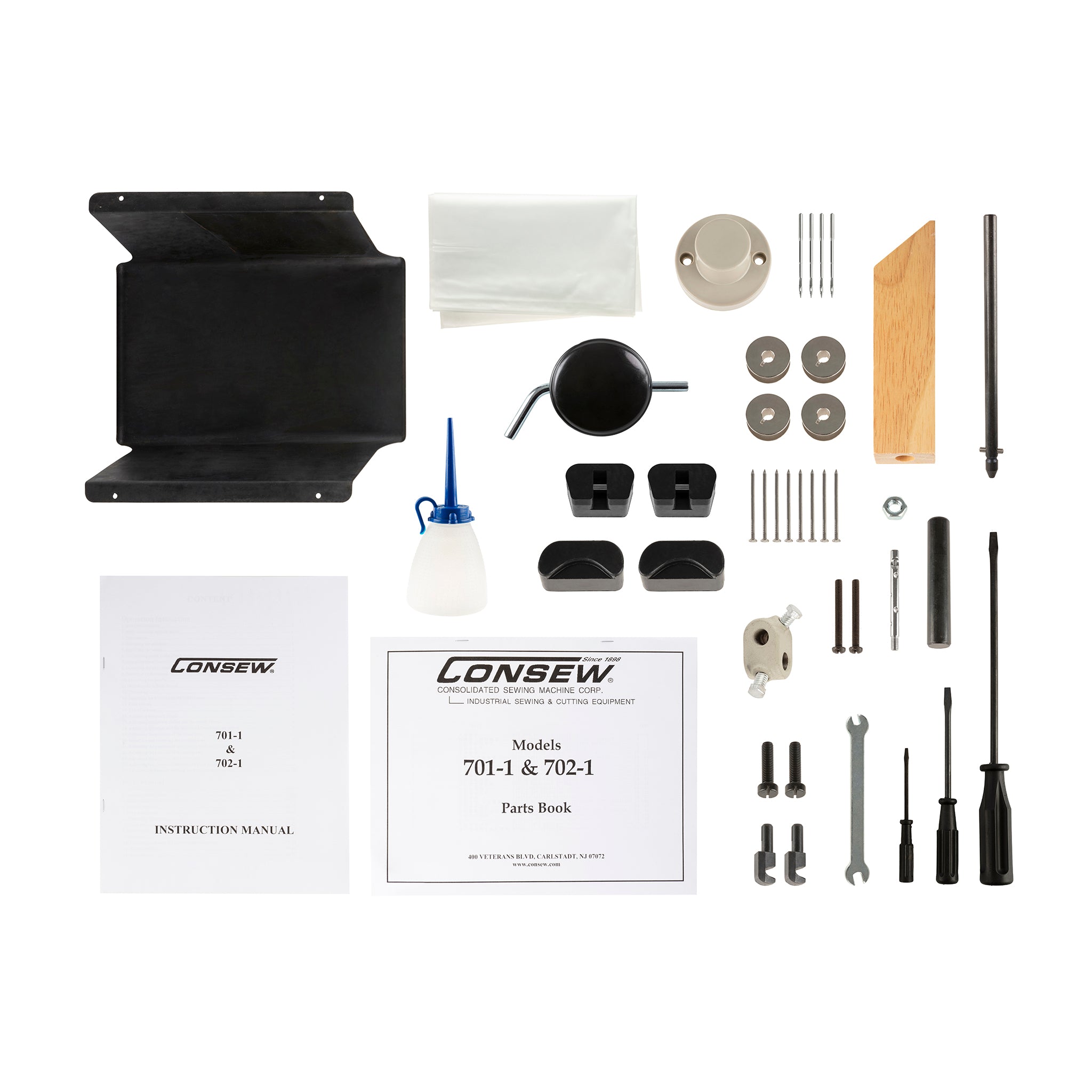

Download Parts Book Download Catalog Page

Applications

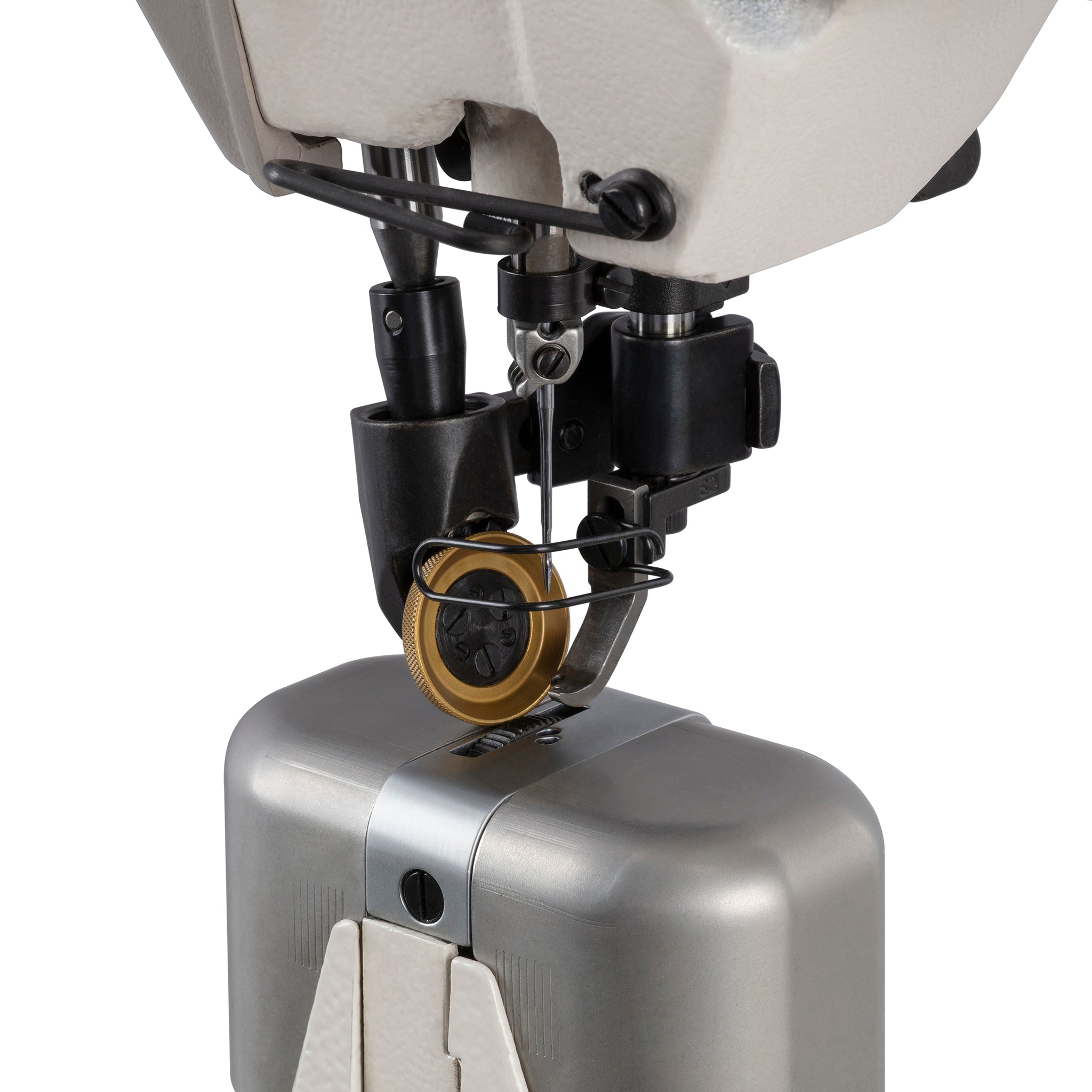

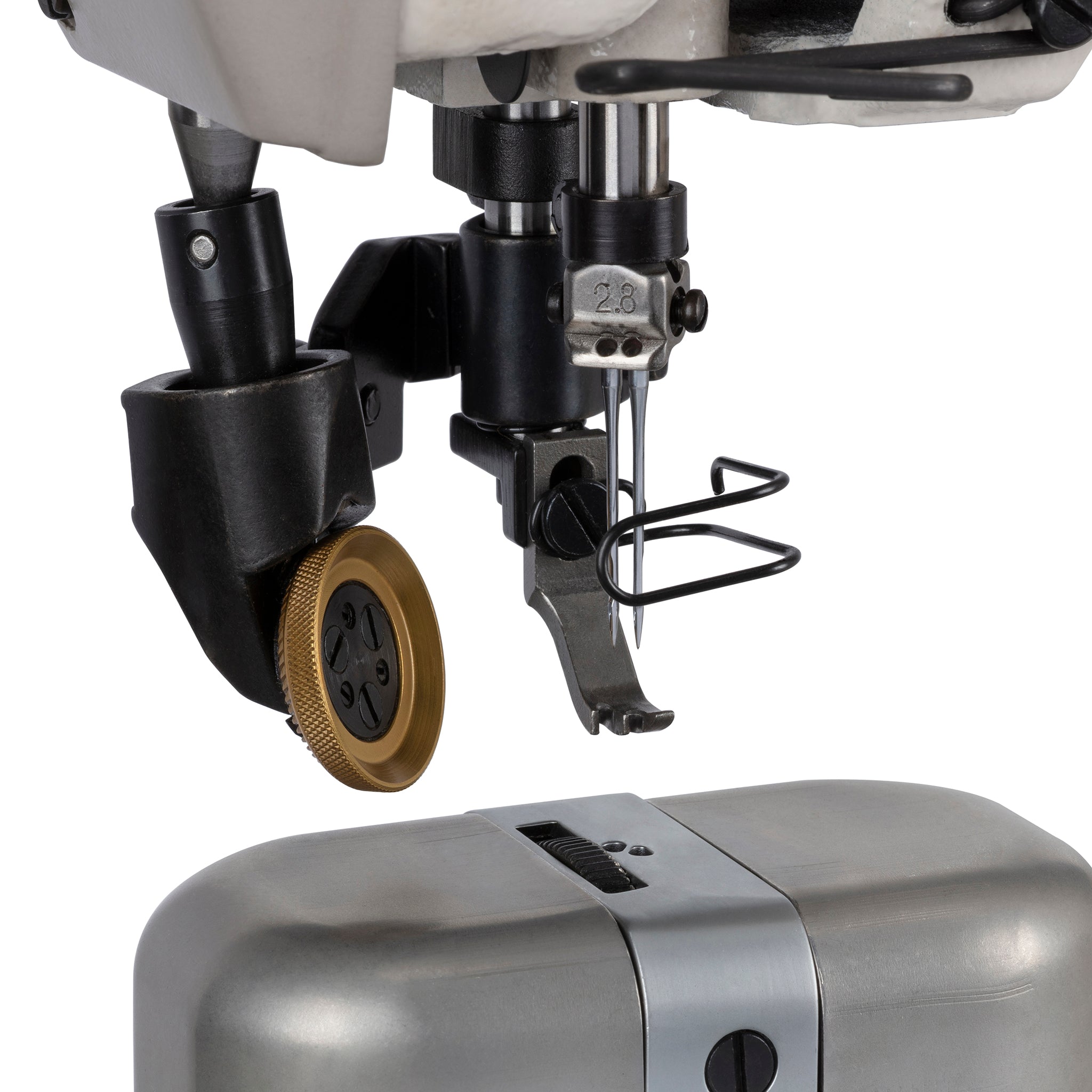

Lower and driven presser wheel feeding action combined with needle feed provide powerful transport for slippery materials of any type, as well as leather, vinyl, polyethylene plastics, oil cloth, and any material difficult to feed, coated and laminated fabrics
Suitable for stitching hollow, tubular, and curved articles and climbing over thick sections, always ensuring constant stitch length

Features

As many as 29 anti-friction ball and needle roller bearings (depending on model) for easy maintenance
Continuous lubrication from copious reservoir

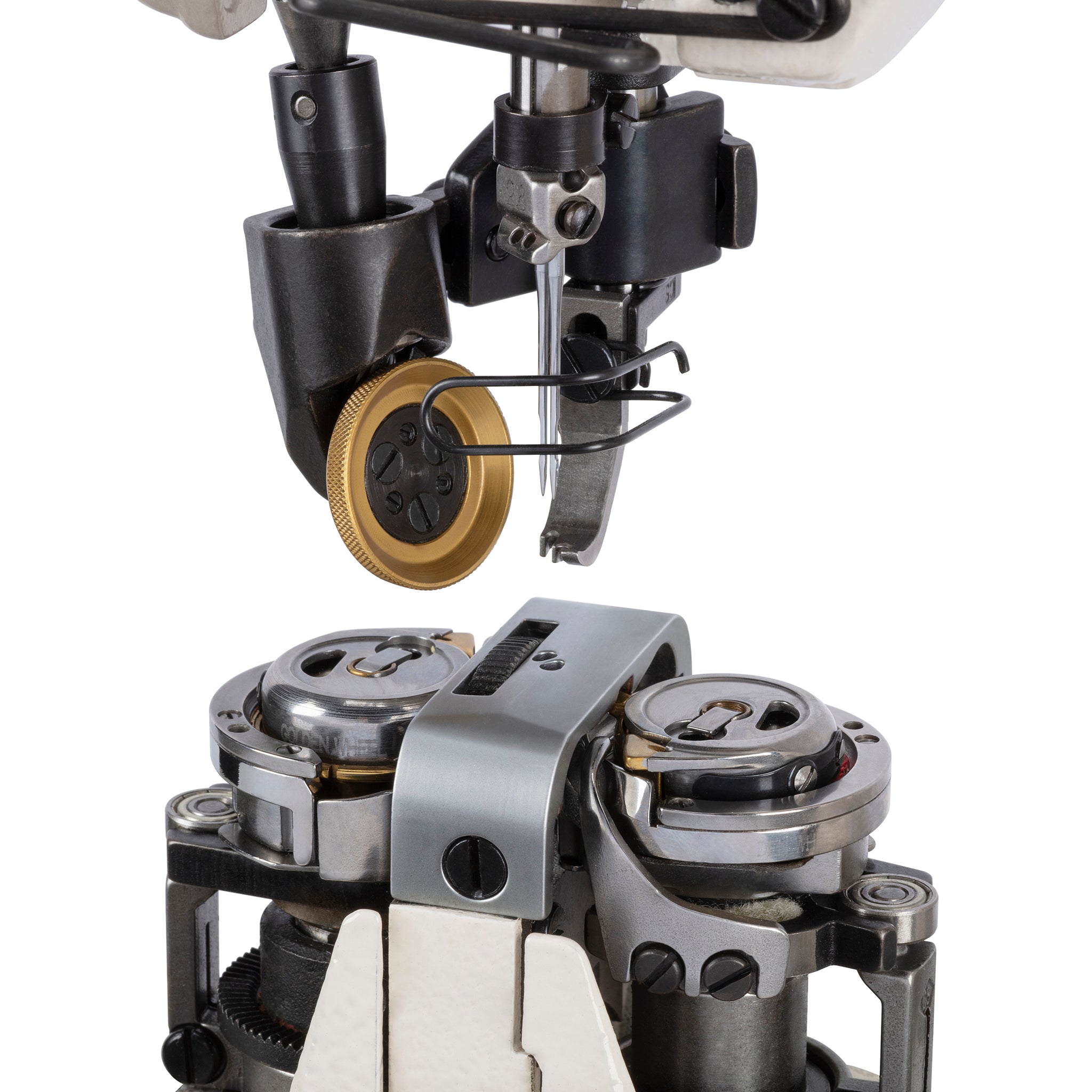

Vertical axis rotating hooks
Triple feeding mechanism ensures even feeding of difficult-to-sew materials

Models

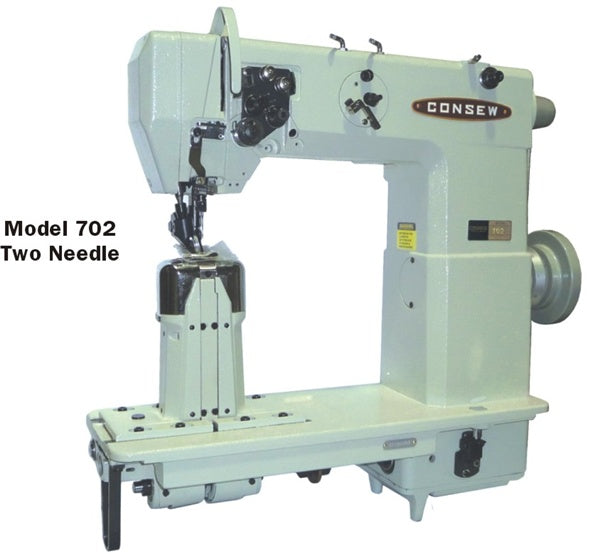

702: Two needle, all other features same as Model 701
702ATCL: Fitted with automatic thread trimmer and presser lift

Specifications

Number of Needles: 2 (Double)
Feeding Mechanism: Roller Feed
Workspace: Standard Workspace
Standard or Full Function: Standard Functions
Speed, Max (S.P.M.): 3500
Clearance Under Presser Foot: 9/32" (7mm)
Stitch Length: 6 (4mm)
Needle: 135x7 (cat.1955)
Bed Size: 7"x20 3/8" (177x518mm)
Stitch Type: 301
Needle Bar Stroke: 1 1/2" (38mm)
Hook: 38032
Post Height: 7" (178mm)
Work Surface: 2"x3 13/16" (52x97mm)
Gauges: Standard 1/16" (1.6mm)
Needle Gauges Available: 1/32" to 3/16" (0.8 to 4.8mm)
