Consew FS762

Name: Consew FS762
Brand: My Store
SKU: FS762
Availability: InStock

SKU: FS762

Overview

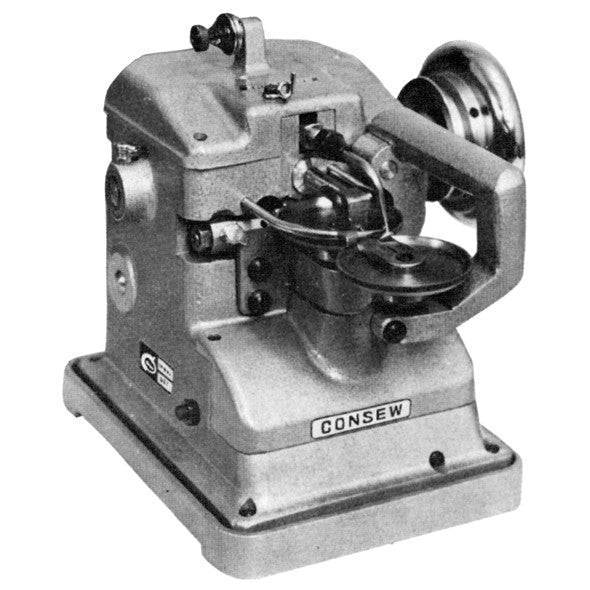

The Consew FS762 is a versatile disc feed overseaming machine designed for medium-weight skins and furs. It operates at speeds up to 2,000 stitches per minute and produces a consistent one-thread chainstitch. With a maximum seam depth of 93.5 mm and a stitch length of 5 mm, the FS762 is ideal for joining and hemming a variety of moderately thick materials in garments and accessories.

Product Resources

Download Catalog Page

Applications

Hemming and joining thin to thick materials such as furs, leathers, vinyls, and other plastic materials using a single needle setup
Suitable for hemming and joining gloves, slippers, fur coats, wet suits, sheepskin coats, and other sheepskin products with various needle options (e.g., 81 x 3)
For medium weight skins and furs, utilizing different configurations for optimal results

Features

Disc feed, overseaming machine with a maximum speed of 2000 s.p.m.
Chainstitch, one thread, with two thread machines available for increased versatility
Standard workspace and functions, ensuring ease of use and adaptability to various projects
Adjustable stitch length (5 s.p.i./5mm) and seam depth (max 9/64"/3.5mm) for customized sewing

Specifications

Number of Needles: 1 (Single)
Workspace: Standard Workspace
Standard or Full Function: Standard Functions
Speed, Max (s.p.m.): 2000
Needle Bar Stroke: 1" (25mm)
Stitch Length: 5 s.p.i. (5mm)
Needle: 81 x 3
Seam Depth, Max: 9/64" (3.5mm)
Length of Arm: 4 11/32" (110mm)
