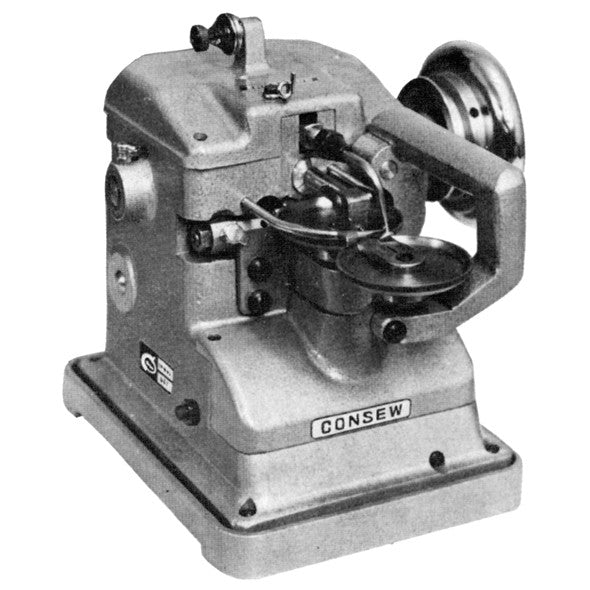

Consew FS764

Name: Consew FS764
Brand: My Store
SKU: FS764
Availability: InStock

SKU: FS764

Overview

The Consew FS764 is a specialized overseaming machine developed for wetsuits, diver suits, and surfer suits. With a disc feed system and a maximum speed of 2,000 stitches per minute, it offers a strong one-thread chainstitch ideal for durable and flexible seams. Its maximum seam depth of 93.5 mm and 5 mm stitch length make it well-suited for joining thick, synthetic, or rubberized materials used in aquatic sportswear.

Product Resources

Download Catalog Page

Applications

Hemming and joining thin to thick materials such as furs, leathers, vinyls, and other plastic materials using a single needle setup
Suitable for hemming and joining gloves, slippers, fur coats, wet suits, sheepskin coats, and other sheepskin products with various needle options (e.g., 81 x 3)
For wetsuits, diver suits, and surfer suits, utilizing different configurations for optimal results

Features

Disc feed, overseaming machine with a maximum speed of 2000 s.p.m.
Chainstitch, one thread, with two thread machines available for increased versatility
Standard workspace and functions, ensuring ease of use and adaptability to various projects
Adjustable stitch length (5 s.p.i./5mm) and seam depth (max 9/64"/3.5mm) for customized sewing

Specifications

Number of Needles: 1 (Single)
Workspace: Standard Workspace
Standard or Full Function: Standard Functions
Speed, Max (s.p.m.): 2000
Needle Bar Stroke: 1" (25mm)
Stitch Length: 5 s.p.i. (5mm)
Needle: 81 x 3
Seam Depth, Max: 9/64" (3.5mm)
Length of Arm: 4 11/32" (110mm)
