Consew P1565RB-14-DD/220

Name: Consew P1565RB-14-DD/220
Brand: My Store
SKU: P1565RB-14-DD/220
Availability: InStock

SKU: P1565RB-14-DD/220

Overview

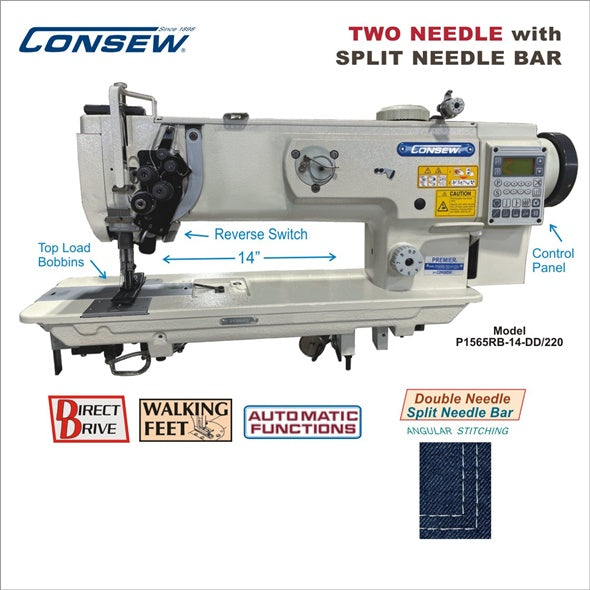

Two-Needle Machine with Split Needle Bar for Angular Stitching. High Speed, Direct Drive, Walking Foot, Lockstitch Machine.
Comes in 14" 18" and 25" workspace (see catalog sheet.)
The P1565RB-14-DD/220 has automatic functions but without automatic thread trim. (The -7DD version has the automatic thread trim)

Currently Available in 220VAC Version ONLY.

Product Resources

Download Manual Download Catalog Page

Applications

Designed for automotive, marine, leather, canvas, and general upholstery
For sewing light to heavyweight fabric, canvas, leather, vinyl, synthetics, and various laminated and coated materials
Designed for stitching products such as auto, boat, and furniture upholstery, tarpaulins, covers, awnings, tents, umbrellas, handbags, luggage, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, footwear, foundation garments, orthopedic appliances, etc

Features

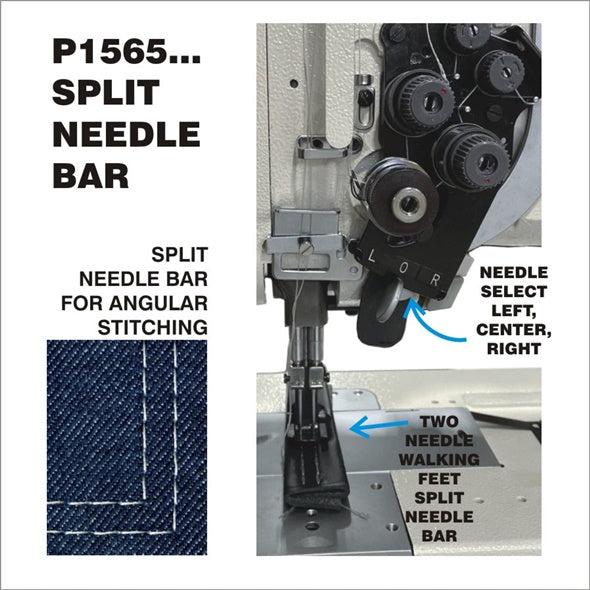

Two Needles with Split Needle Bar for Angular Stitching
Large Top Load Bobbins
Built-in Bobbin Winder
Walking Foot
Climbing Device
Roll-In, tucks the top thread under fabric when it starts
Automatic Foot Lift
Automatic Reverse
Semi-Automatic Lubrication

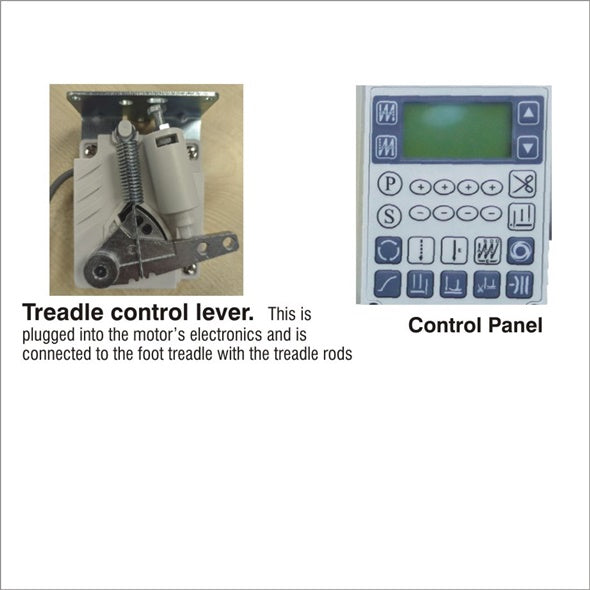

Servo motor connected direct to top shaft

Specifications

Speed, maximum: 2000 - 2500 spm (*Speed depends on thread, material, and operation)
Clearance Under Foot: 9/16" (14mm)
Stitch Length; Max.: 9mm Adjustment By Dial
Presser Foot Lift By Hand: 9 mm / By Knee: 16mm
Lubrication: Semi-Automatic
Bobbin: U or S
Needle: 135 x 17 (DPX17)
Needle Gauges: 1/4” to 1” (Custom gauges also available)
Power: 220 VAC
