Consew Model P1565RB-14-(N)

Name: Consew Model P1565RB-14-(N)
Brand: Consew
SKU: P1565RB-14-(N)
Availability: InStock

SKU: P1565RB-14-(N)

Overview

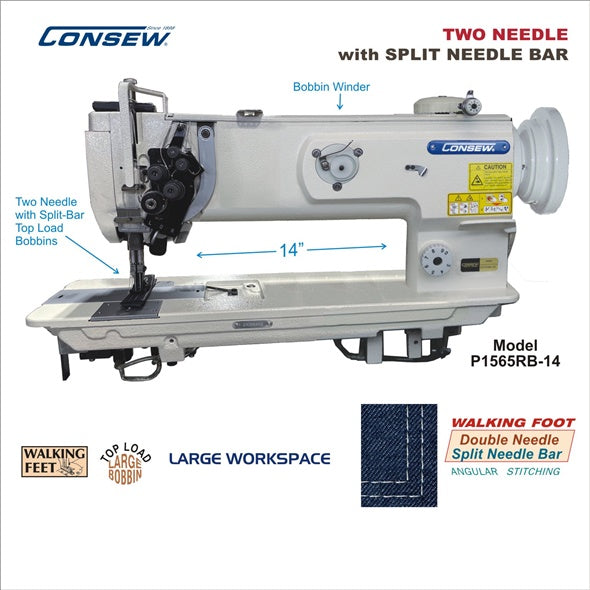

The Consew Model P1565RB-14-(N) with air footlift is a high-speed, two-needle lockstitch machine equipped with a split needle bar for angular stitching. Designed with a 14-inch workspace, this machine is ideal for sewing light to heavy-weight materials, making it suitable for various industrial applications.

Product Resources

Download Catalog Page

Applications

Automotive, marine, leather, canvas, and general upholstery
Sewing light to heavy-weight fabrics, canvas, leather, vinyl, synthetics, and laminated/coated materials
Stitching products such as auto, boat, and furniture upholstery; tarpaulins; covers; awnings; tents; umbrellas; handbags; luggage; travel accessories; sports and camping equipment; apparel; outdoor clothing; footwear; foundation garments; orthopedic appliances

Features

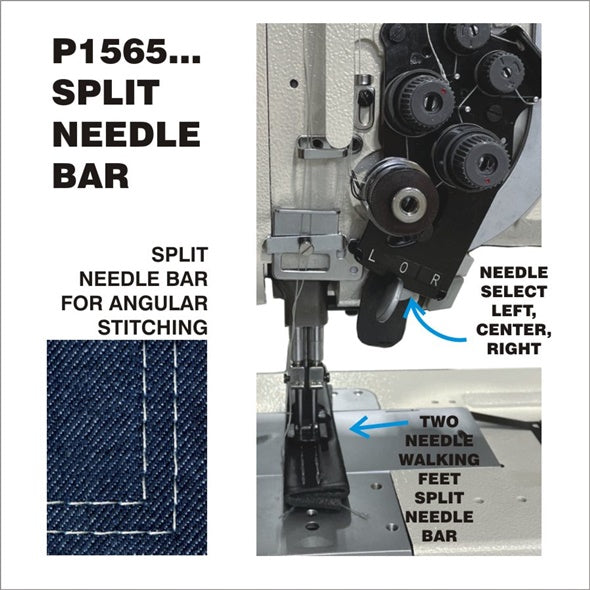

Two needles with split needle bar for angular stitching
Large top-load bobbins Vertical access hooks
Built-in bobbin winder
Walking foot mechanism
Reverse stitching capability
Semi-automatic lubrication system

Specifications

Maximum speed: 2,000 - 2,500 stitches per minute (dependent on thread, material, and operation)
Clearance under presser foot: 9/16" (14mm)
Needle type: 135 x 17 (DPX17)
Needle gauges: 1/4” to 1” (custom gauges available)
Maximum stitch length: 9mm, adjustable by dial
Presser foot lift: By hand: 9mm; By knee: 16mm
Lubrication: Semi-automatic
Bobbin types: U or S
Power: 110 / 220 VAC
