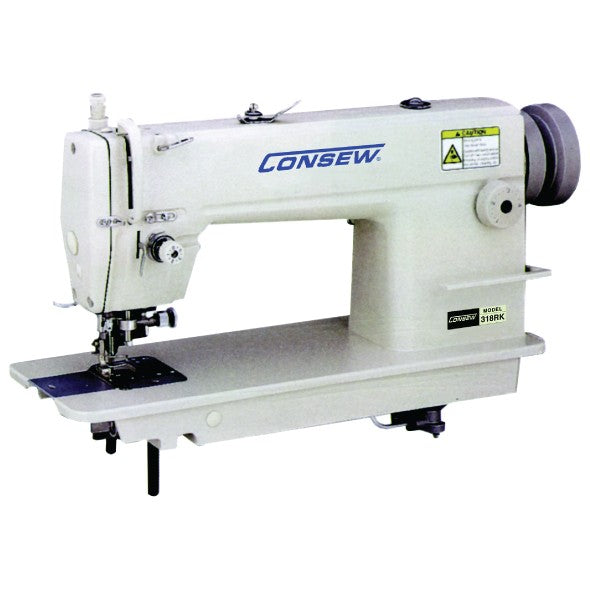

Consew 318RK-2

This machine is appropriate for sewing operations that involve stitching and simultaneous edge trimming, such as stitching and trimming lapels, shirt collars, cuffs, and other garment parts.

Suitable for men's, ladies', and children's apparel made from light to heavy materials such as cotton, knits, denim, polyester, nylon, and sheer fabrics.

Capable of performing a wide variety of operations by simply changing the gauge set.

Edge trimming device located alongside the needle.

Edge trimmer can be easily engaged or disengaged during the sewing cycle (push-button control).

Carbide-tipped upper knife and tool steel lower knife.

Trimming margin (distance from needle to knife) is adjustable.

Vibration-free operation with straight and uniform trimming due to a perfectly balanced mechanical system.

Clear work area with a passage in the machine bed for scrap disposal.

Fully automatic lubrication system.

Stitches per minute: 4000.

Reverse stitching.

Number of Needles: 1 (Single)

Feeding Mechanism: Drop Feed

Workspace: Standard Workspace

Standard or Full Function: Standard Functions

Speed, Max (S.P.M.): 4000

Clearance Under Presser Foot: Hand 5/16" (8mm), Knee 15/32" (12mm)

Stitch Length: 5 s.p.i. (5mm)

Work Space: 10 1/8" (258mm)

Needle: 16 x 257

Bobbin: Pre-Wound L

Bed Size: 7" x 18 7/8" (177mm x 477mm)

Hook: 146

Knife Stroke: 13/64" (5mm)

Lubrication: Fully Automatic

Trimming Width: 3/8" (9.5mm)

Gauges: 1/8" standard equipment, 1/16", 3/32", 5/32", 3/16", 1/4", 3/8" available separately.
