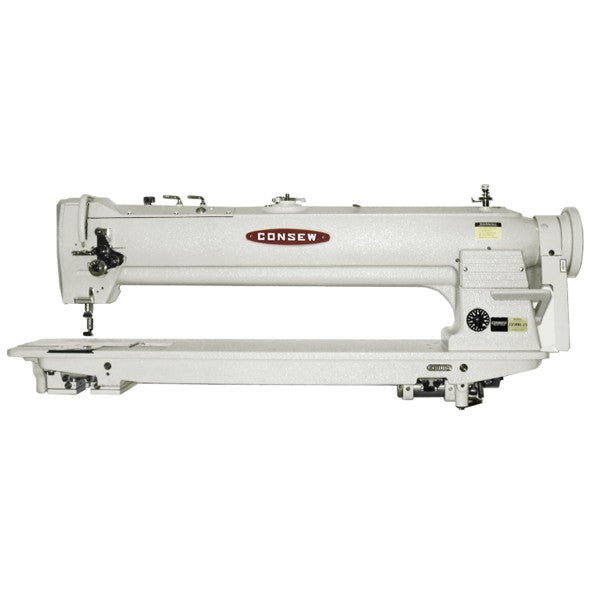

Consew 333RBL-25

Consew 333RBL-25

SKU: 333RBL-25

Overview

High Speed, Two Needle, Drop Feed, Needle Feed, Lockstitch Machine

With: Centra-Lube® Semi-Automatic Lubrication System, Large Vertical Acis Hooks and Bobbins, Reverse Feed, Safety Clutch

Product Resources

Download Parts Book Download Catalog Page

Applications

Designed for stitching light to medium weight fabrics.
Ideal for stitching reinforced and parallel stitches.
Suitable for operations such as attaching zippers, lap seam felling, staying shoe linings, and general double needle seaming, binding, taping, and piping.

Features

Large vertical axis hooks and bobbins ensure longer operation between bobbin changes.
Needle feed mechanism assures perfect and uniform stitching while eliminating slippage.
Centra-Lube® semi-automatic lubrication system.
Automatic hook lubrication.
Oil-fed take-up.
Reverse stitching (Models 333RB-3 / 333RBL-25).
Large range of gauge sets available.
Safety clutch prevents hooks from being damaged.
Synchronized puller available (add suffix -P).
Large hooks, bobbins, reverse feed, and LONG ARM configuration.

Specifications

Number of Needles: 2 (Double)
Feeding Mechanism: Needle Feed
Workspace: Long Arm
Standard or Full Function: Standard Functions
Speed, Max (S.P.M.): 2000
Clearance Under Presser Foot: 2 1/64" (8.5mm)
Stitch Length: 4 s.p.i. (6.5mm)
Work Space: 25" (640mm)
Needle: 135 x 17
Bobbin: Pre-Wound S or U
Bed Size: 7" x 28-1/4" (177mm x 718mm)
Stitch Type: 301
Needle Bar Stroke: 1 5/16" (33mm)
Available Needle Spacings: 1/16" (1.6mm) - 1 1/2" (38.1mm)
Standard Needle Spacing: 1/4" (6.4mm)
Hook: 15502
