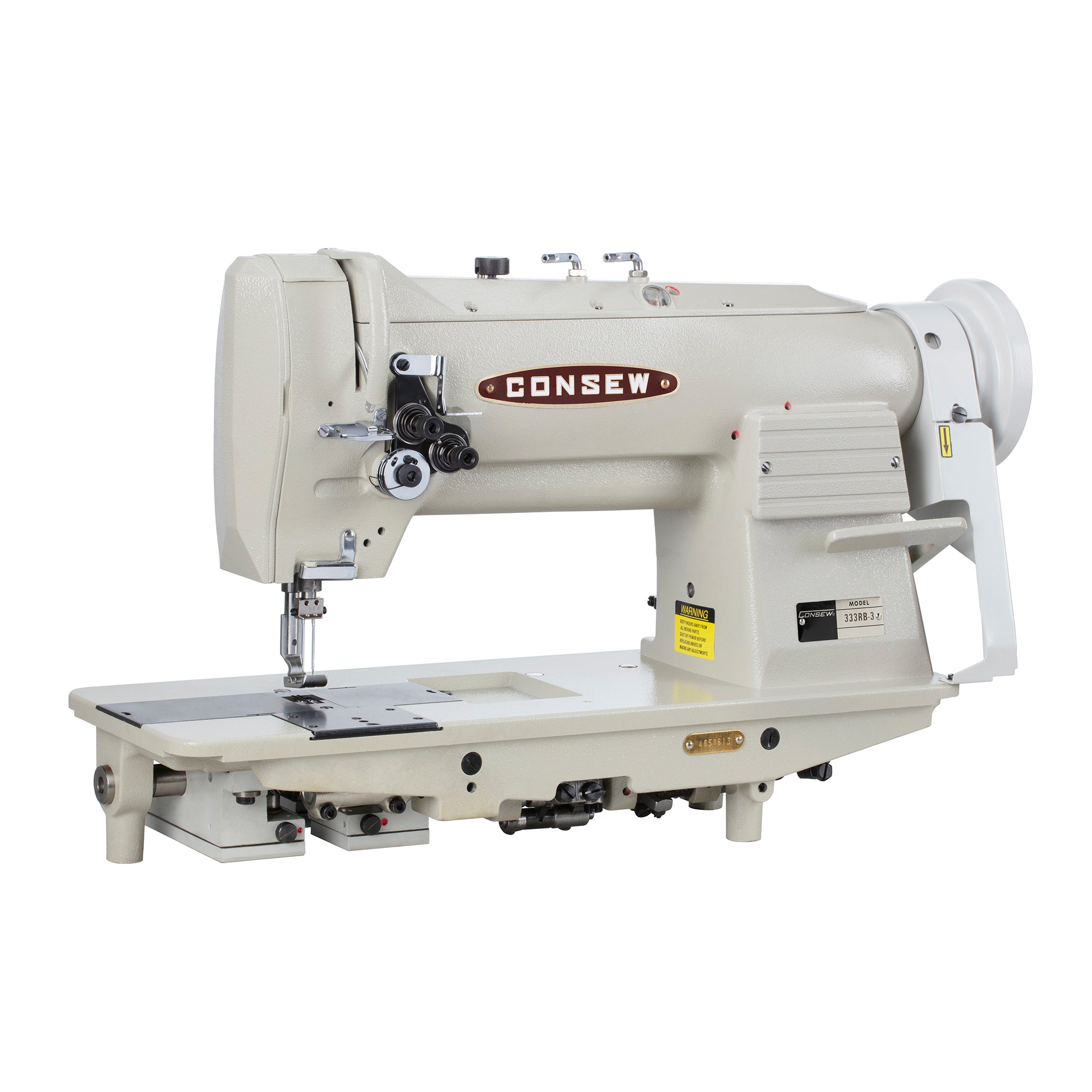

Consew 333RB-3

Consew 333RB-3

Consew 333RB-3

Consew 333RB-3

Consew 333RB-3

Consew 333RB-3

Consew 333RB-3

SKU: 333RB-3

Overview

High Speed, Two Needle, Drop Feed, Needle Feed, Lockstitch Machine

With: Centra-Lube® Semi-Automatic Lubrication System, Large Vertical Axis Hooks and Bobbins, Reverse Feed, Safety Clutch

Product Resources

Download Manual Download Parts Book Download Catalog Page

Applications

Designed for stitching light to medium weight fabrics.
Designed for stitching reinforced and parallel stitches.
Suitable for operations such as attaching zippers, lap seam felling, staying shoe linings, and general double needle seaming, binding, taping, and piping.

Features

Large vertical axis hooks and bobbins ensure longer operation between bobbin changes.
Centra-Lube® semi-automatic lubrication system.
Automatic hook lubrication.
Oil-fed take-up.
Reverse stitching.
Large range of gauge sets available.
Safety clutch prevents the hooks from being damaged.
Synchronized puller available (add suffix -P).

Specifications

Number of Needles: 2 (Double)
Feeding Mechanism: Needle Feed
Workspace: Standard Workspace
Standard or Full Function: Standard Functions
Speed, Max (S.P.M.): 2800
Clearance Under Presser Foot: 2 1/64" (8.5mm)
Stitch Length: 4 s.p.i. (6.5mm)
Work Space: 10" (254mm)
Needle: 135 x 17
Bobbin: Pre-Wound S or U
Bed Size: 7" x 20-3/8" (177mm x 518mm)
Stitch Type: 301
Weight: 96 lbs
Needle Bar Stroke: 1 5/16" (33mm)
Available Needle Spacings: 1/16" (1.6mm) - 1 1/2" (38.1mm)
Standard Needle Spacing: 1/4" (6.4mm)
Hook: 15502
