Consew Servo Motor CSM1001

Name: Consew Servo Motor CSM1001
Brand: My Store
SKU: CSM1001
Availability: InStock

SKU: CSM1001

Overview

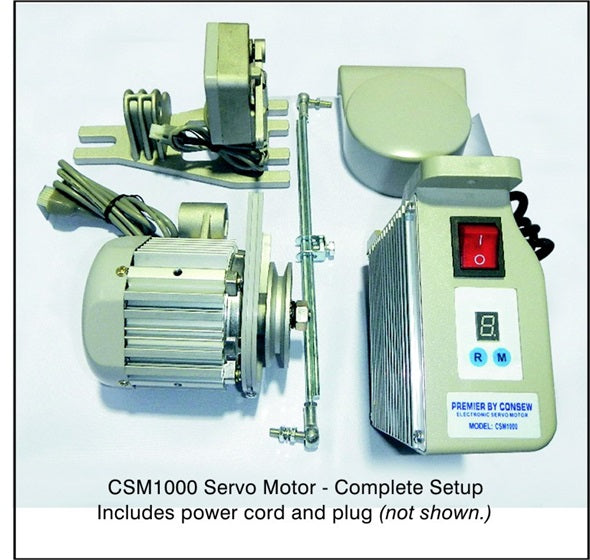

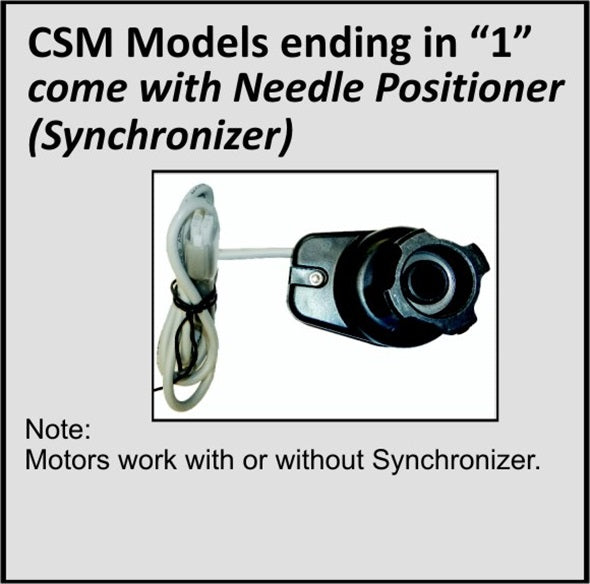

The CSM1001 is a 3/4 HP (550 Watt) Brushless Servo Motor that includes the Needle Positioner (synchronizer) see photo #3.
Energy Efficient – Saves up to 70% Electricity. Speed: 0–4,200 RPM.
The CSM1000 is the same model without the synchronizer.

Product Resources

Download Manual

Features

No Noise when machine is not running
No Vibration when machine is not running
Draws Minimal Electricity when machine is not running
Includes the Needle Positioner (synchronizer); Motor will run with or without the synchronizer
Uses the same mounting holes as a clutch motor
Easy to adjust speed & motor direction with buttons
No clutch disc
Adjustable belt tightener
Belt guard, pulley & mounting hardware included
Lightweight, approximately 10 - 12 lbs (5 kgs)
Starts-up at low speed
Works well on heavy-duty machines

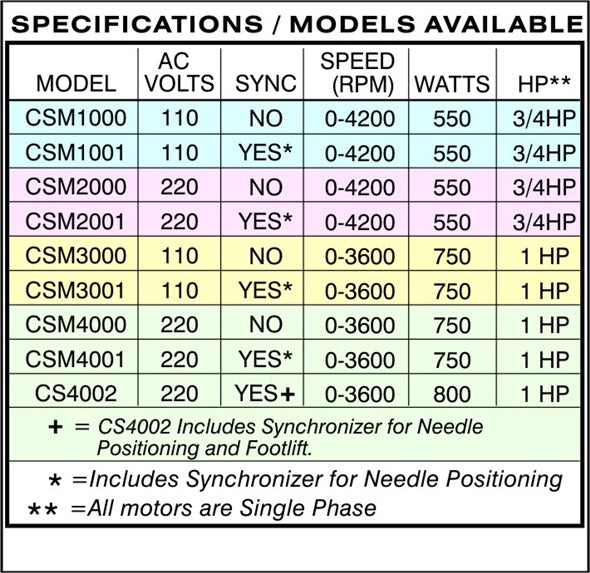

Specifications

Voltage: 110V
Power: 550 watts
Horsepower: 3/4 HP
Speed: 0–4500 RPM
Synchronizer: Yes
Phase: Single Phase
