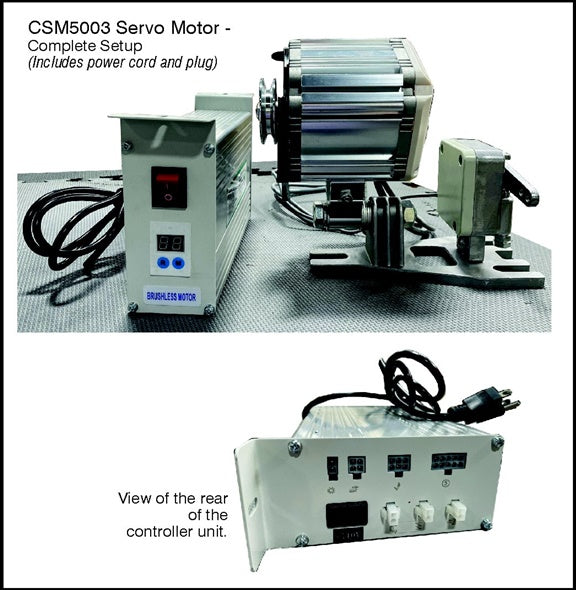

Consew CSM5003

• Designed for extra-heavy-duty sewing machines
• Suitable for industrial and commercial sewing operations requiring high torque and energy efficiency

• Powerful 1.35 HP (1000 Watt) Brushless Servo Motor: Specially made for extra-heavy-duty machines
• Automatic Footlift Capability and Needle Position Synchronizer: CSM5003 model
• Energy Efficient: Saves up to 70% electricity
• Voltage Options: CSM5003 runs at 110V (CSM6003 runs at 220V)
• Comes with Footlift Outlet and Reverse Outlet: CSM5003 model
• Adjustable Soft-Start Feature: Smooth operation
• Uses the same mounting holes as a clutch motor: Easy installation
• Needle Positioning: Precise control
• No Noise or Vibration when the machine is not running: Quiet operation
• Draws Minimal Electricity when the machine is not running: Energy-saving
• Ultra High Torque D.C. Electronic Servo Motor: High performance
• Digital Controls: Easy to adjust speed and motor direction
• No clutch disc / No brushes: Low maintenance
• Includes Adjustable Belt Tightener, Belt Guard, Pulley, and Mounting Hardware: Complete setup
• Lightweight Design: Easy to handle

Motor Series Options:

• CSM5000: Just Motor

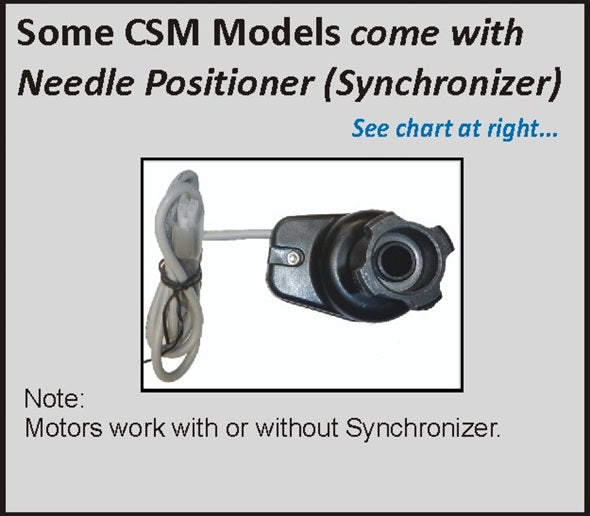

• CSM5001: Motor with Synchronizer and Needle Positioning
• CSM5002: Motor with Synchronizer, Needle Positioning, and Footlift Outlet
• CSM5003: Motor with Synchronizer, Needle Positioning, Footlift Outlet, and Reverse Outlet
• Voltage Variations: 5000 series for 110V, 6000 series for 220V (replace "5" with "6" in the model number for 220V)

• Motor Power: 1.35 HP (1000 Watt)
• Voltage: 110V (CSM5003) or 220V (CSM6003)
• Speed: 0-3500
• Watts: 1000
• Energy Efficiency: Saves up to 70% electricity
• Included Components: Adjustable belt tightener, belt guard, pulley, and mounting hardware
• Synchronizer: Yes
• Foot Lift: Yes
• Reverse: Yes
