Consew CSM2001

Name: Consew CSM2001
Brand: My Store
SKU: CSM2001
Availability: InStock

SKU: CSM2001

Overview

CSM Servo Motor Series

Energy Efficient – Saves up to 70% Electricity

The CSM2001 is a 220V, 3/4 HP (550W) brushless servo motor with a synchronizer (needle positioner) for precise stitching control. The CSM2000 is the same motor but includes the synchronizer.

Product Resources

Download Manual

Features

No Noise or Vibration when the machine is idle
Minimal Electricity Usage when not in use

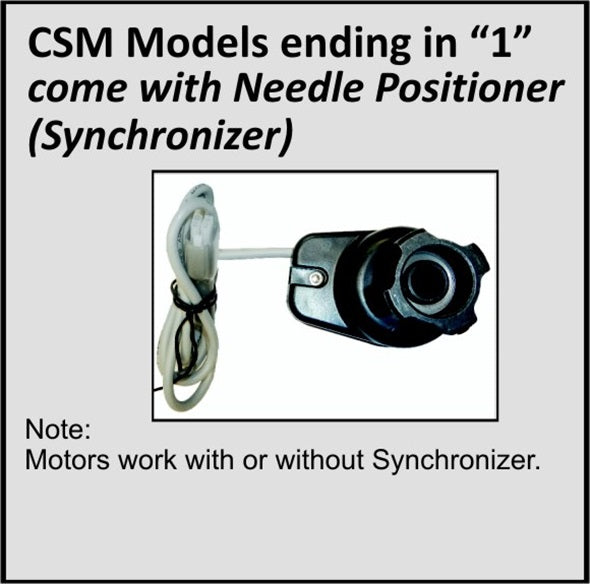

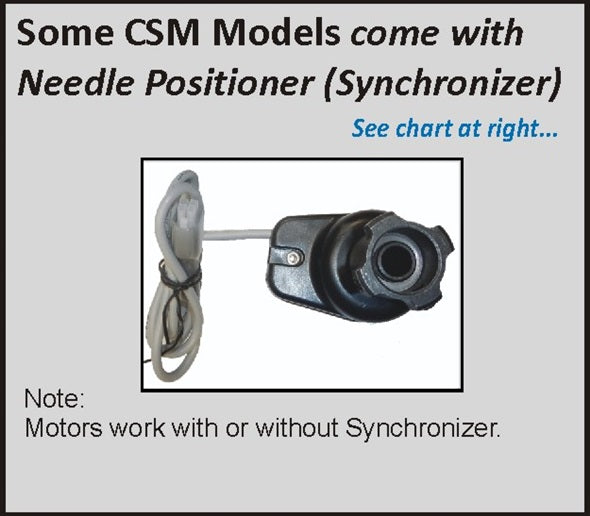

Includes Needle Positioner (Synchronizer) (Motor can operate with or without it)
Direct replacement for clutch motors (Uses the same mounting holes)
Easy Speed & Direction Adjustment with buttons
No Clutch Disc – Smooth operation
Adjustable Belt Tightener for optimal tension
Belt Guard, Pulley & Mounting Hardware Included
Lightweight: Approx. 10 - 12 lbs (5 kg)
Soft Start at Low Speed for better control
Compatible with Heavy-Duty Machines

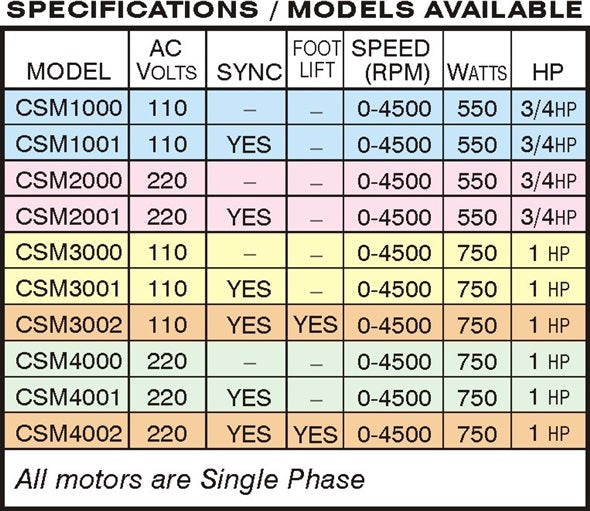

Specifications

Voltage: 220V
Power: 550 watts
Horsepower: 3/4 HP
Speed: 0–4500 RPM
Synchronizer: Yes
Phase: Single Phase
