Consew Model P1510RBL-25-(N)

Name: Consew Model P1510RBL-25-(N)
Brand: My Store
SKU: P1510RBL-25-(N)
Availability: InStock

SKU: P1510RBL-25-(N)

Overview

The P1510RBL-25-(N) with air footlift is a high-performance compound feed, walking foot sewing machine with a large vertical-axis rotary hook. Designed for heavy-duty sewing, it features a 25 inch workspace and is suitable for thick materials such as leather, canvas, and technical textiles. Its built-in safety clutch, smooth material feeding, and reinforced frame ensure reliability and durability in demanding industrial environments.

Single Needle, Walking Foot, Long Arm, Lockstitch Machine with air footlift.
Available in 14" 18" and 25" workspace.

Featuring:
Large Top Load Bobbin
Vertical Axis Hook
Climbing Device
Reverse
Semi-automatic Lubrication

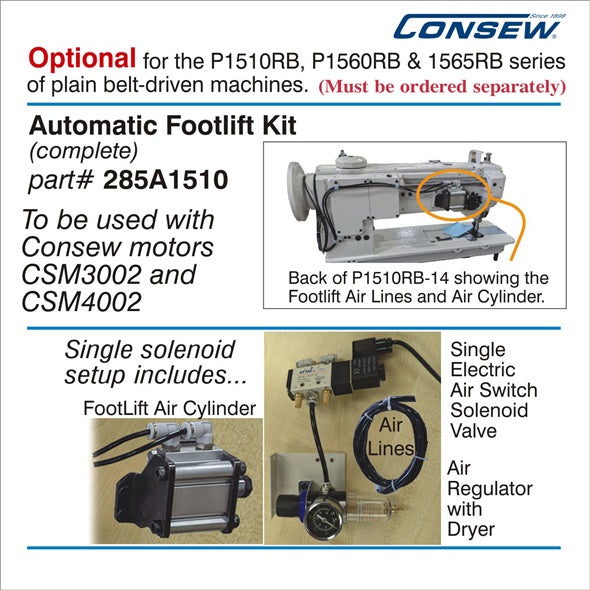

Note: The air footlift requires a CSM3002 or CSM4002 motor.

Product Resources

Download Manual Download Catalog Page

Applications

Designed for automotive, marine, leather, canvas, and general upholstery
For sewing light to heavyweight fabric, canvas, leather, vinyl, synthetics, and various laminated and coated materials
Designed for stitching products such as auto, boat, and furniture upholstery, tarpaulins, covers, awnings, tents, umbrellas, handbags, luggage, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, footwear, foundation garments, orthopedic appliances, etc.

Features

Large Top Load Bobbin(s)
Vertical Access Hook(s)
Built-in Bobbin Winder
Walking Foot
Reverse
Semi-Automatic Oiling

Specifications

Speed, maximum: 2000 - 2500 spm (*Speed depends on thread, material, and operation)
Clearance Under Foot: 9/16" (14mm)
Needle: 135 x 17 (DPX17)
Stitch Length; Max.: 9mm Adjustment By Dial
Presser Foot Lift By Hand: 9 mm / By Knee: 16mm
Lubrication: Semi-Automatic
Bobbin: U or S
Power: 110 / 220 vac
