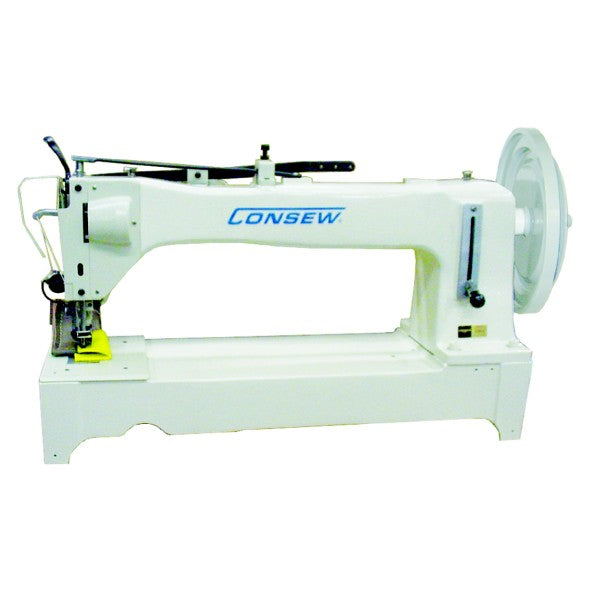

Consew 733R-25

• Suitable for stitching extra heavy-weight materials
• Designed for operations and products such as safety and logging belts, cargo slings, buffing wheels, tents, sails, harnesses, tarpaulins, covers, fabric structures, construction barriers, parachutes, balloons, industrial bags, boot stitching, and bookbinding

• Synchronized upper and lower feeding mechanism ensures uniform stitching
• Alternating presser feet
• Steel insert for take-up hinge
• Reverse stitching (hand or foot operated)
• Stitch regulator (hand or foot operated)
• Presser foot lift (hand or foot operated)
• 1-1/4 inch presser foot lift
• Two-row feeder
• Two stitches per inch
• Stitches per minute: 550
• Extra-large, long-beak oscillating shuttle, hook, and bobbin
• Belt guard

Number of Needles: 1 (Single)

Feeding Mechanism: Walking Foot

Workspace: Long Arm

Standard or Full Function: Standard Functions

Max Speed: 550 S.P.M.

Clearance Under Presser Foot: 1 1/4" (32mm)

Stitch Length: 2 s.p.i. (13mm)

Work Space: 25" (640mm)

Needle: 1000 or 1000H

Bobbin: Pre-Wound 41

Bed Size: 10" x 26 1/4" (258mm x 665mm)

Stitch Type: 301

Weight: 231 lbs. (105kg)

Needle Bar Stroke: 2 3/32" (53mm)

Hook: 35224
