Consew P1760RB

Name: Consew P1760RB
Brand: My Store
SKU: P1760RB
Availability: InStock

SKU: P1760RB

Overview

The Consew P1760RB is a high-performance, two-needle postbed walking foot lockstitch machine specifically engineered for demanding applications in the automotive, marine, leather, canvas, and general upholstery sectors. This model features a large workspace and utilizes two large top-loading Style U bobbins with vertical access hooks, ensuring efficient operation and longer sewing cycles with fewer interruptions.

To handle complex materials with precision, the machine is equipped with a walking foot feeding system and an adjustable climbing device that maintains consistent performance across varying fabric thicknesses. It operates at speeds up to 2,500 SPM, offering a maximum stitch length of 9mm and a high 16mm presser foot lift via knee control.

Also available:

P1760RB-(N) with pneumatic footlift and reverse.
P1760RB-7DD with automatic thread trimmers, direct drive motor, pneumatic footlift and reverse.

Product Resources

Download Catalog Page How To Videos

Applications

Sewing medium to medium heavy-weight fabrics, leather, canvas, vinyl synthetics, and various coated and laminated materials
Designed for automotive, marine, leather, canvas and general upholstery. tents, wearing apparel, outdoor clothing, underwear, etc.
General/parallel two-needle stitching
Suitable for stitching uneven, hollow, tubular, and curved articles
Secondary operations on finished articles, such as attaching braids, pockets, tapes, etc.

Features

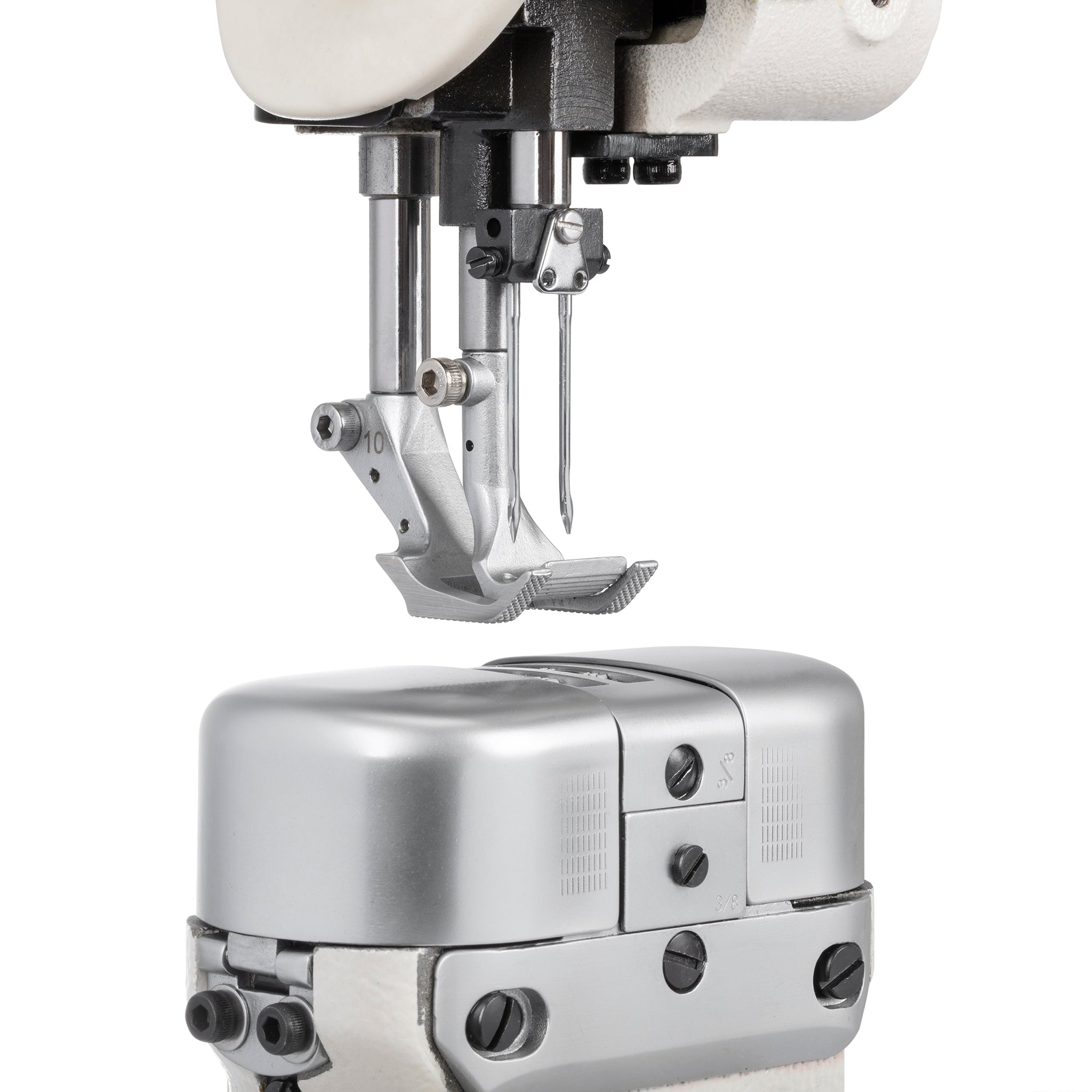

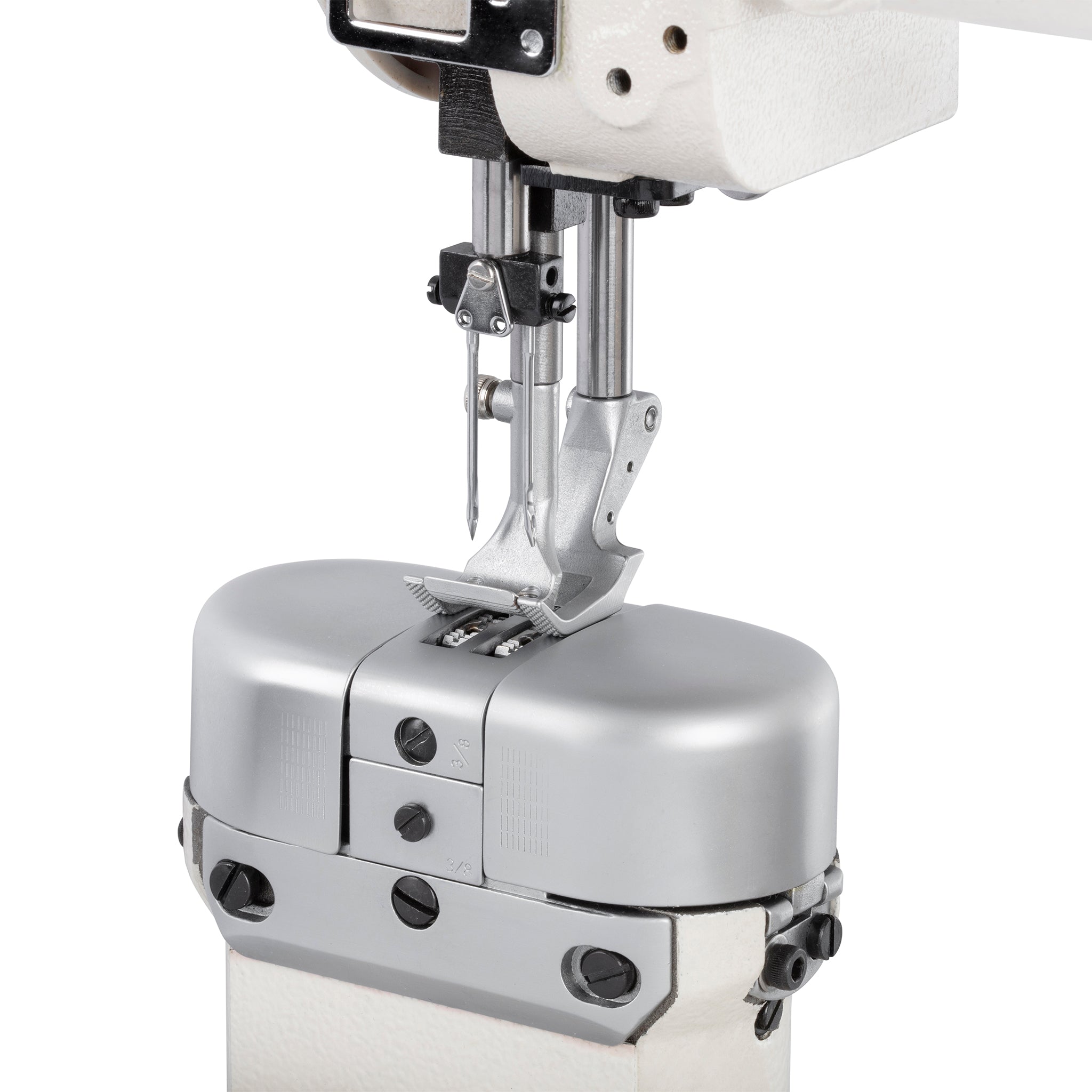

Two-Needle Postbed Design: Specifically engineered for heavy-duty applications in automotive, marine, leather, canvas, and general upholstery.
Walking Foot with Adjustable Climbing Device: Utilizes a walking foot feeding system and an adjustable climbing device to ensure consistent stitching across varying material thicknesses.

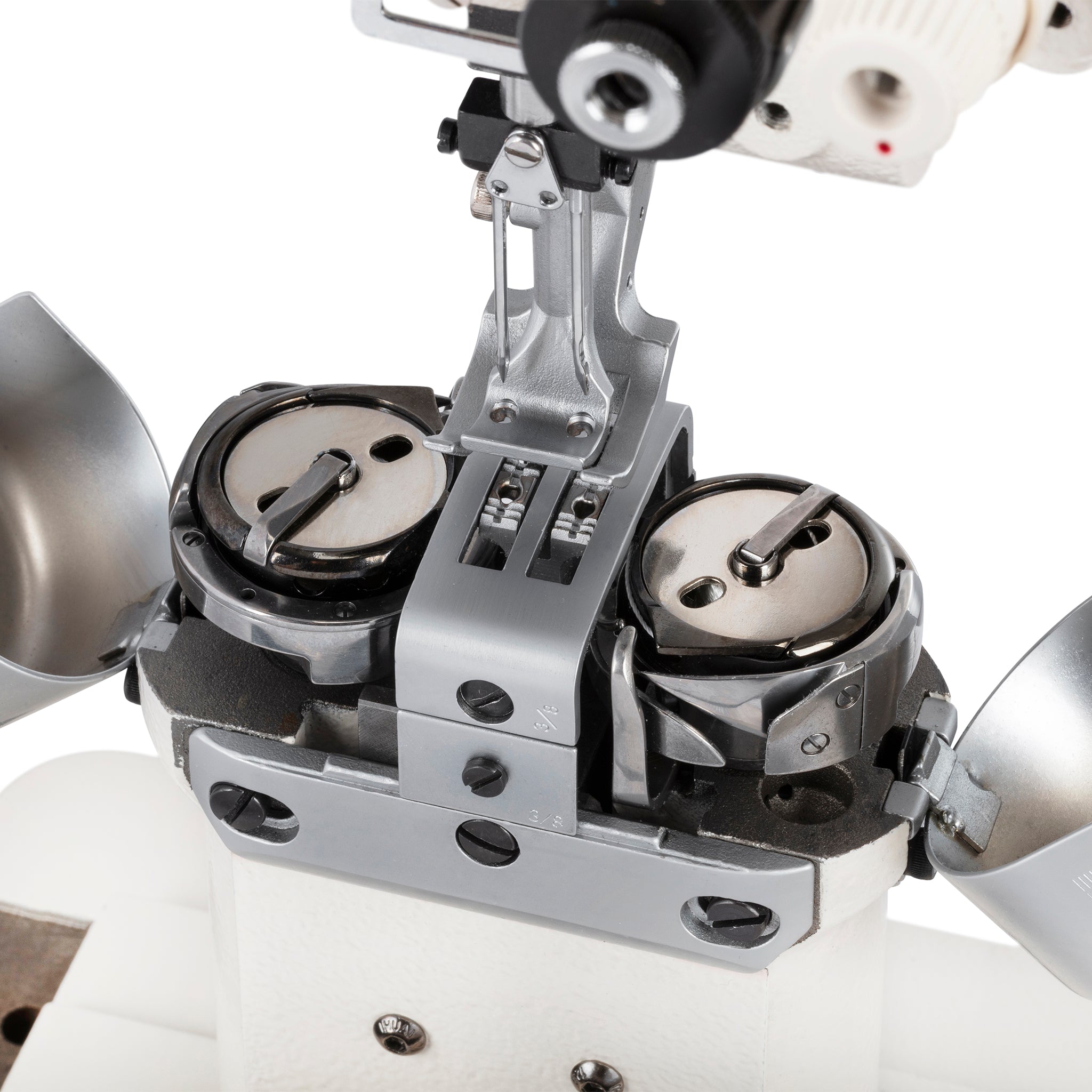

Large Capacity Bobbins: Equipped with two large, top-loading Style U bobbins and vertical access hooks to facilitate longer sewing cycles.
Safety and Maintenance Features: Features an integrated safety clutch to protect the machine during high-stress use and a fully-automatic lubrication system for reduced maintenance.

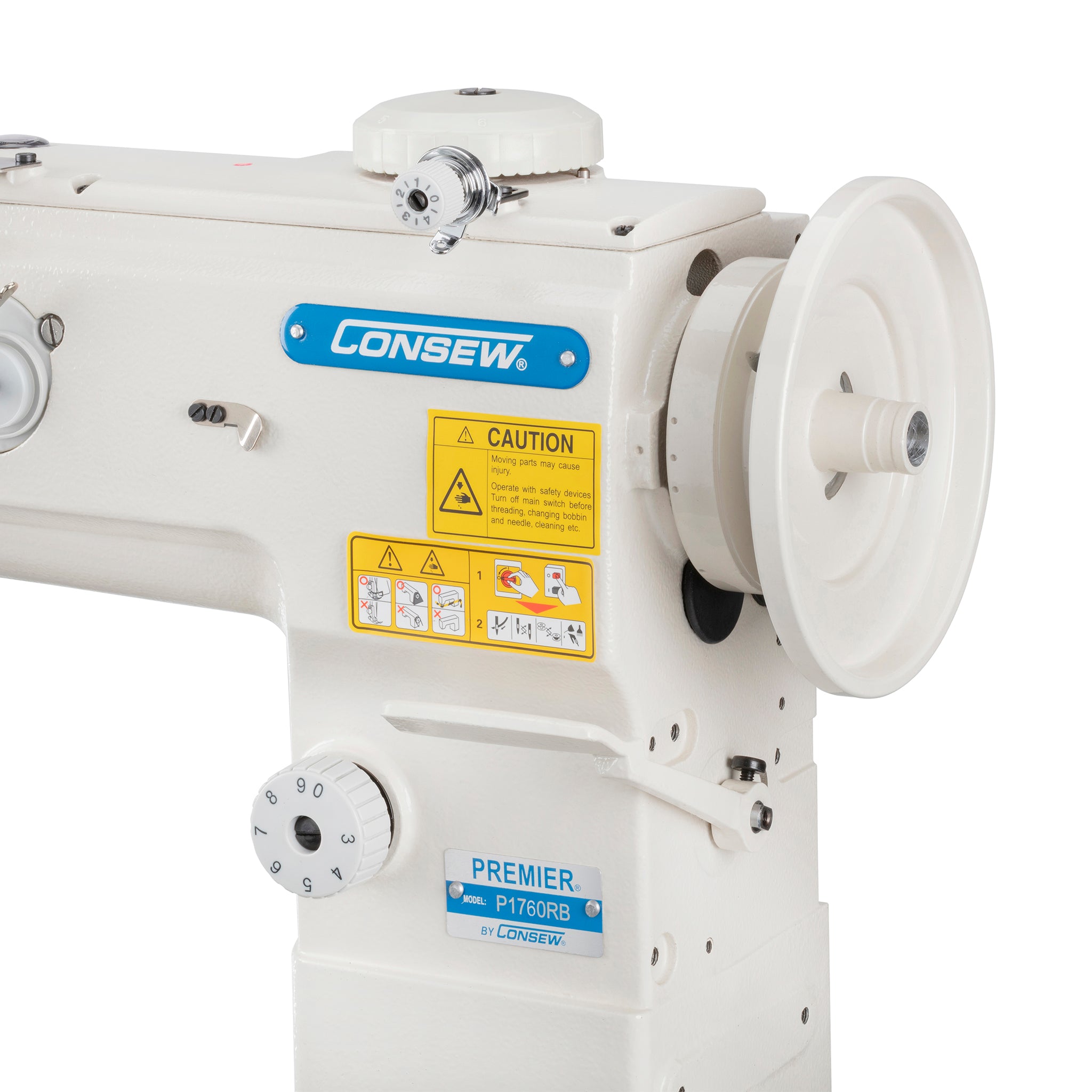

Precision Stitch Control: Includes a stitch length regulator dial capable of up to 9mm stitches and a conveniently located reverse lever.
High Material Clearance: Provides a presser foot lift of 9mm by hand and a high 16mm clearance via knee control for handling bulky projects.

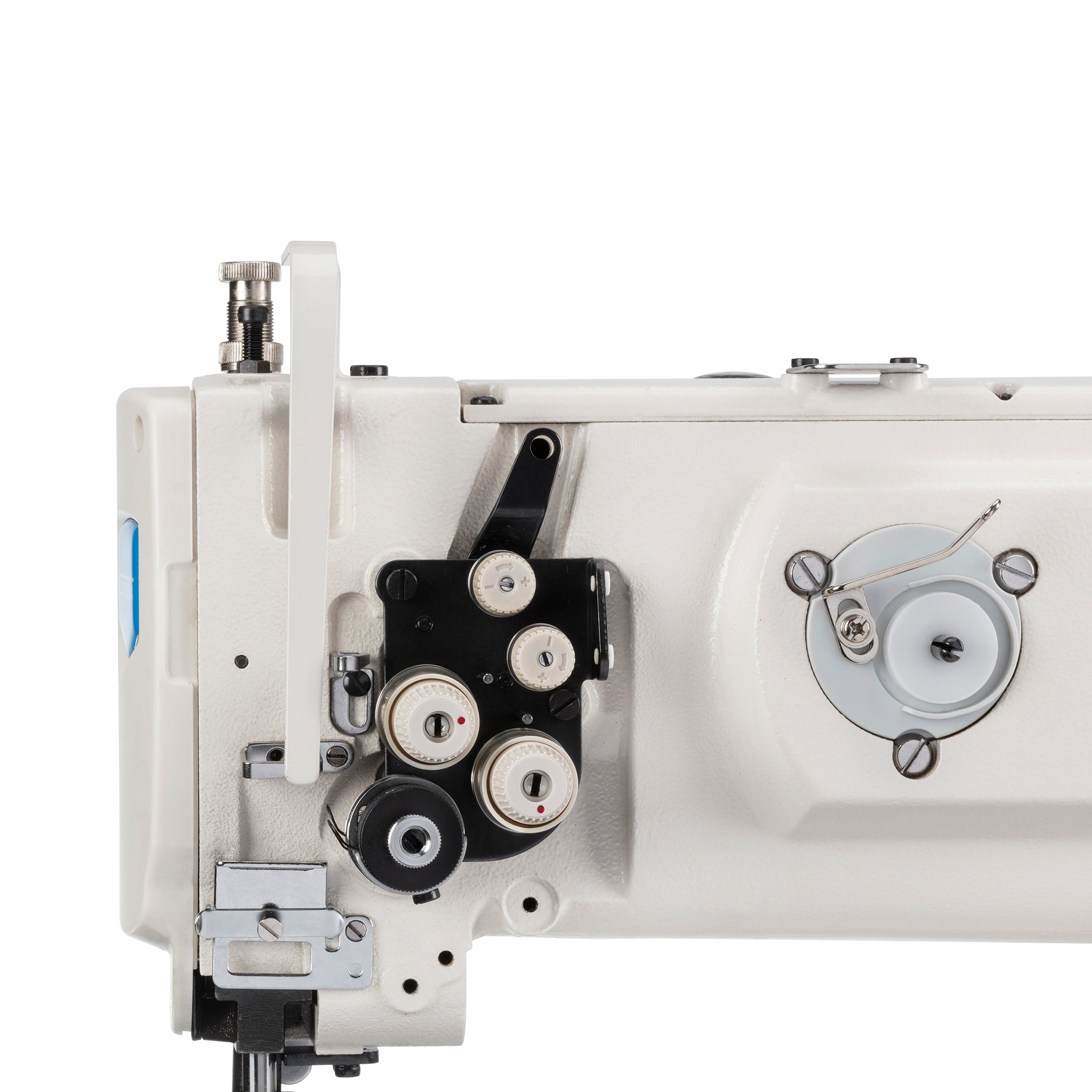

Integrated Bobbin Winder: Includes a built-in bobbin winder with its own dedicated tensioner for efficient thread management.
High-Speed Performance: Capable of operating at a maximum speed of 2,500 stitches per minute.
Automated Configuration Options: Available in specialized models, such as the P1760RB-(N) with pneumatic functions and the P1760RB-7DD featuring a direct drive motor and automatic thread trimmers.
