Consew P1765RB

Name: Consew P1765RB
Brand: My Store
SKU: P1765RB
Availability: InStock

SKU: P1765RB

Overview

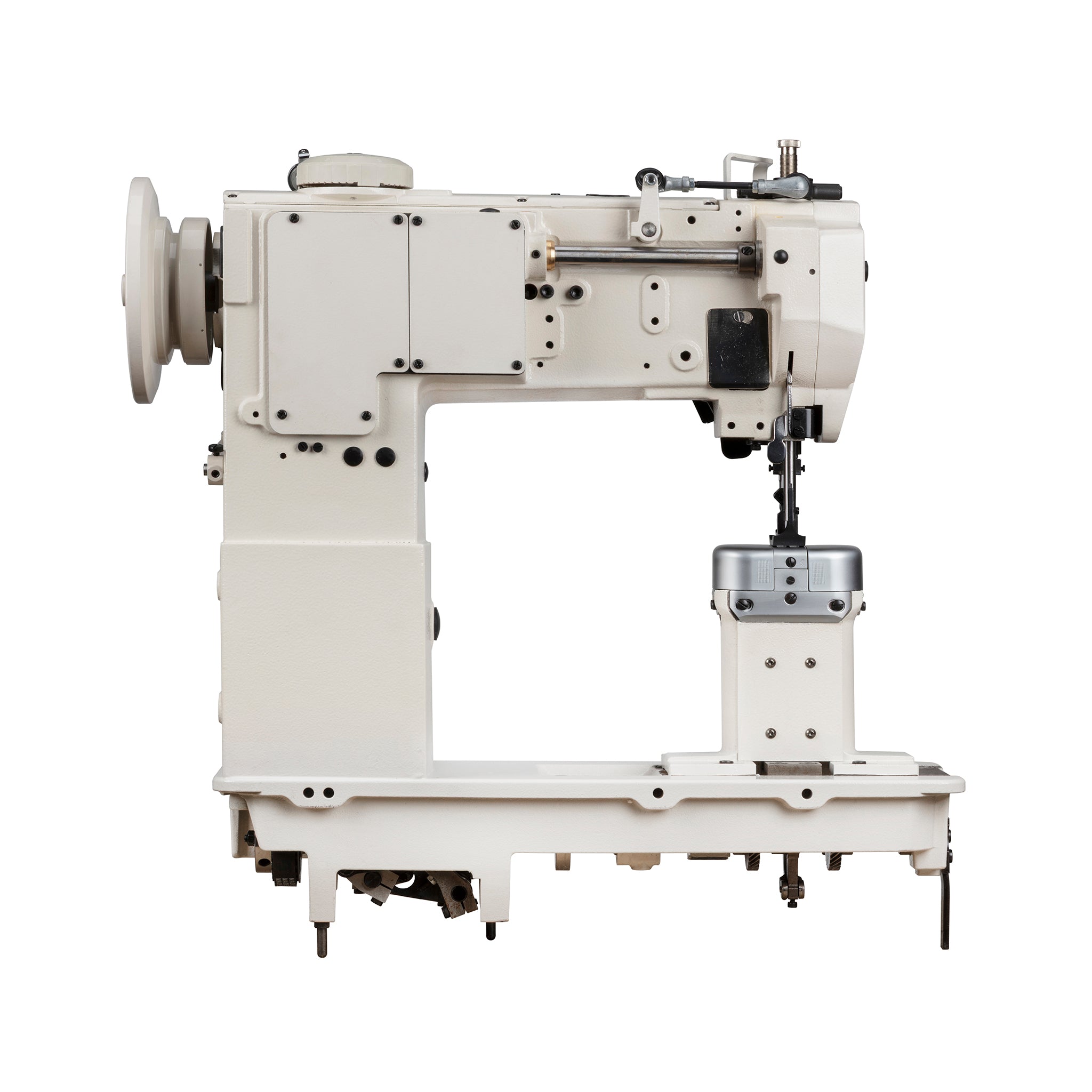

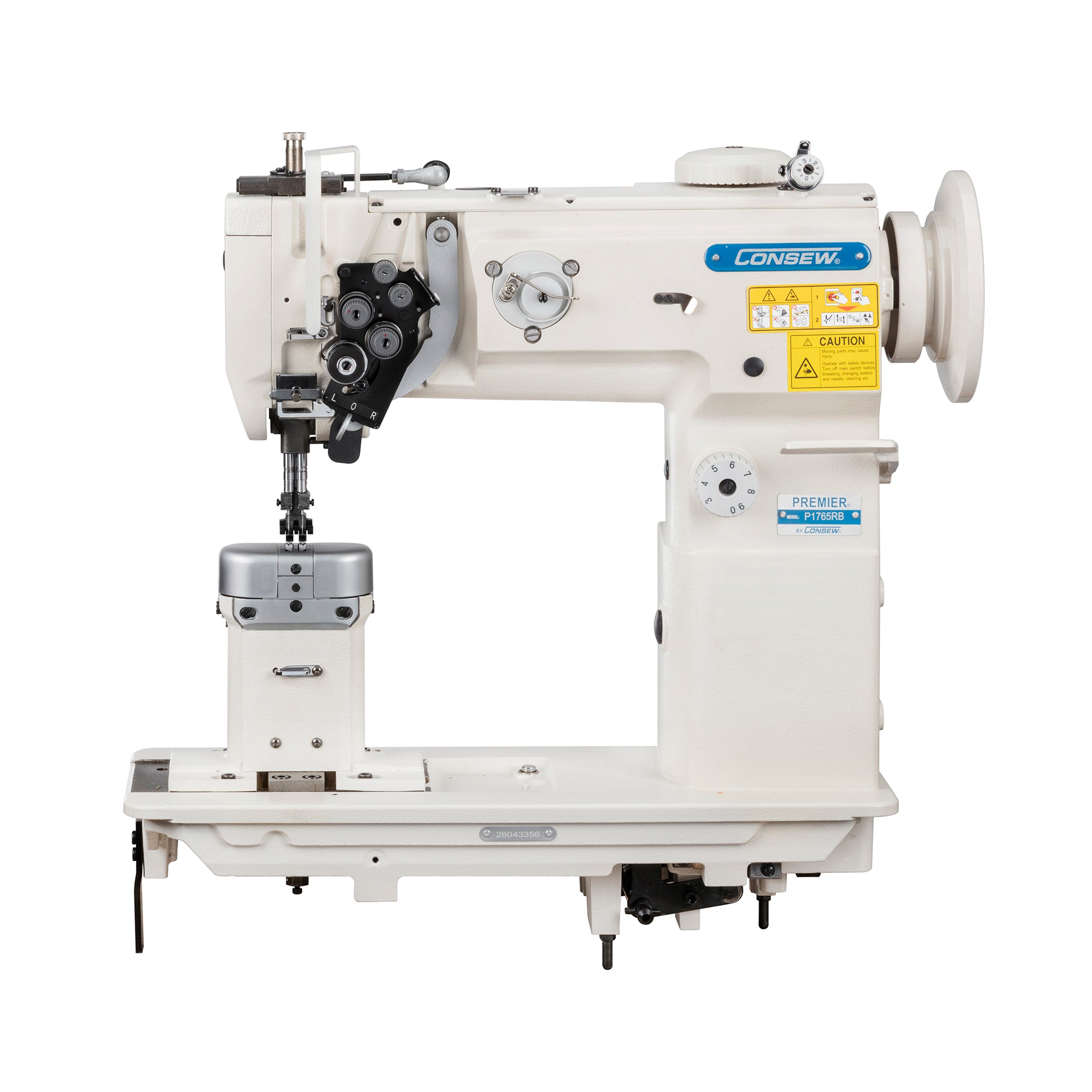

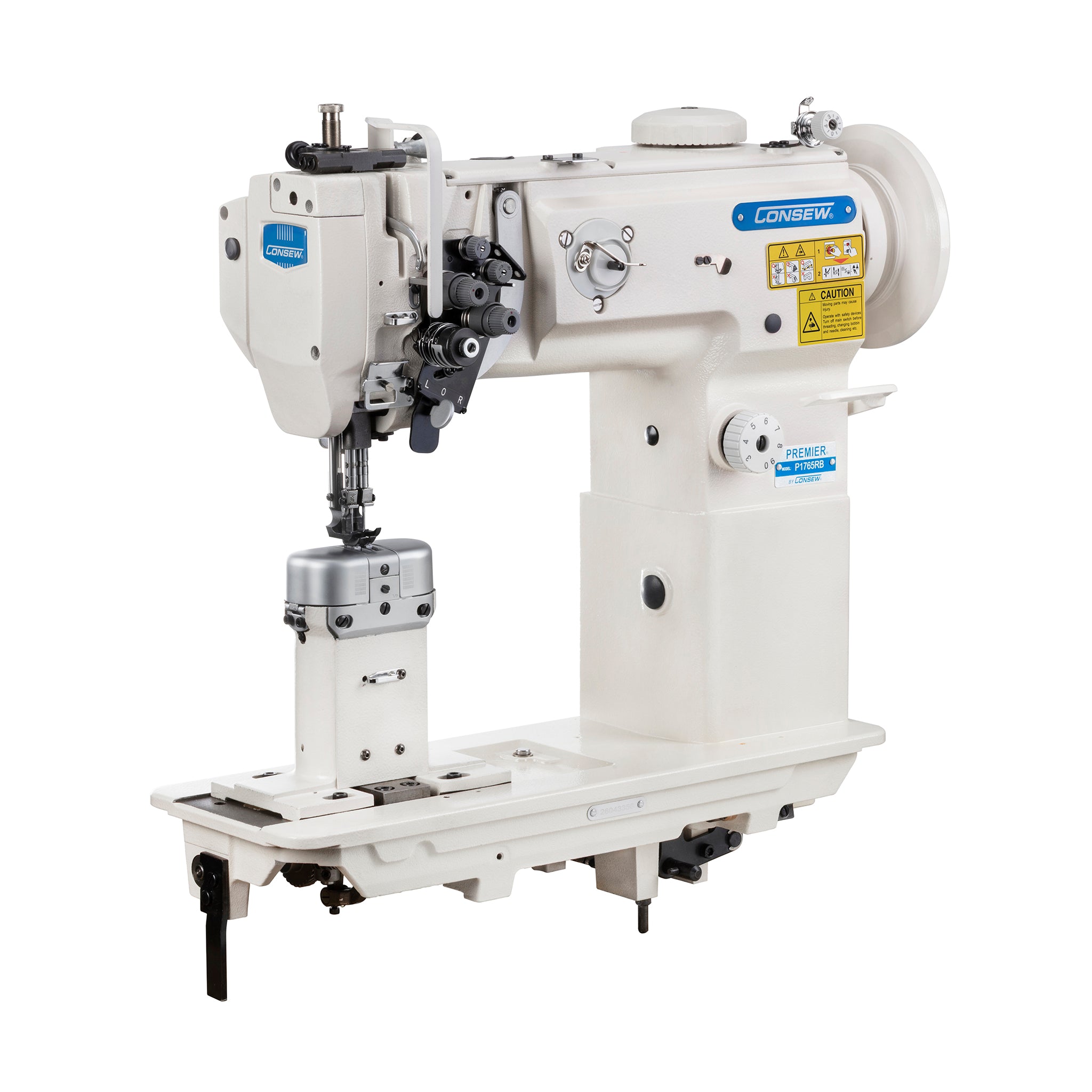

The Consew P1765RB is a high-performance, two-needle postbed walking foot lockstitch machine uniquely equipped with a split needle bar for precise angular stitching. Designed for demanding applications in the automotive, marine, leather, canvas, and general upholstery industries, this model features a large workspace and two large top-loading Style U bobbins with vertical access hooks to ensure efficient, long-running production cycles.

To maintain consistent stitch quality across varying material thicknesses, the machine utilizes a walking foot feeding system paired with an adjustable climbing device. It is capable of speeds up to 2,500 SPM, offering a maximum stitch length of 9mm and a high 16mm presser foot lift via knee control to accommodate bulky projects.

Also available:

P1765RB-(N) with pneumatic footlift and reverse.
P1765RB-7DD with automatic thread trimmers, direct drive motor, pneumatic footlift and reverse.

Product Resources

Download Catalog Page

Applications

Sewing medium to medium heavy-weight fabrics, leather, canvas, vinyl, synthetics, and various coated and laminated materials
Designed for automotive, marine, leather, canvas and general upholstery.
Suitable for stitching products such as overalls, raincoats, luggage, travelware accessories, bags, umbrellas, awnings, covers, tarpaulins, tents, wearing apparel, outdoor clothing, underwear, etc.
General/parallel two-needle stitching with split bar for making even angle turns
Suitable for stitching uneven, hollow, tubular, and curved articles

Features

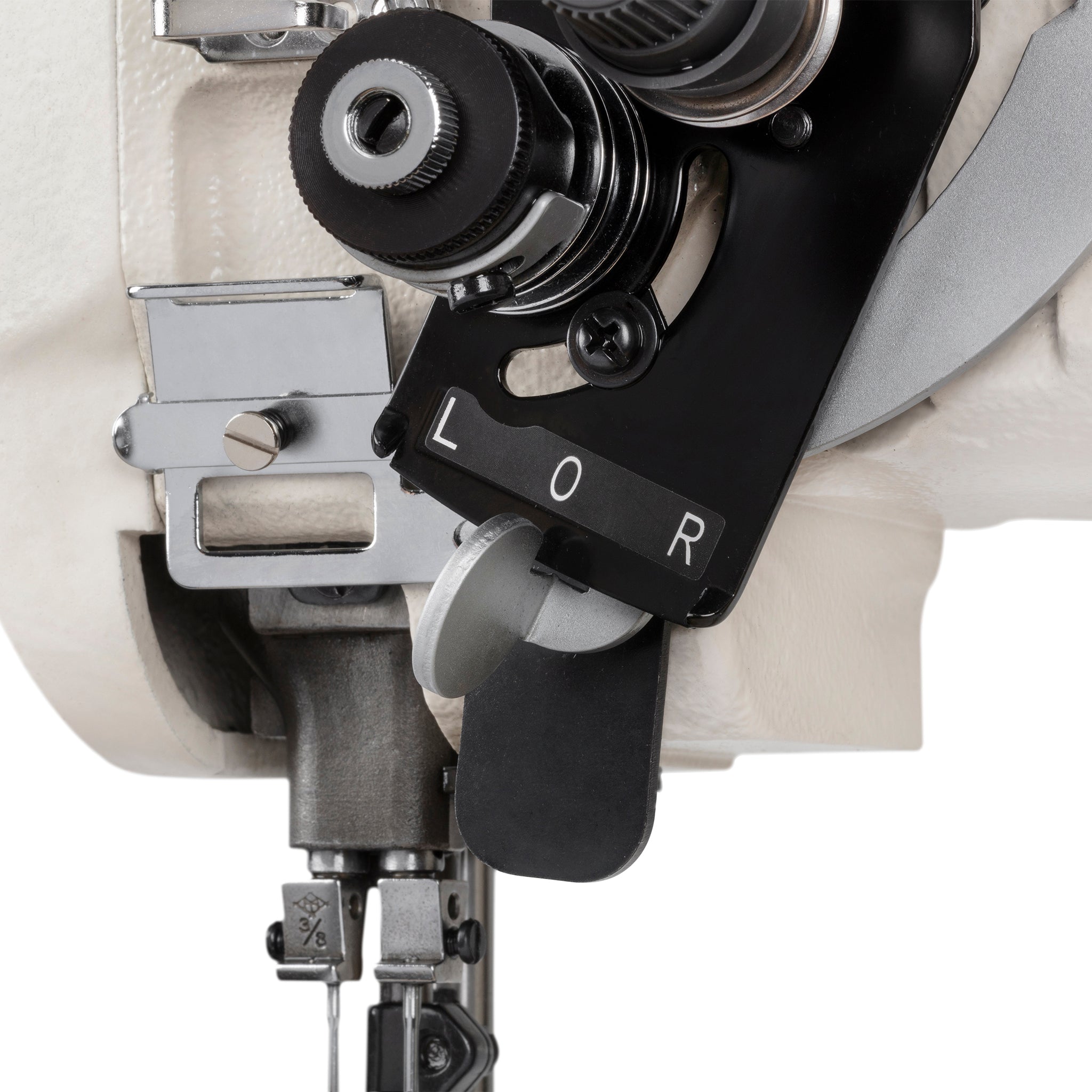

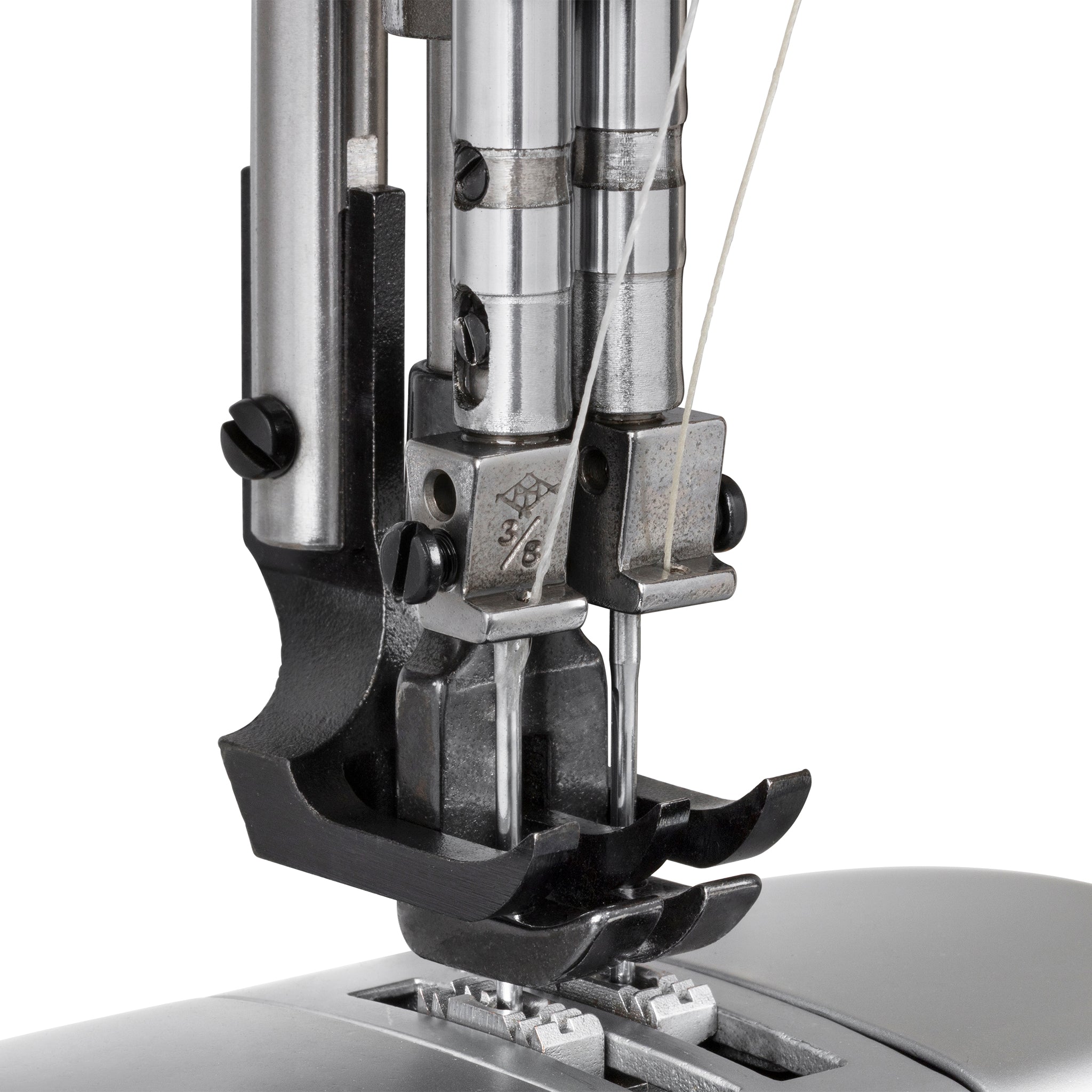

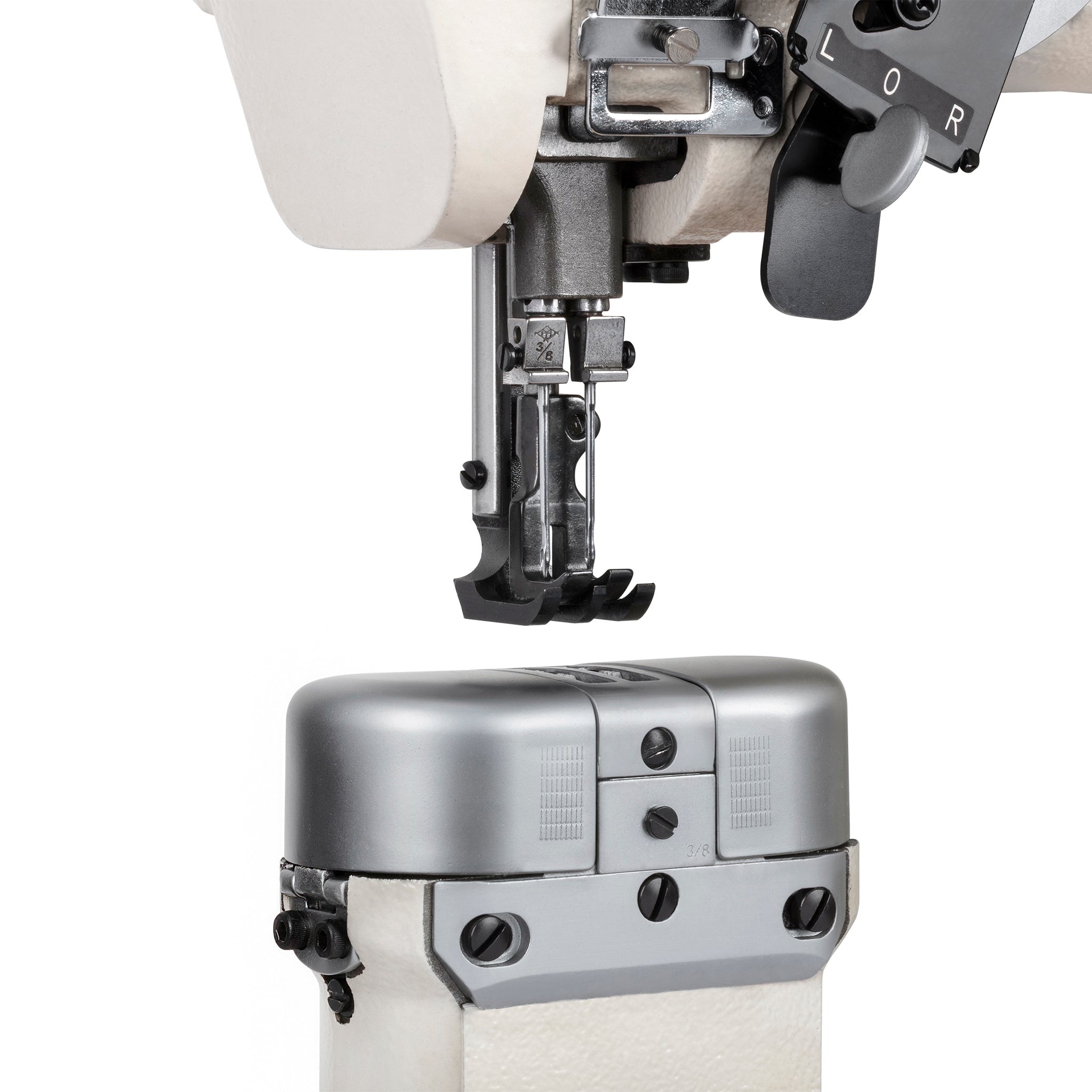

Two-Needle Postbed with Split Needle Bar: Specifically designed for the automotive, marine, leather, canvas, and general upholstery industries, featuring a split needle bar for precise angular stitching.
Walking Foot with Adjustable Climbing Device: Utilizes a walking foot feeding system and an adjustable climbing mechanism to ensure consistent performance across varying material thicknesses.

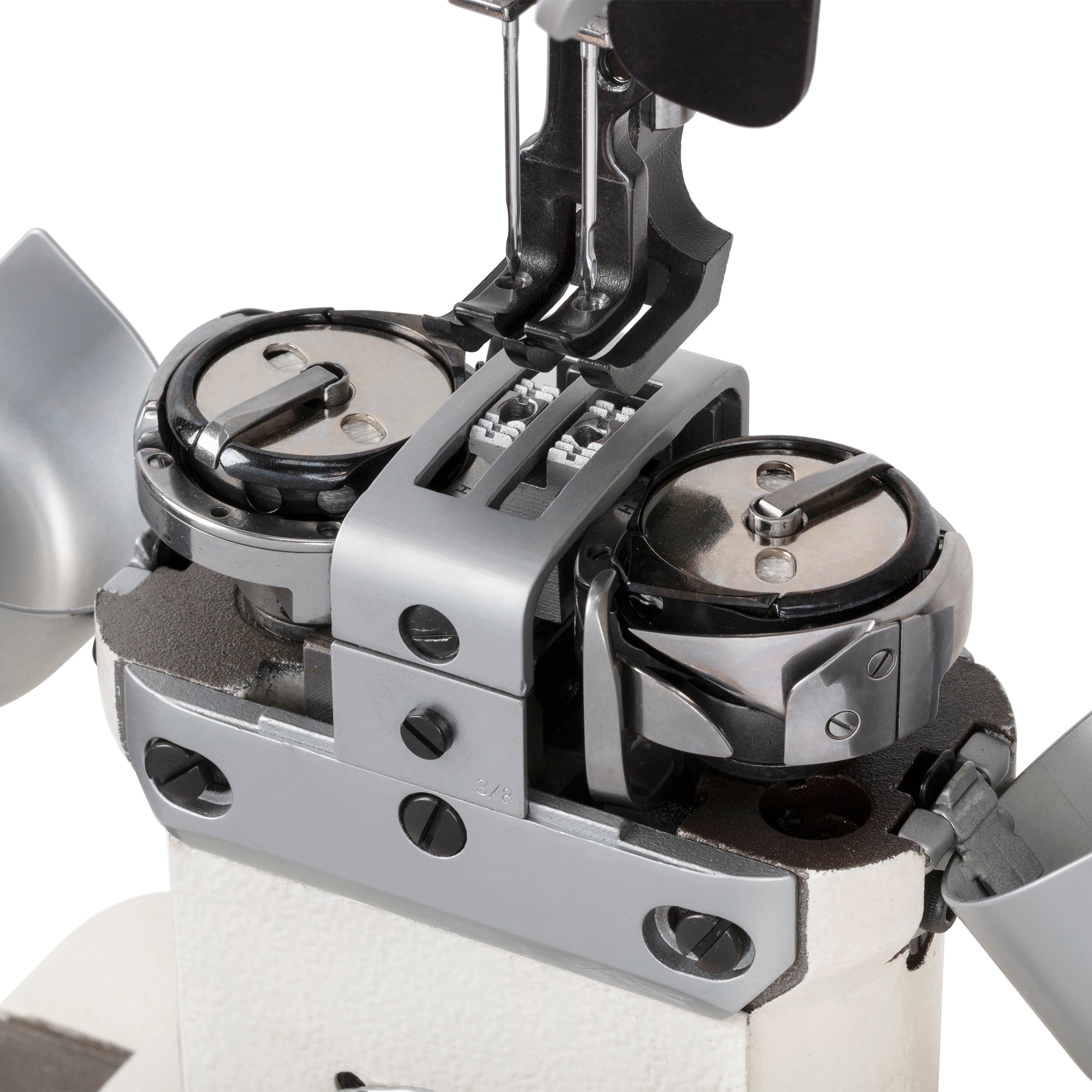

High-Capacity Bobbins: Equipped with two large, top-loading Style U bobbins and vertical access hooks to facilitate extended sewing cycles.
Safety and Maintenance: Features an integrated safety clutch to protect internal components from damage and a fully-automatic lubrication system for reliable, high-speed operation.

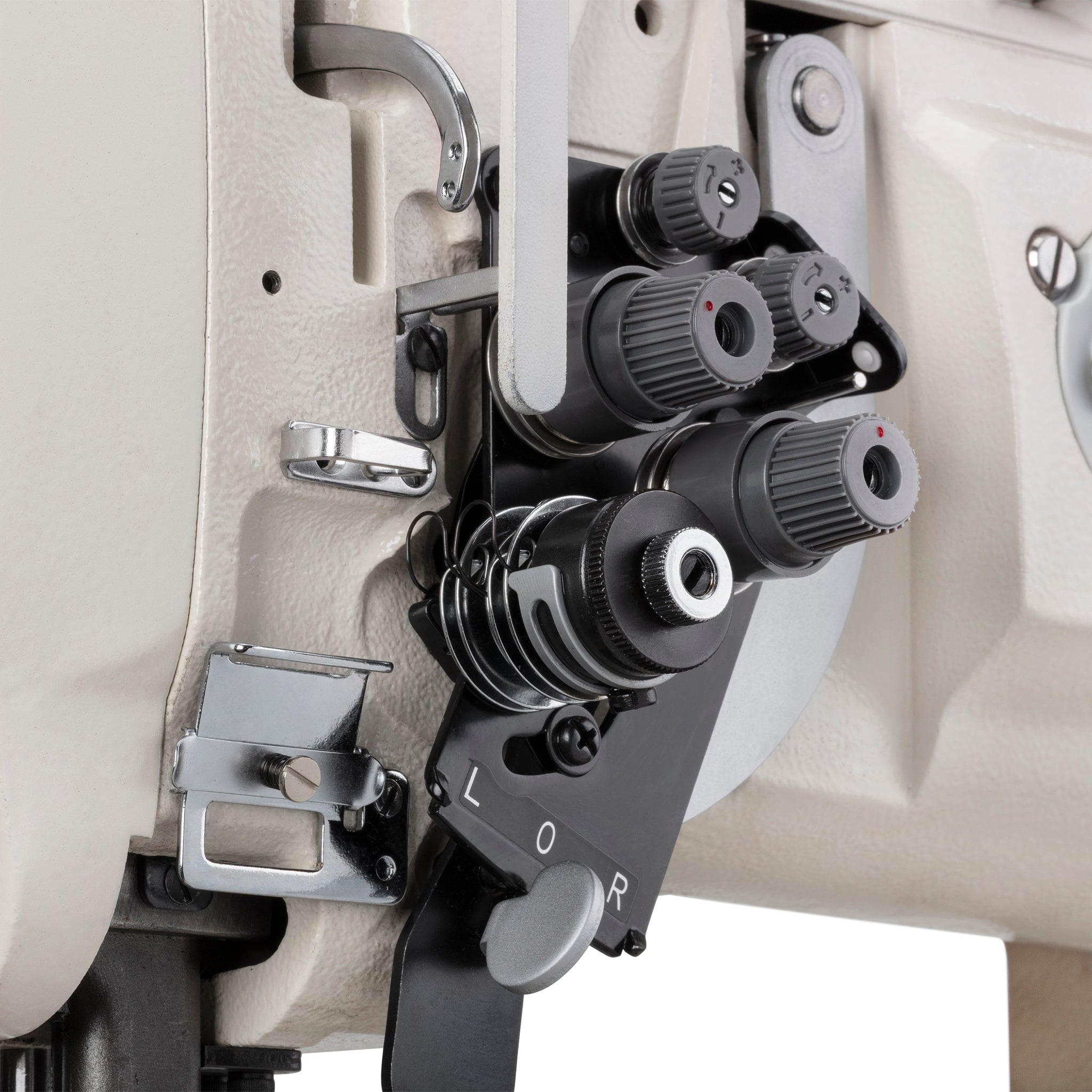

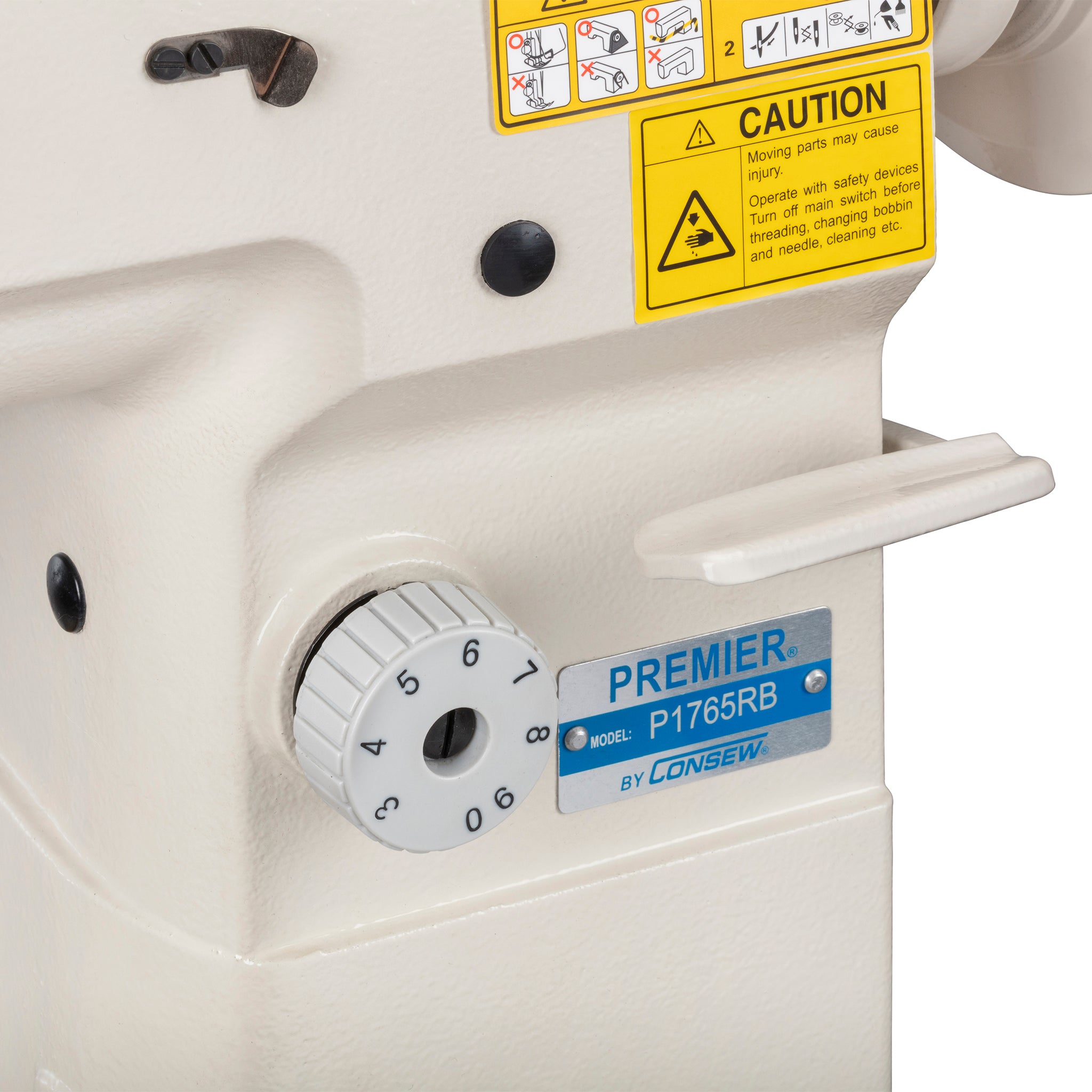

Precision Stitch Control: Offers a maximum stitch length of 9mm, adjustable via a dedicated regulator dial, and a conveniently located reverse lever.
High Material Clearance: Provides a presser foot lift of 9mm by hand and a high 16mm clearance via knee control to accommodate bulky projects.

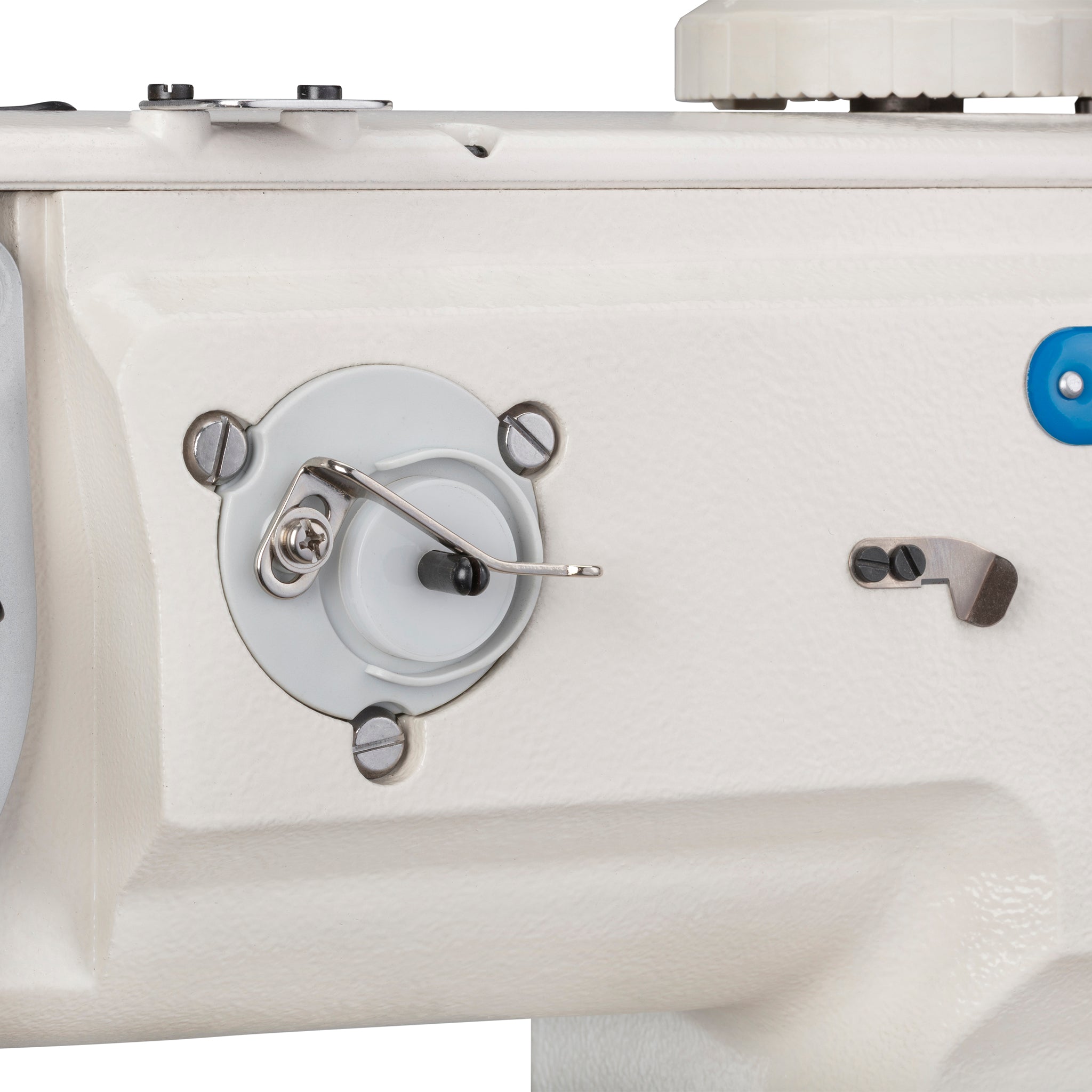

Integrated Productivity Tools: Includes a built-in bobbin winder with its own dedicated tensioner and a large workspace for easier material handling.
High-Speed Performance: Capable of reaching a maximum operating speed of 2,500 stitches per minute.
Automated Configuration Options: Available in specialized models, such as the P1765RB-(N) with pneumatic footlift and reverse, and the P1765RB-7DD featuring a direct drive motor, automatic thread trimmers, and pneumatic functions.
