Consew 867RBL-7/32

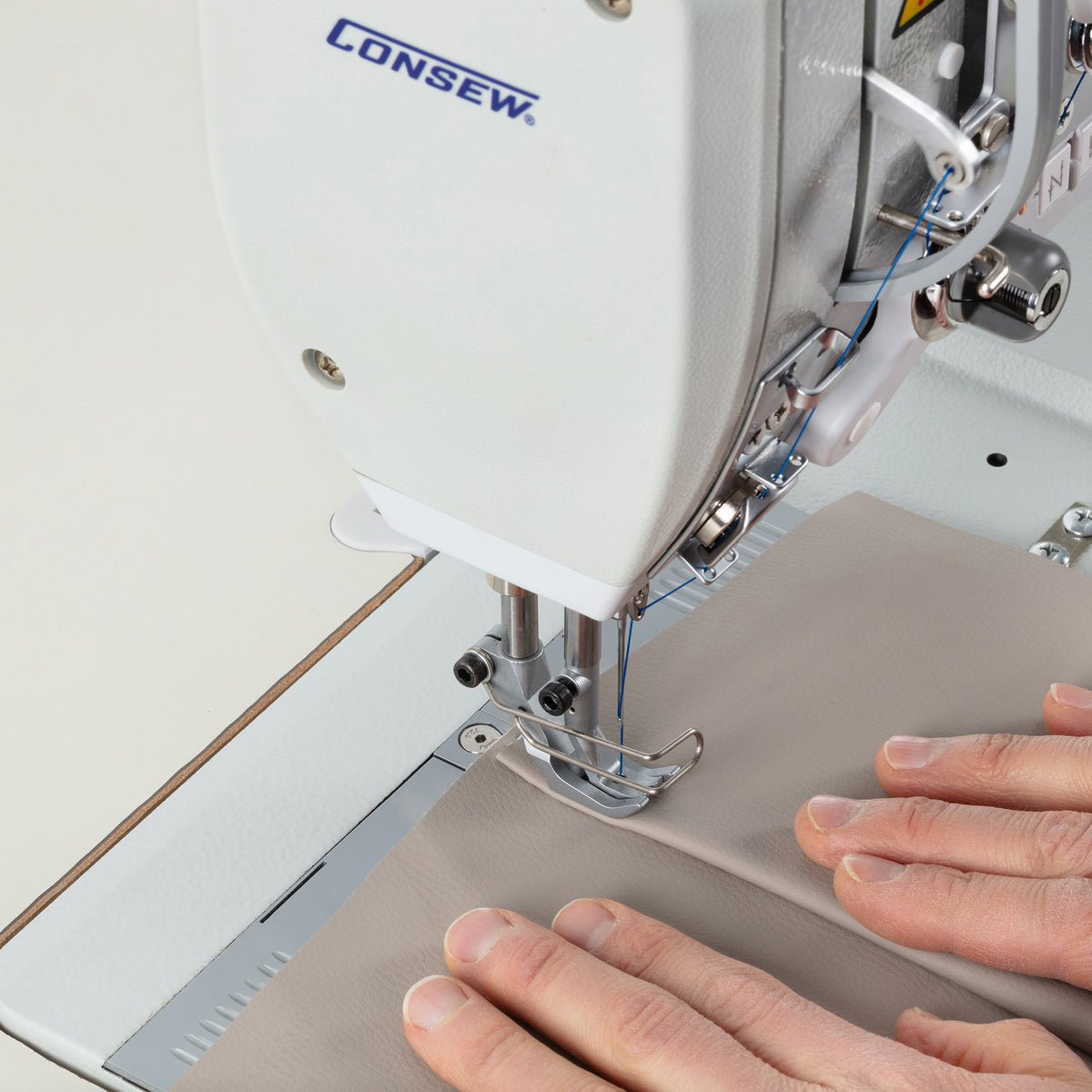

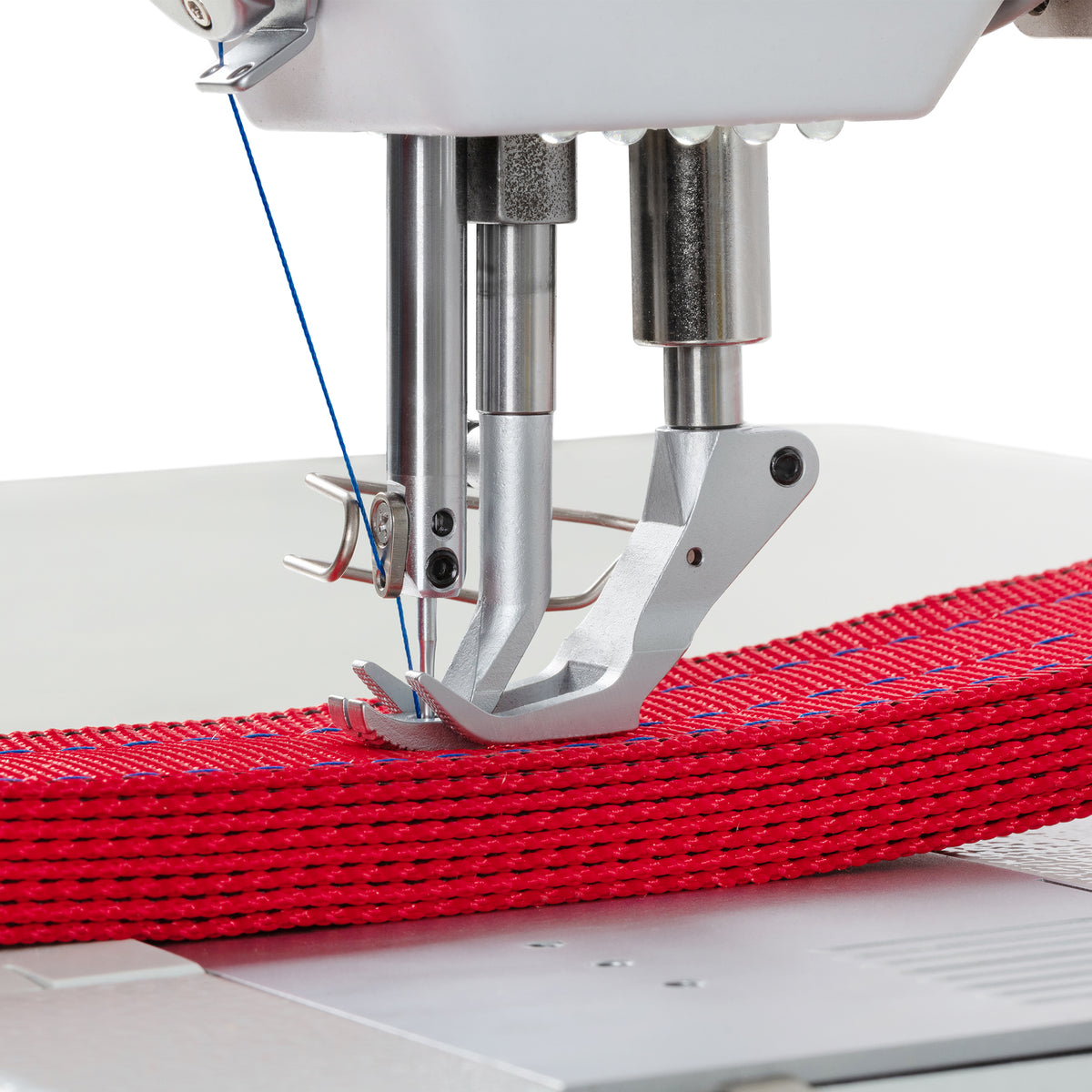

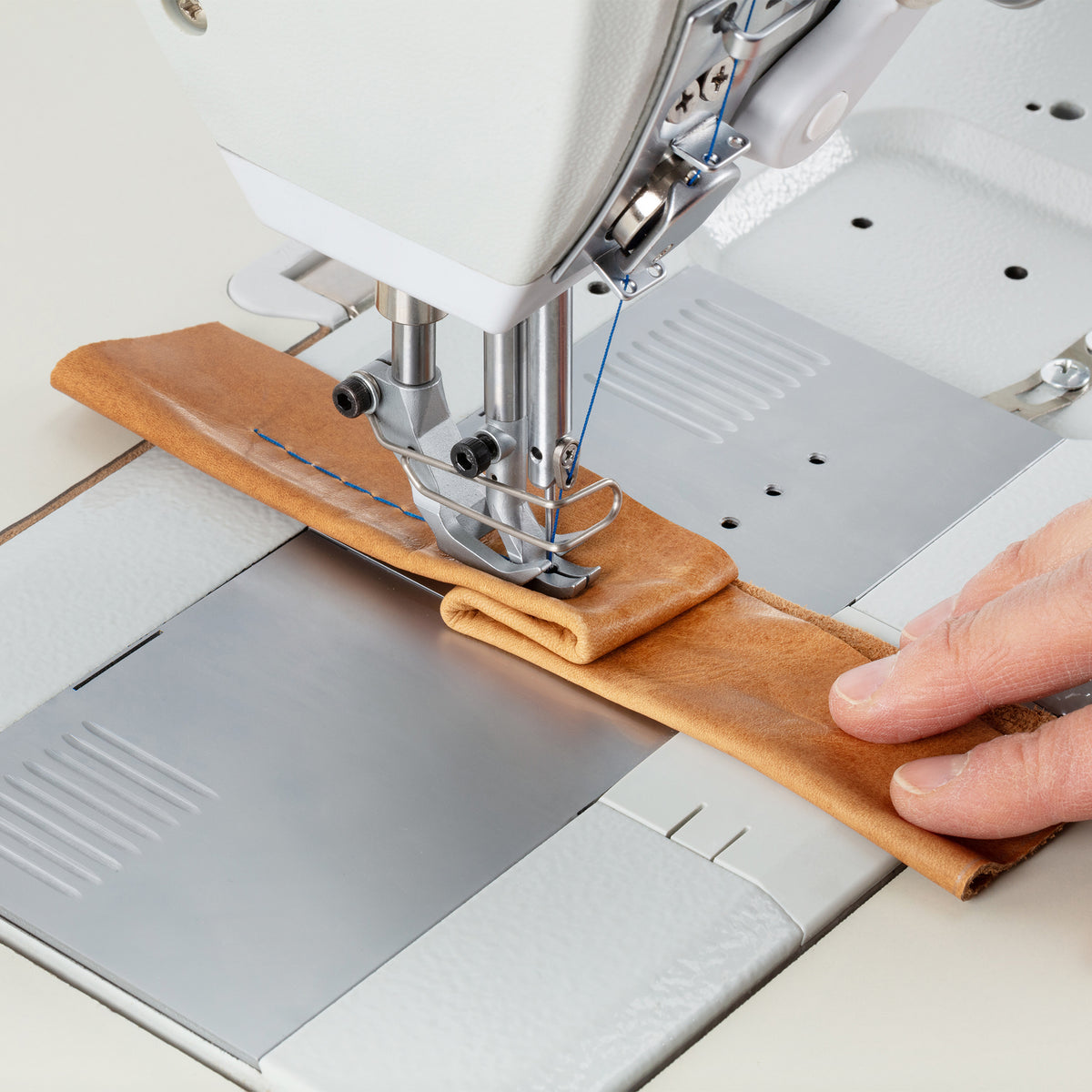

• For wide range of industries for all types of medium/heavy duty applications. Such as: Automotive, Upholstery, Marine, Tie-down and Sling, Harness, Parachute, Tents and Awnings, Apparel, Bedding, etc.

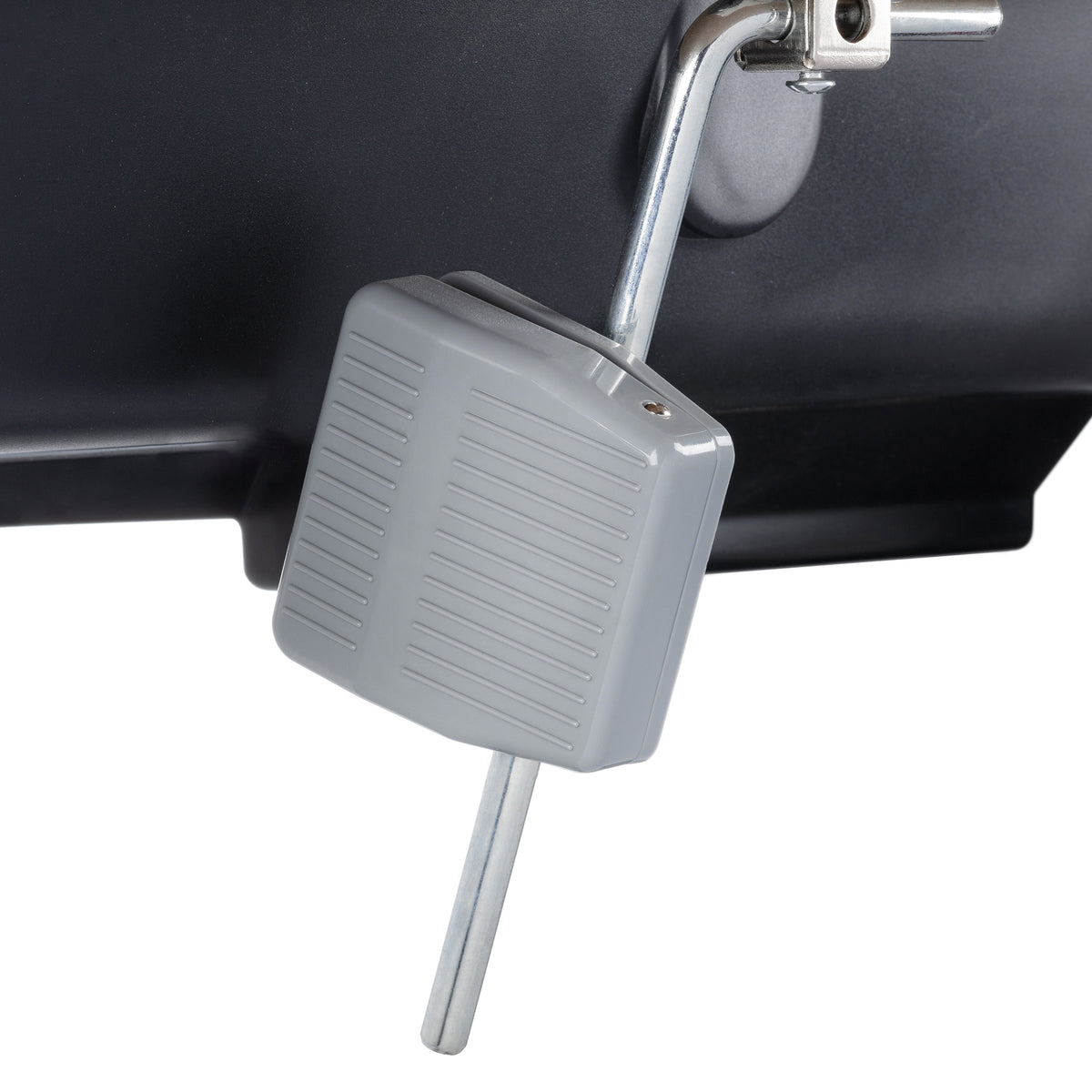

• Full Auto-functions including: Auto Trim, Auto Footlift, Auto Reverse, Knee-operated Climbing Device, Needle Positioner, Step Control, Stitch Counting, Line Tacking.

• Auto Backtacking with up to 10 repeats and Manual Reverse

• Pattern Stitching with up to 11 preset patterns featuring variable stitch count and speed setting

• 13.2” Arm Length (867RB) • 18” Long Arm Length (867RBL)

• Single or Double Needle

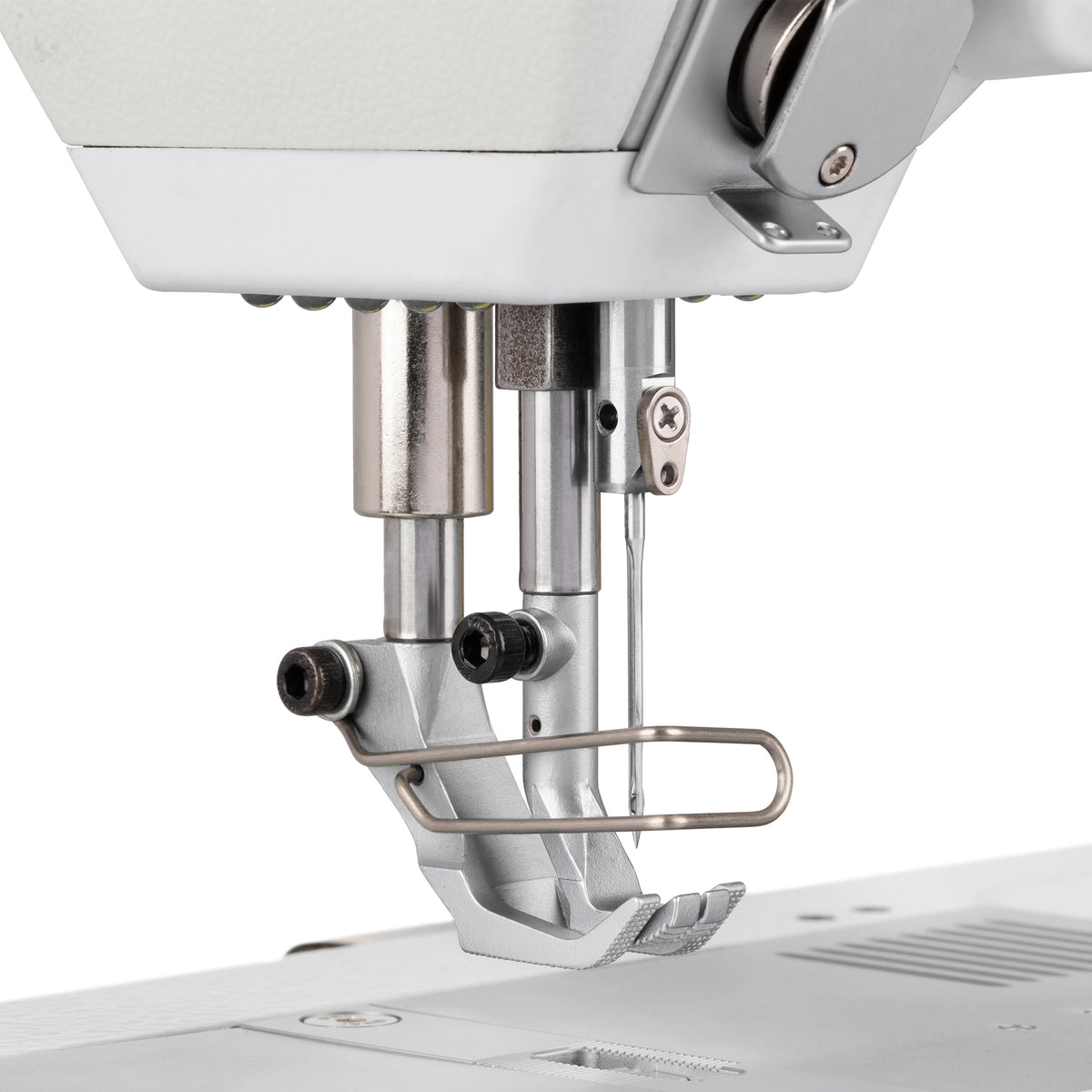

• Presserfoot Clearance up to 20mm

• Max. Speed 3000 spm (Maximum Speed is electronically governed)

• Large Bobbin sizes available: 26mm (M) or 32mm (U) bobbin capacity, with empty bobbin warning lights

• External Compressed Air source required (40 - 50 psi)

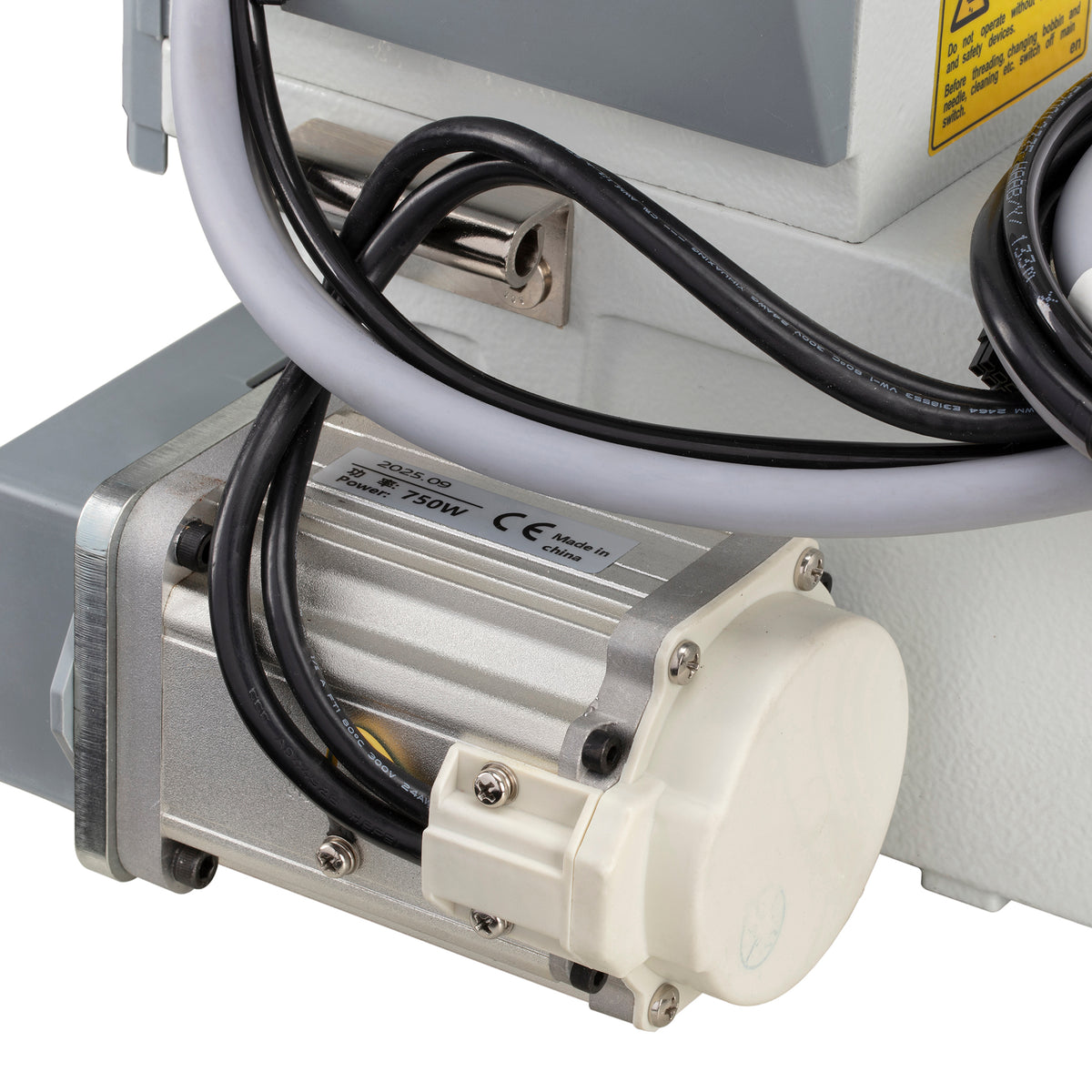

• Power: 220v Single phase (Optional 220 to 110v Adapter available)

• Hi-quality needle bearings for hi-speeds and long production runs

• Models: 867RB-Series / 867 RBL-Series
• Speed - s.p.m.: 3000 spm*

*Note: the RBL long arms operate at reduced speed

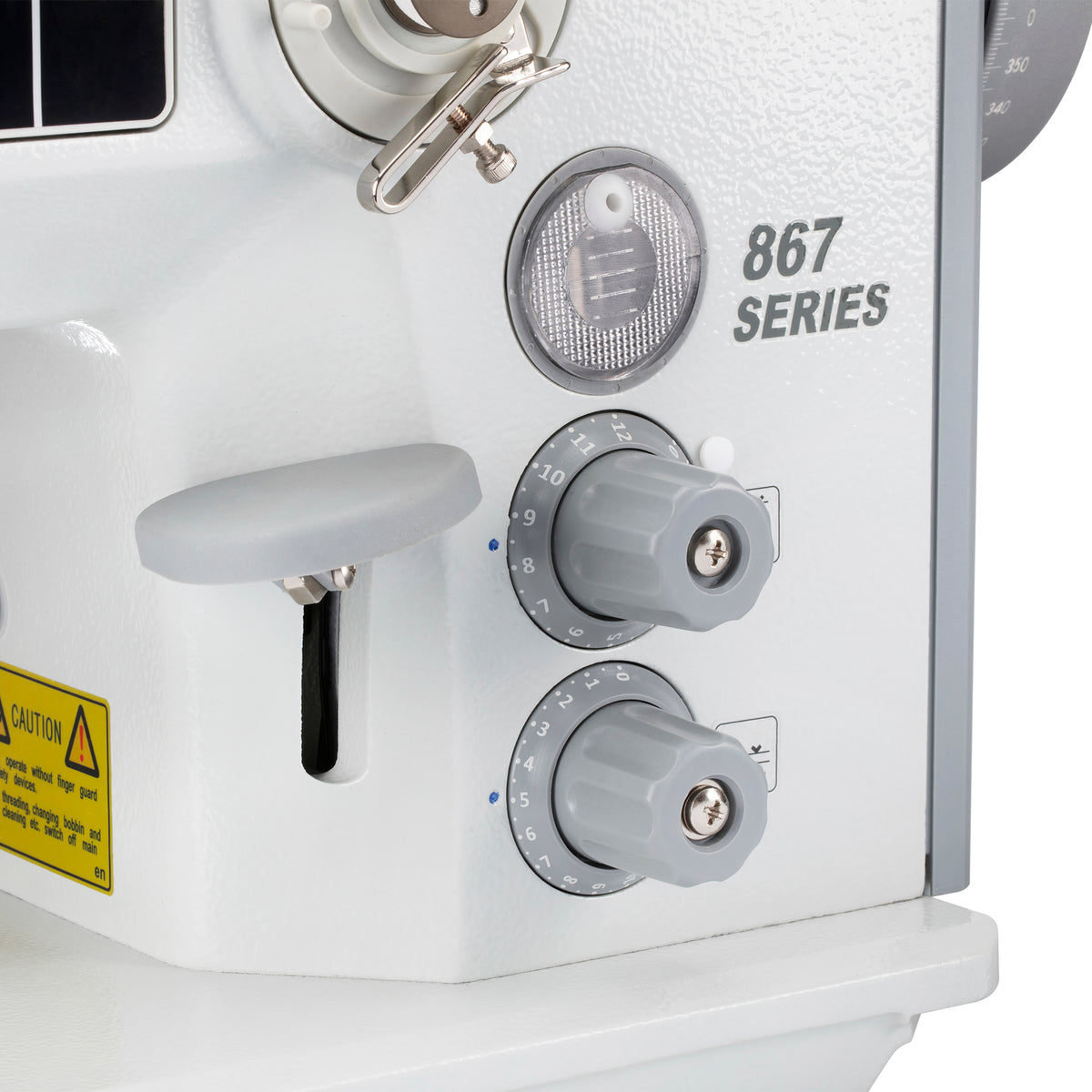

• Max. Stitch Length: 9 mm
• Manual Presser Foot Lift: 9 mm
• Pneumatic Foot Lift: 20 mm maximum
• Bobbins: 26 mm (M) and 32 mm (U)
• Number of Needles: 1 or 2
• Needle Type: 134 - 135
• Dbl Needle Gauges: Stock: 4mm,6mm,8mm,10mm,12mm (also custom gauges of 3mm-70mm)
• Air Pressure Required: 40 - 50 psi
• Workspace RB: 13.2” x 4.72” (335 mm x 125 mm)
• Workspace RBL: 18” x 4.72” (460 x 125mm)

*Speed depends on thread, material, arm length and operation.
