Consew 277RBFS

Name: Consew 277RBFS
Brand: My Store
SKU: 277RBFS
Availability: InStock

SKU: 277RBFS

Overview

Heavy Duty, Narrow Cylinder Arm, Single Needle, Drop Feed, Needle Feed, (Compound Feed,) Alternating Presser Feet, Lockstitch Machine.

With: Centra-lube® Semi-automatic Lubrication System, Horizontal Axis Rotary Hook, Reverse Feed.

Model 277RBFS (large bobbin) is equipped for feed synchronized binder with horizontal feed and has a cylinder bed diameter of 1-31/32" (50mm)

Download Manual Download Parts Book Download Catalog Page

Applications

For sewing light to heavy-weight fabrics, leather, vinyl, upholstery, synthetics, canvas, and various coated and laminated materials.
Designed for products with narrow openings, ideal for stitching tubular and curved work.
Suitable for sewing items such as hats, caps, shoes, sandals, slippers, tarpaulins, covers, sails, tents, awnings, umbrellas, bags, luggage, handbags, travelware accessories, and wearing apparel.
Model 277RBFS is specifically made for tape binding.

Features

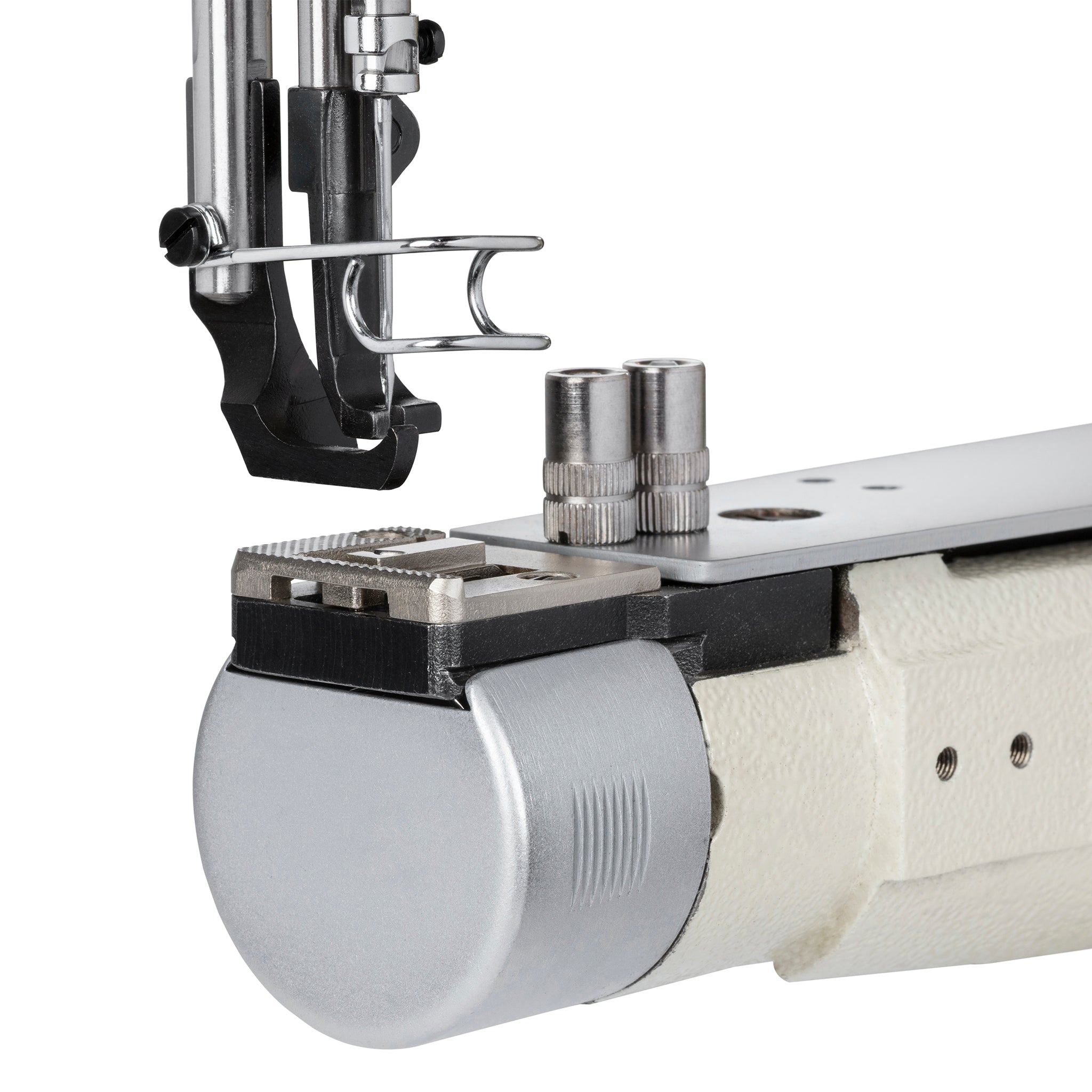

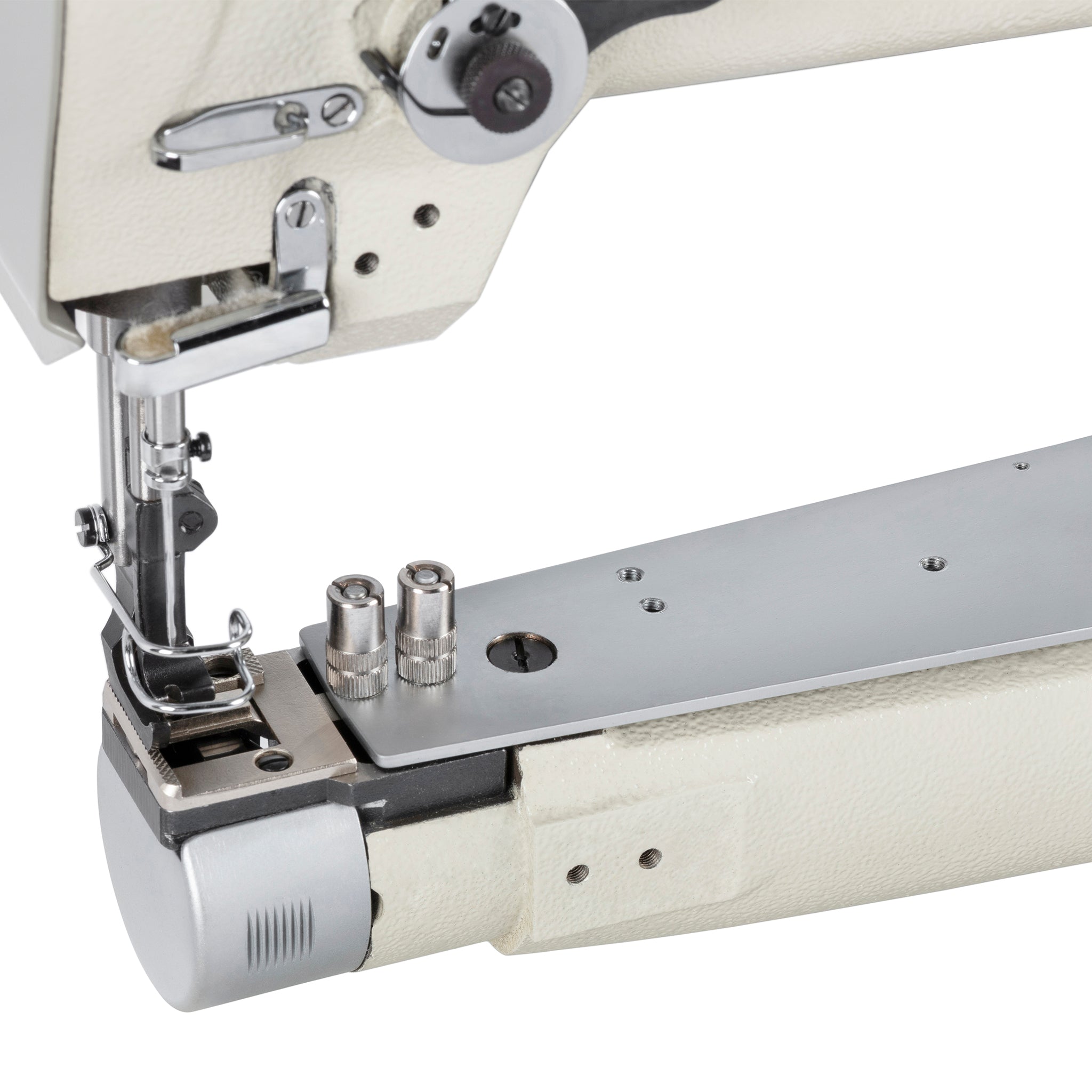

Narrow cylinder arm — 1-31/32" (50mm) diameter (Model 277RBFS)

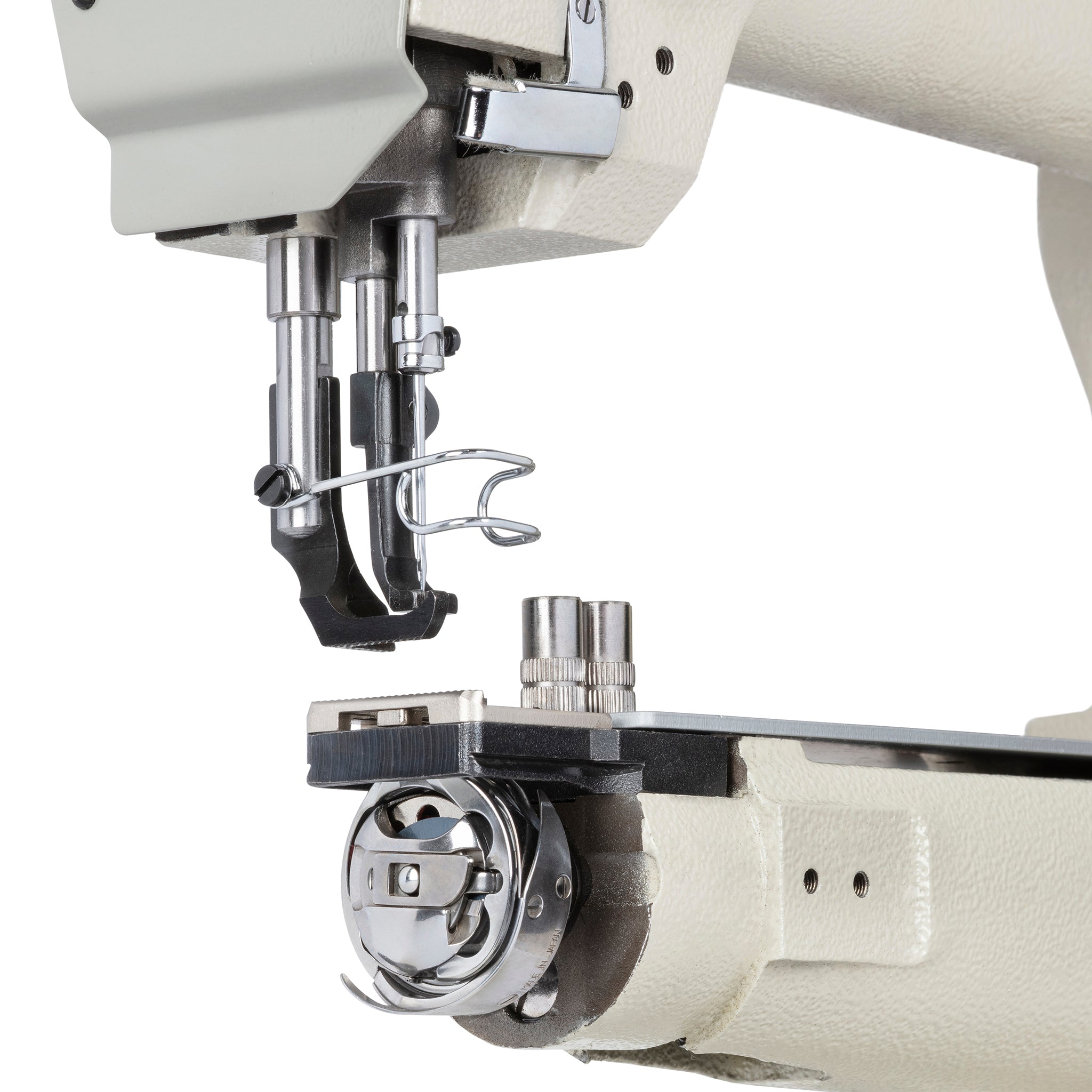

Horizontal axis rotary hook
Large bobbin available (Model 277RBFS)

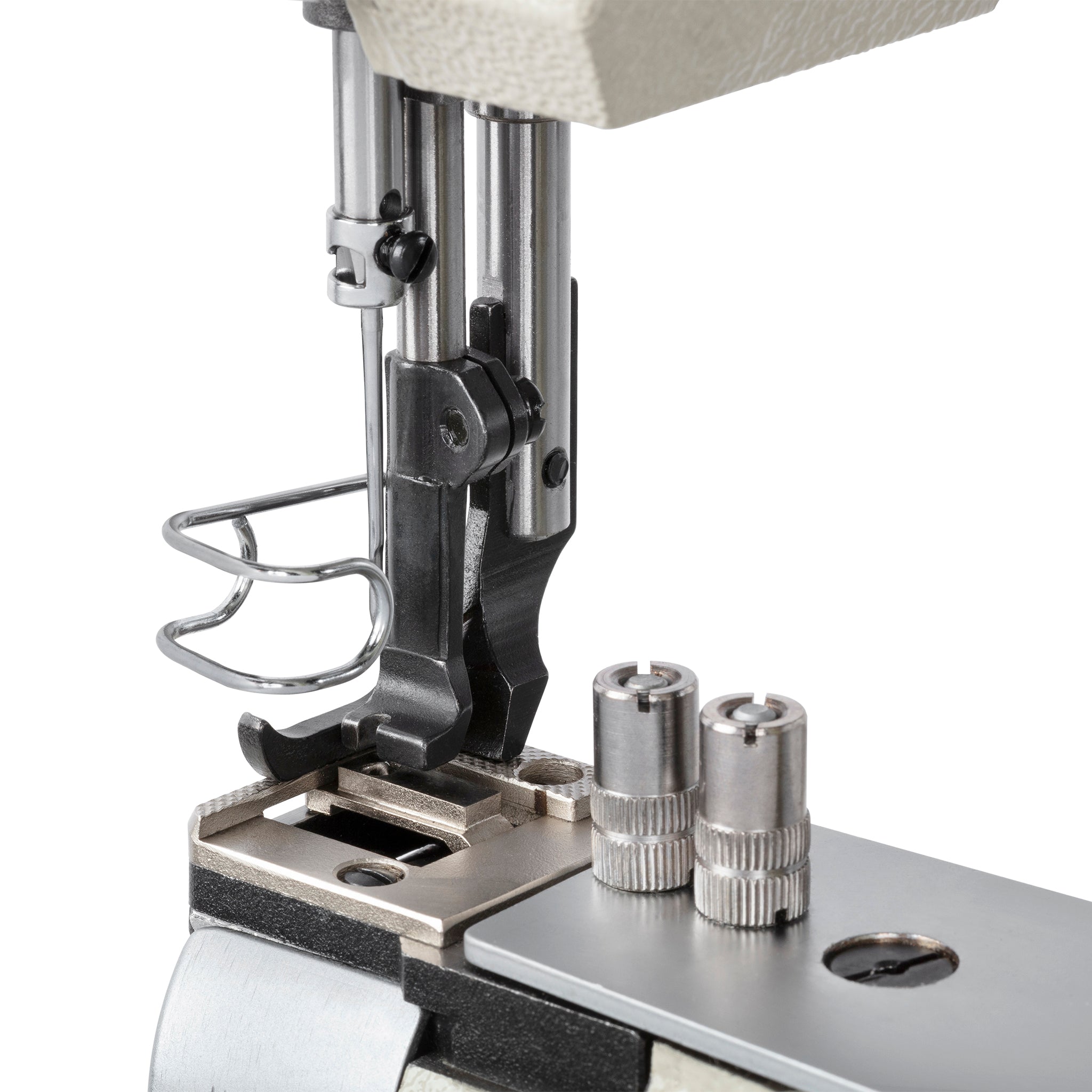

Compound feed, walking foot mechanism ensures even feeding of several plies or slippery materials
Simple adjustment allows for raising and lowering the center foot, accommodating various thicknesses of materials

Specifications

Number of Needles: 1 (Single)

Feeding Mechanism: Walking Foot

Workspace: Standard Workspace

Standard or Full Function: Standard Functions

Max Speed: 2200 S.P.M.

Stitch Length: 4 s.p.i. (6.5mm)

Work Space: 10 5/32" x 4 11/32" (258 x 110mm)

Needle: 135 x 17

Bobbin: 18034 M

Weight: 179 lbs (81kg)

Needle Bar Stroke: 1 5/16" (33.2mm)
