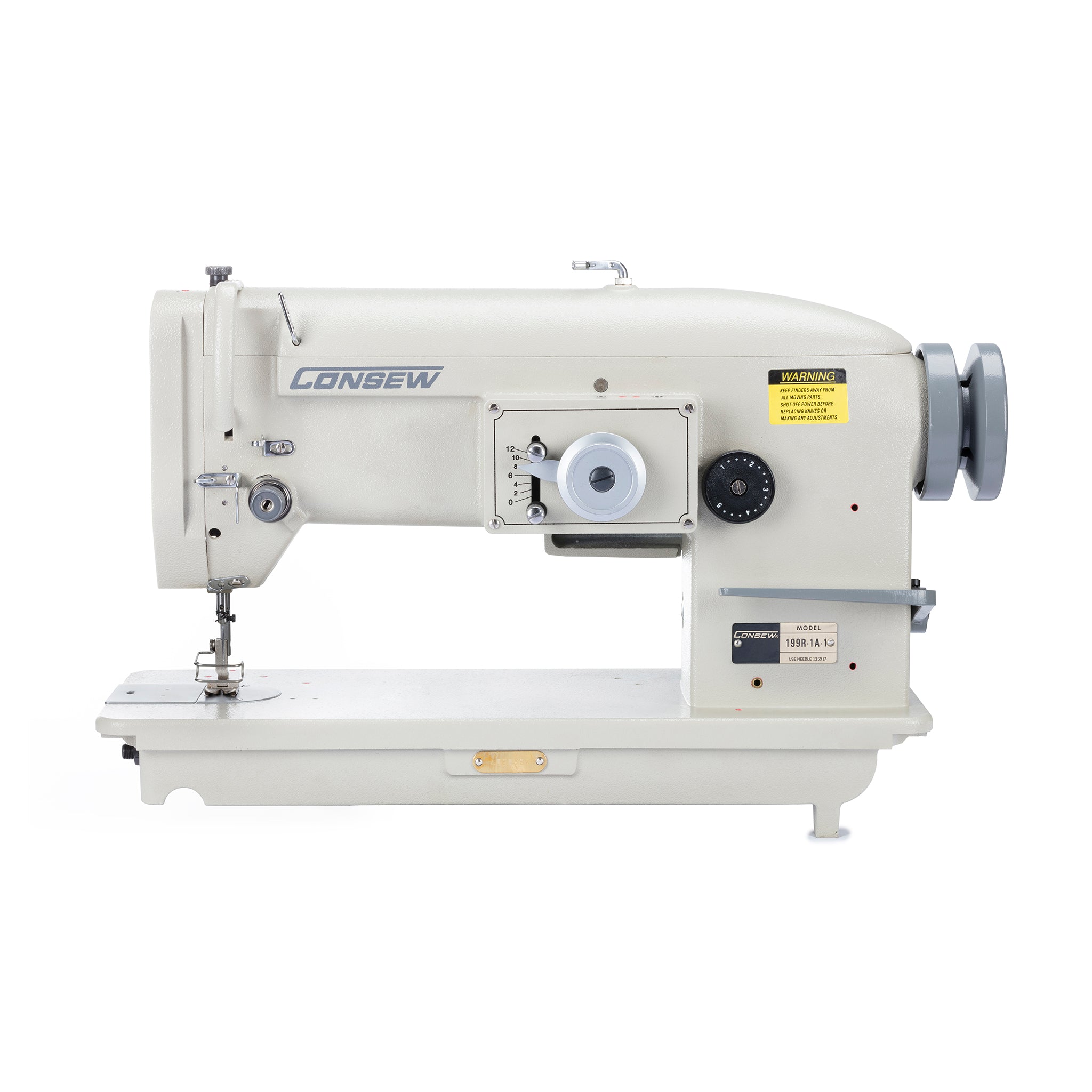

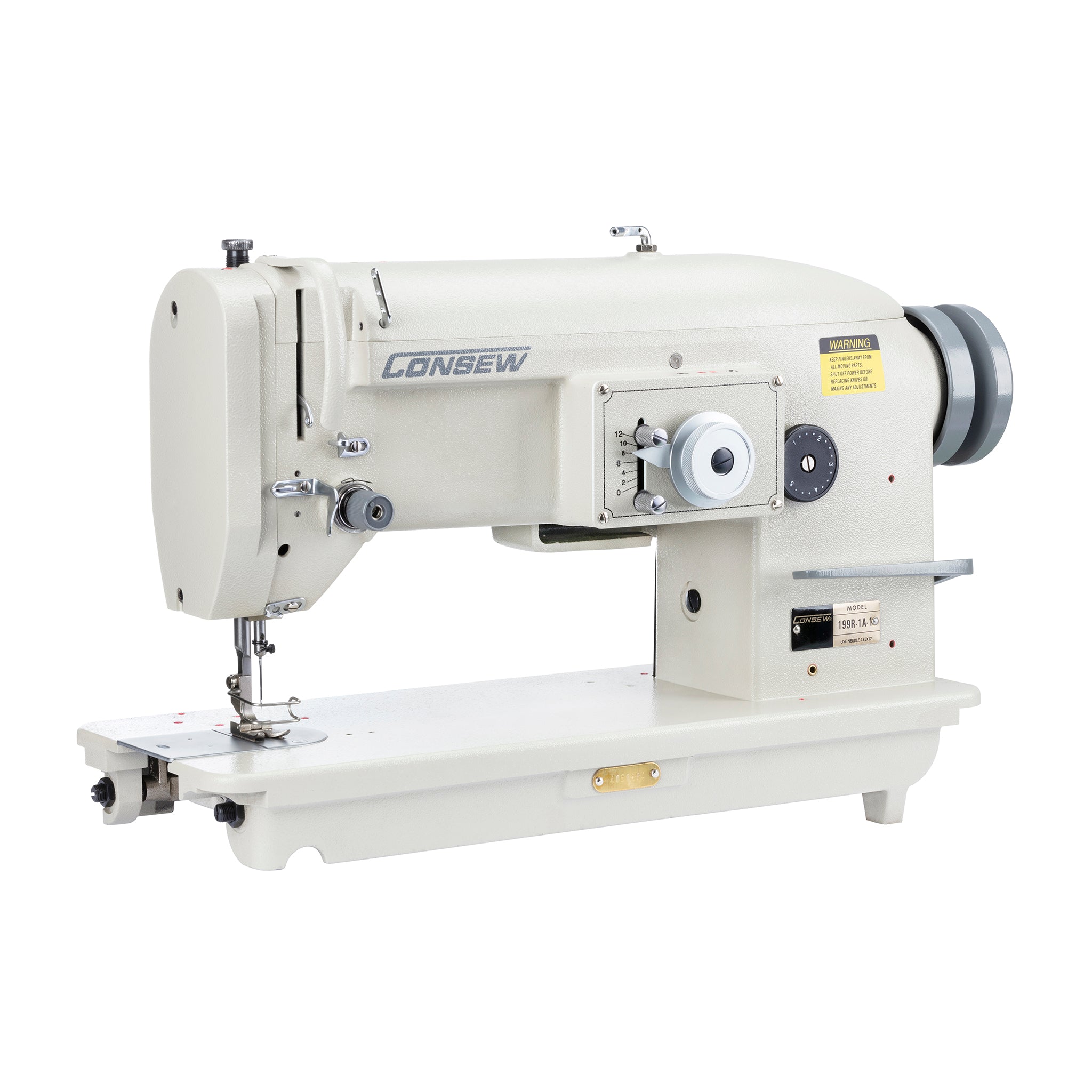

Consew 199R-2A-1

• Three-step/two-stitch zig-zag (Federal Stitch 308).
• Suitable for sewing elastic and other stretch materials, as well as ornamental stitching.
• Designed for stitching boat and truck covers, tents, awnings, sails, parachutes, tarpaulins, canvas bags, and military/naval equipment.
• Works with materials like canvas, nylon, vinyl, leather, synthetics, and similar fabrics.
• Ideal where reinforced stitching is necessary.
• Available with special fittings for rope tacking operations.
• Used for rope tacking, making loops in rope, and attaching small/medium-sized ropes to truck covers, tents, sails, hammocks, parachutes, grain bags, and military/naval equipment.

• Horizontal axis transverse rotary hook.
• Maximum zig-zag width: 3/8" (9.5mm).
• Straight stitch capability when zig-zag is set to '0' mm.
• Long arm with 10" free space between needle and arm (for 18 7/8" bed models).

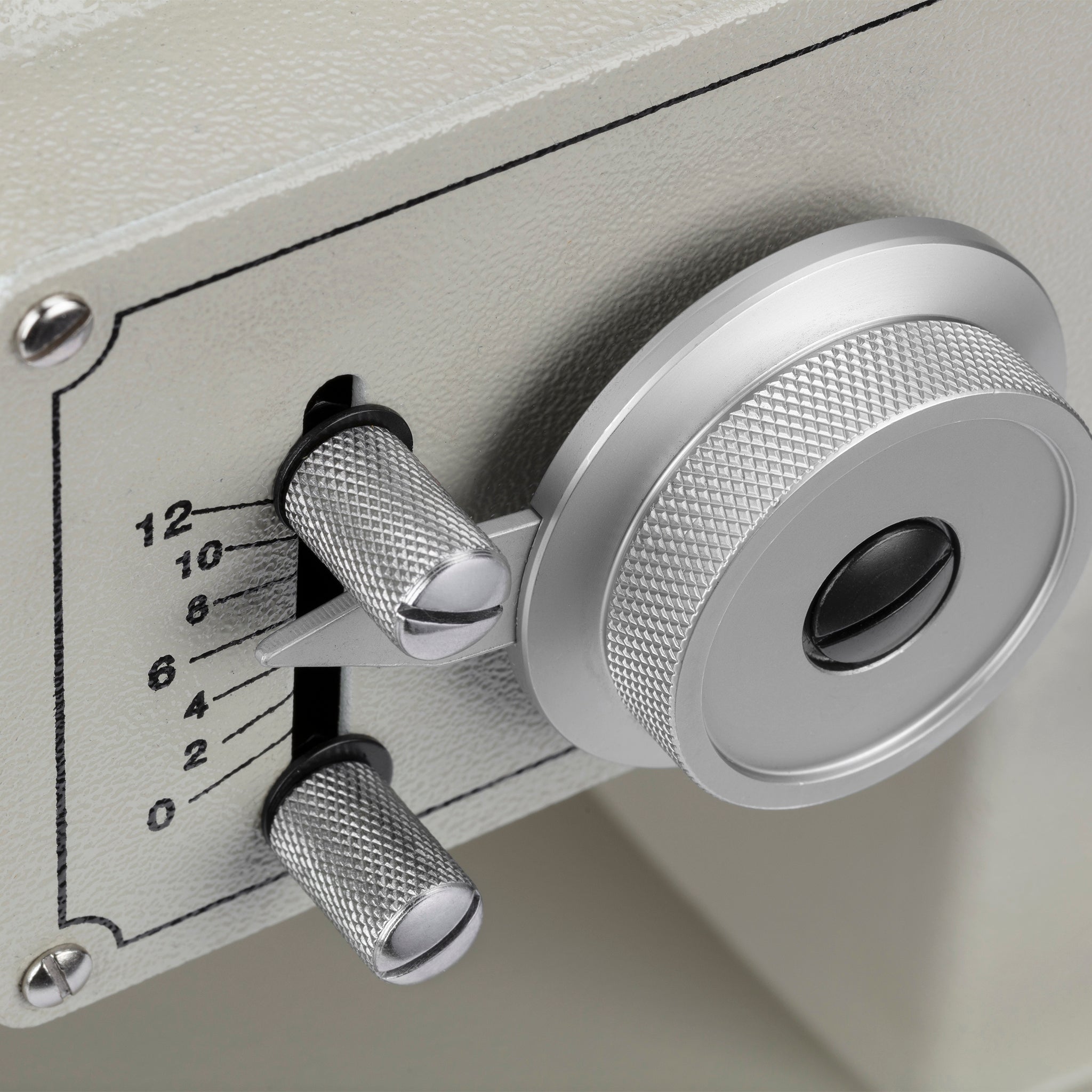

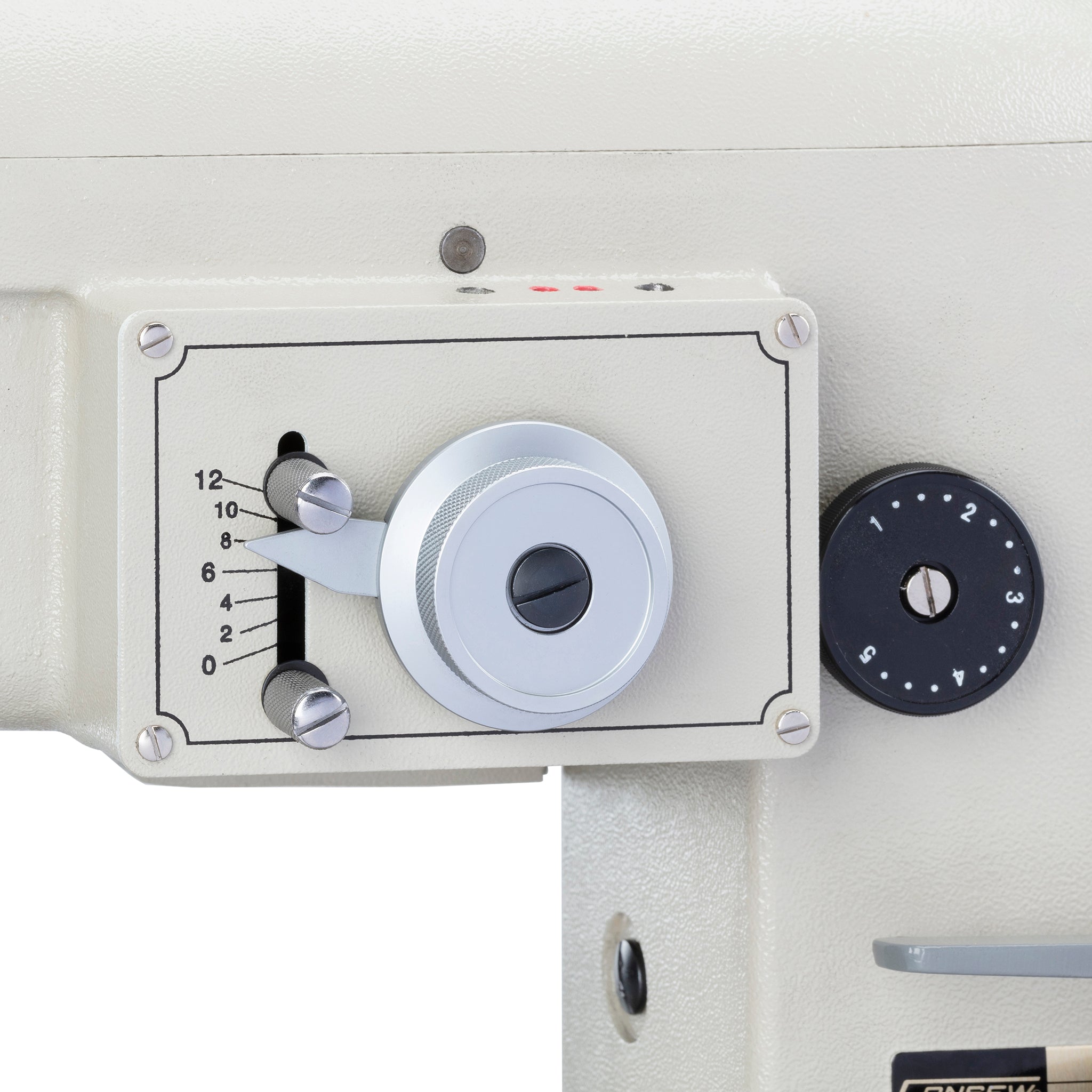

• Locking zig-zag width regulator.
• Reverse stitching.
• Special fittings available for rope-end and rope-loop stitching.
• Optional: Interchangeable between 1A, 2A & 3A stitches (additional parts required, not included).

• Number of Needles: 1 (Single)
• Feeding Mechanism: Needle Feed
• Workspace: Standard Workspace
• Standard or Full Function: Standard Functions
• Speed, Max (S.P.M.): Zig-Zag 2700, Straight 3000
• Clearance Under Presser Foot: 15/64" (6mm)
• Stitch Length: 5 s.p.i. (5mm)
• Work Space: 10" (258mm)
• Needle: 16 x 95
• Bobbin: Metal B75, Pre-wound L
• Bed Size: 7" x 18 7/8" (178mm x 480mm)
• Needle Bar Stroke: 1 11/32" (34mm)
• Hook: B-70
• Zig-Zag Stitch Width: 3/8" (9.5mm)
