Consew P1199RB-1A-7DD

Consew P1199RB-1A-7DD

Consew P1199RB-1A-7DD

Consew P1199RB-1A-7DD

Consew P1199RB-1A-7DD

Consew P1199RB-1A-7DD

Consew P1199RB-1A-7DD

Consew P1199RB-1A-7DD

SKU: P1199RB-1A-7DD

Overview

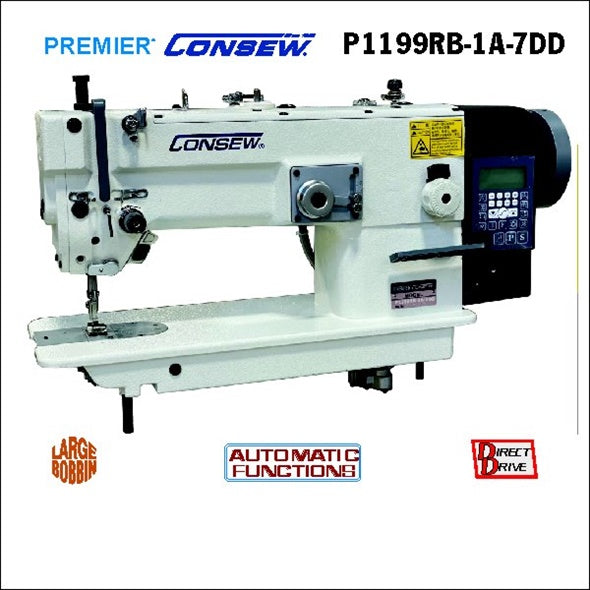

Single Needle, Drop Feed, Zig-Zag, Lockstitch Machine. with built-in
Direct Drive Motor and digital control.

With: Reverse Feed, Large Bobbin, Combination Zig-Zag and Straight Stitcher

Product Resources

Download Manual Download Catalog Page

Applications

Used for a wide range of products and operations such as edge sewing, patch sewing, attaching and abutting work, applique work, and binding on materials like leather, vinyl, canvas, cloth, lace, and similar materials
Sewing light to medium heavy-weight fabrics including clothing, shoes, caps, leather articles, bags, and more
Attaching lace, elastic band, bottom hemming, edge stitching, butted seaming, applique, and similar operations

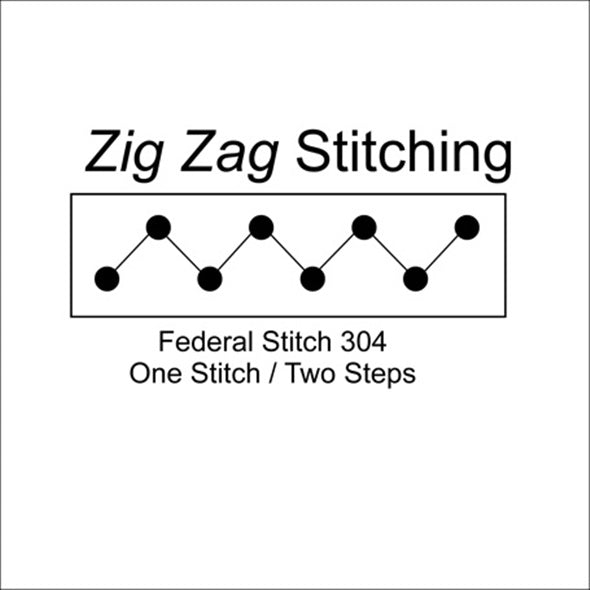

Supports Federal stitch type 304 (and type 301 stitch when set to straight stitch)

Features

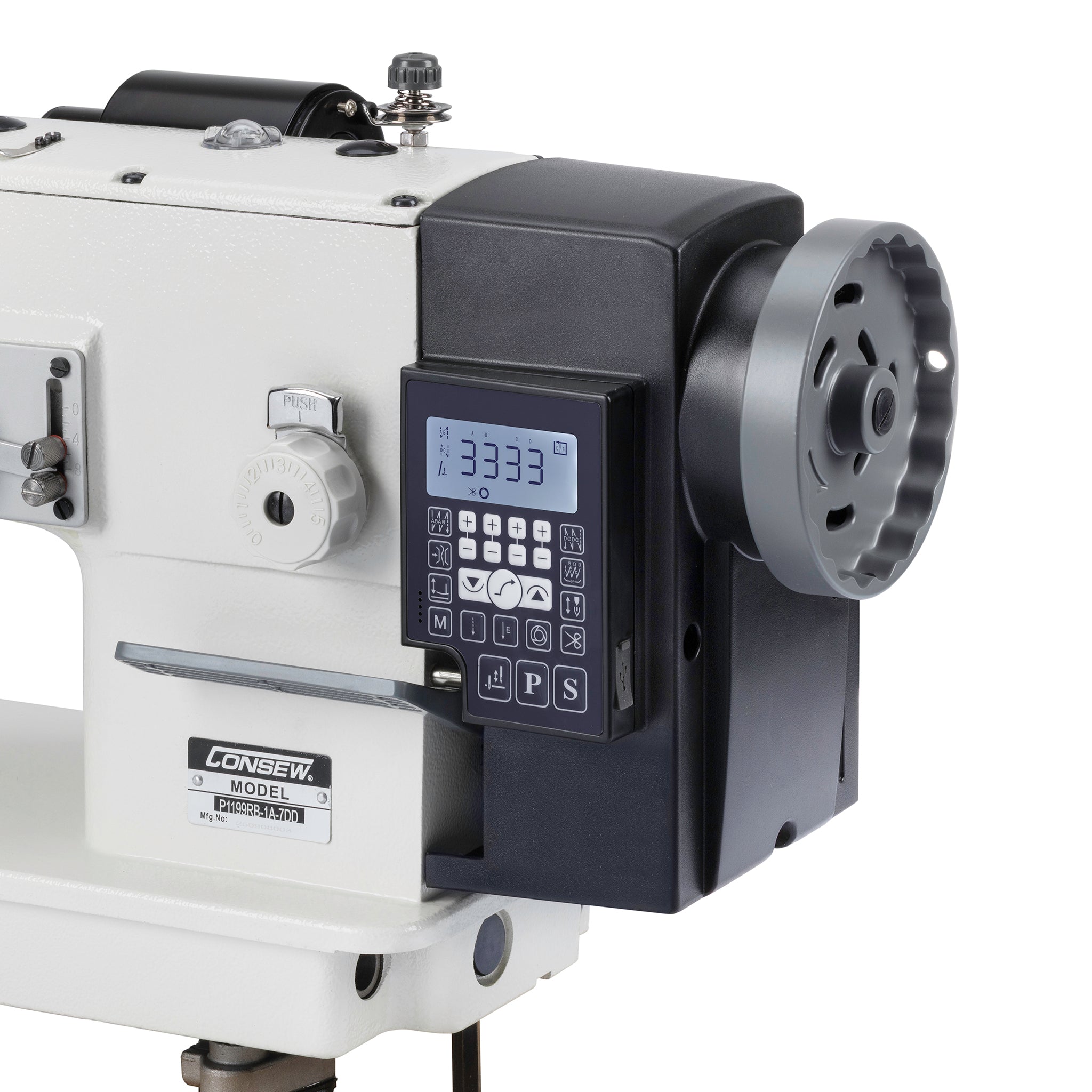

Direct Drive Internal Motor (110V): Built-in for efficient operation
Automatic Lubrication: Ensures smooth performance

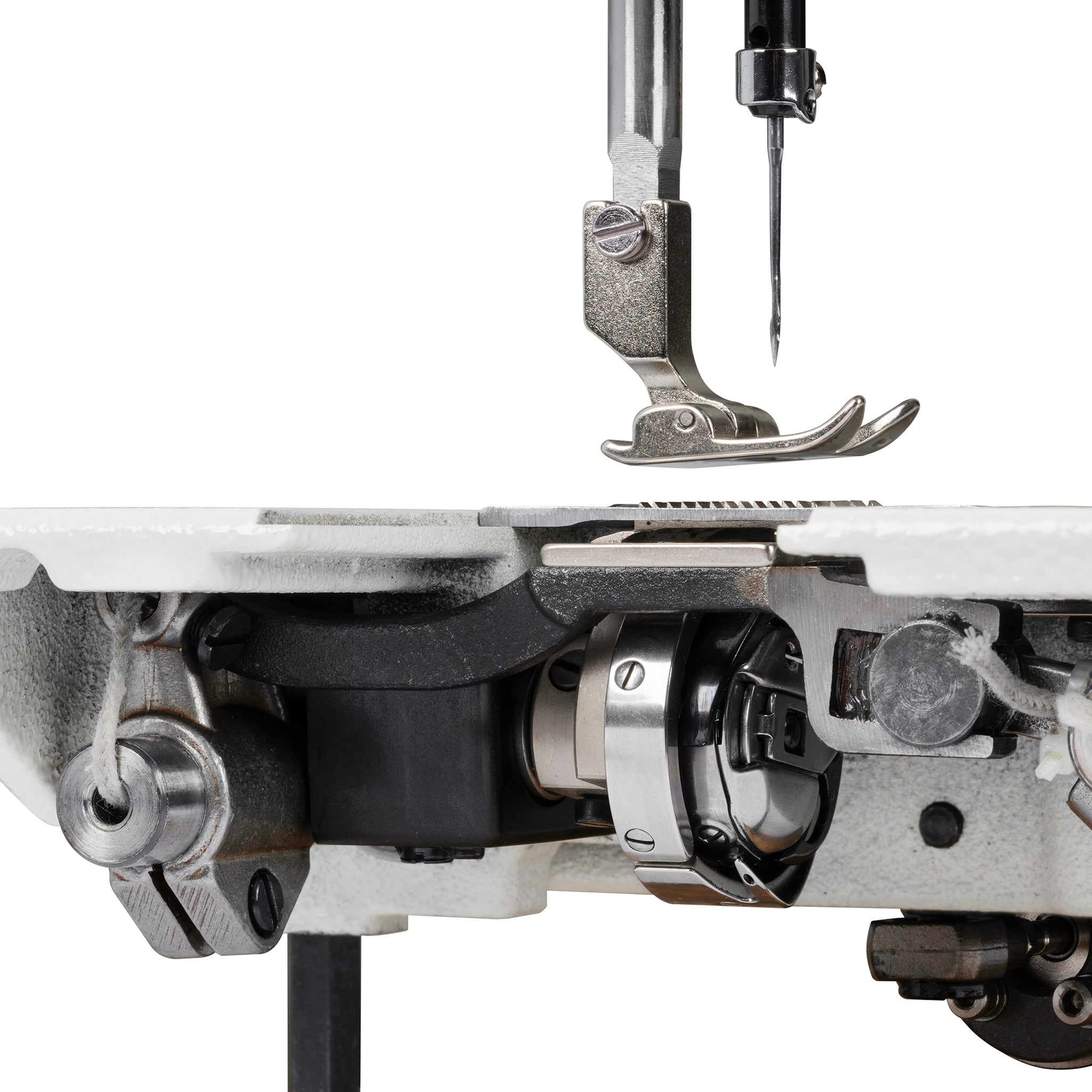

Horizontal Axis Rotary Hook: Reliable stitching
Dial Zig-Zag Regulator: Easy adjustment of zig-zag width
Locking Zig-Zag Width Regulator: Secures settings in place
Straight Stitches when Zig-Zag Set to "0": Versatile stitching options
Stitches per Minute: Up to 2000*
Reverse Stitching with Adjustable Stitch Length: Enhanced control
Built-in Bobbin Winder: Convenient and time-saving
Metal Gears (Hardened Steel): Durable and long-lasting
Built-in Free-Hand Monogramming Lever: For detailed work
Needle Position Adjustment (Right, Center, Left): Customizable stitching
Needle Position (Stop-Up / Stop-Down): Precision control
Auto Foot Lift: Improves efficiency
Auto Reverse: Simplifies reverse stitching
Stitch Counting: For accurate stitching
Thread Trimmer: Clean and efficient thread cutting

Specifications

Number of Needles: 1 (Single)
Feeding Mechanism: Needle Feed
Workspace: Standard Workspace
Standard or Full Function: Automatic
Speed, Max (S.P.M.): 2200 spm
Clearance Under Presser Foot: By hand 15/64” (6 mm) / By knee 25/64” (10 mm)
Stitch Length: 4.2 s.p.i. (6 mm)
Work Space: 10.5" (266mm)
Needle: 16 x 95
Bed Size: 7 x 15 11/16" (178mm x 398mm)
Needle Bar Stroke: 1 6/25" (31.5 mm)
Hook: B-70
Presser Lift: 6 - 12 mm
Zig-Zag Stitch Width: 3/8" (9.5mm)
