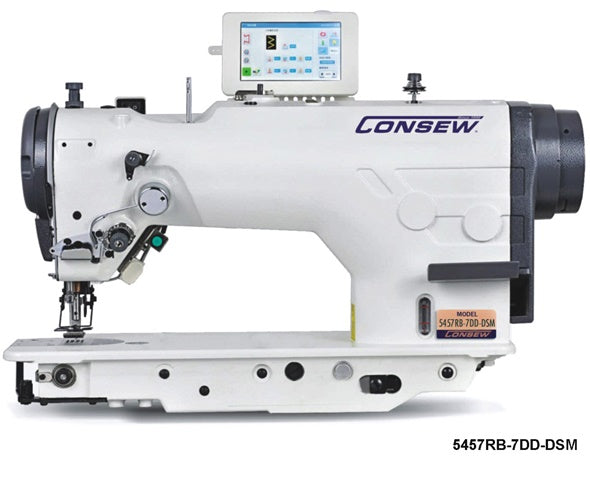

Consew 5457RB-7DD-DSM

Name: Consew 5457RB-7DD-DSM
Brand: My Store
SKU: 5457RB-7DD-DSM
Availability: InStock

SKU: 5457RB-7DD-DSM

Overview

High-speed, Direct-drive, Computerized, Zig-Zag Machine, For Decorative stitching.

With: Electronic control, Rotary Takeup, Auto Reverse, Auto Trimmer, Auto Needle Position, Adoptive Feed, Mini Self Oiling System, Energy Saving Servo System, Large Capacity for Sewing Patterns

Product Resources

Download Catalog Page

Applications

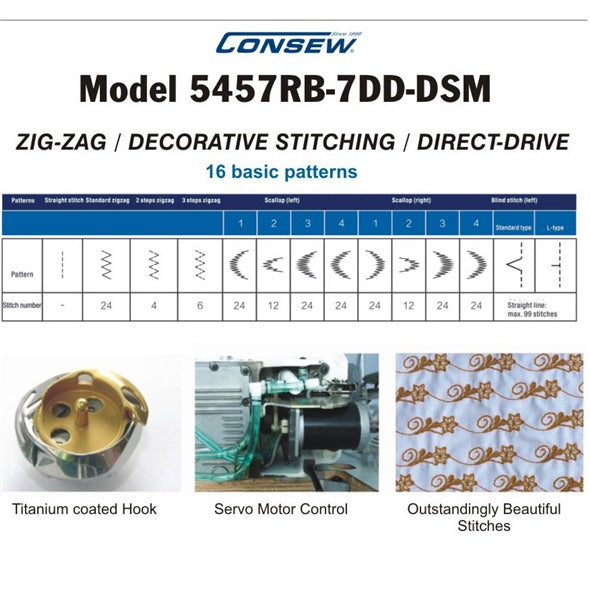

Decorative zig-zag stitching on thin, medium, and thick fabrics
Suitable for lingerie, women's jackets, collars, attaching lace, elastic bands, bottom hemming, edge stitching, butted seaming, applique, and similar operations

Features

Direct Drive servo motor system improves efficiency
Servo motor controlled feed dog interacts with the digital system and stitch counter to create decorative stitches
Mini oil lubrication system ensures clean, smooth sewing
Multi-function color LCD touch screen operating panel
Capable of continuous cycle sewing
Expandable feed dog height and wide range of tilt adjustment
Feed dog adjustable range from upward, horizontal, downward, and adaptable to high and low segment sewing function
Titanium-coated inner hook runs cooler and smoother
Special new Feed Design suitable for various fabrics and efficiently sewing complex patterns
Hook axis compensation system assures the phase position of the hook tip is always in optimum position
Microprocessor control and multiple stitch patterns
Combination zig-zag and straight stitcher
Reverse feed and adjustable reverse stitch length

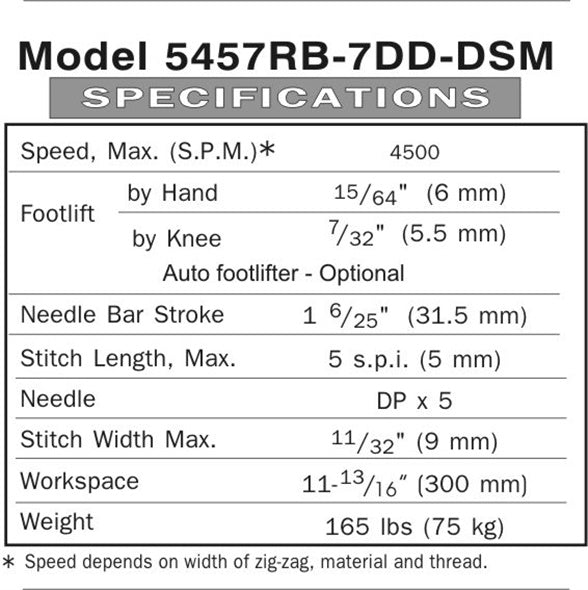

Specifications
