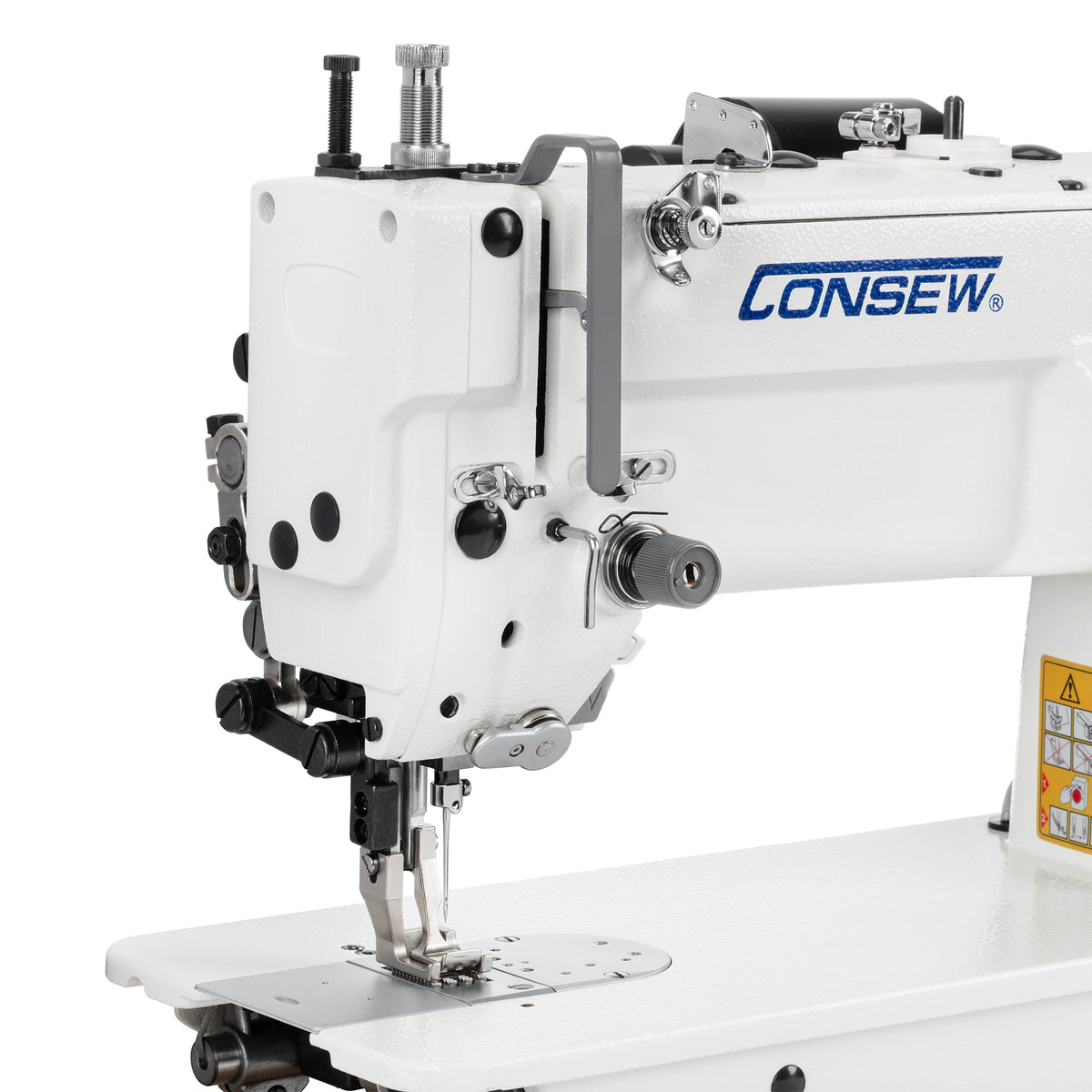

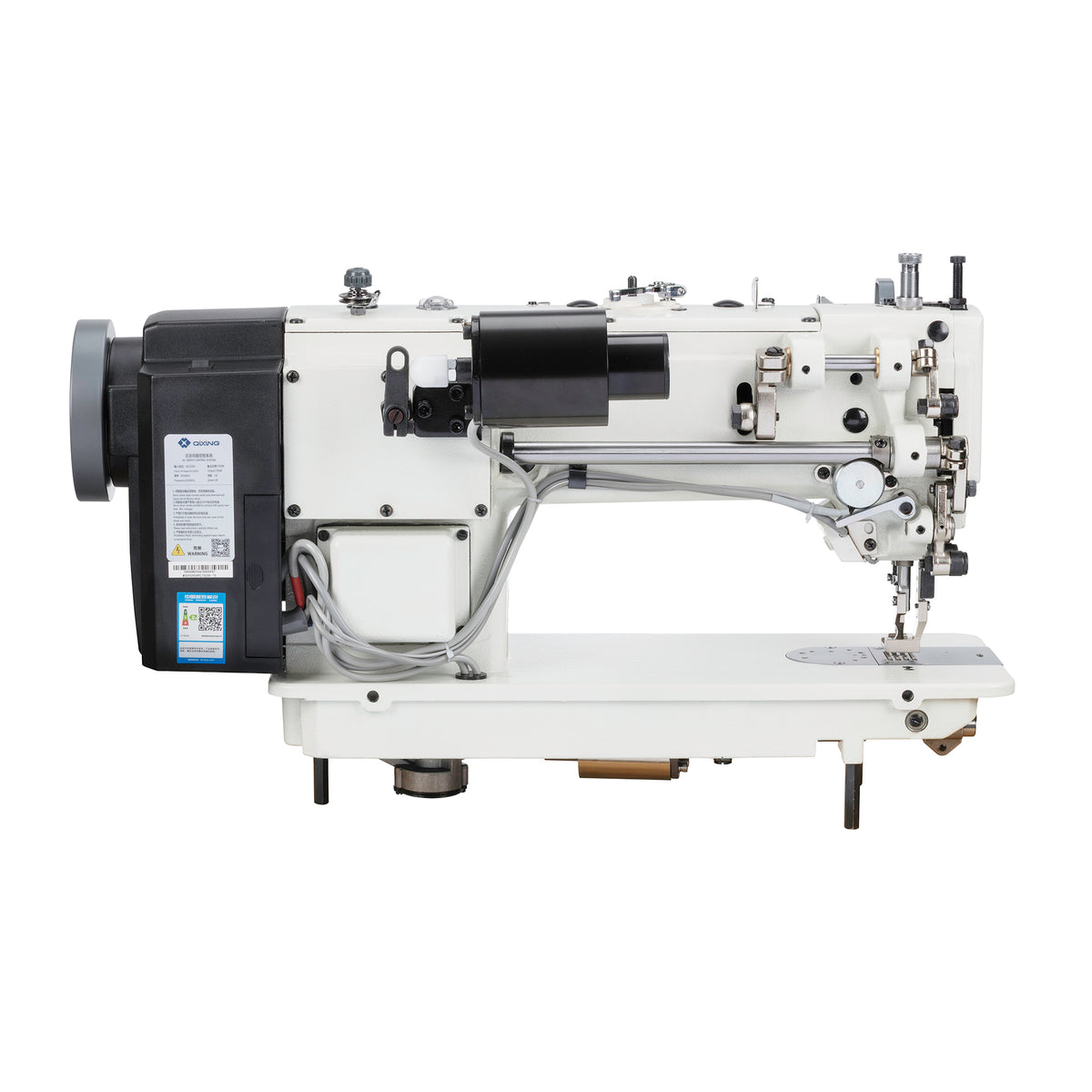

Consew P1146RB-1A-7DD

• Used for a wide range of products and operations such as edge sewing, patch sewing, attaching and abutting work, applique work and binding on such materials as leather, vinyl, canvas, cloth, lace and similar materials - Federal stitch 304
• For sewing medium to heavy weight fabrics including clothing, shoes and caps, leather articles, bags and more
• For attaching lace, elastic band, bottom hemming, edge stitching, butted seaming, applique and similar operations
• Federal stitch type 304 (and a type 301 stitch when set to straight stitch

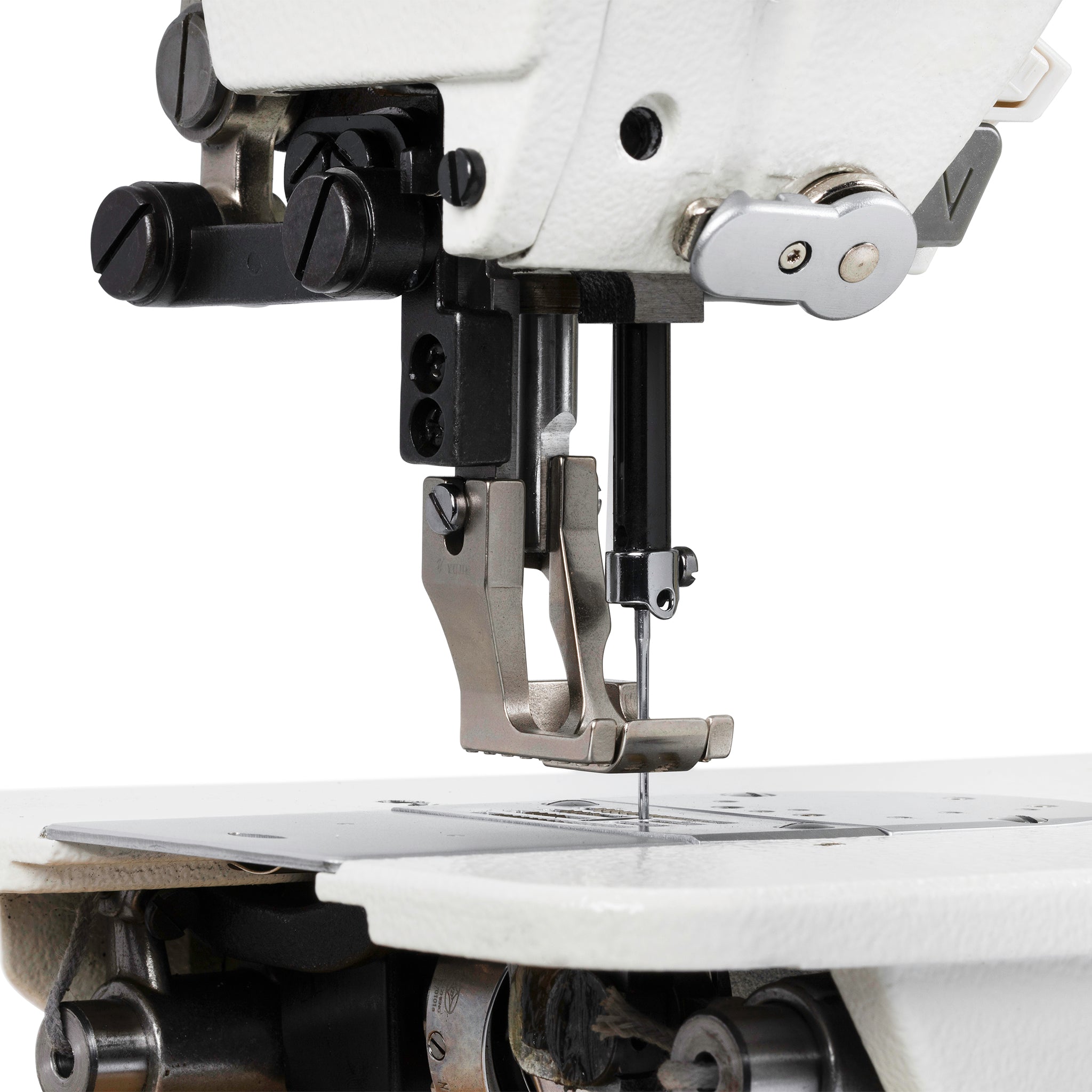

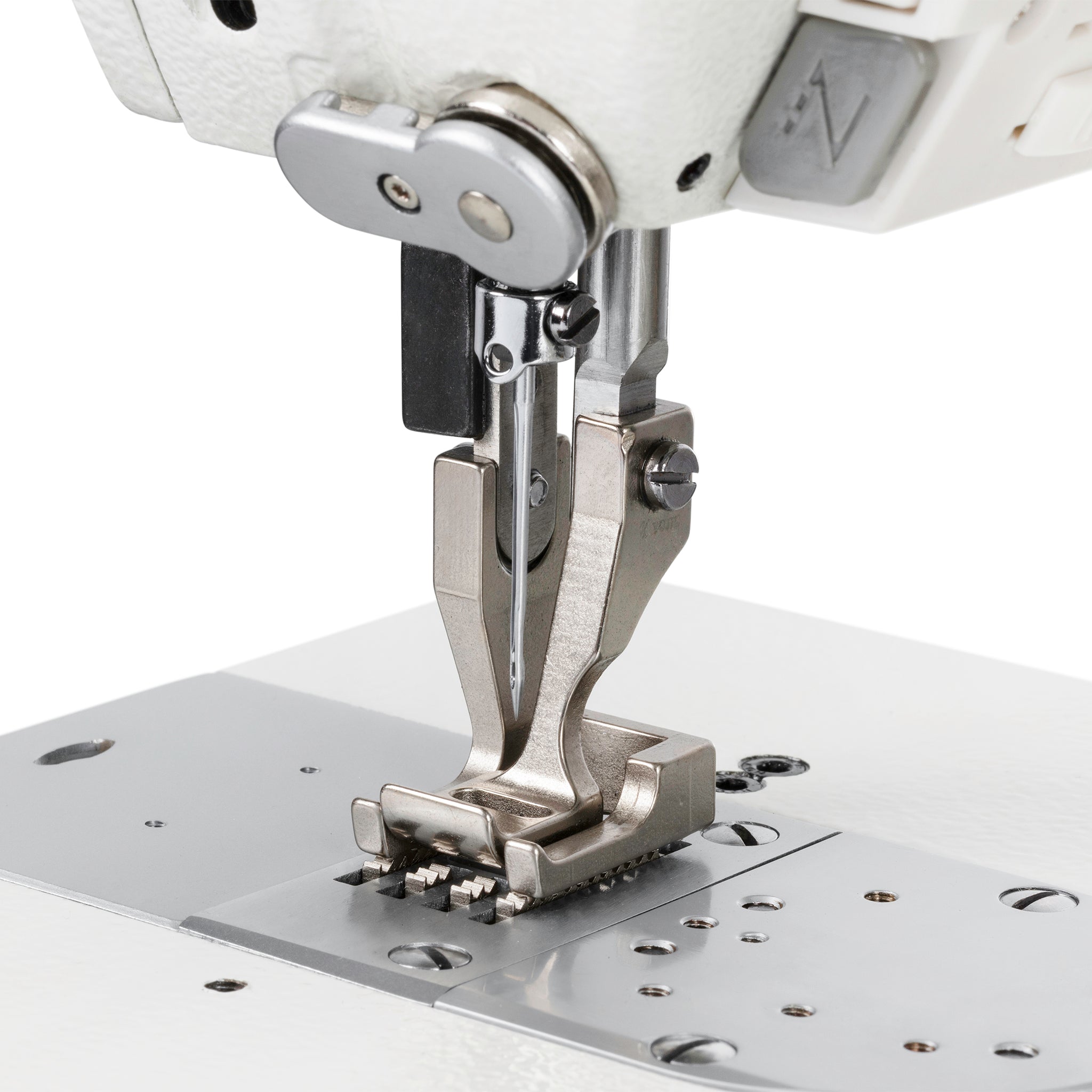

• Upper and Lower Feed

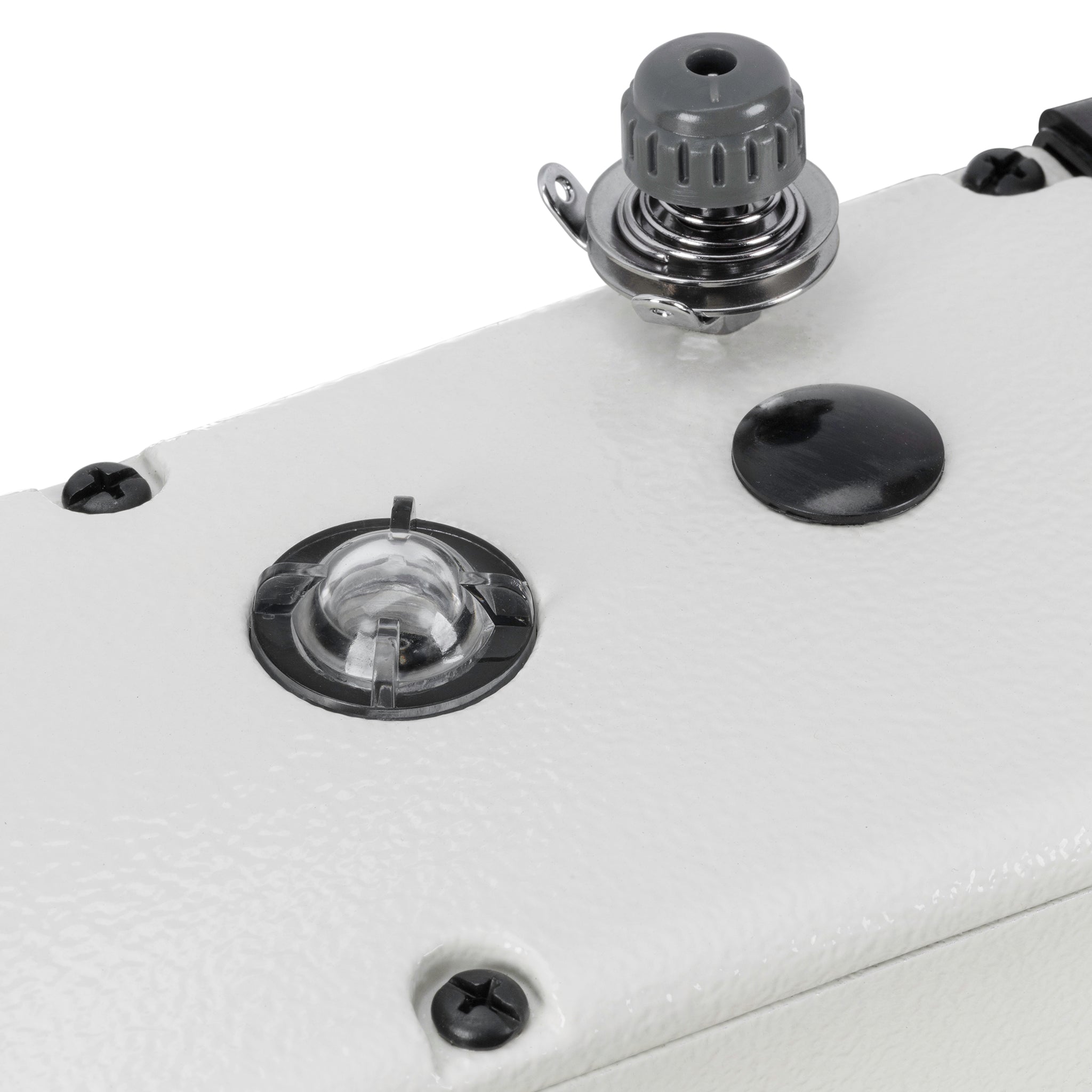

• Patented Automatic Lubrication

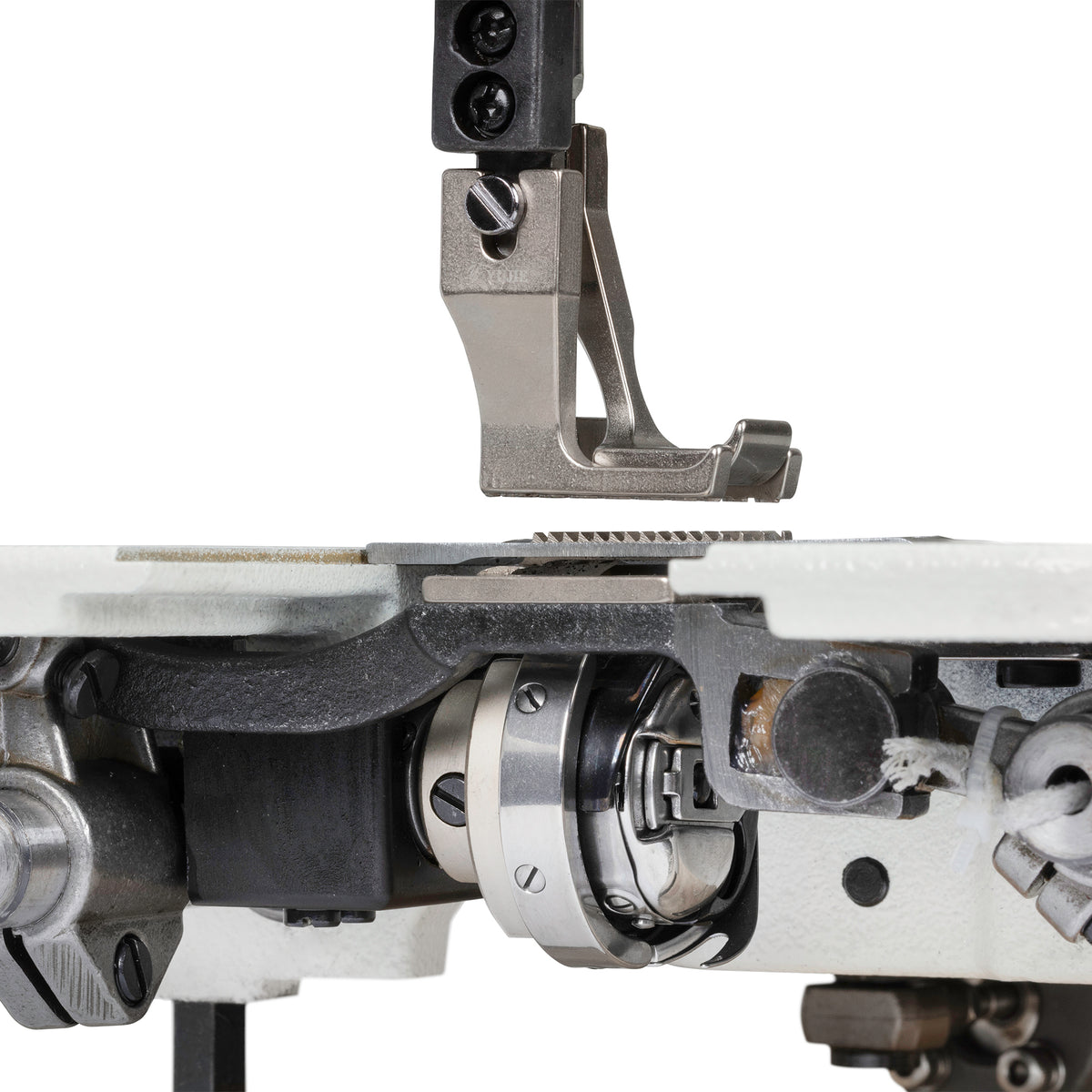

• Horizontal axis rotary hook (front-load)
• Dial zig-zag regulator
• Locking zig-zag width regulator
• Straight stitches when zig-zag set to “0”
• Reverse stitching

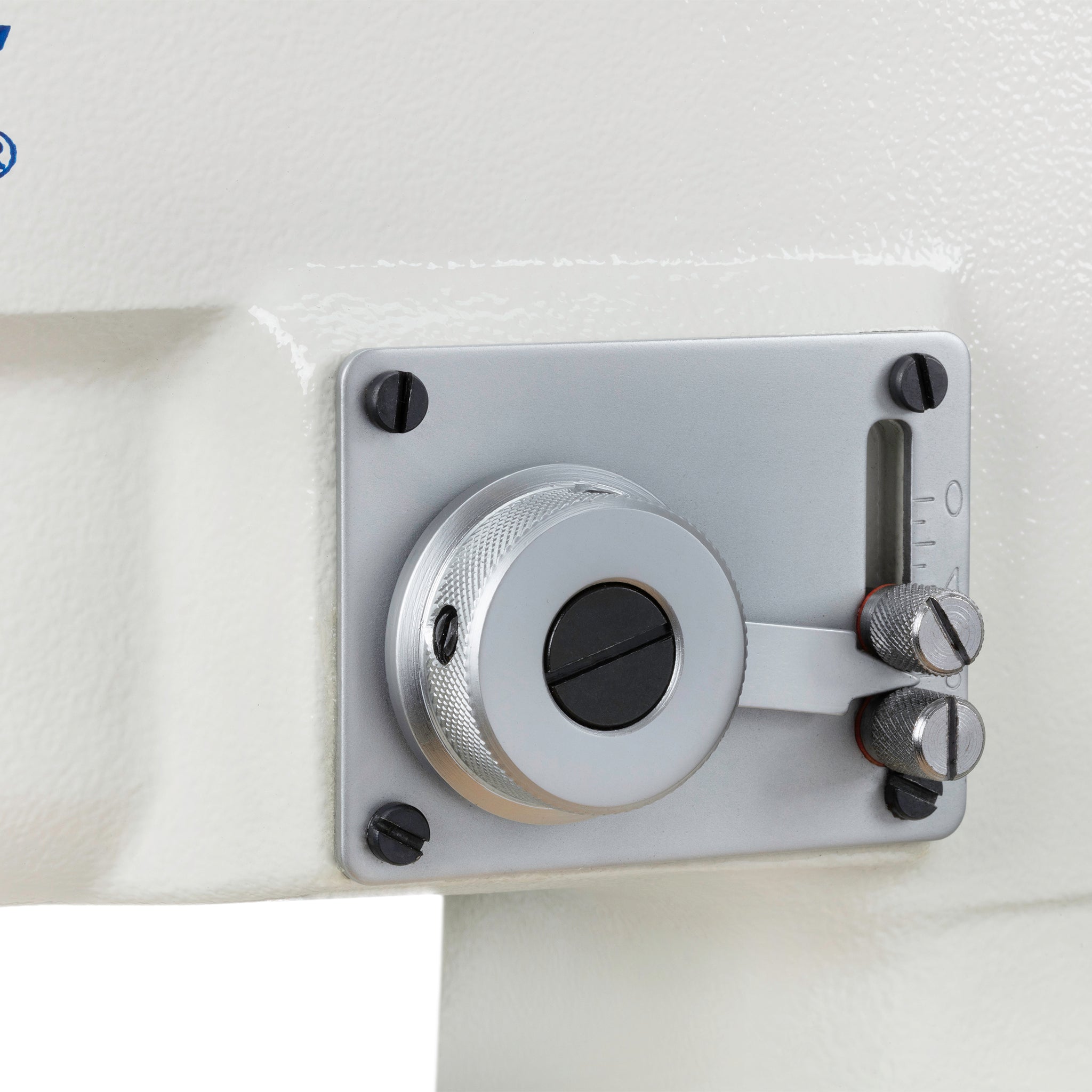

• Locking adjustable stitch length
• Metal gears (hardened steel)
• Hook is coated with DLC for extra smooth operation
• Style M pre-wound bobbins

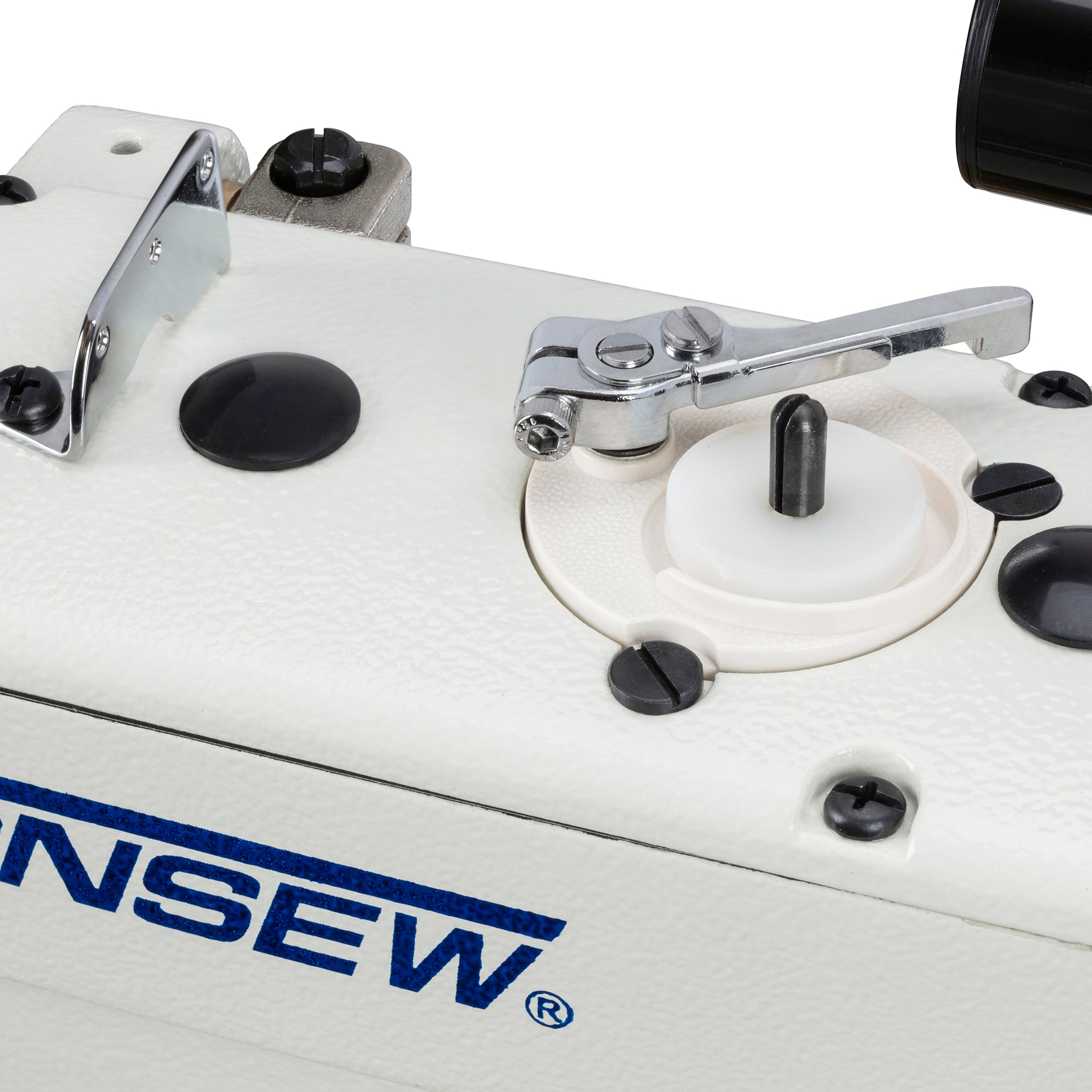

• Built-in bobbin winder

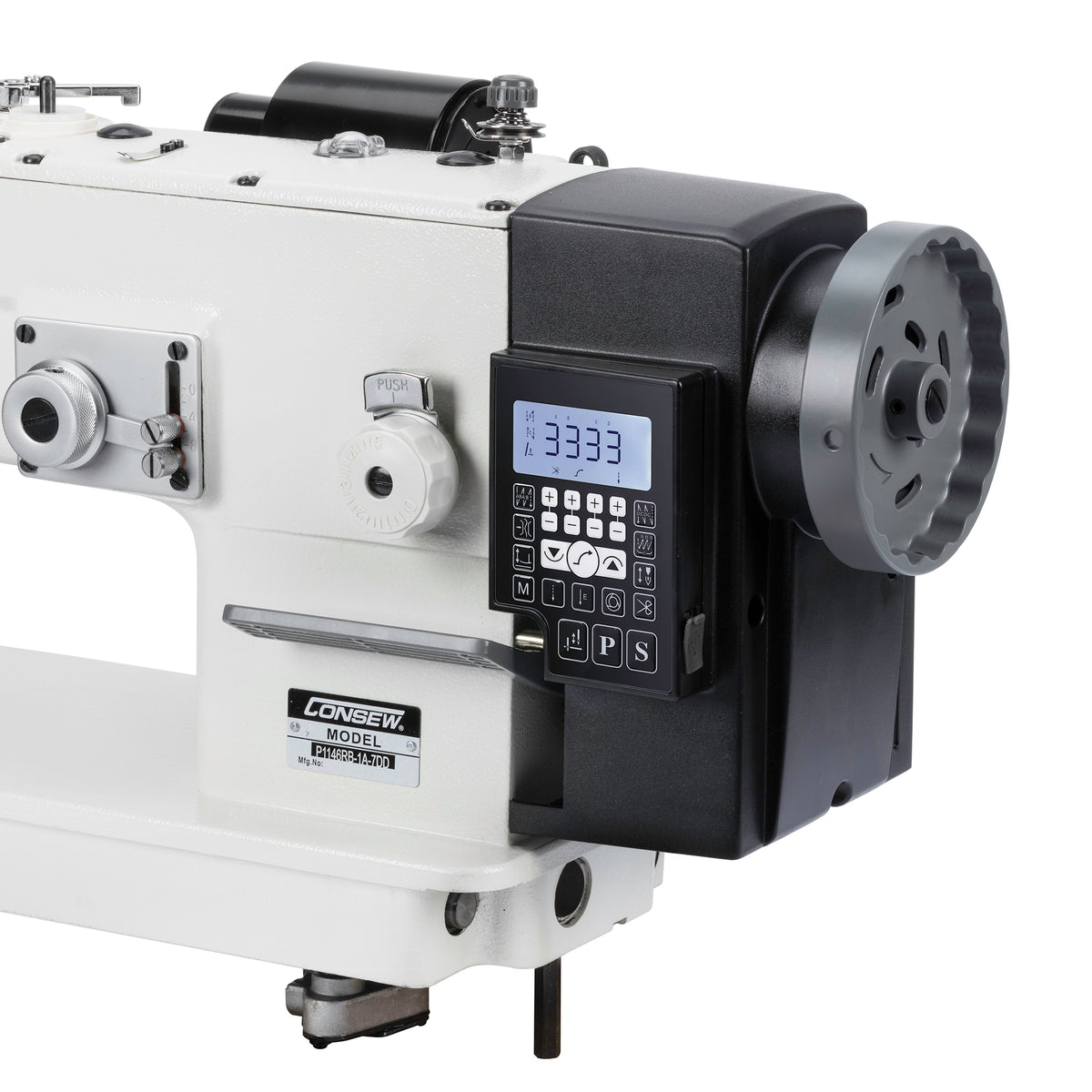

• Direct Drive (DD) Internal Motor
• Full Function:
  - Needle Position (Stop-Up/Stop-Down)
  - Auto foot lift (electric)
  - Auto reverse (electric)
  - Thread trimmer (electric)
  - Stitch counting

• Optional piping feet available

• Number of Needles: 1 (Single)
• Standard or Full Function: Standard Functions
• Max Speed (S.P.M.): 2200*
• Clearance Under Foot: by hand 8mm | by knee 15mm
• Stitch Length Max.: 4mm
• Stitch Width Max.: 9 mm (11/32”)
• Work Space: 10" (255mm)
• Needle: 135 x 17
• Work Space: 266 mm (10-1/2”)
• Stitch Type: 304 (or straight)
• Power: 750 w/220 vac single phase motor (Optional 110V/220V converter can be purchased separately.)
• Bobbin: style M


*Speed depends on width of zig-zag, material and thread.
