Consew P1510RBL-18-DD/220

Name: Consew P1510RBL-18-DD/220
Brand: My Store
SKU: P1510RBL-18-DD/220
Availability: InStock

SKU: P1510RBL-18-DD/220

Overview

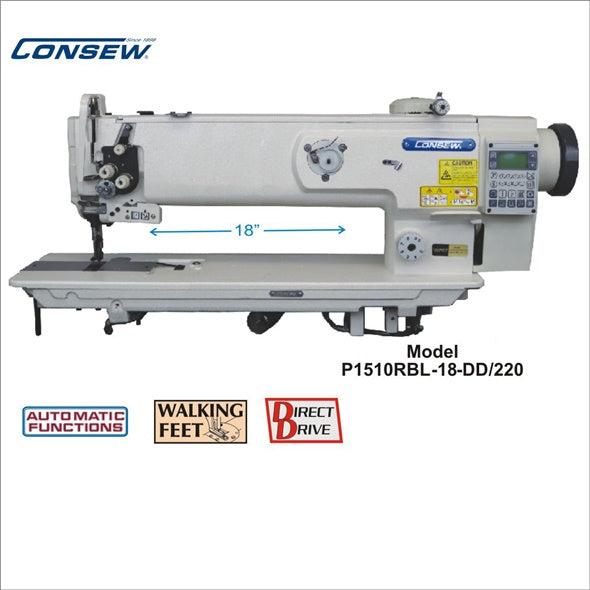

High Speed, Direct Drive, Single Needle, Walking Foot,
Lockstitch Machine. Comes in 14" 18" and 25" workspace (see catalog sheet). This is the 18" Long Arm version.

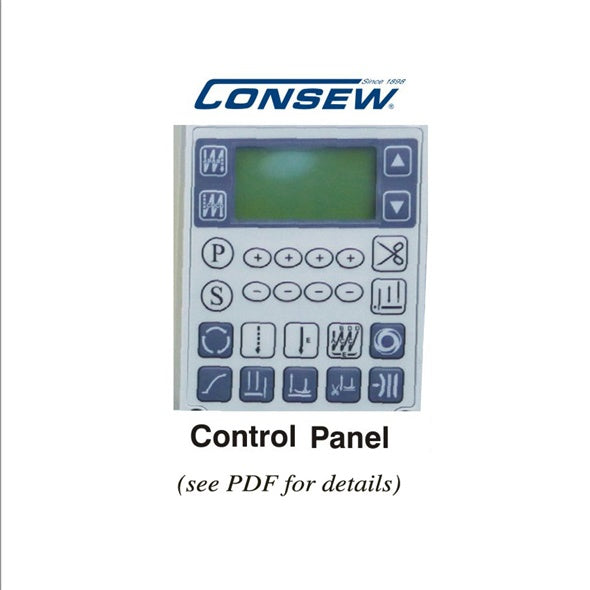

Comes with auto functions (-DD is without automatic thread trim)
(also available is -7DD which has automatic thread trim)

Currently Available in 220VAC Version ONLY.

Product Resources

Download Catalog Page

Applications

Designed for automotive, marine, leather, canvas, and general upholstery
For sewing light to heavyweight fabric, canvas, leather, vinyl, synthetics, and various laminated and coated materials
Designed for stitching products such as auto, boat, and furniture upholstery, tarpaulins, covers, awnings, tents, umbrellas, handbags, luggage, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, footwear, foundation garments, orthopedic appliances, etc

Features

Large Top Load Bobbin
18" Long Arm
Built-in Bobbin Winder
Walking Foot
Climbing Device
Roll-In, tucks the top thread under fabric when it starts
Automatic Foot Lift
Automatic Reverse
Semi-Automatic Lubrication
Servo motor connected direct to top shaft

Specifications

Speed, maximum: 2000 - 2500 spm (*Speed depends on thread, material, and operation)
Clearance Under Foot: 9/16" (14mm)
Needle: 135 x 17 (DPX17)
Stitch Length; Max.: 9mm Adjustment By Dial
Presser Foot Lift By Hand: 9 mm / By Knee: 16mm
Lubrication: Semi-Automatic
Bobbin: U or S
Power: 220 VAC
