Consew CM794-DD

Name: Consew CM794-DD
Brand: My Store
SKU: CM794-DD
Availability: InStock

SKU: CM794-DD

Overview

Two Needle, 5 Thread, High Speed Overlock Machine
For overlock sewing of medium to heavyweight materials with a safety stitch.

With: Fully Automatic Lubrication, Differential Feed, Pushbutton Stitch Regulator

Product Resources

Download Manual Download Parts Book Download Catalog Page

Applications

• True safety stitch – ideal for men's, ladies', and children's wear, especially coats
• Designed for general seaming on woven fabrics
• Suitable for edging vinyl, canvas, and upholstery fabrics

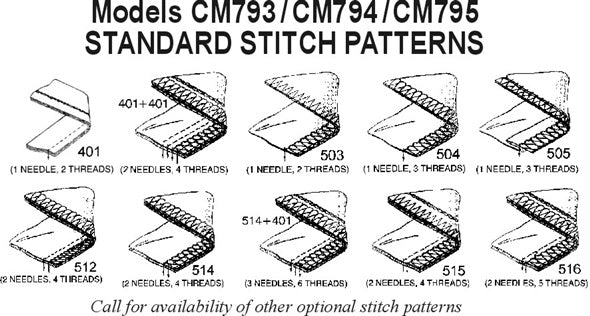

• Capable of performing the same stitches as the CM793

Features

• Speed, Max: 6500 s.p.m.
• Fully automatic lubrication with visual flow controls
• Lubricating oil continuously filtered by a replaceable filter
• External cooling of oil supply
• Differential feed
• Push-button stitch regulator
• Intermittent action possible
• Standard type DC-27 needles
• Reduced noise and vibration at high speeds

Specifications

Number of Needles: 2 (Double)
Feeding Mechanism: Differential
Workspace: Standard Workspace
Standard or Full Function: Standard Functions
Stitch Type: True Safety Stitch
Speed, Max (S.P.M.): 6500
Max Stitch Length: 3.8 mm
Presser Foot Lift: 5.5 mm
Needle Used: DC x 27 size 14
Standard Distance Between Needles: 2 mm
Differential Ratio: 1: 0.7 ~ 1.7
Number of Threads: 4/5
