Consew P1565RBL-18-DD/220

Name: Consew P1565RBL-18-DD/220
Brand: My Store
SKU: P1565RBL-18-DD/220
Availability: InStock

SKU: P1565RBL-18-DD/220

Overview

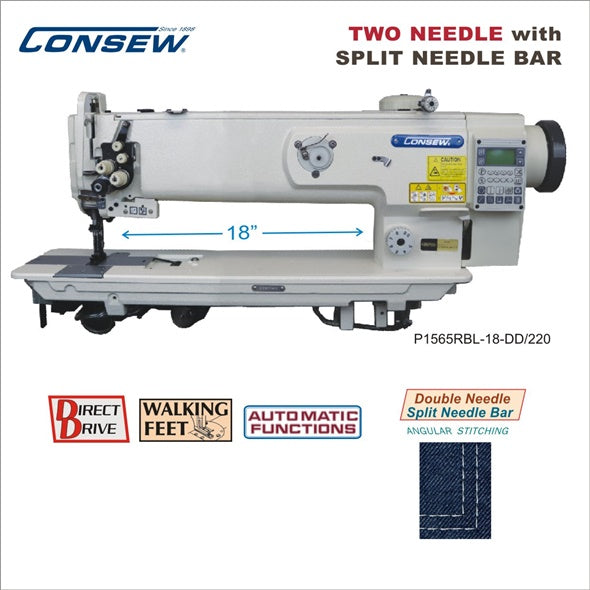

Two-Needle Machine with Split Needle Bar for Angular Stitching. Long-Arm, High Speed, Direct Drive, Walking Foot, Lockstitch Machine. Comes in 14" 18" and 25" workspace (see catalog sheet).
The P1565RBL-18-DD/220 has automatic functions but without automatic thread trim. (The -7DD version has the automatic thread trim)

Currently Available in 220VAC Version ONLY.

Product Resources

Download Manual Download Catalog Page

Applications

Designed for automotive, marine, leather, canvas, and general upholstery
Suitable for sewing light to heavy-weight fabrics, canvas, leather, vinyl, synthetics, and various laminated and coated materials
Ideal for stitching products such as auto, boat, and furniture upholstery, tarpaulins, covers, awnings, tents, umbrellas, handbags, luggage, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, footwear, foundation garments, orthopedic appliances, etc.

Features

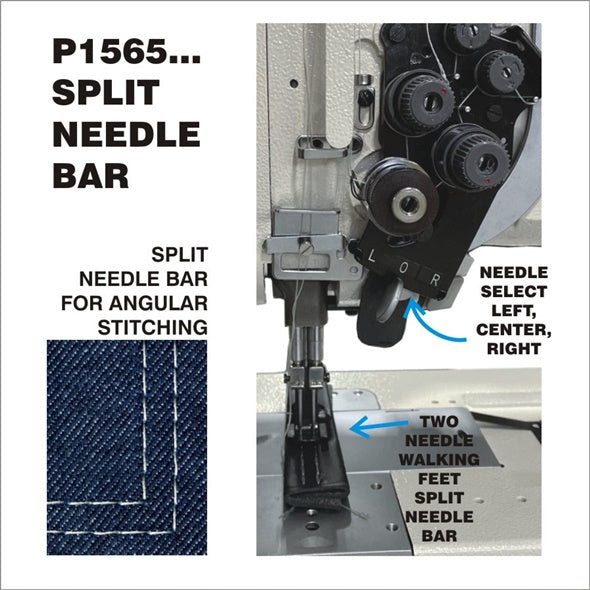

Two Needles with Split Needle Bar: Enables angular stitching
18" Long Arm: Provides ample workspace for large projects
Large Top Load Bobbins: Convenient bobbin access
Built-in Bobbin Winder: Simplifies bobbin preparation
Walking Foot: Ensures even feeding of materials
Climbing Device: Enhances stitching on thick or layered fabrics
Roll-In Feature: Tucks the top thread under the fabric when starting
Automatic Foot Lift: Improves efficiency
Automatic Reverse: Simplifies reverse stitching
Semi-Automatic Lubrication: Ensures smooth operation
Servo Motor Connected Direct to Top Shaft: Efficient and precise performance

Specifications

Speed, Maximum: 2000 - 2500 spm (Speed depends on thread, material, and operation)
Clearance Under Foot: 9/16" (14mm)
Stitch Length: Max. 9mm (Adjustment by dial)
Presser Foot Lift: By Hand - 9 mm / By Knee - 16mm
Lubrication: Semi-Automatic
Bobbin: U or S
Needle: 135 x 17 (DPX17)
Needle Gauges: 1/4” to 1” (Custom gauges also available)
Power: 220 VAC
Number of Needles: 2 needles
Workspace: Long Arm
Standard or Full Function: Computerized Functions
Speed, Max (S.P.M.): 2000 - 2500 spm
Motor Type: Direct Drive Internal
Clearance Under Presser Foot: Hand - 9mm, Knee - 16mm
Stitch Length: 9mm Max.
Work Space: 18"
Needle: 135 x 17 (DPX17)
Available Needle Spacings: 1/4” to 1”
Electric: 220 VAC
