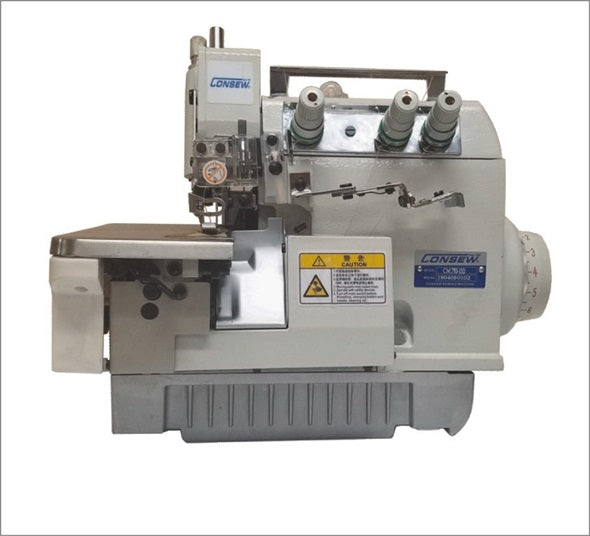

Consew CM793-DD

Name: Consew CM793-DD
Brand: My Store
SKU: CM793-DD
Availability: InStock

SKU: CM793-DD

Overview

Single Needle, 3 Thread, High Speed Overlock Machine with Direct Drive motor.
For overlock sewing of a variety of materials (knits, wovens, vinyls, lightweight leather)
With: Fully Automatic Lubrication, Adjustable Differential Feed,
Stitch Regulator, Fabric Edge Trimmer, Swing-arm Guide

(Also available: CM793-2 without direct drive motor)

Product Resources

Download Manual Download Catalog Page

Applications

• Overlock sewing of knits, wovens, vinyls, and lightweight leather
• General overedging, including hemming sleeves on men's knit underwear, closing shoulders for T-shirts, overedging net lining for tricot slips, closing skirt panels, and attaching bodices and yokes for tricot slips

Features

• Direct Drive: Motor inside machine – No drive belt
• Controller module fits underneath the table, connecting to the direct drive motor and treadle
• Speed, Max. up to 7,000 S.P.M.
• Fully automatic lubrication with visual flow controls
• External cooling of oil supply
• Fabric edge trimmer
• Adjustable differential feed
• Stitch regulator
• Standard type DC-27 needles
• Reduced noise and vibration at high speeds
• Swing-arm guide

Specifications

• Number of Needles: 1 (Single)
• Feeding Mechanism: Differential
• Workspace: Standard Workspace
• Standard or Full Function: Standard Functions
• Speed, Max (S.P.M.): 7,000
• Max Stitch Length: 3.8 mm
• Presser Foot Lift: 5.5 mm
• Needle Used: DC x 27 size 11
• Overedging Stitch Width: 4 mm
• Weight: 132 lbs
• Stitch Ratio: 1 : 0.7 ~ 1.7
• Number of Threads: 3
