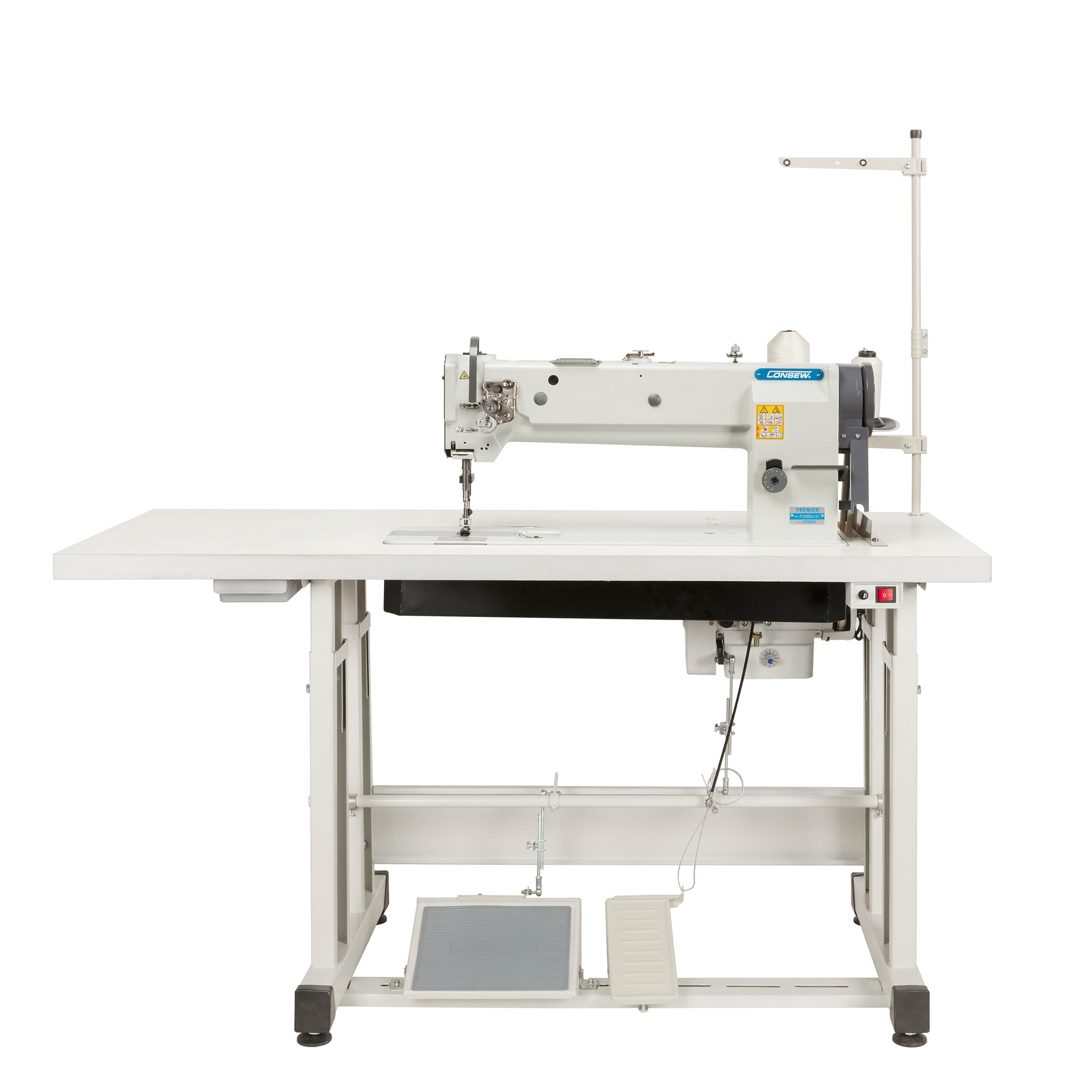

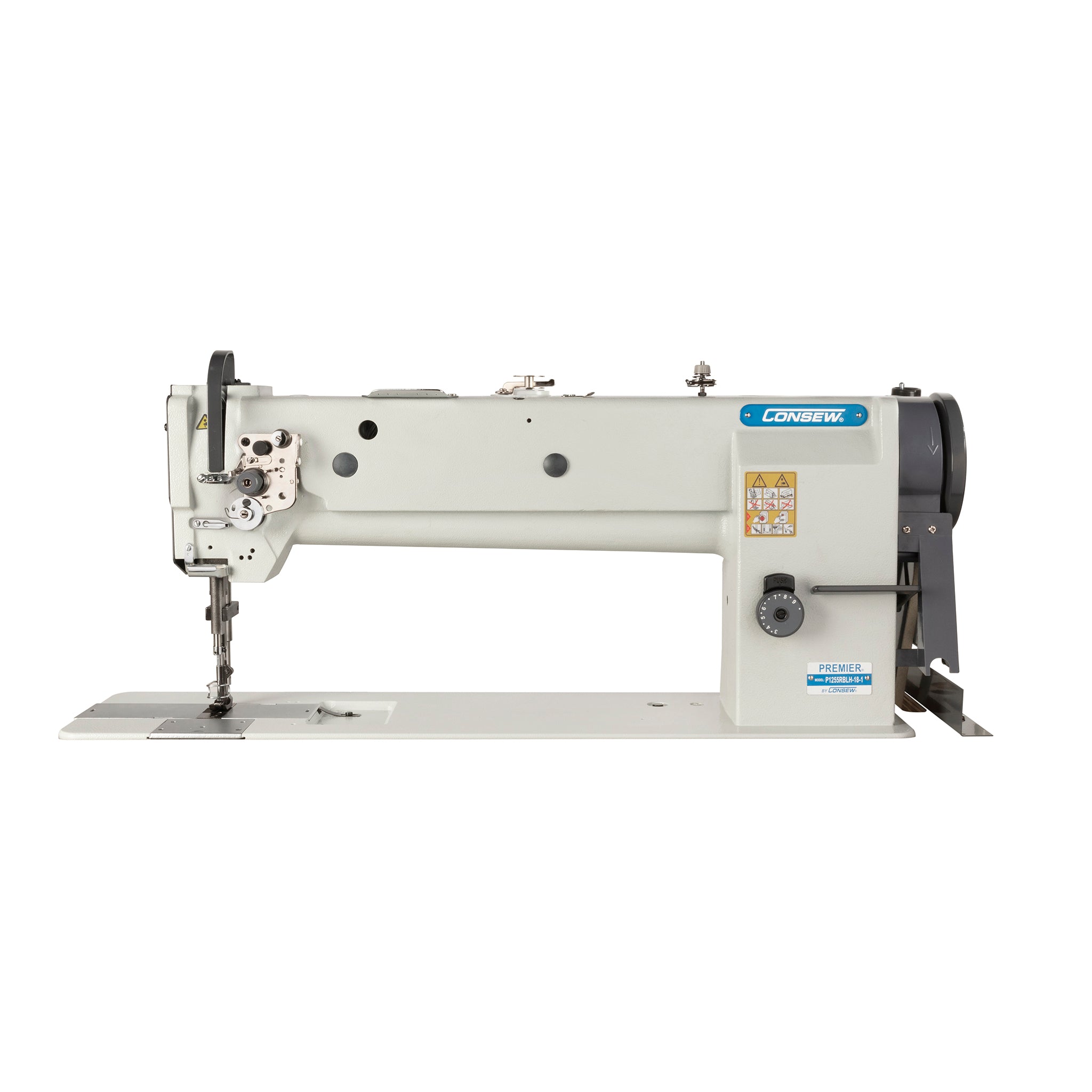

Consew P1255RBLH-18-1

Name: Consew P1255RBLH-18-1
Brand: My Store
SKU: P1255RBLH-18-1
Availability: InStock

SKU: P1255RBLH-18-1

Overview

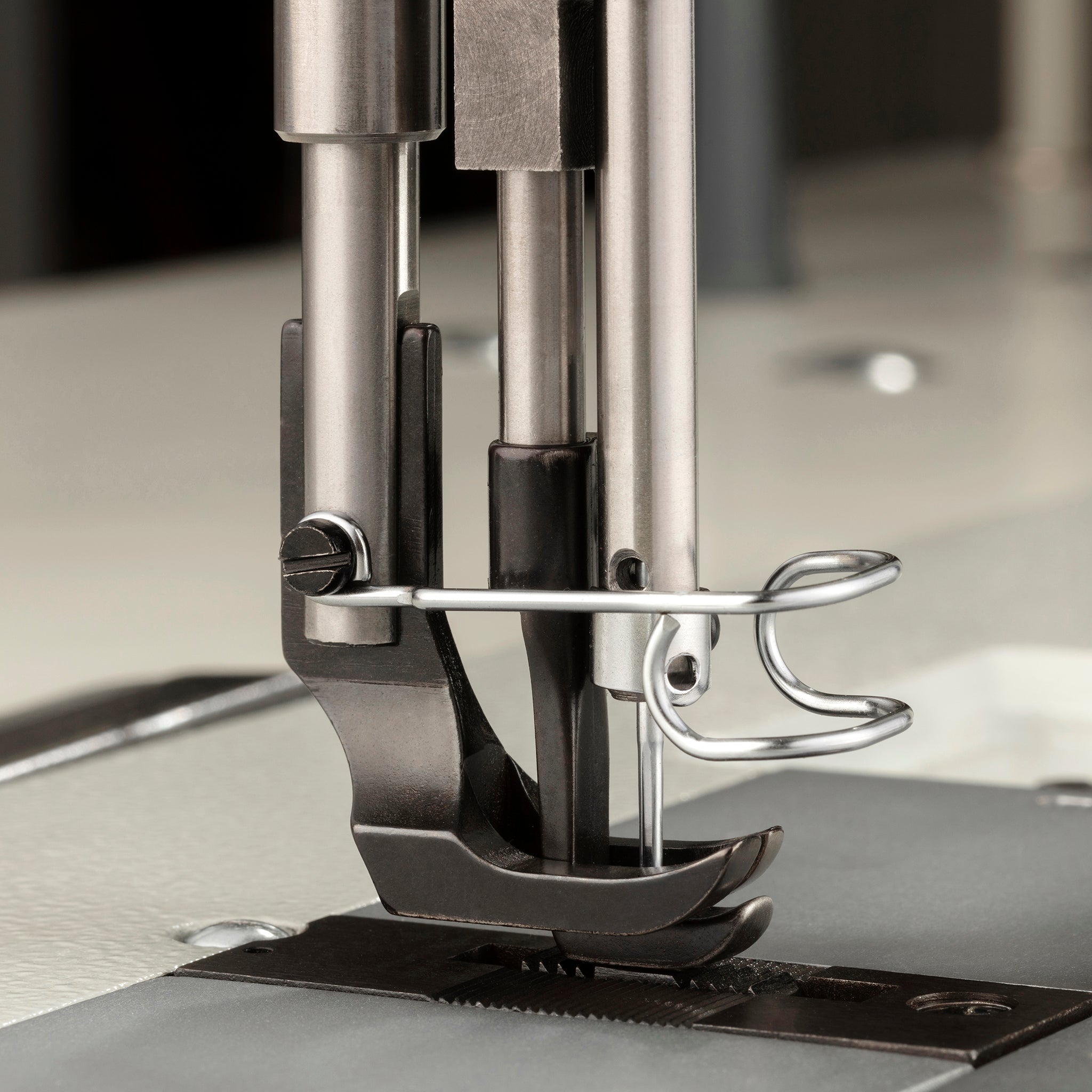

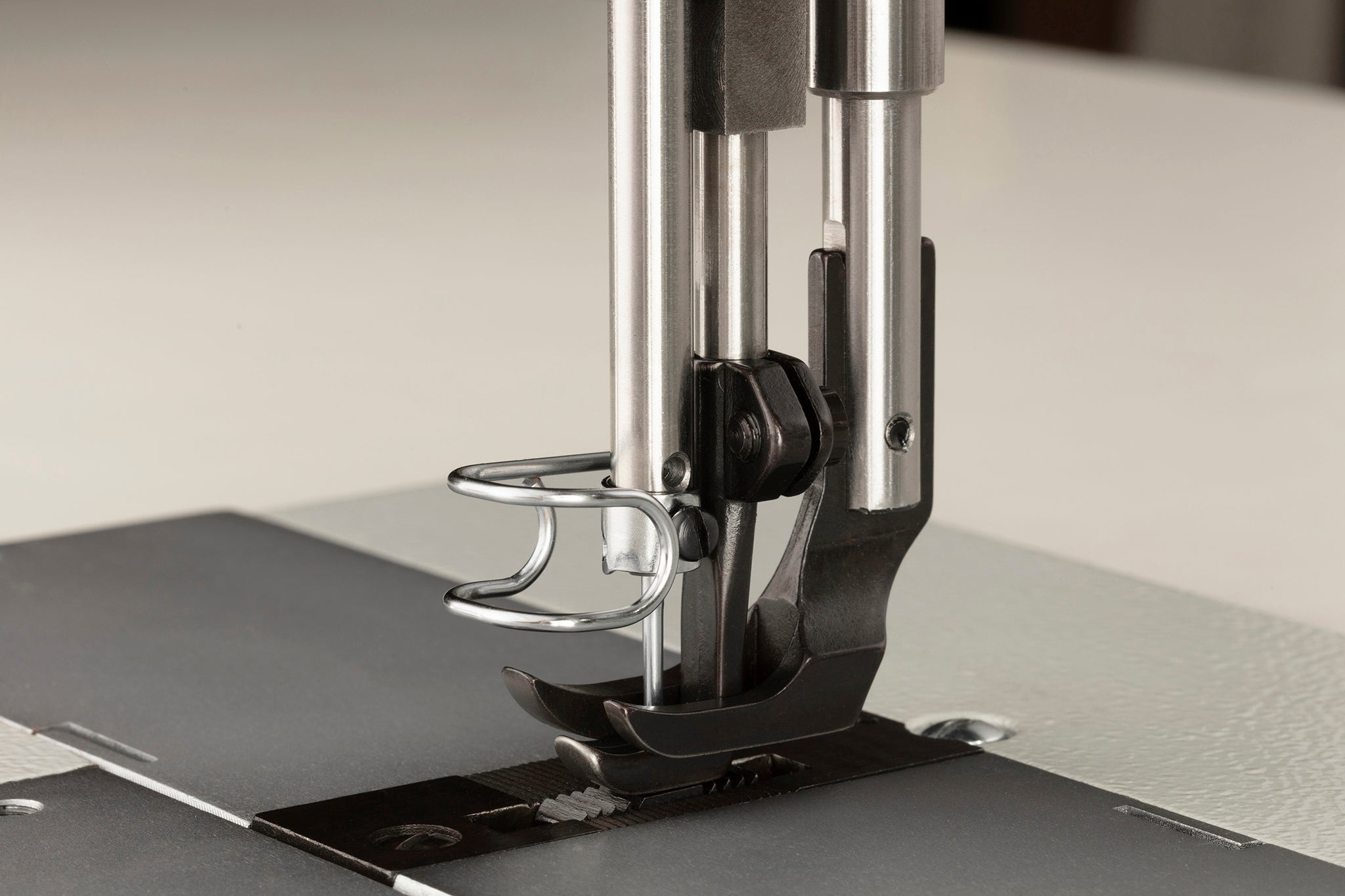

The Consew P1255RBLH-18 is a long-arm drop-feed, needle-feed walking foot lockstitch machine designed for professional sewing applications requiring extra space and precision. With an 18-inch long arm and up to 6 inches of vertical working space, this machine easily accommodates larger or bulkier projects. It features a large vertical-axis, automatically oiled hook with an adjustable oil pump system and upper oil sight glass to ensure smooth operation and consistent lubrication.

Product Resources

Download Manual Download Parts Book Download Catalog Page How To Videos

Features

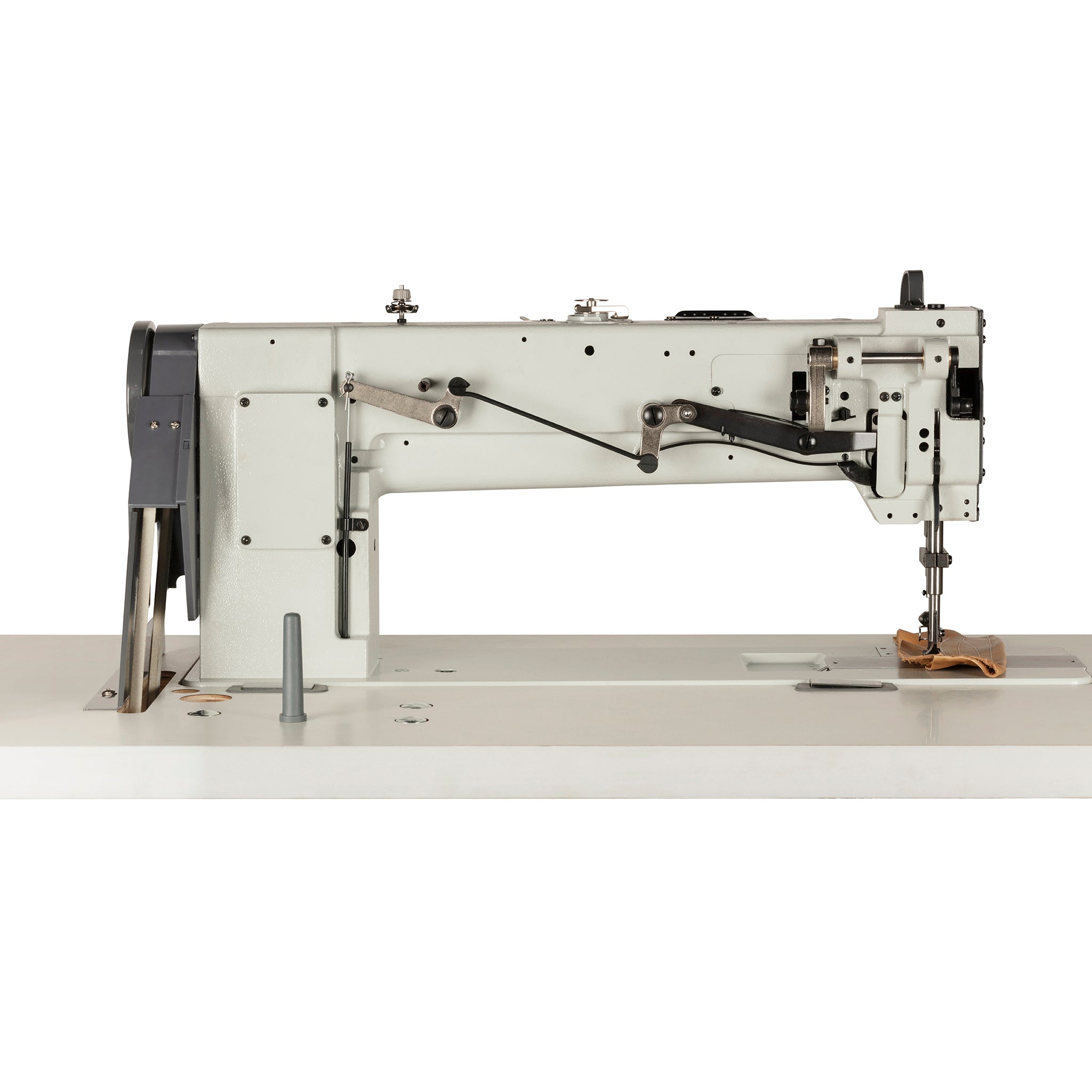

Long Arm with 18” Working Space
Up to 6” Vertical Working Space

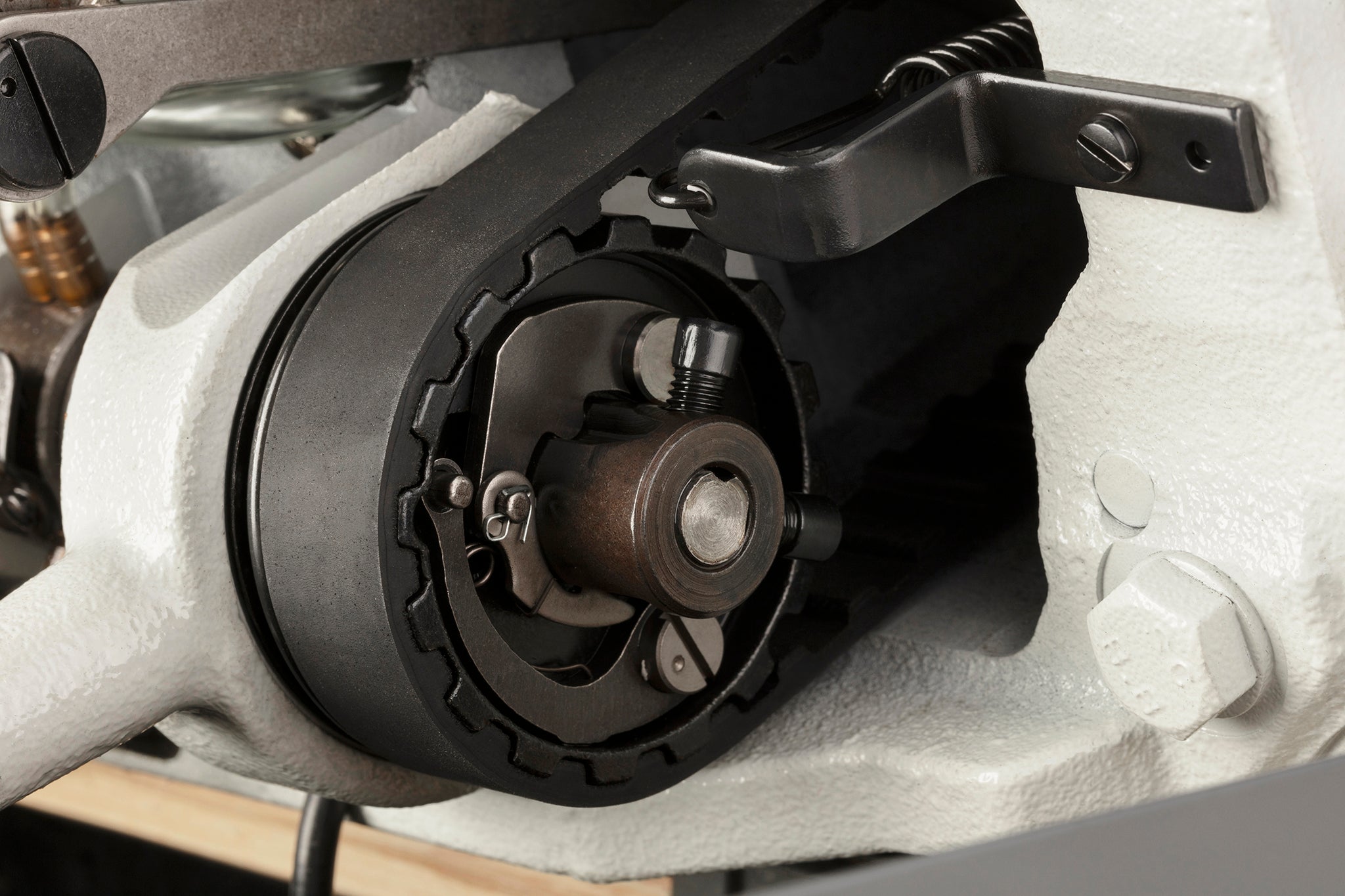

Large Vertical Axis Automatically Oiled Hook
Oil Pump System with Adjustable Oil Flow
Upper Oil Glass Sight
Barrel-type, Locking Stitch Regulator
Reverse

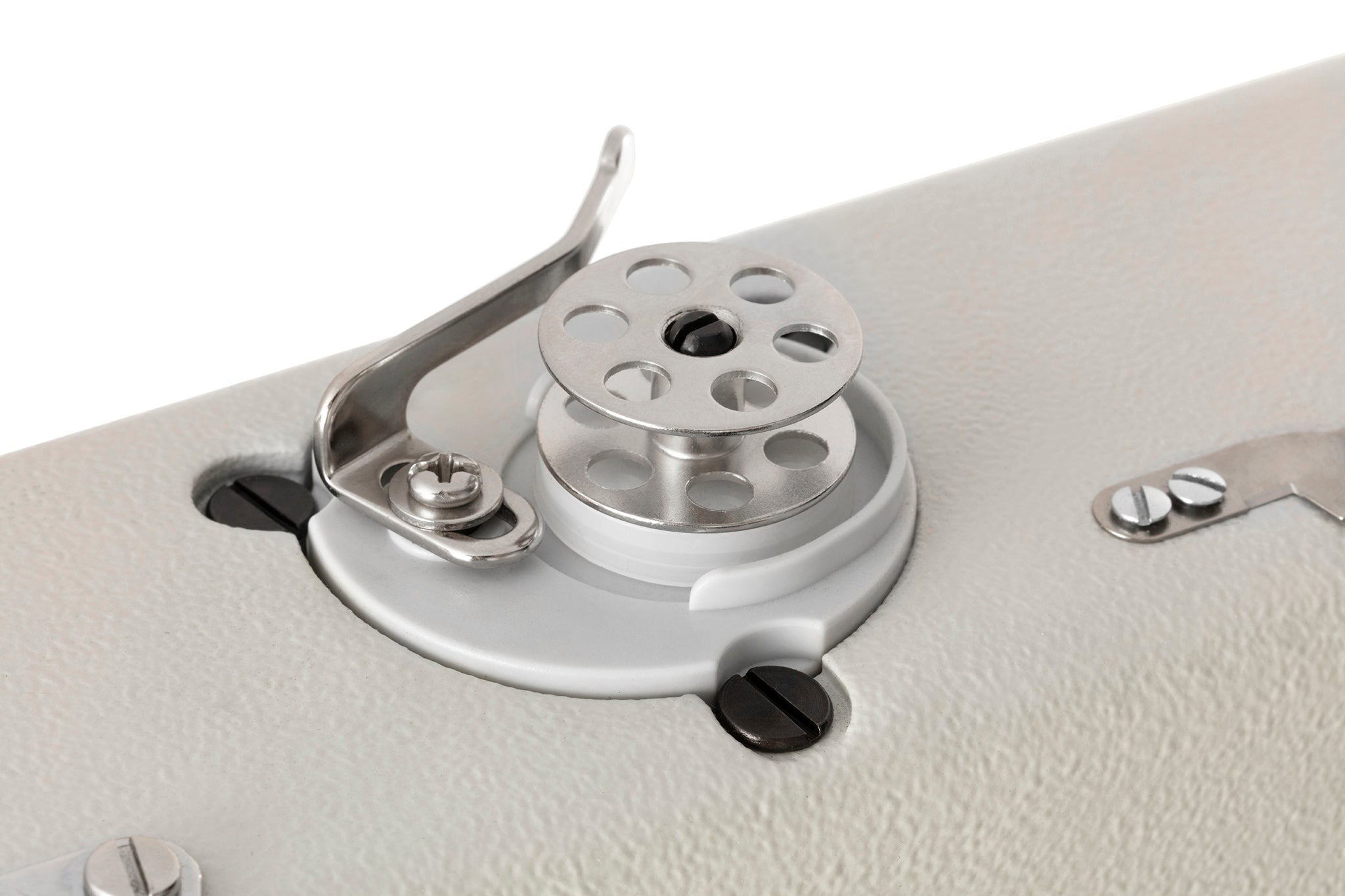

Large Top-Loaded Bobbin
Safety Clutch
Quick Tension Release
Locking Slide Plate for easy bobbin access
Adjustable Take-Up Thread Guide for thread loop timing

Specifications

Speed, Max. (S.P.M.): 1800 *Speed depends on thread, material, and operation
Presser Foot Lift: By Hand- 5/16" (8 mm) / By Knee- 33/64" (13 mm)
Needle Bar Stroke: 1-27/64" (36 mm)
Stitch Length, Max: 2.8 s.p.i. (9 mm)
Work Space: 18" x 4-1/4" (457 x 110 mm)
Working Height Under Arm: 6” (152 mm) maximum
Needle: 135 x 17
Pre-wound Bobbin: U or S

Educational Videos

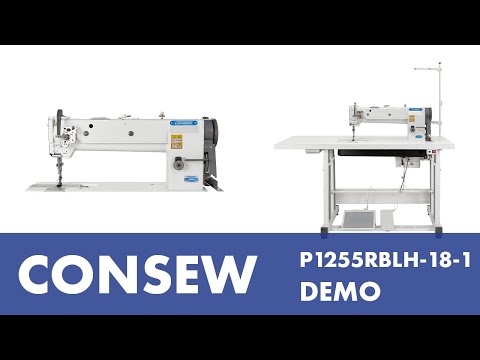

Consew Model P1255RBLH-18-1 Demo
