Consew P2339RBLH-18-1

Name: Consew P2339RBLH-18-1
Brand: My Store
SKU: P2339RBLH-18-1
Availability: InStock

SKU: P2339RBLH-18-1

Overview

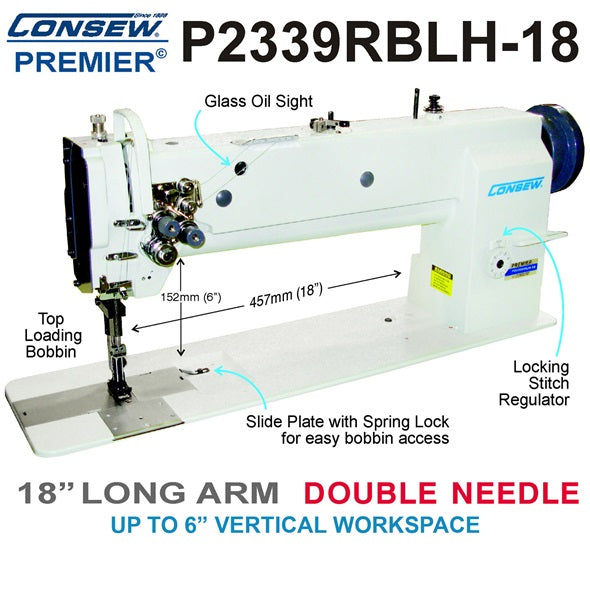

Consew's Premier Series
P2339RBLH-18:
18" LONG ARM / TWO NEEDLES
Drop Feed
Needle Feed
Walking Foot
Lockstitch Machine
with up to 6” vertical working space

Product Resources

Download Catalog Page

Features

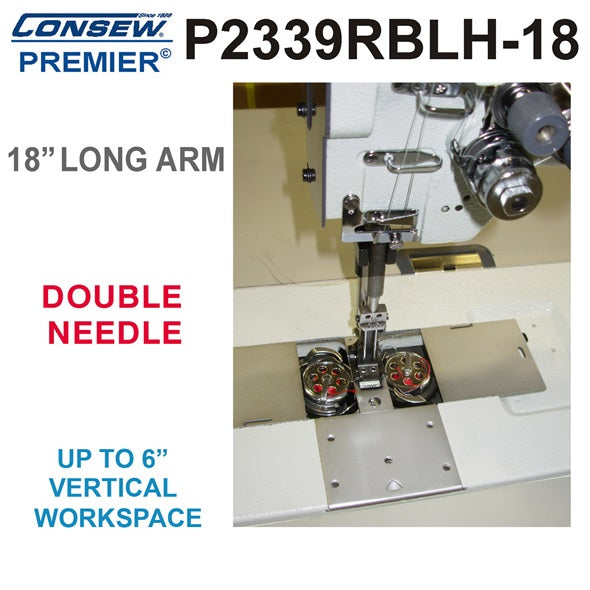

Double Needle: Dual-needle capability for versatile stitching
Long Arm with 18” Working Space: Ideal for large or bulky materials
Up to 6” Vertical Working Space: Accommodates thick or layered fabrics
Large Vertical Axis Automatically Oiled Hooks: Ensures smooth operation
Oil Pump System with Adjustable Oil Flow: Customizable lubrication
Upper Oil Glass Sight: Easy monitoring of oil levels
Barrel-type, Locking Stitch Regulator: Precise stitch length control
Reverse: Enhances stitching versatility
Large Top-Loaded Bobbins: Convenient bobbin access
Safety Clutch: Protects the machine from overload
Quick Tension Release: Simplifies thread tension adjustments
Locking Slide Plate: Easy access to the bobbin area
Adjustable Take-Up Thread Guide: Ensures proper thread loop timing

Specifications

Speed, Max. (S.P.M.): 1800 (Speed depends on thread, material, and operation)
Presser Foot Lift: By Hand - 5/16" (8 mm) / By Knee - 33/64" (13 mm)
Needle Bar Stroke: 1-27/64" (36 mm)
Stitch Length, Max: 2.8 s.p.i. (9 mm)
Work Space: 18" x 4-1/4" (457 x 110 mm)
Working Height Under Arm: 6” (152 mm) maximum
Needles: 135 x 17 (x 2)
Pre-wound Bobbin: U or S
Number of Needles: 2 (Double)
Feeding Mechanism: Walking Foot
Workspace: Long Arm
Standard or Full Function: Standard Functions
Stitch Type: 301
Weight: 220 lbs (100kg)
