Consew CN897VC

Name: Consew CN897VC
Brand: My Store
SKU: CN897VC
Availability: InStock

SKU: CN897VC

Overview

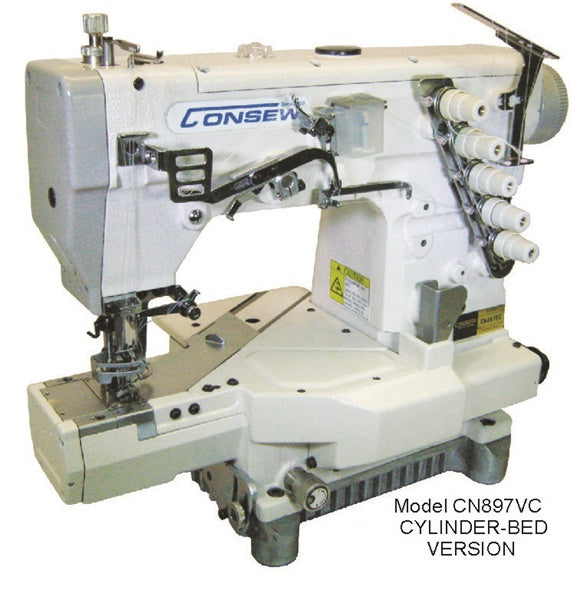

The CN897VC is a high-speed cylinder-bed coverstitch machine perfect for tubular or curved applications. It offers excellent control with micrometric differential feed and allows precision stitching even on complex shapes. Like the VF model, it handles both 2-needle/4-thread and 3-needle/5-thread setups and includes advanced lubrication and cooling systems.

V-series High Speed Coverstitch Machines

With: Fully Automatic Lubrication; Differential Feed With Micrometric Adjustment; Push-button Stitch Regulator; Thread Lubricating and Needle Cooling System
Also available: CN897VCB-1 for Binding Attachments

Product Resources

Download Parts Book Download Catalog Page Download Pattern Page

Applications

Sewing light to heavy-weight materials
Cylinder-bed for general seaming
Suitable for hemming, tape binding, elastic inserting, etc.
Configurations: 2 Needles, 2 Loopers, 4 Threads or 3 Needles, 2 Loopers, 5 Threads
Optional Needle Gauges: 2 Needles (3.2, 4.0, 4.8, 5.6, 6.4 mm) or 3 Needles (5.6, 6.4 mm)

Features

Speed, Max. up to 6000 s.p.m.*
Push-button stitch regulator
External cooling of oil supply
Fully automatic lubrication with visual flow controls
Lubricating oil continuously filtered by replaceable filter
Differential feed with micrometric adjustment for shirring and stretching (Ratio up to 4 to 1)
Intermittent action possible
Standard type UY128GAS needles
Silicone-based needle cooling and thread lubricating
Comes with 3-needle, 5.6 mm configuration
Optional features: UTA (Under thread trimming device - pneumatic), ST (Top cover thread trimming device), UTM (Under thread trimming device - electric), W (Thread wiper - electric), EC (Tape Cutter - electric)

Specifications
