Consew 694EX

Consew 694EX

Consew 694EX

Consew 694EX

SKU: 694EX

Overview

High speed overlock machine
4 threads

With: Fully Automatic Lubrication, Differential Feed With Micrometric Adjustment, Pushbutton Stitch Regulator

Product Resources

Download Manual Download Parts Book Download Catalog Page

Applications

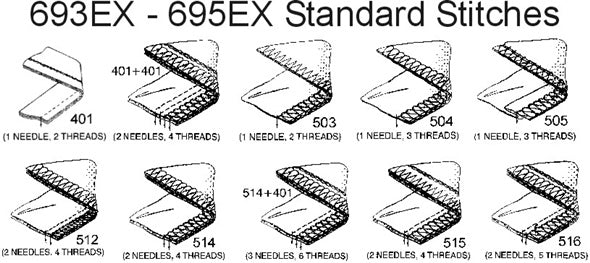

Mock safety stitch suitable for seaming sides and joining front and side panels on ladies' swim suits, childrens' play pants; closing sides on ladies' panties; setting sleeves on ladies' uniform dresses and knitted sport shirts; sewing cuffs to sleeves and attaching pocket pieces to front and back on ladies' robes; setting body lining on men's raincoats, etc.
Equipped to handle medium to heavy weight materials and designed for sewing stretchable materials or fabrics which need elasticity in stitching.

Features

Speed, Max. up to 7500 s.p.m. (depending on thread, material, and application)
Fully automatic lubrication with visual flow controls
Lubricating oil continuously filtered by replaceable filter
External cooling of oil supply
Silicone-based needle cooling and lubricating system
Differential feed with micrometric adjustment for shirring and stretching, ratio up to 4 to 1
Push-button stitch regulator
Intermittent action possible
Standard type B-27 needles
Reduced noise and vibration when operating at high speeds

Specifications

Number of Needles: 2 (Double)
Feeding Mechanism: Differential
Workspace: Standard Workspace
Standard or Full Function: Standard Functions
Speed, Max (S.P.M.): 7500
Max Stitch Length: 3.8mm
Presser Foot Lift: 5.5mm
Overedging Stitch Width: 3-5mm
Differential Ratio: 1 : 0.7mm ~ 1 : 2
Two Needle Needle Distances: 2 mm
Number of Threads: 4
