Consew CM794-2

Consew CM794-2

Consew CM794-2

Consew CM794-2

Consew CM794-2

SKU: CM794-2

Overview

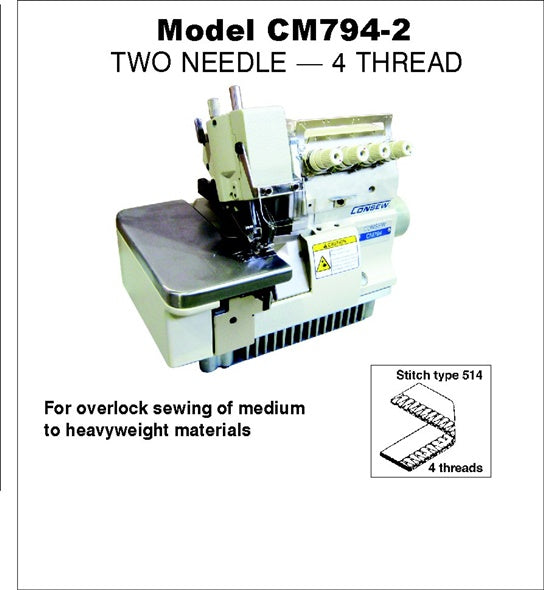

The CM794-2 is a high speed, two needle, 4 thread overlock machine for sewing of medium to heavyweight materials

With: Fully Automatic Lubrication, Differential Feed, Pushbutton Stitch Regulator

Product Resources

Download Manual Download Parts Book Download Catalog Page

Applications

Mock Safety Stitch for seaming sides and joining panels in ladies' swimsuits, children's play pants, and ladies' panties
Setting sleeves on ladies' uniform dresses and knitted sport shirts
Sewing cuffs to sleeves and attaching pocket pieces to front and back on ladies' robes
Setting body lining on men's raincoats
Designed for sewing medium to heavyweight stretchable materials or fabrics requiring elasticity in stitching

Features

Max speed up to 6500 S.P.M.
Fully automatic lubrication with visual flow controls
Replaceable filter for continuous oil filtration
External cooling of oil supply
Differential feed mechanism
Push-button stitch regulator
Intermittent action possible
Reduced noise and vibration at high speeds
Available Options: ET (Electric thread trimmer), P3D (Pneumatic thread trimmer), C (Back tacking)

Specifications

Number of Needles: 2 (Double)
Feeding Mechanism: Differential
Workspace: Standard Workspace
Standard or Full Function: Standard Functions
Speed, Max (S.P.M.): 6500
Max Stitch Length: 0.7 - 3.8 mm
Presser Foot Lift: 6 mm
Needle Used: DC x 27 size 11
Overedging Stitch Width: 4 mm
Standard Distance Between Needles: 2 mm
Differential Ratio: 1:0.7 ~ 1.7
Weight: 150 lbs
Number of Threads: 4
