SKU: 695HEX

Overview

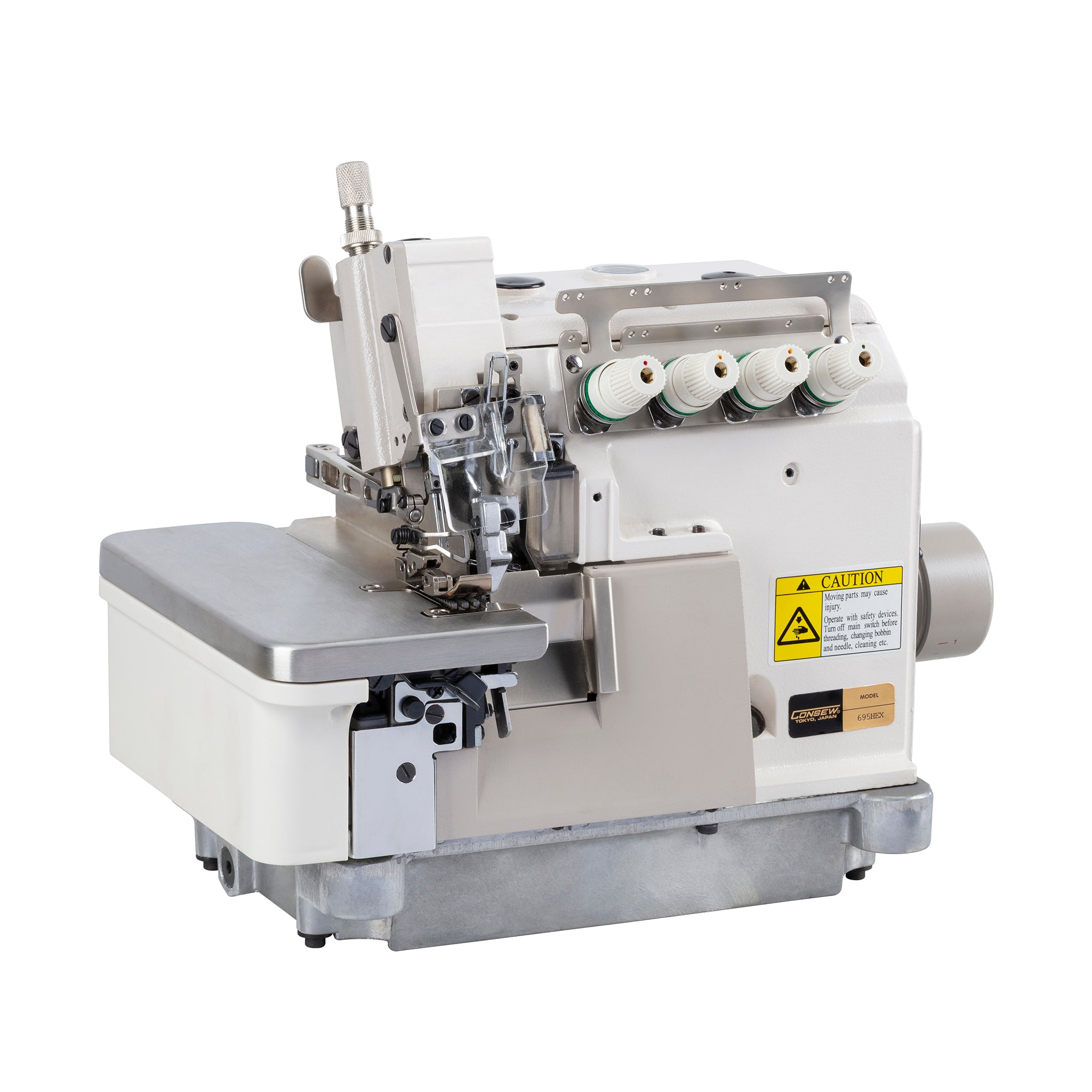

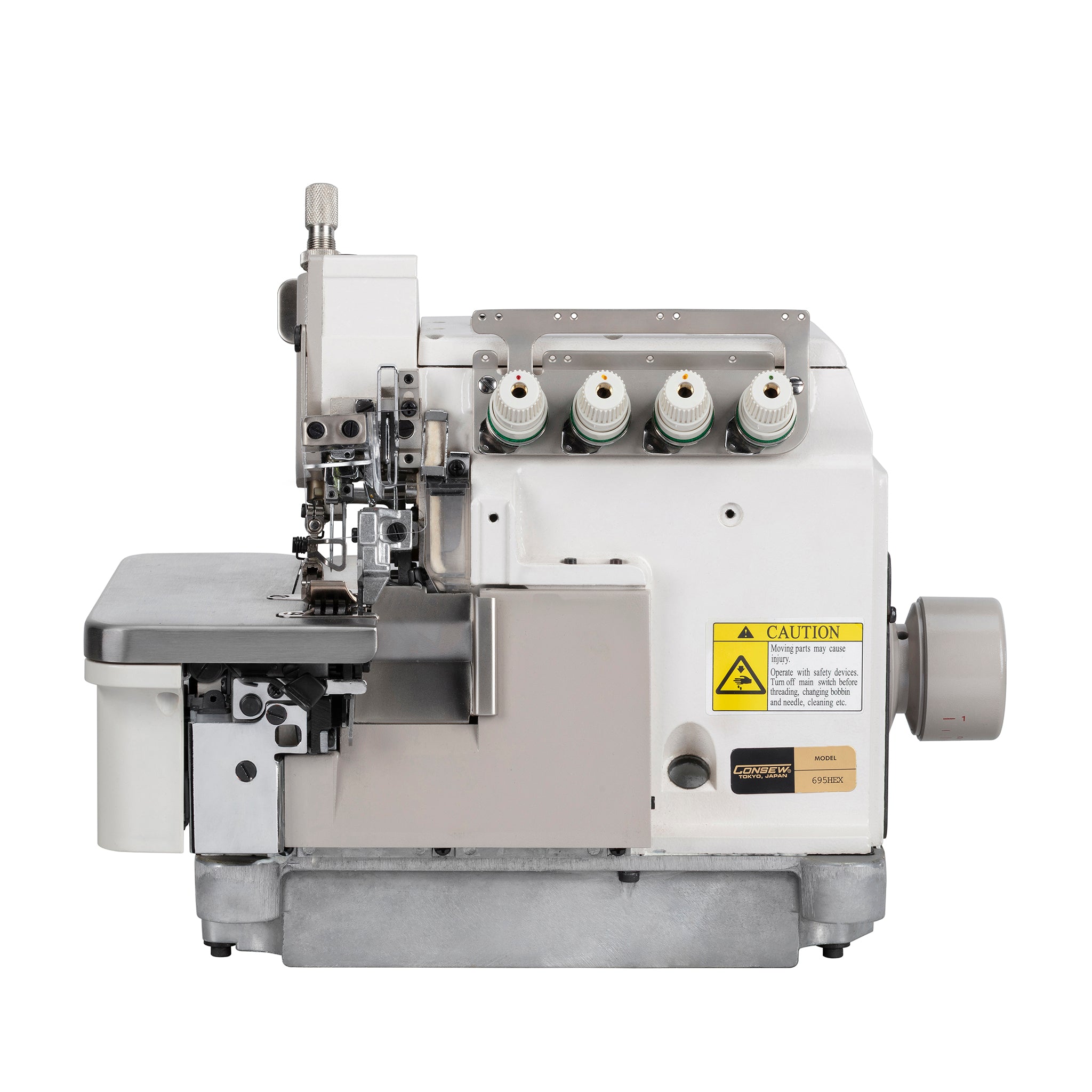

High speed overlock machine with tractor foot; extra high lift for heavy weight materials
2 needles, 4/5 threads

With: Fully Automatic Lubrication, Differential Feed With Micrometric Adjustment, Pushbutton Stitch Regulator

Product Resources

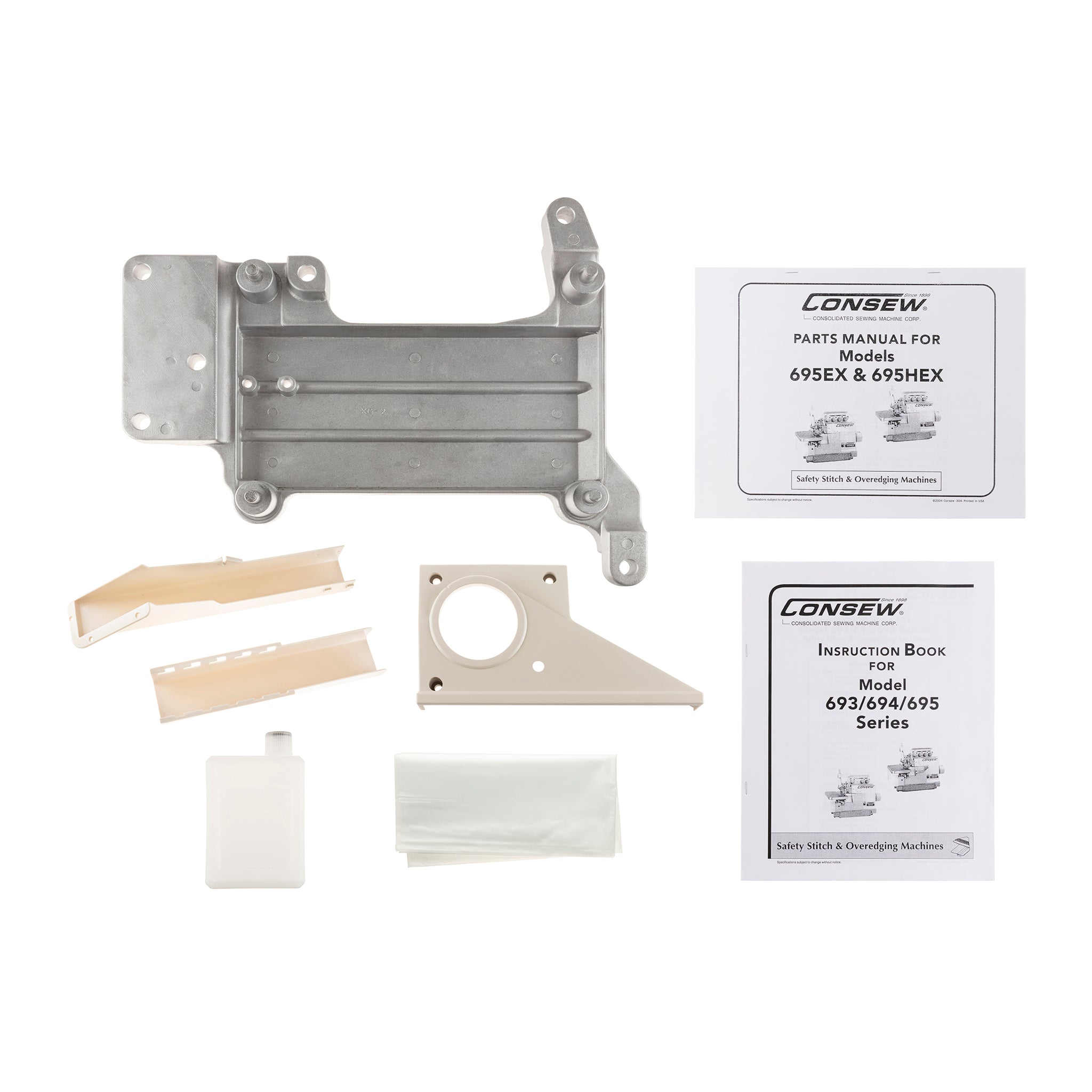

Download Manual Download Parts Book Download Catalog Page

Applications

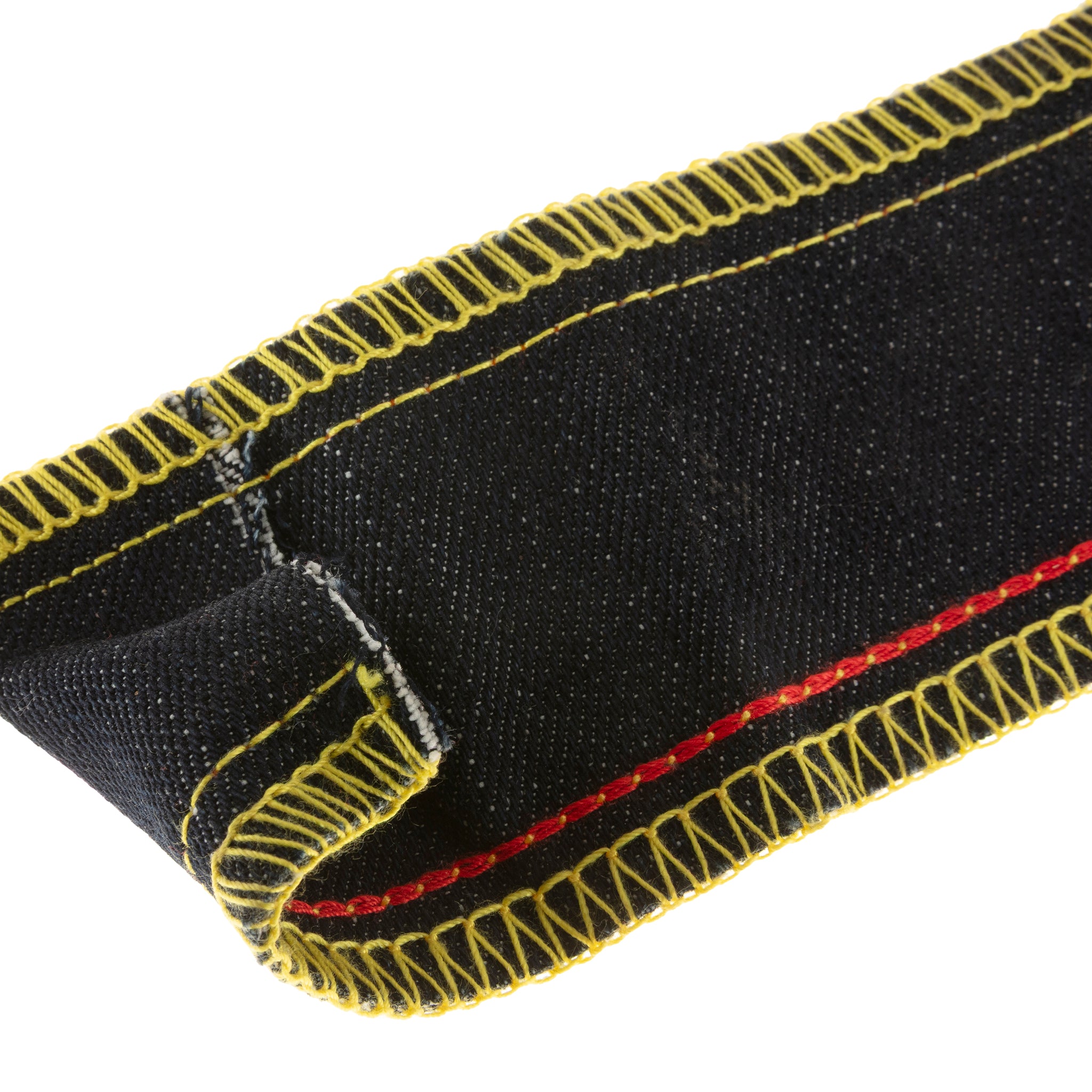

True safety stitch suitable for sewing products such as vinyl, 12-ply, 14 oz. denim jeans, mats, carpets, auto trim, upholstery, canvas, tents, etc.

Features

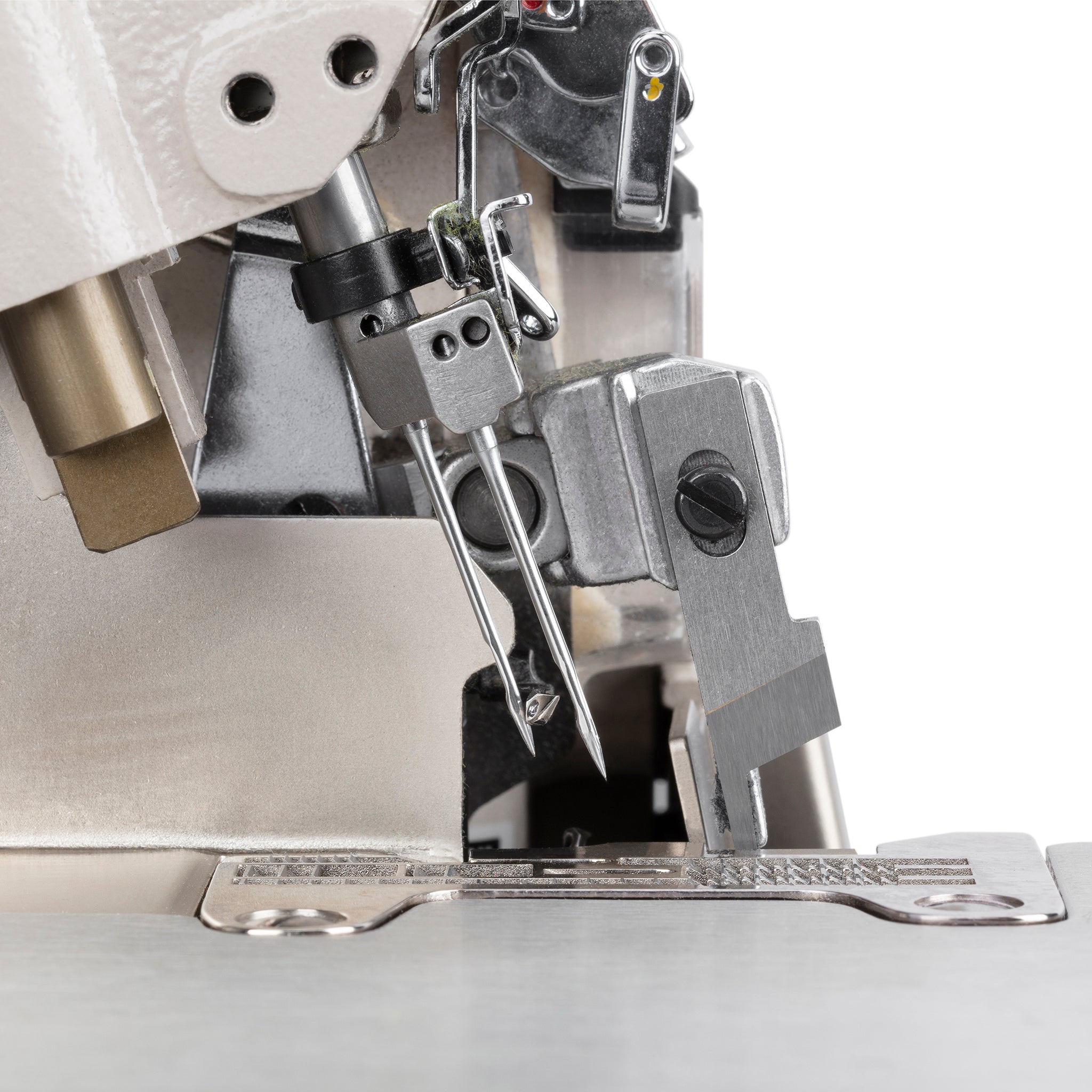

Uses an extra high-throw upper looper, tractor foot, and feed dog for sewing extra heavy-weight materials
Speed, Max. up to 6000 s.p.m. (speed depends on materials, threads, and operation)
Fully automatic lubrication with visual flow controls
Lubricating oil continuously filtered by replaceable filter
External cooling of oil supply
Differential feed with micrometric adjustment for shirring and stretching

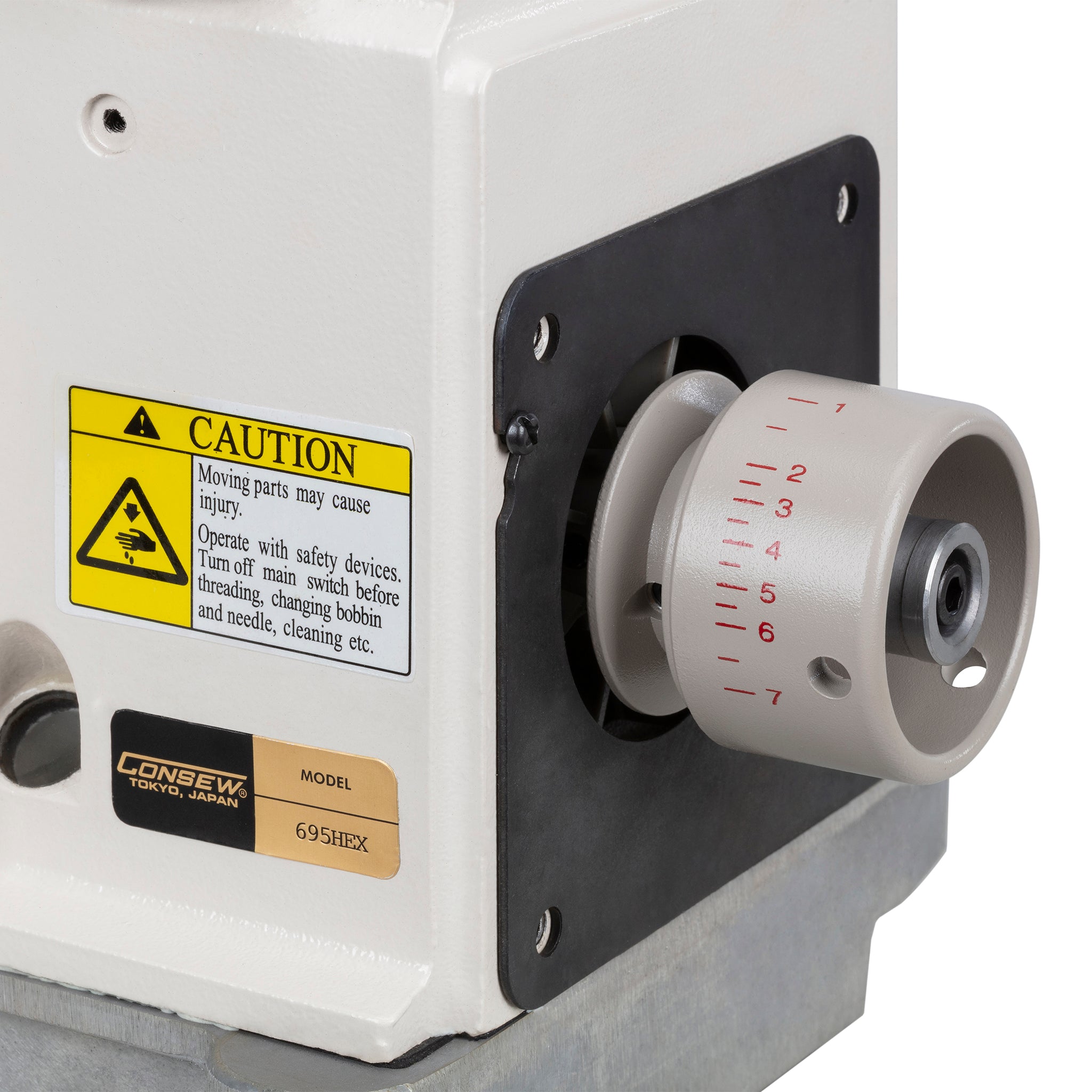

Push-button stitch regulator
Intermittent action possible
Standard type 142X 5 needles

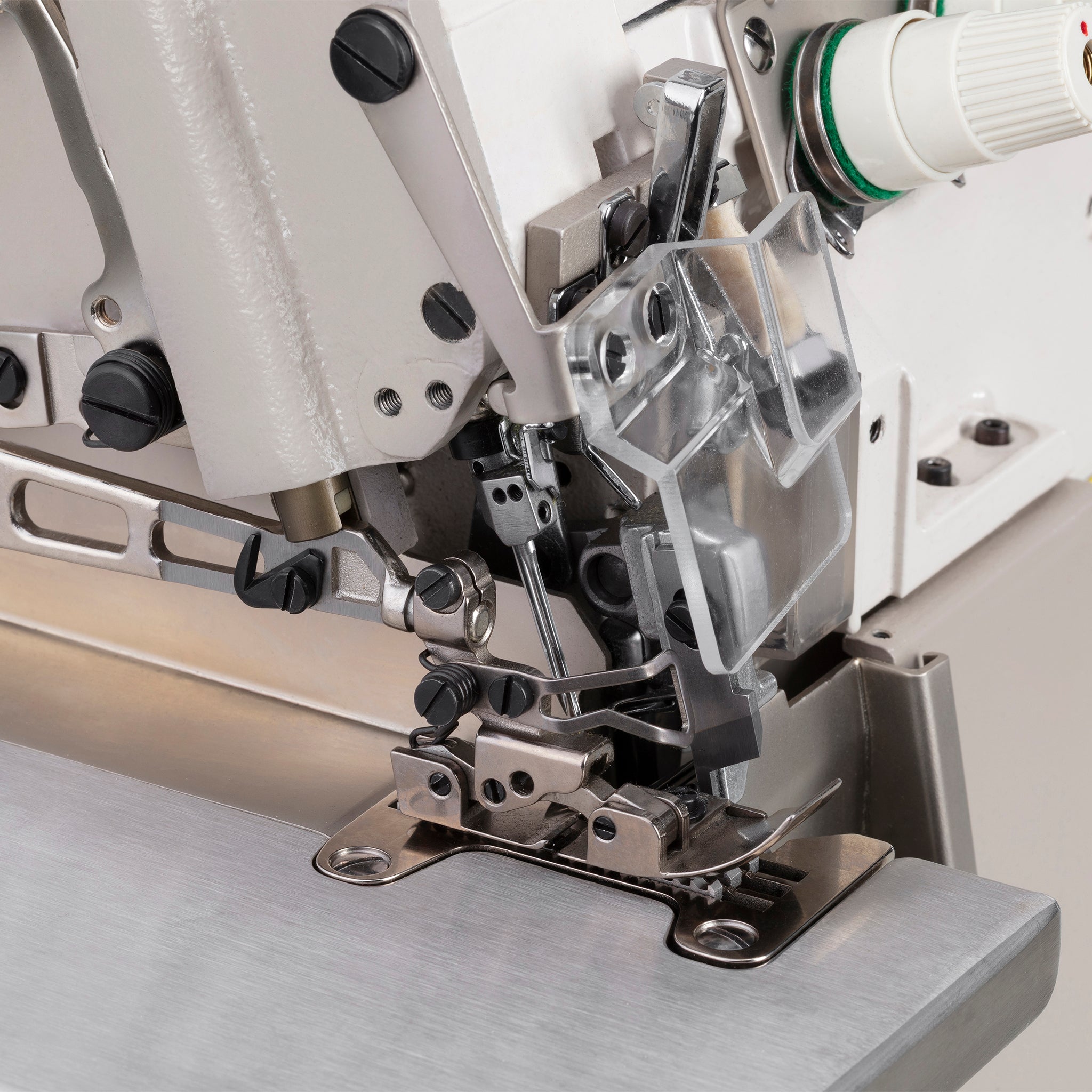

Tractor presser foot for sewing over seams
Extra high presser foot lift
Extra long stroke of upper looper
Large, aggressive feed dogs

Specifications

Number of Needles: 2 (Double)
Feeding Mechanism: Differential
Workspace: Standard Workspace
Standard or Full Function: Standard Functions
Speed, Max (S.P.M.): 6,000
Max Stitch Length: 5 mm
Presser Foot Lift: 7.0 mm
Two Needle Needle Distances: 5 mm standard
Width of Overedging: 5 - 7 mm
Number of Threads: 2, 3, 4, 5
