Consew CM793-7DD

Name: Consew CM793-7DD
Brand: My Store
SKU: CM793-7DD
Availability: InStock

SKU: CM793-7DD

Overview

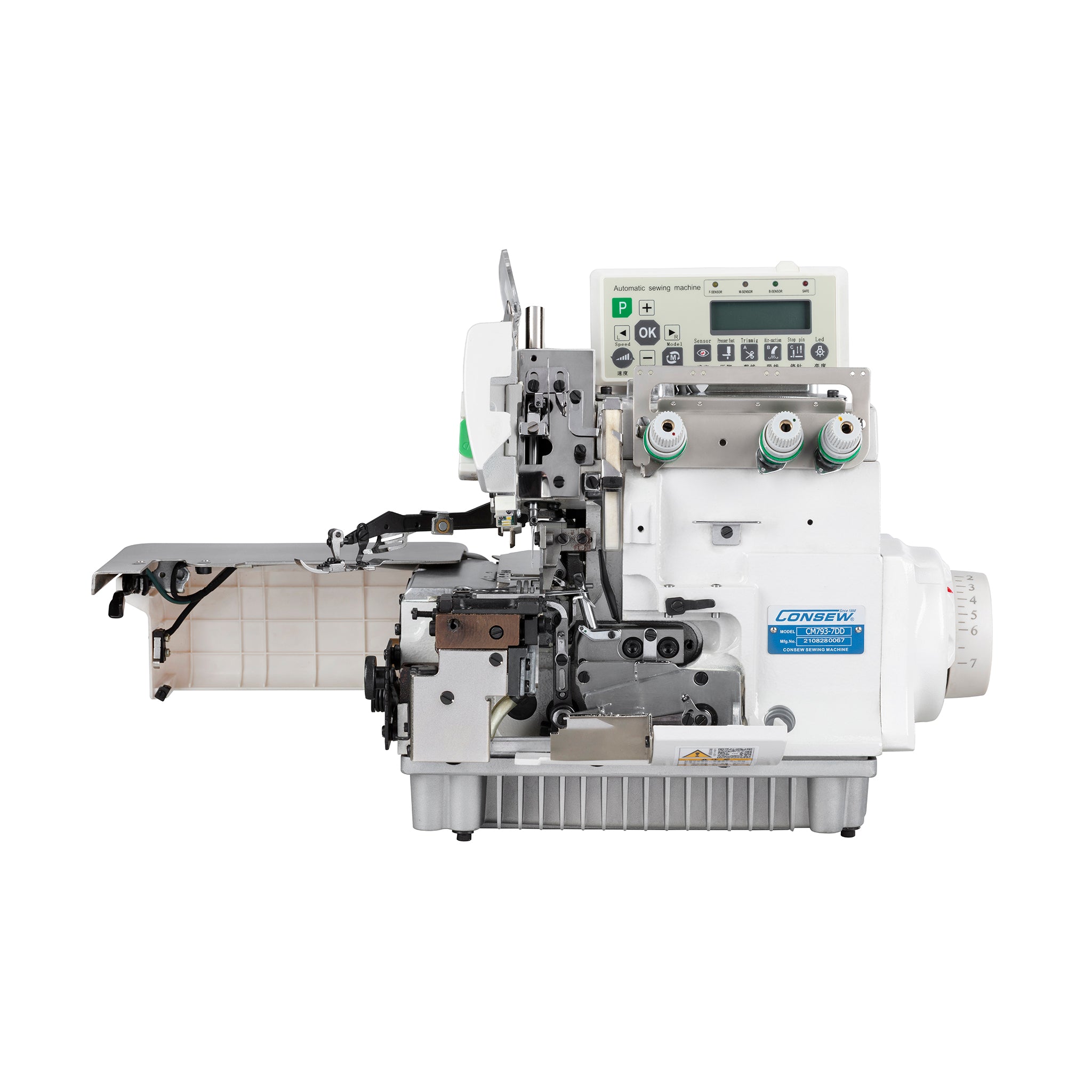

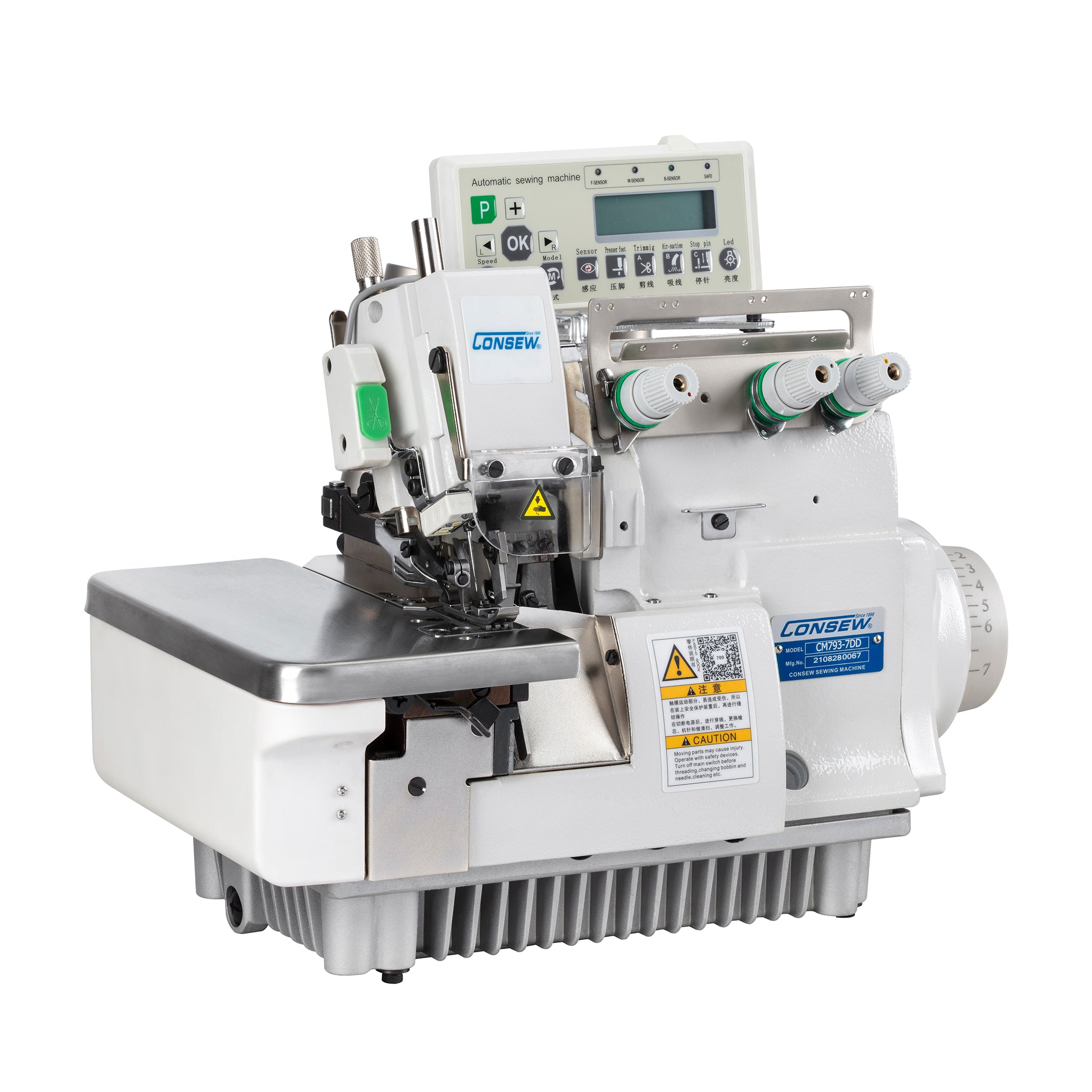

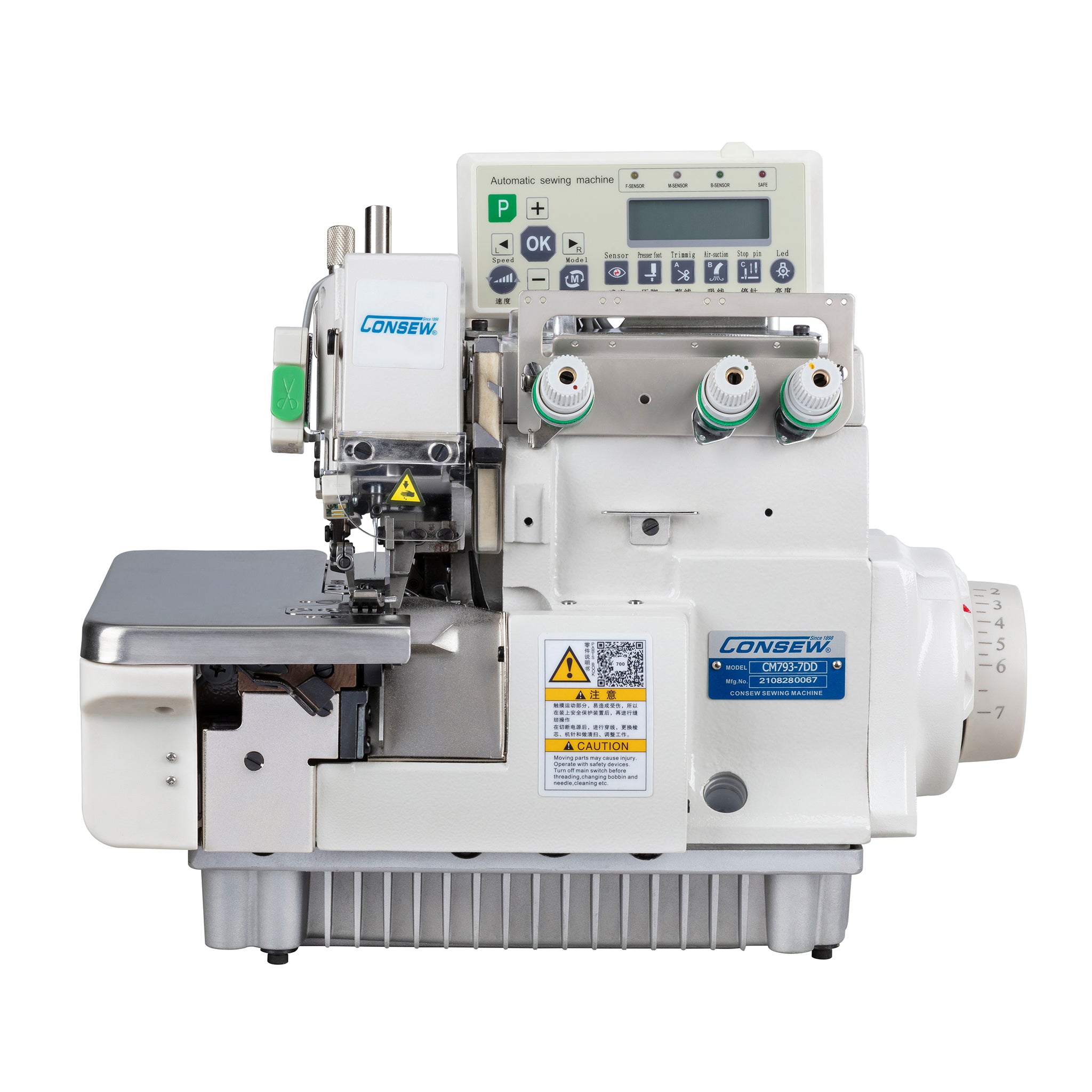

Single Needle, 3 Thread, High Speed Overlock Machine with Direct Drive motor.
Automatic functions with digital operating panel.

For overlock sewing of a variety of materials (knits, wovens, vinyls)
With: Fully Automatic Lubrication, Adjustable Differential Feed, Stitch Regulator, Fabric Edge Trimmer, Swing-arm Guide

(Also available: CM793-DD without Auto Functions)

Product Resources

Download Manual Download Parts Book Download Catalog Page

Applications

Overlock sewing of a variety of materials (knits, wovens, vinyls)
General overedging such as hemming sleeves on men's knit underwear
Closing shoulders for T-shirts
Overedging net lining for tricot slips
Closing skirt panels
Attaching bodice and yoke for tricot slips

Features

AUTOMATIC FUNCTIONS with DIGITAL OPERATING PANEL
Speed, Max. up to 5500 s.p.m.

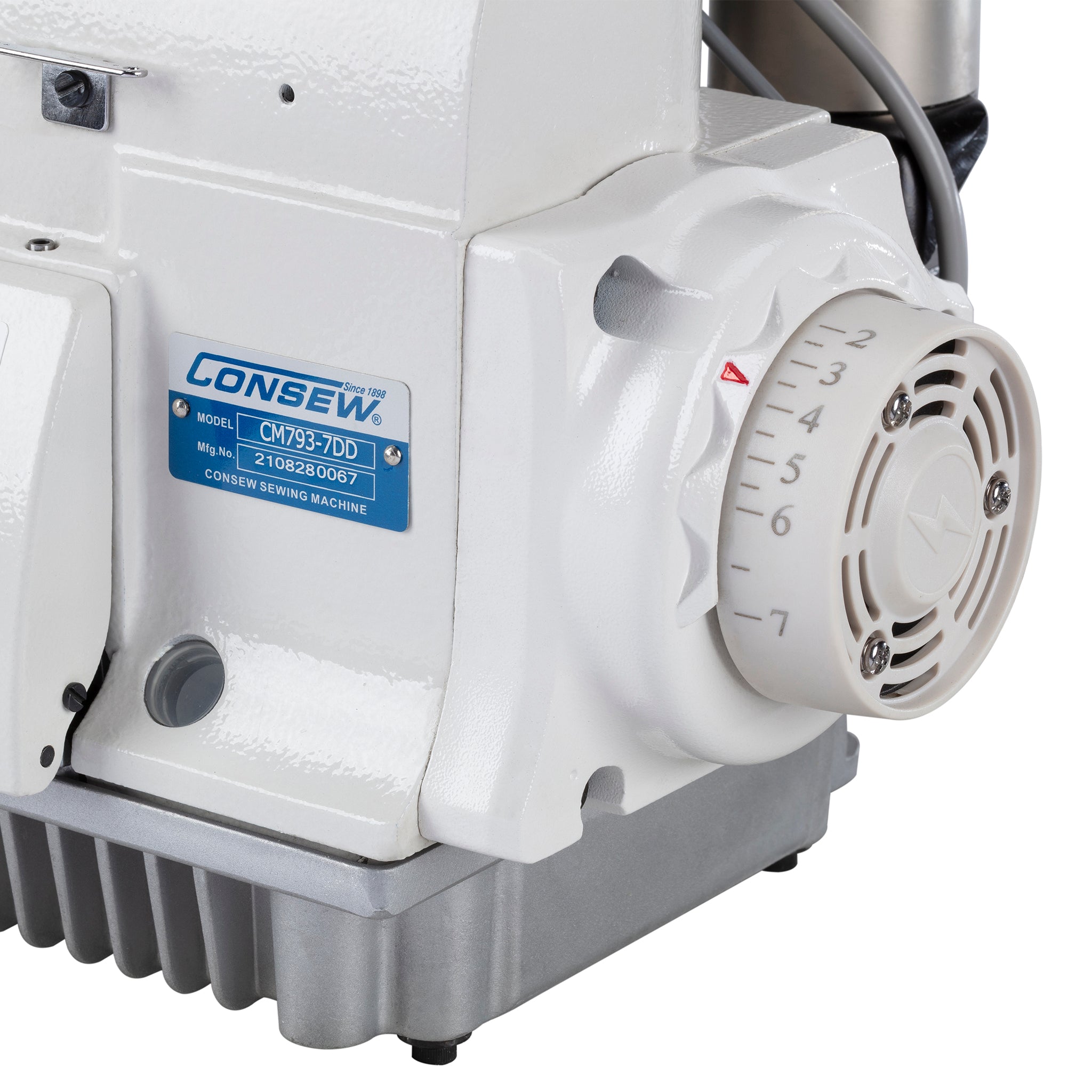

Direct Drive: Motor inside machine - No drive belt
Controller module fits underneath table, connects to direct drive motor and treadle
110 VAC plug
Thread trimming device
Electronic foot lift
Auto trimming
Needle position
Fully automatic lubrication with visual flow indicator
Lubricating oil continuously filtered by replaceable filter
External cooling of oil supply
Fabric edge trimmer
Adjustable Differential feed
Stitch regulator
Standard type DC-27 needles
Reduced noise and vibration when operating at high speeds
Swing-arm guide
