Consew CM795-7DD

Name: Consew CM795-7DD
Brand: My Store
SKU: CM795-7-DD
Availability: InStock

SKU: CM795-7-DD

Overview

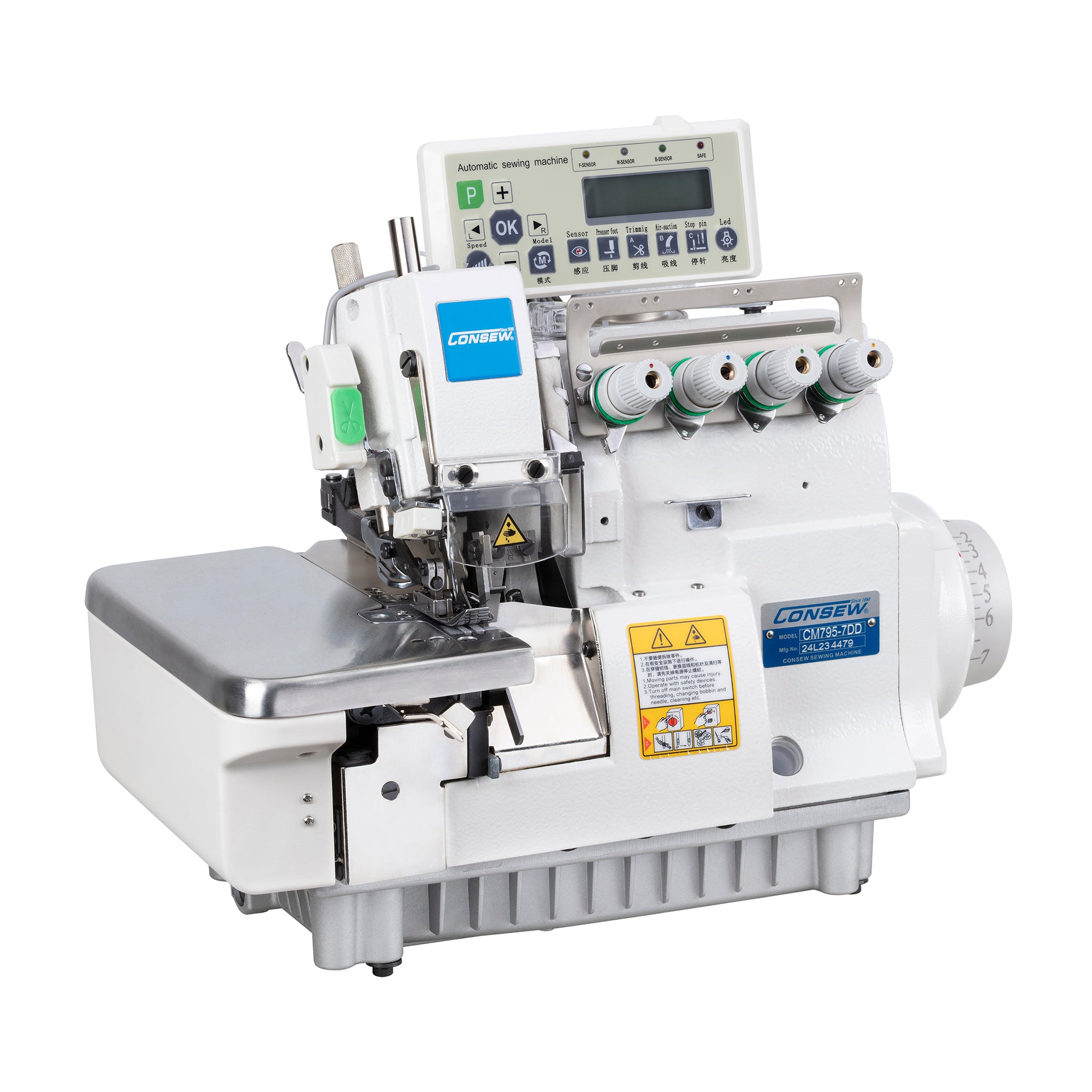

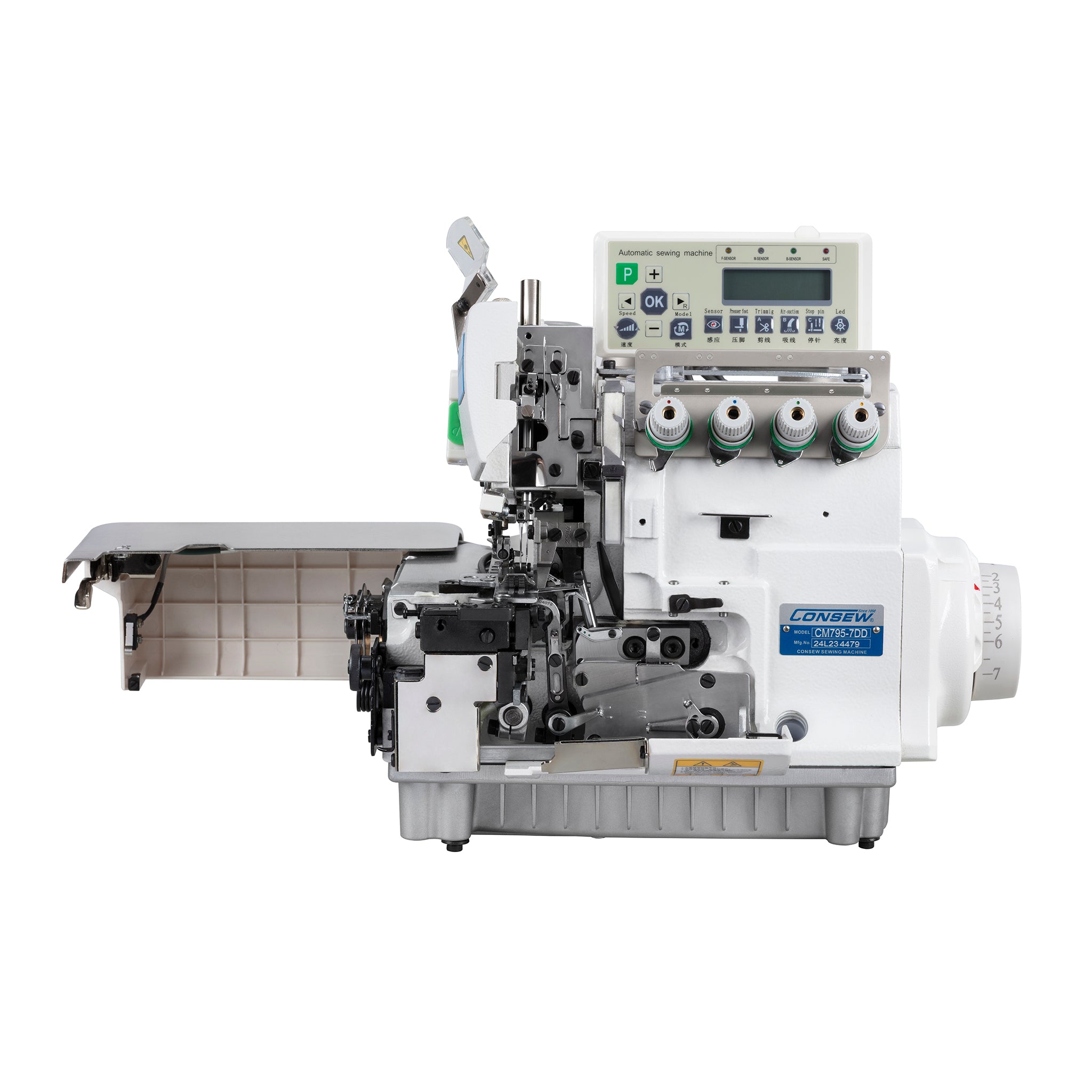

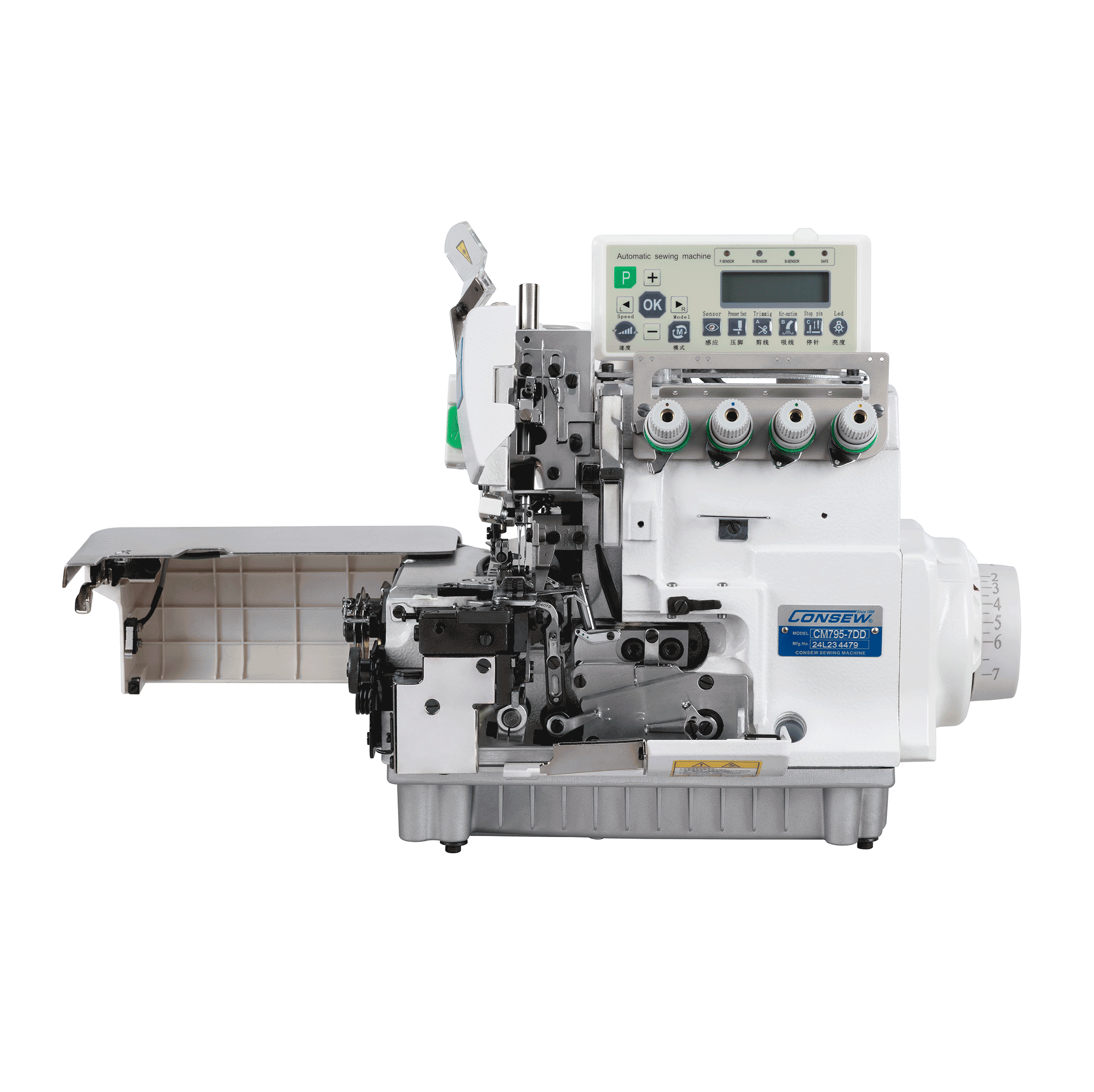

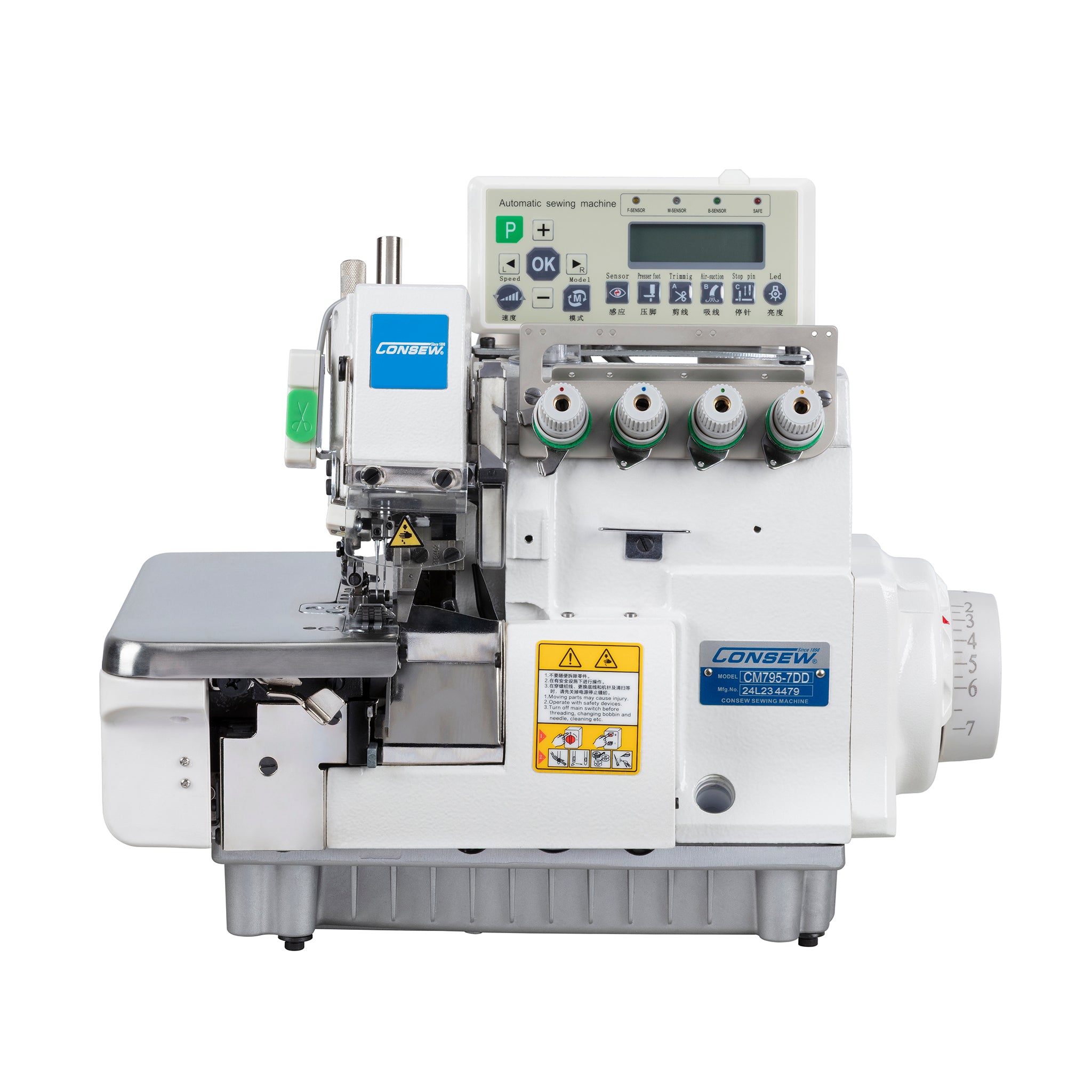

Two Needle, 5 Thread, High Speed Overlock Machine with Direct Drive motor.
Automatic functions with digital operating panel.
For overlock sewing of a variety of materials (knits, wovens, vinyls)

With: Fully Automatic Lubrication, Adjustable Differential Feed, Stitch Regulator, Fabric Edge Trimmer, Swing-arm Guide

(Also available: CM795-DD without Auto Functions)

Product Resources

Download Manual Download Parts Book Download Catalog Page

Applications

For overlock sewing of a variety of materials (knits, wovens, vinyls). True Safety Stitch - suitable for sewing products such as men's, ladies' and children's wear, especially coats for children and women.
Designed for general seaming on woven fabrics. Also suitable for edging vinyl, canvas and upholstery fabrics.
In additon, the CM795-7DD will do the stitches that the CM793-7DD can do.

Features

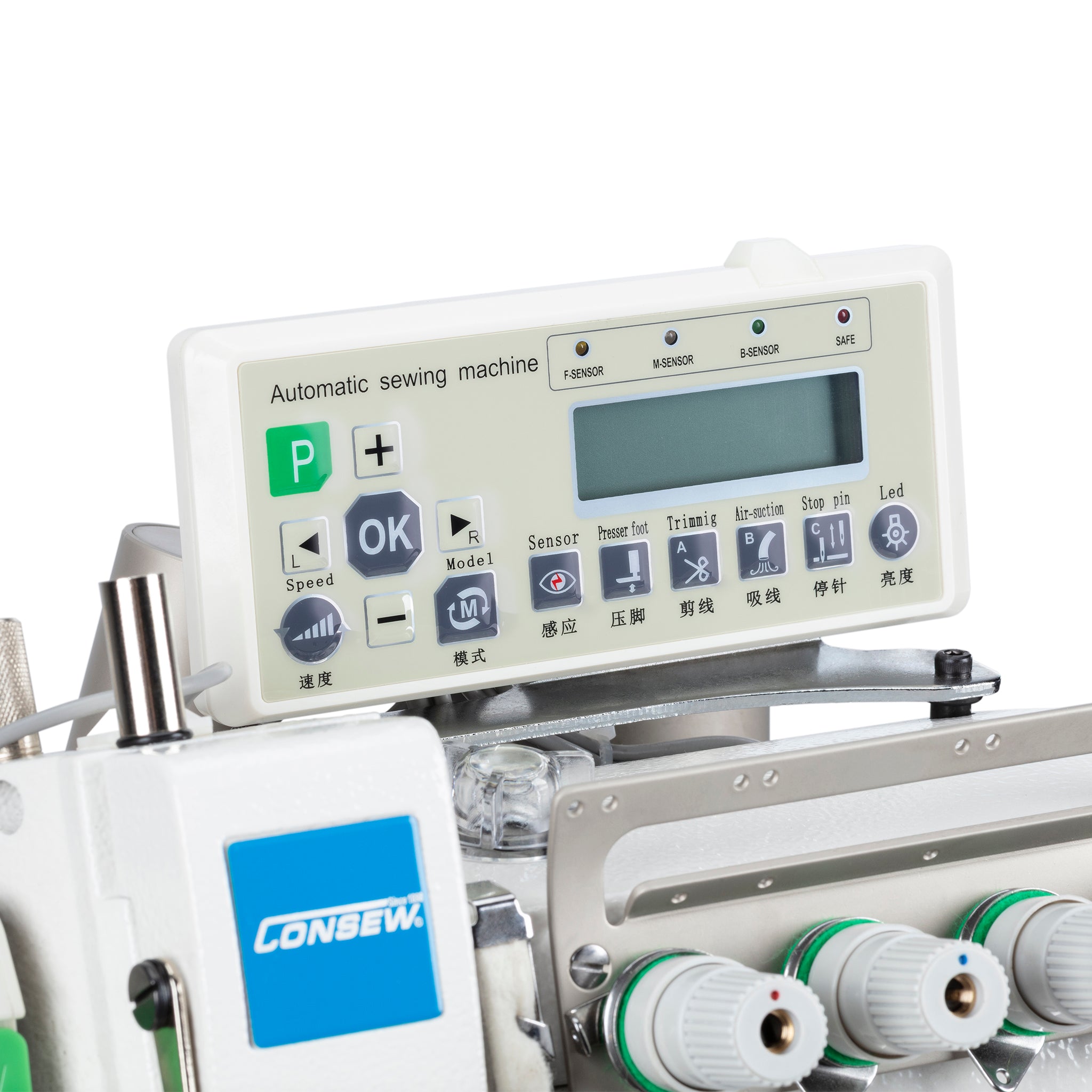

AUTOMATIC FUNCTIONS with DIGITAL OPERATING PANEL.
Speed, Max. up to 5500 s.p.m.
Direct Drive: Motor inside machine - No drive belt!

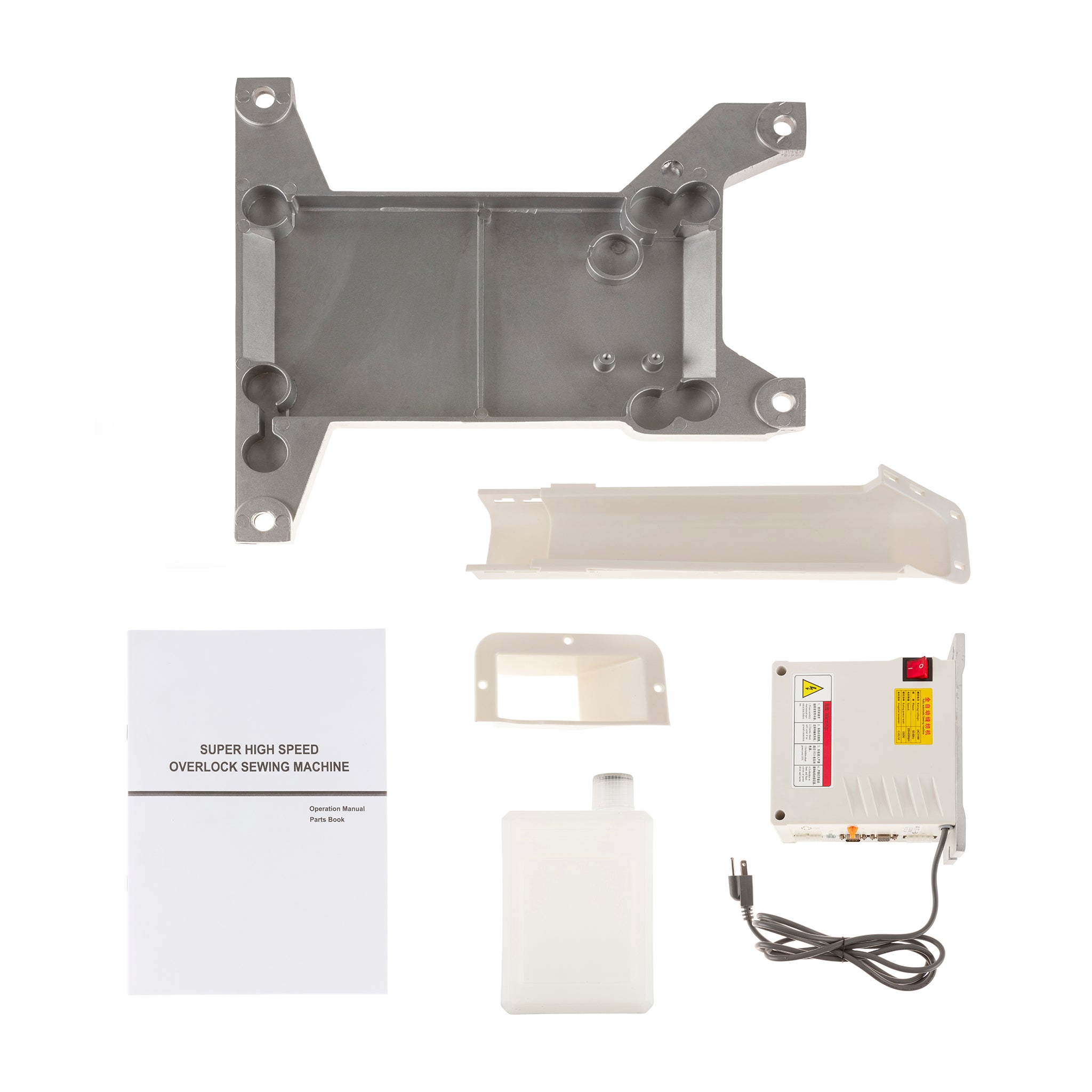

Controller module fits underneath table that connects to direct drive motor and has connection to treadle
110 vac plug

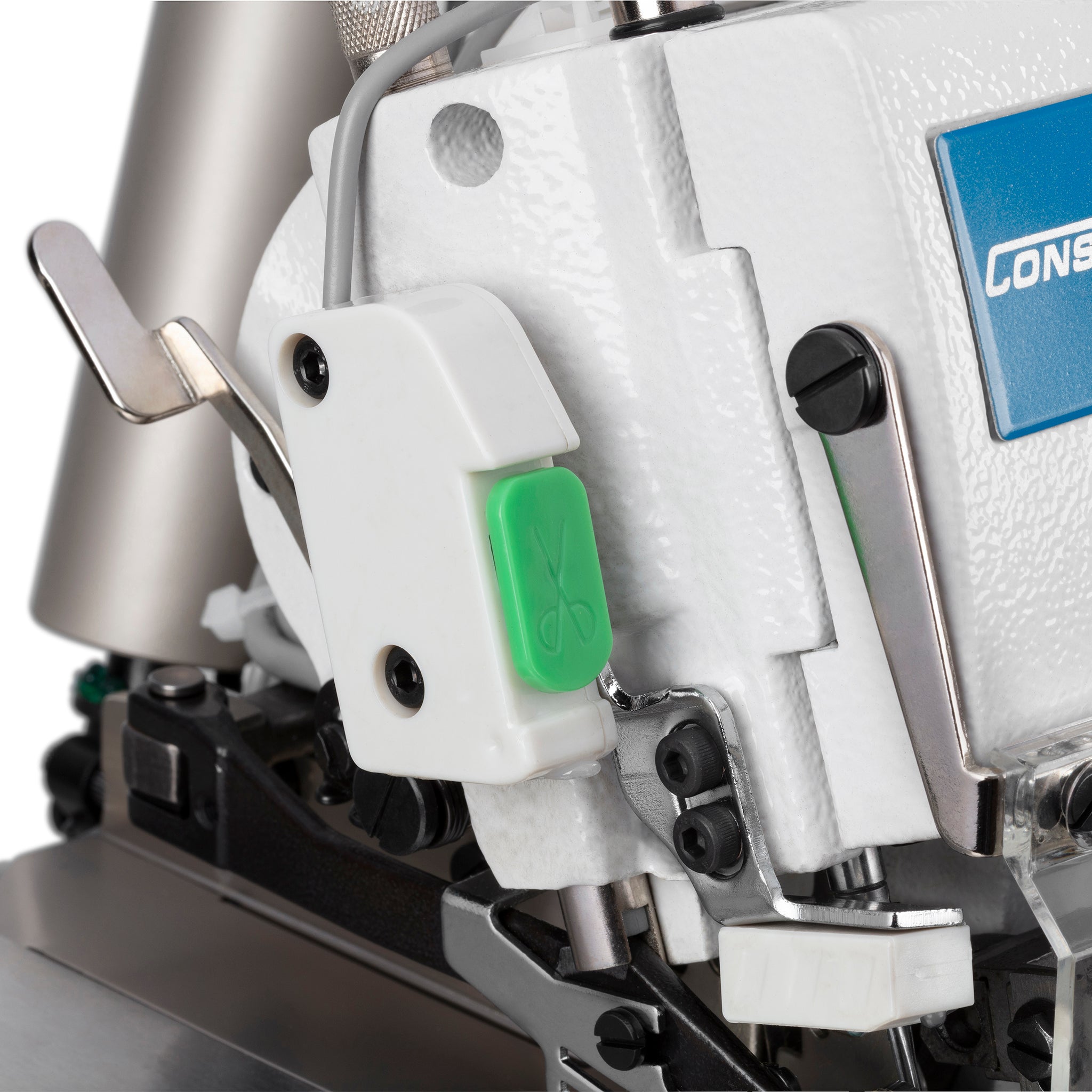

Thread trimming device
Electronic foot lift
Auto trimming
Needle position

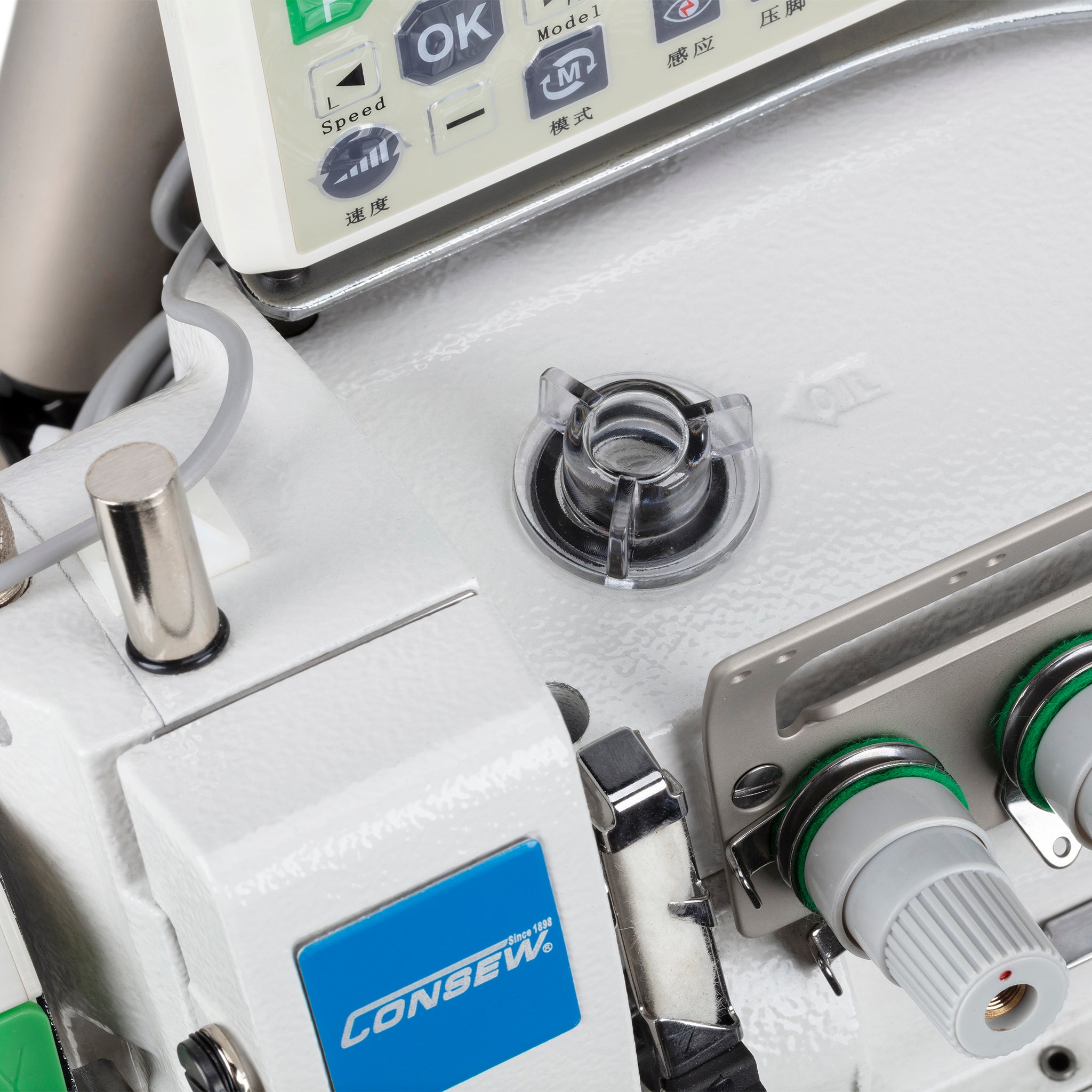

Fully automatic lubrication with visual flow indicator
Lubricating oil continuously filtered by replaceable filter
External cooling of oil supply
Fully automatic lubrication with visual flow controls
External cooling of oil supply

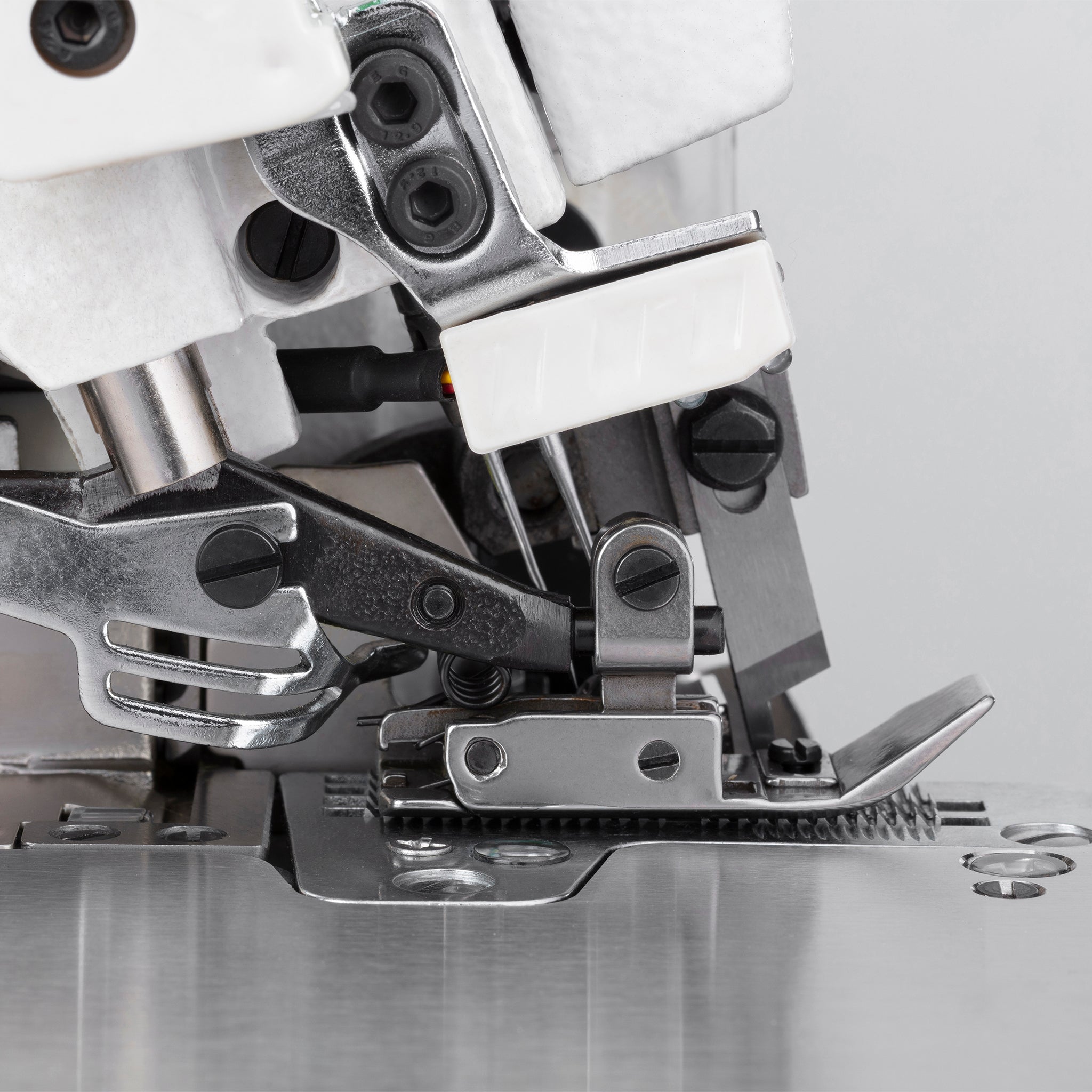

Fabric edge trimmer

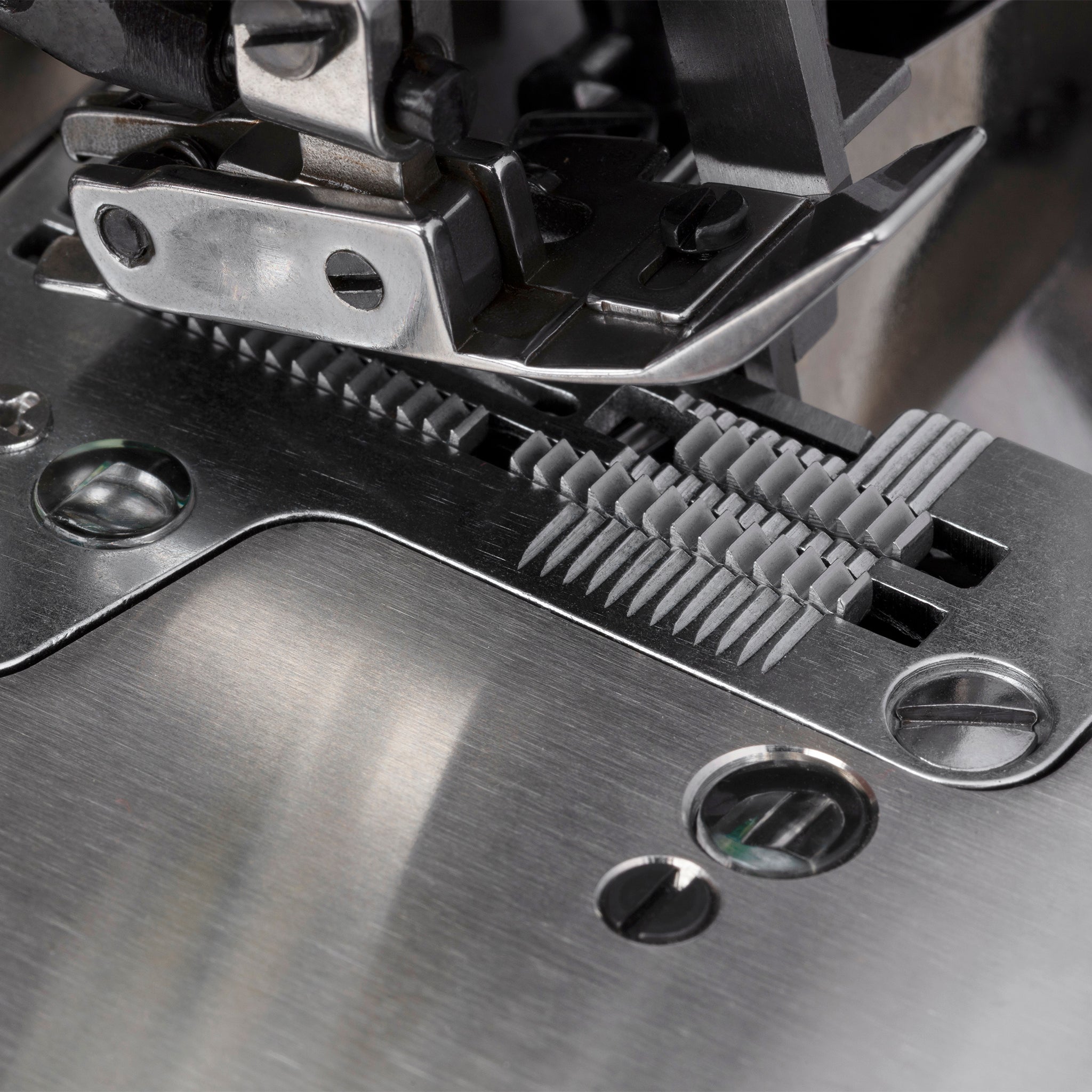

Adjustable Differential feed
Stitch regulator
Standard type DC-27 needles
Reduced noise and vibration when operating at high speeds
Swing-arm guide
