Consew 733R-6-36

Name: Consew 733R-6-36
Brand: My Store
SKU: 733R-6-36
Availability: InStock

SKU: 733R-6-36

Overview

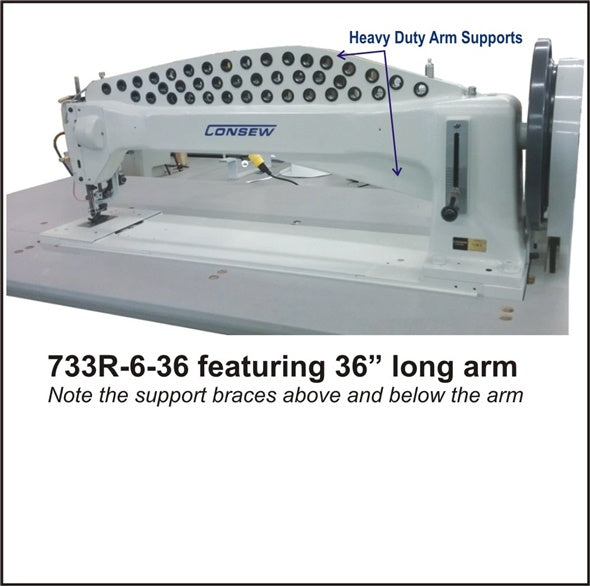

Model 733R-6-36 features a 36” long arm with extra supports for structural strength.

Extra Heavy Duty, Long Arm, Single Needle, Drop Feed, Alternating, Presser Feet, Lockstitch Machine.

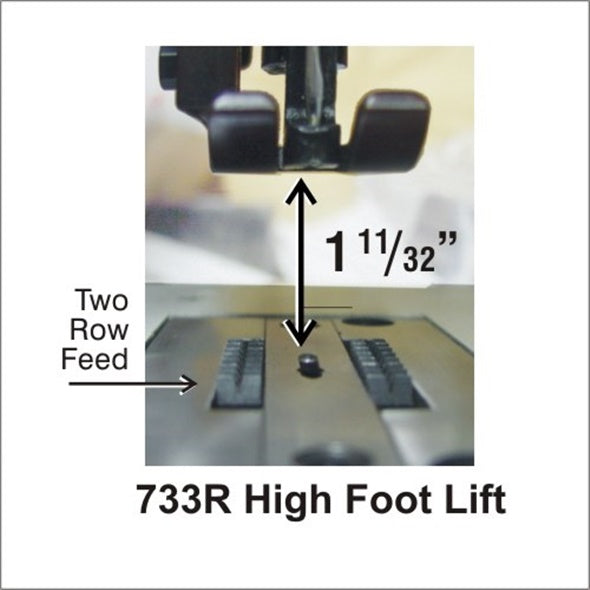

With: Extra Large, Long Beak, Oscillating Shuttle Hook and Bobbin, Extra High Foot Lift - (1-11/32” - 34 mm), Two Row Feeder, Reverse Feed

Also Available:
Model 733R-6

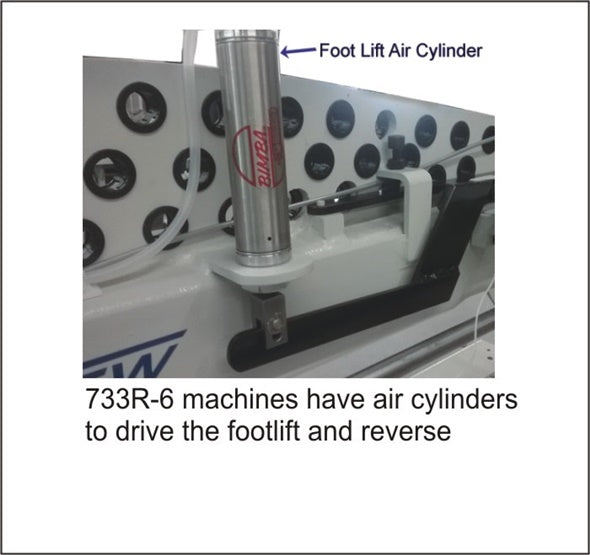

Model 733R-6AL(N) with air powered reverse and presser footlift

Applications

Stitching extra heavy-weight materials, can sew up to size Tex 556 cord (thread)
Designed for operations and products such as extra heavy duty harnesses and slings (can sew up to 18,000 lb strength webbing), safety and logging belts, cargo slings, tents, sails, tarpaulins and covers, fabric structures, construction barriers, parachutes, balloons, industrial bags, boot stitching, book binding

Features

733R-6-36 has extra supports for structural strength
Synchronized upper and lower feeding mechanism for uniform stitching
Alternating presser feet
Steel insert for take-up hinge
Reverse stitching - hand or foot operated
Stitch regulator - hand or foot operated
Presser foot lift - hand or foot operated
1-11/32 inch presser foot lift (can sew up to 6 plies of webbing)
Two-row feeder
Two stitches to the inch
Stitches per minute: 550
Extra large vertical and horizontal workspace, oscillating shuttle, hook, and bobbin
Belt guard
Designed to sew Cordura and Dyneema material, up to 18,000 lb strength webbing, and can use up to size Tex 556 cord (thread)

Improvements (733R-6 and 733R-6-36)

1-3/8” (35mm) needle clearance
More leverage on presser foot lifter for easier lifting
Comes with bobbin spindle adapter already installed for pre-wound bobbins
Modifications/improvements to needle plate, center foot, needle bar clamp, shuttle driver, stitch regulator limiting pins, and other modifications aimed at smoother running with heavier threads and materials
