SKU: 733R-5

Overview

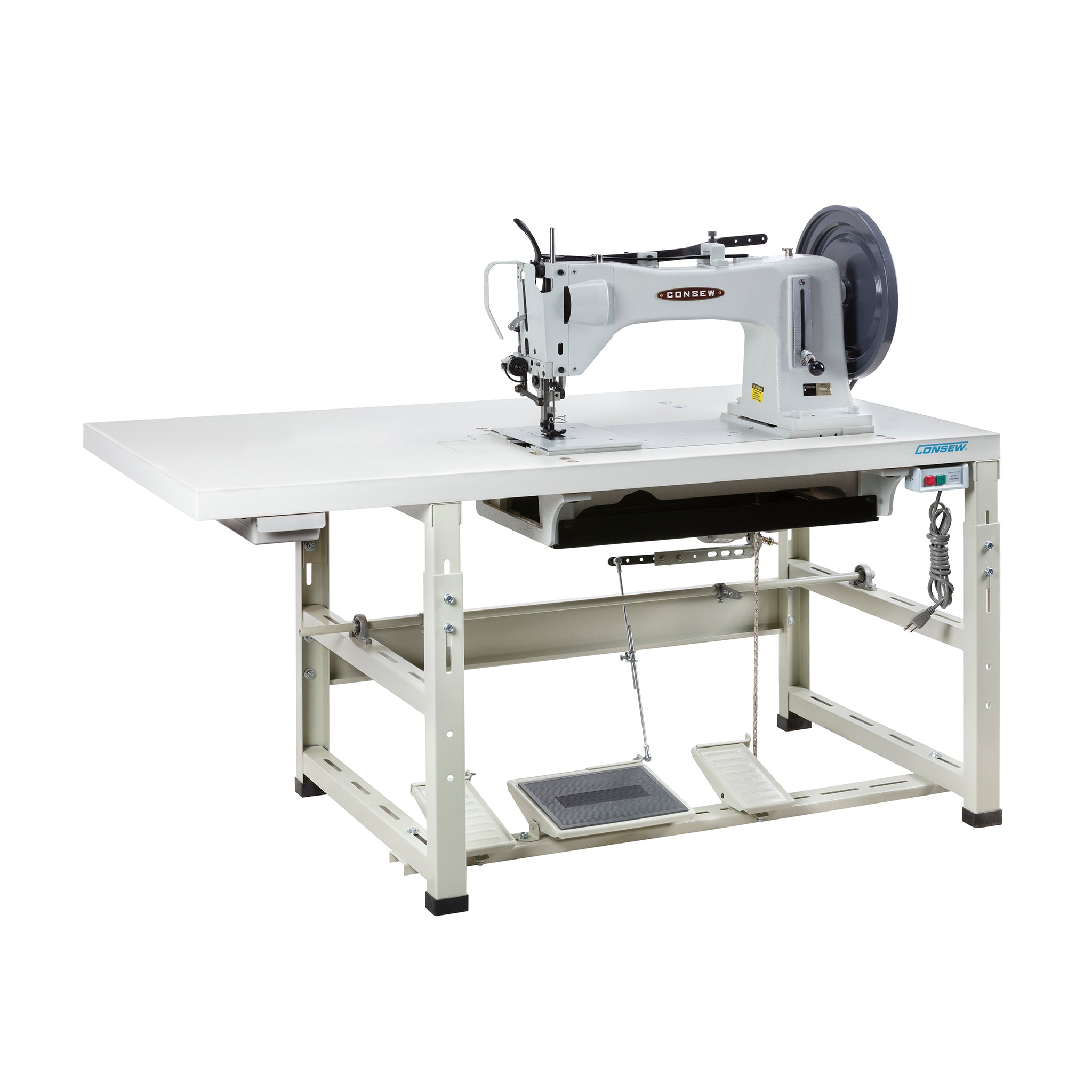

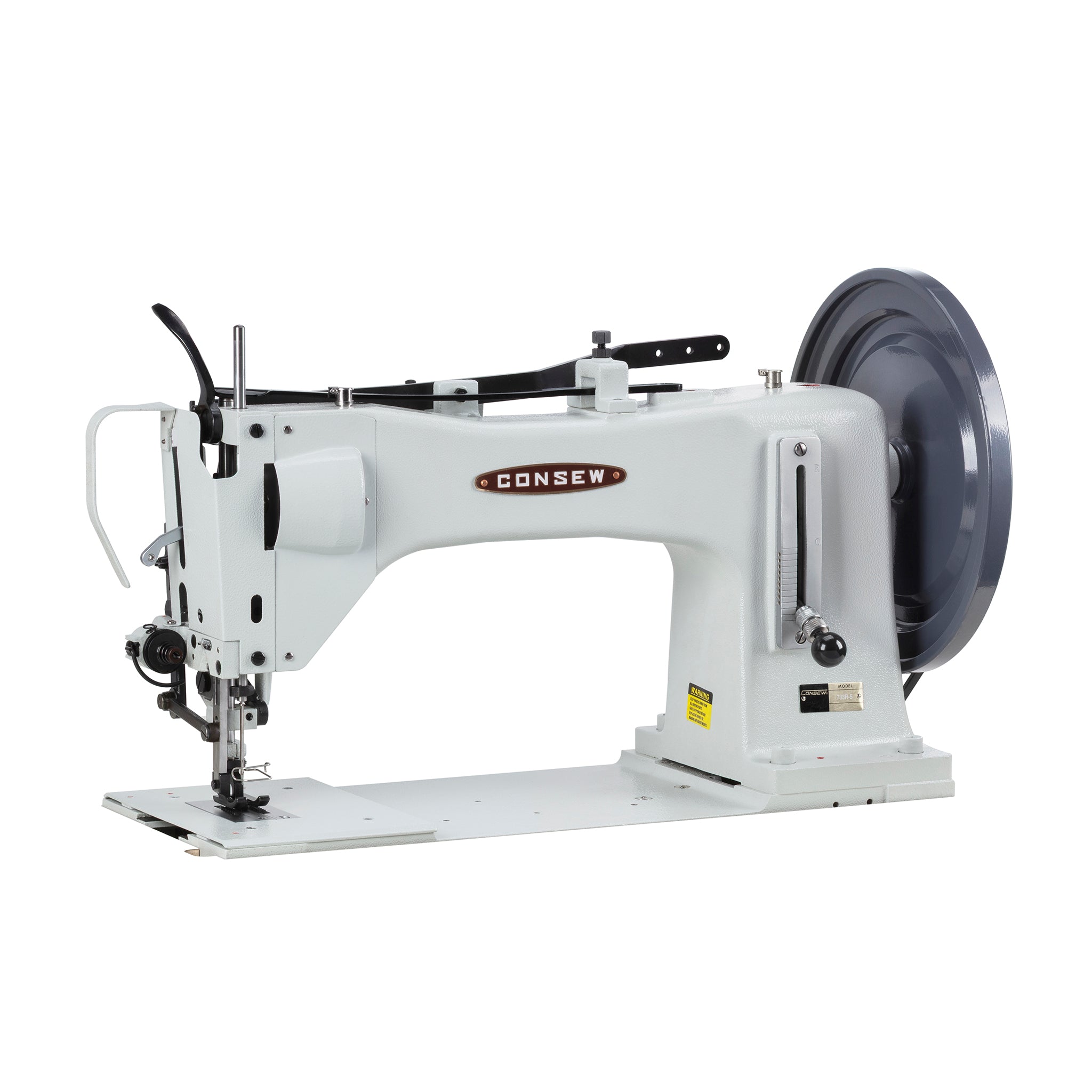

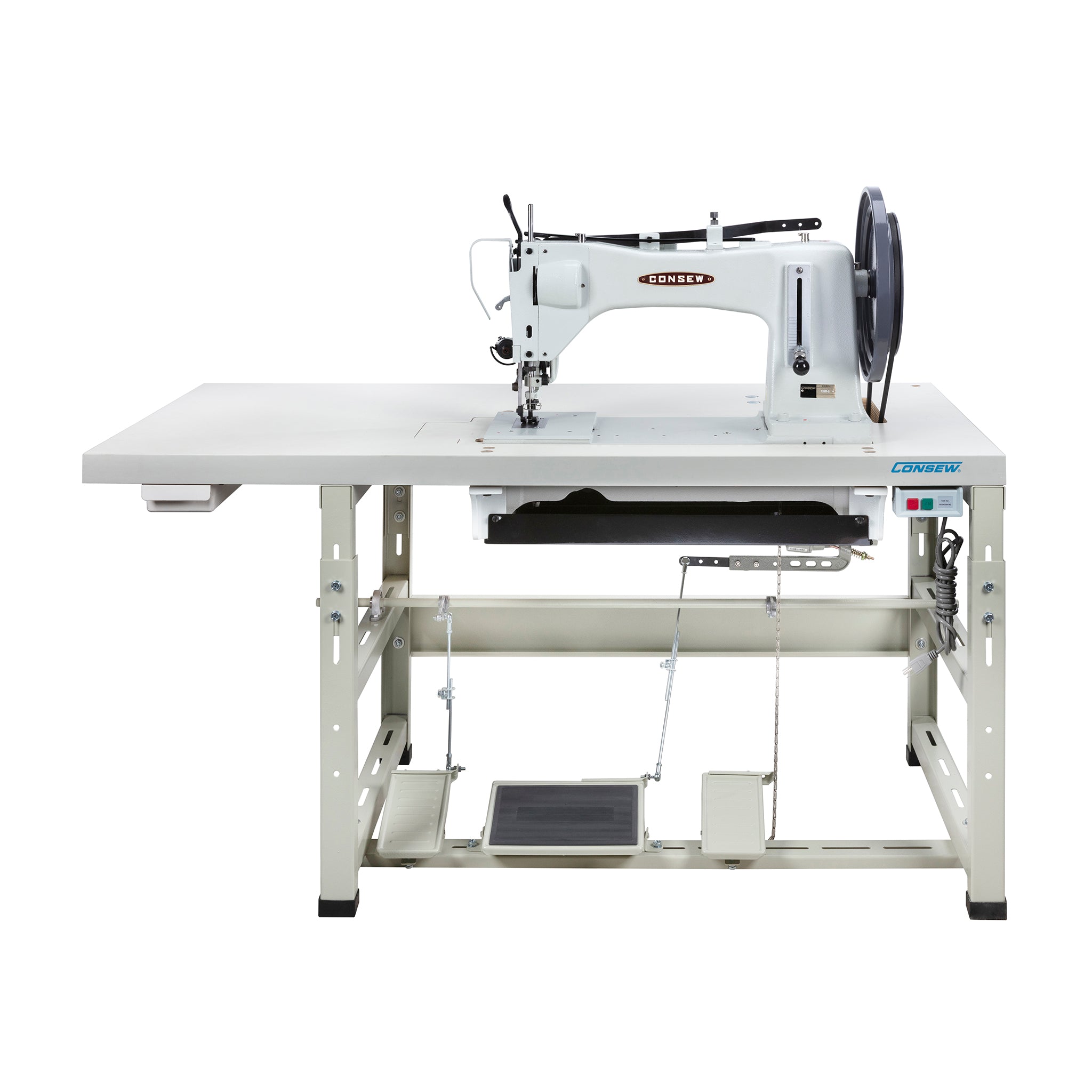

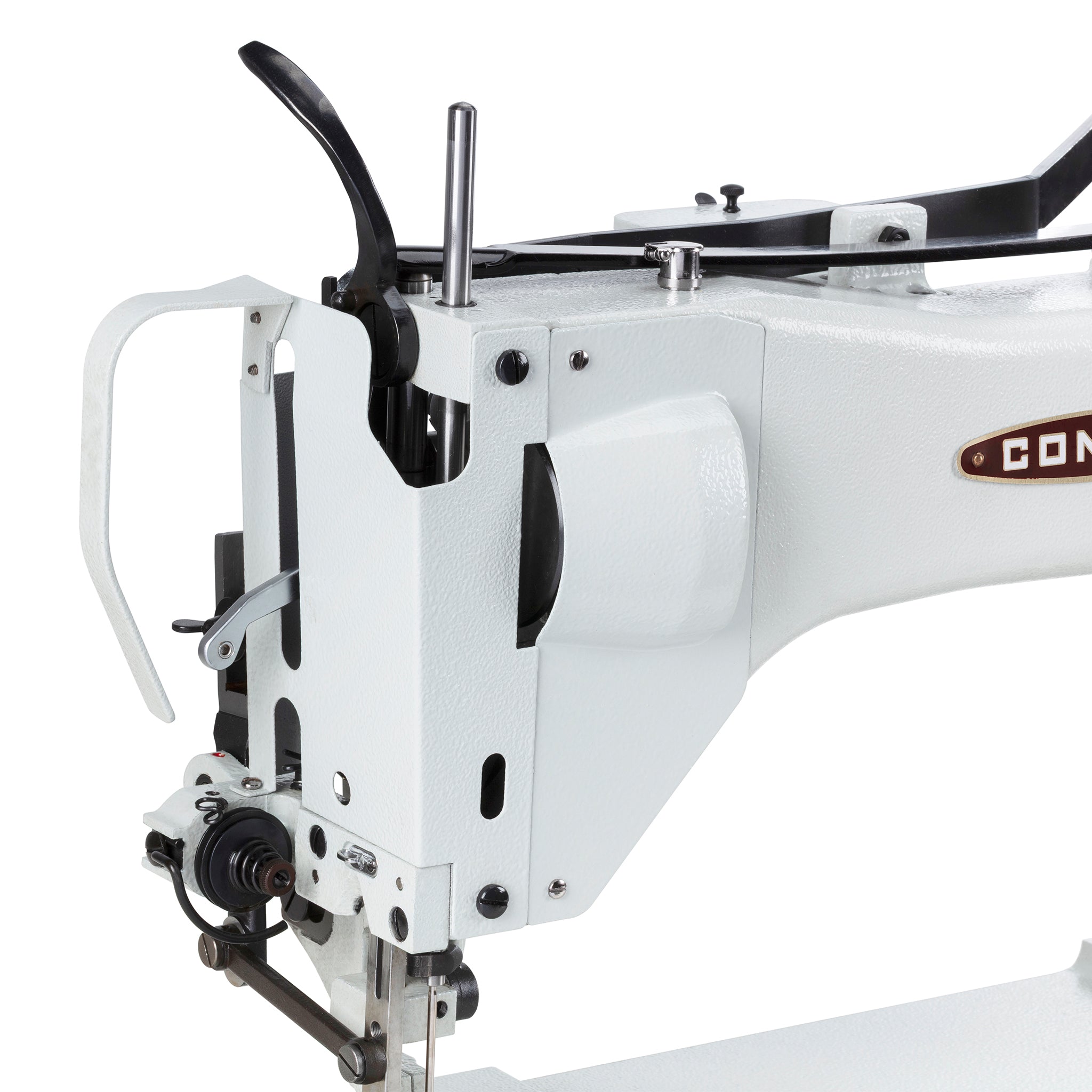

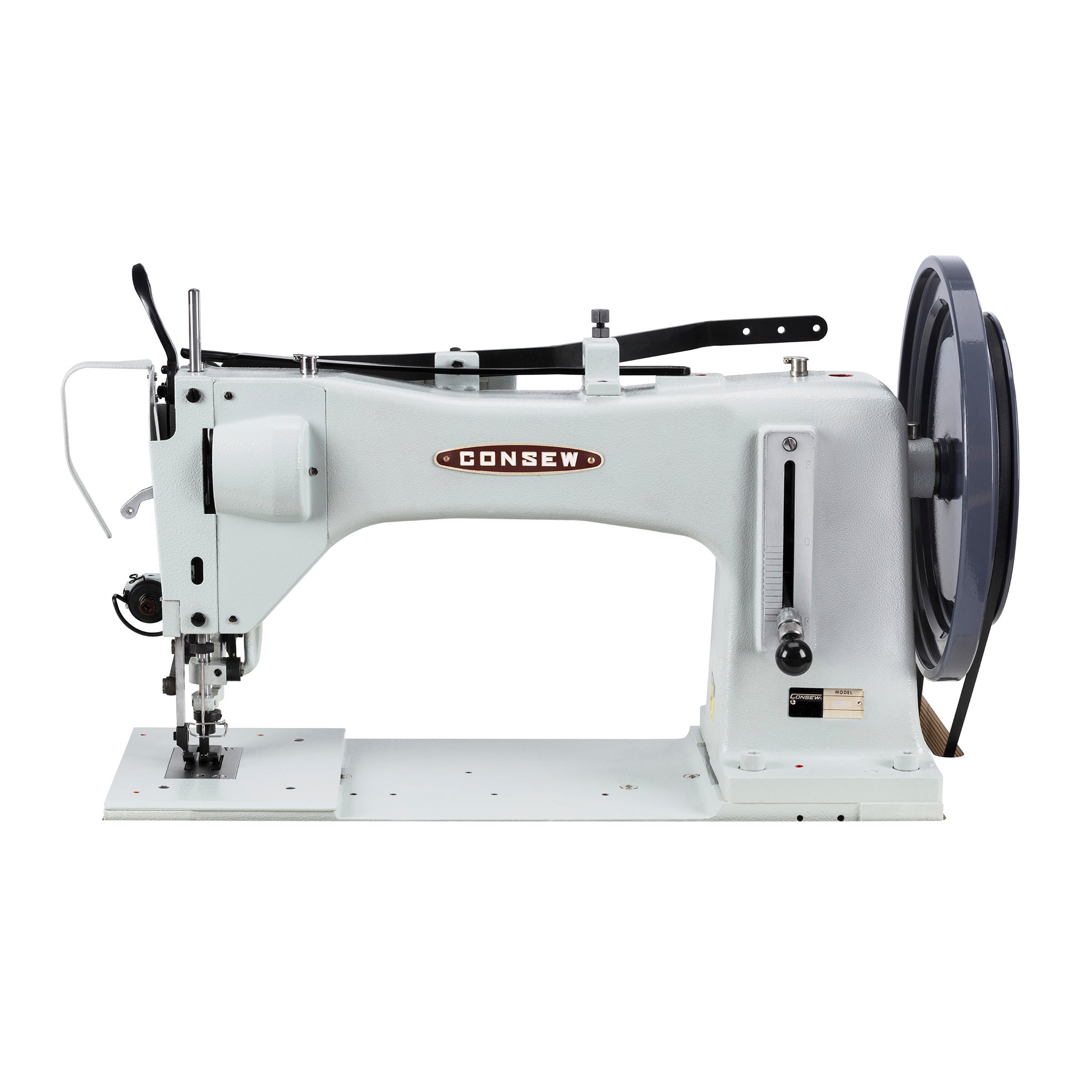

Extra Heavy Duty, Long Arm, Single Needle, Drop Feed, Alternating, Presser Feet, Lockstitch Machine.

With: Extra Large, Long Beak, Oscillating Shuttle Hook and Bobbin, Extra High Foot Lift - (1-1/4" / 32mm), Two Row Feeder, Reverse Feed

Also available: The new 733RB-6

Product Resources

Download Manual Download Parts Book Download Catalog Page How To Videos

Applications

Stitching extra heavy-weight materials
Designed for operations and products such as safety and logging belts, cargo slings, buffing wheels, tents, sails, harnesses, tarpaulins and covers, fabric structures, construction barriers, parachutes, balloons, industrial bags, boot stitching, book binding

Features

Synchronized upper and lower feeding mechanism for uniform stitching

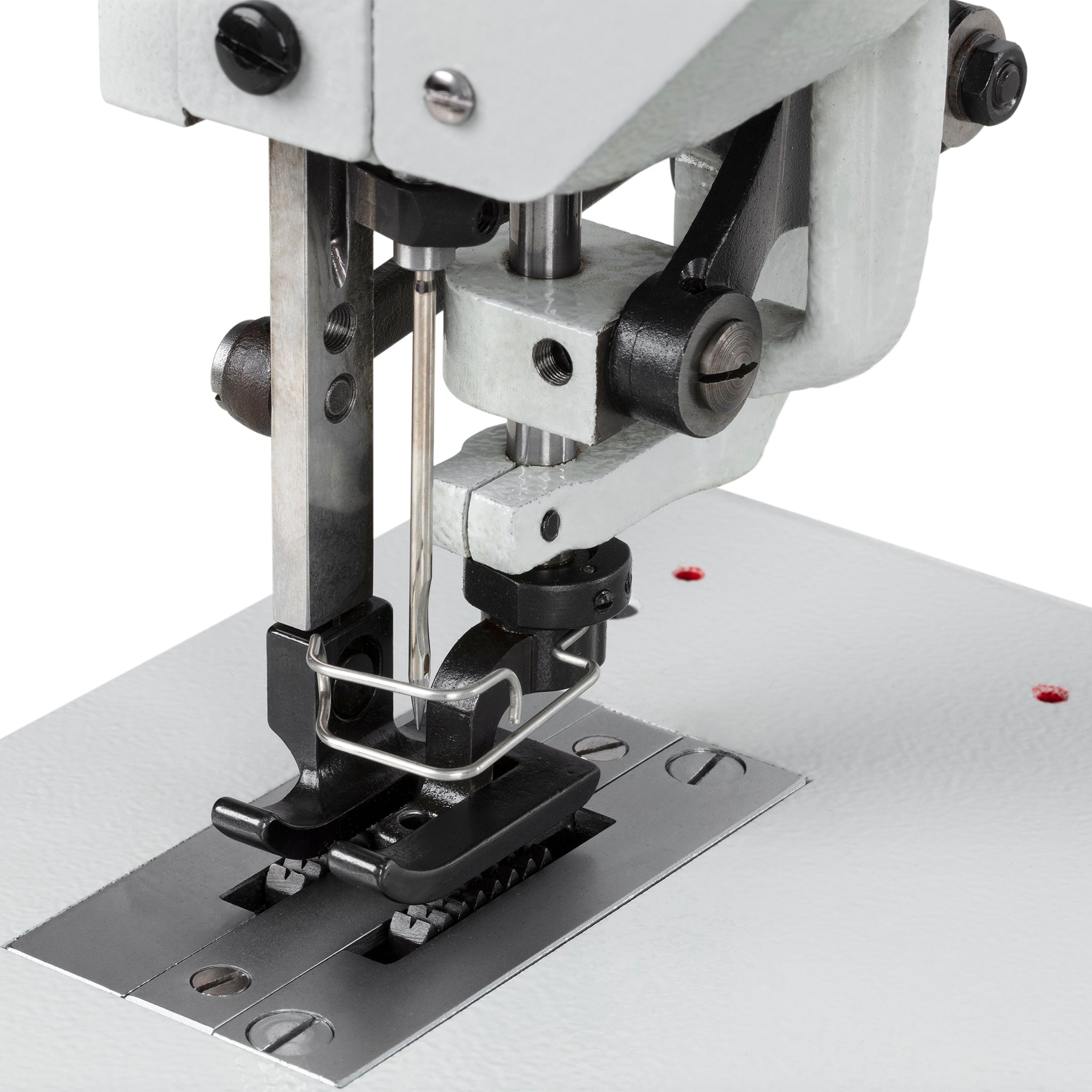

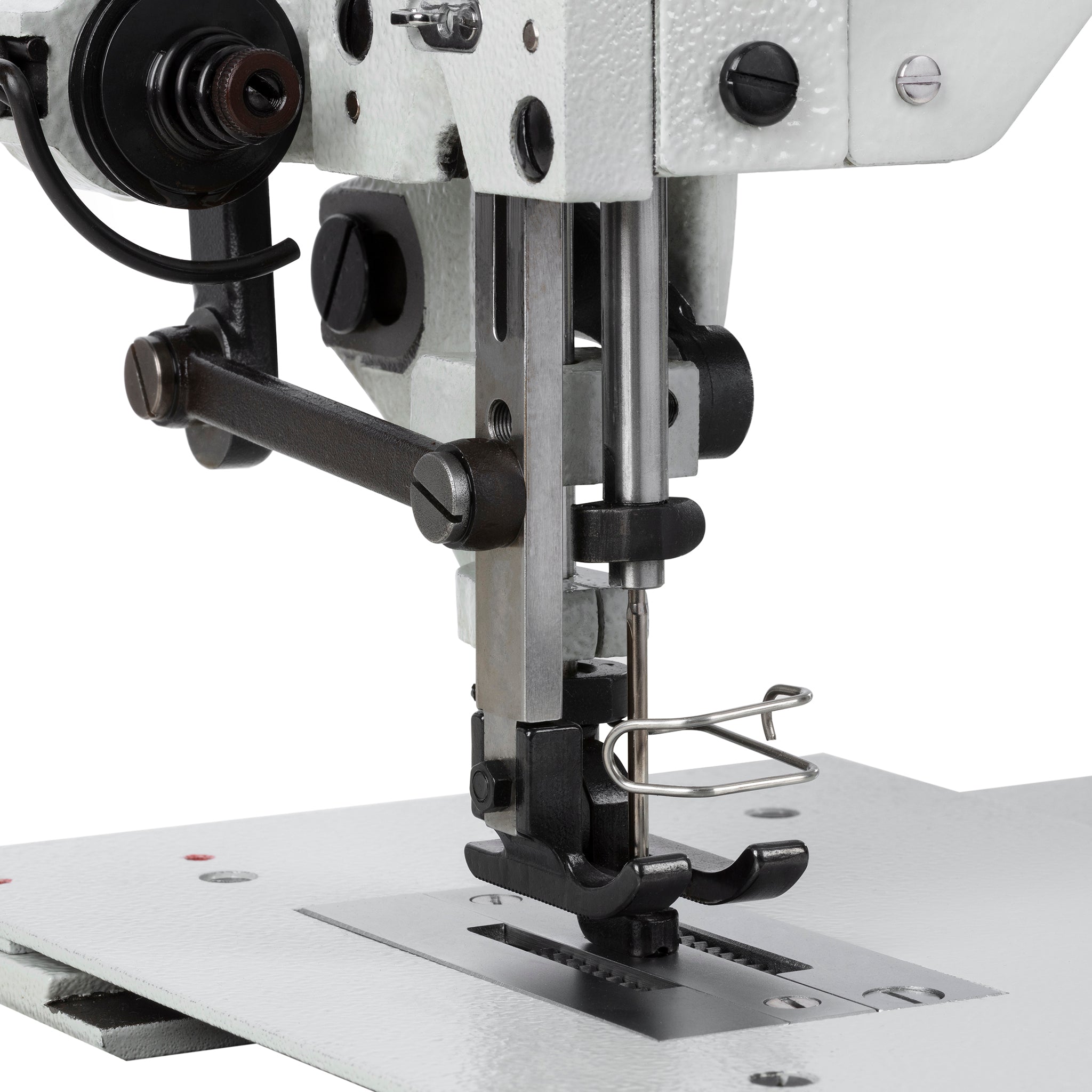

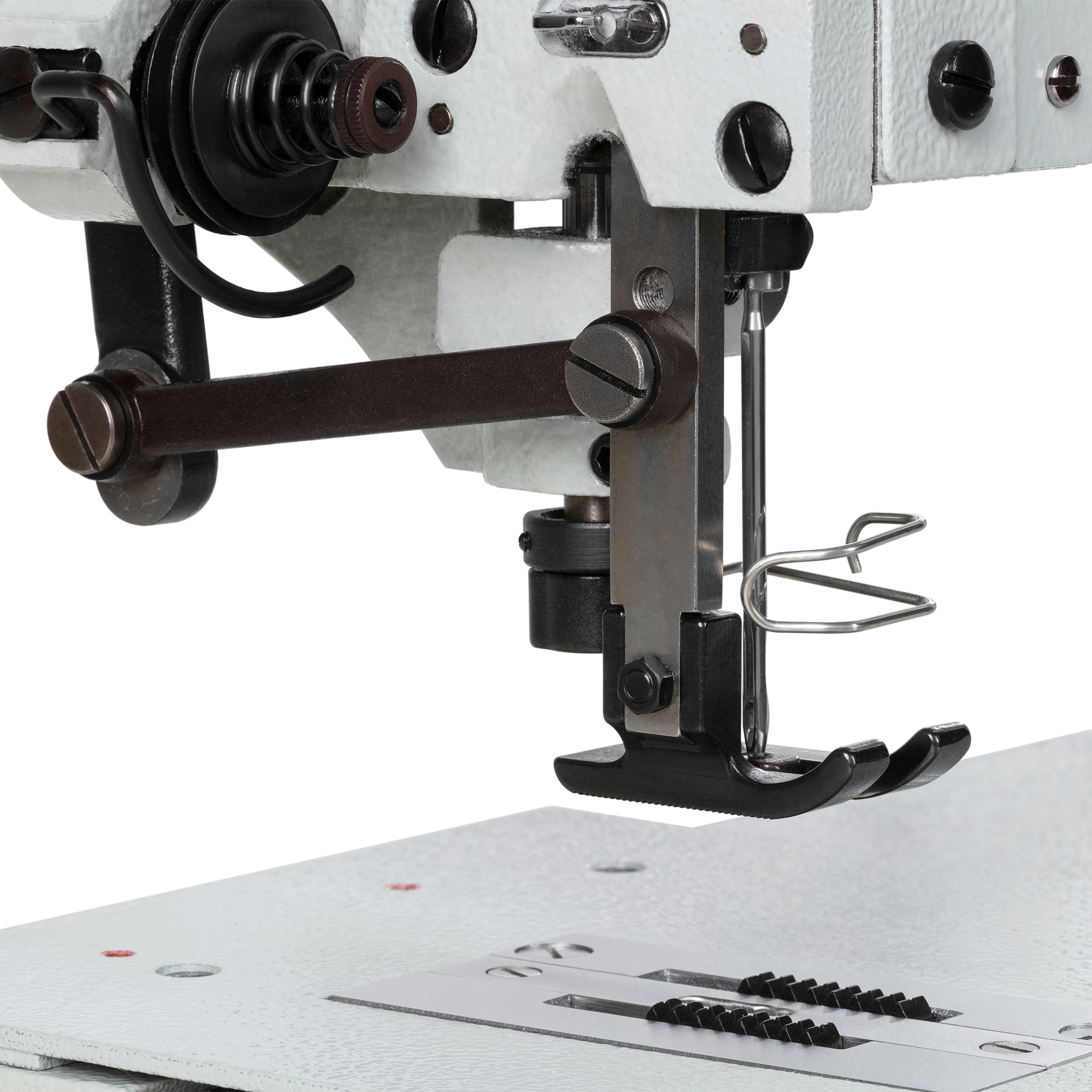

Alternating presser feet
Steel insert for take-up hinge
Reverse stitching - hand or foot operated

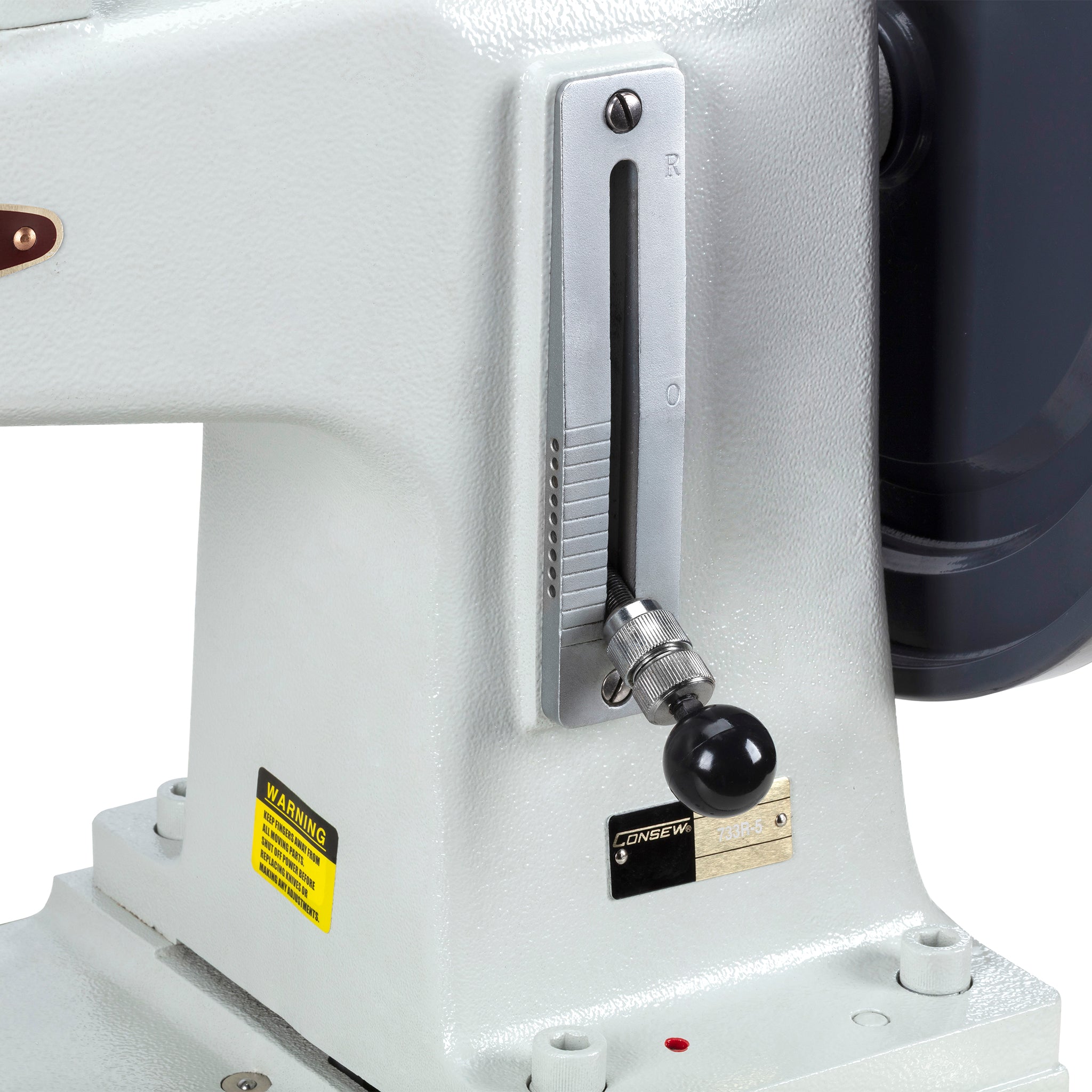

Stitch regulator - hand or foot operated
Presser foot lift - hand or foot operated
1-1/4 inch presser foot lift
Two-row feeder
Two stitches to the inch
Stitches per minute: 550
Extra large, long-beak oscillating shuttle, hook, and bobbin

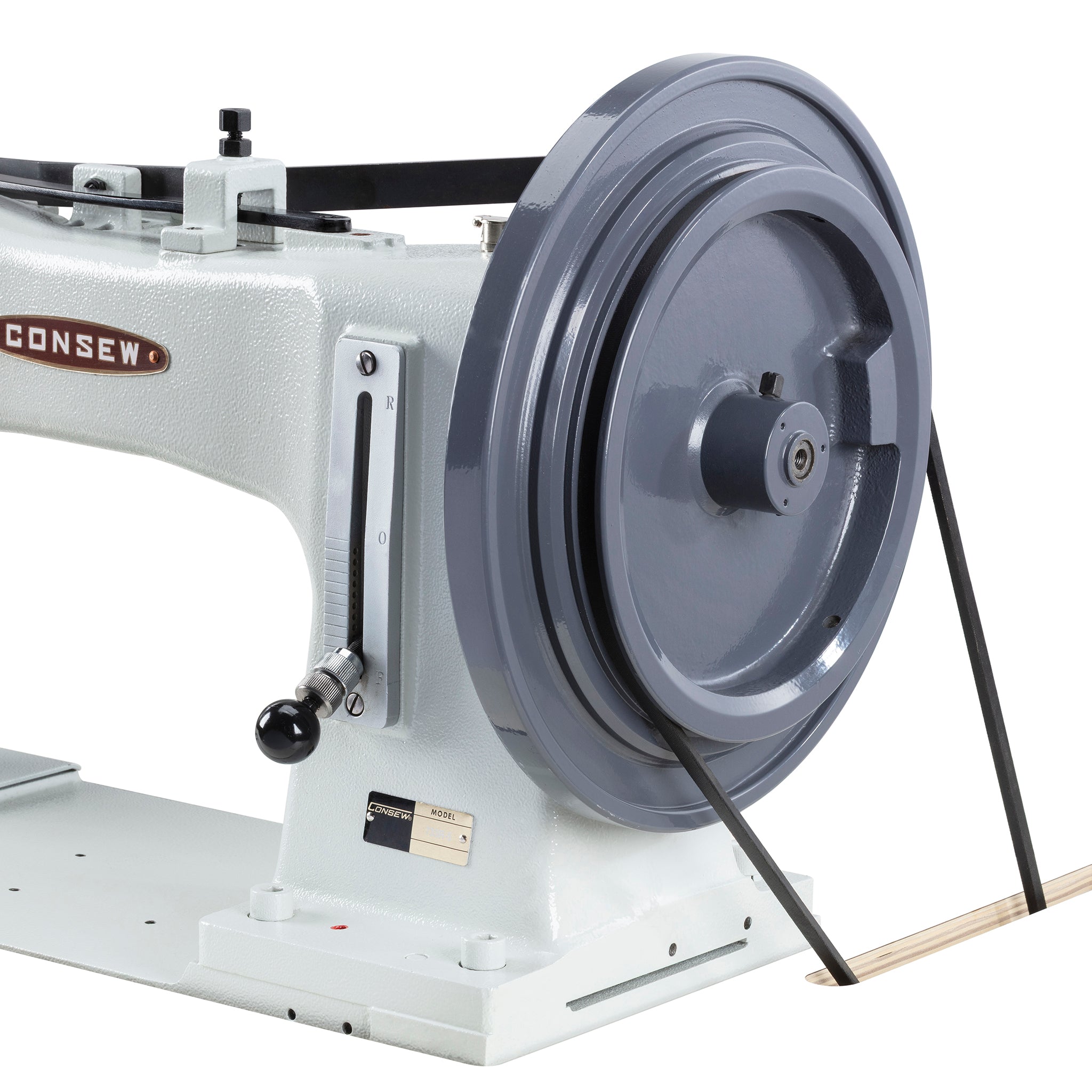

Belt guard

Specifications

Number of Needles: 1 (Single)
Feeding Mechanism: Walking Foot
Workspace: Standard Workspace
Standard or Full Function: Standard Functions
Speed, Max (S.P.M.): 550
Clearance Under Presser Foot: 1 1/4" (32mm)
Stitch Length: 2 s.p.i. (13mm)
Hook Size: Large
Work Space: 16 1/4" (413mm)
Needle: 1000 or 1000H
Bobbin: Pre-Wound 41
Bed Size: 10" x 26 1/4" (258mm x 665mm)
Stitch Type: 301
Weight: 300 lbs (136kg)
Needle Bar Stroke: 2 3/32" (53mm)
Hook: 35224

Educational Videos

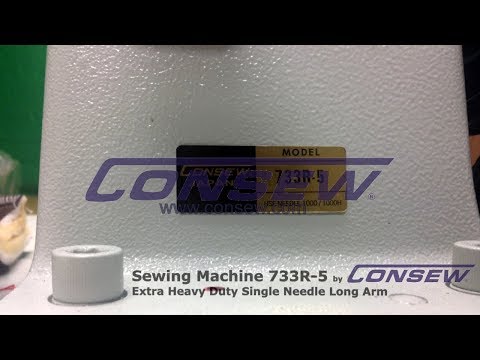

Consew Sewing Machine 733R-5 Demo
