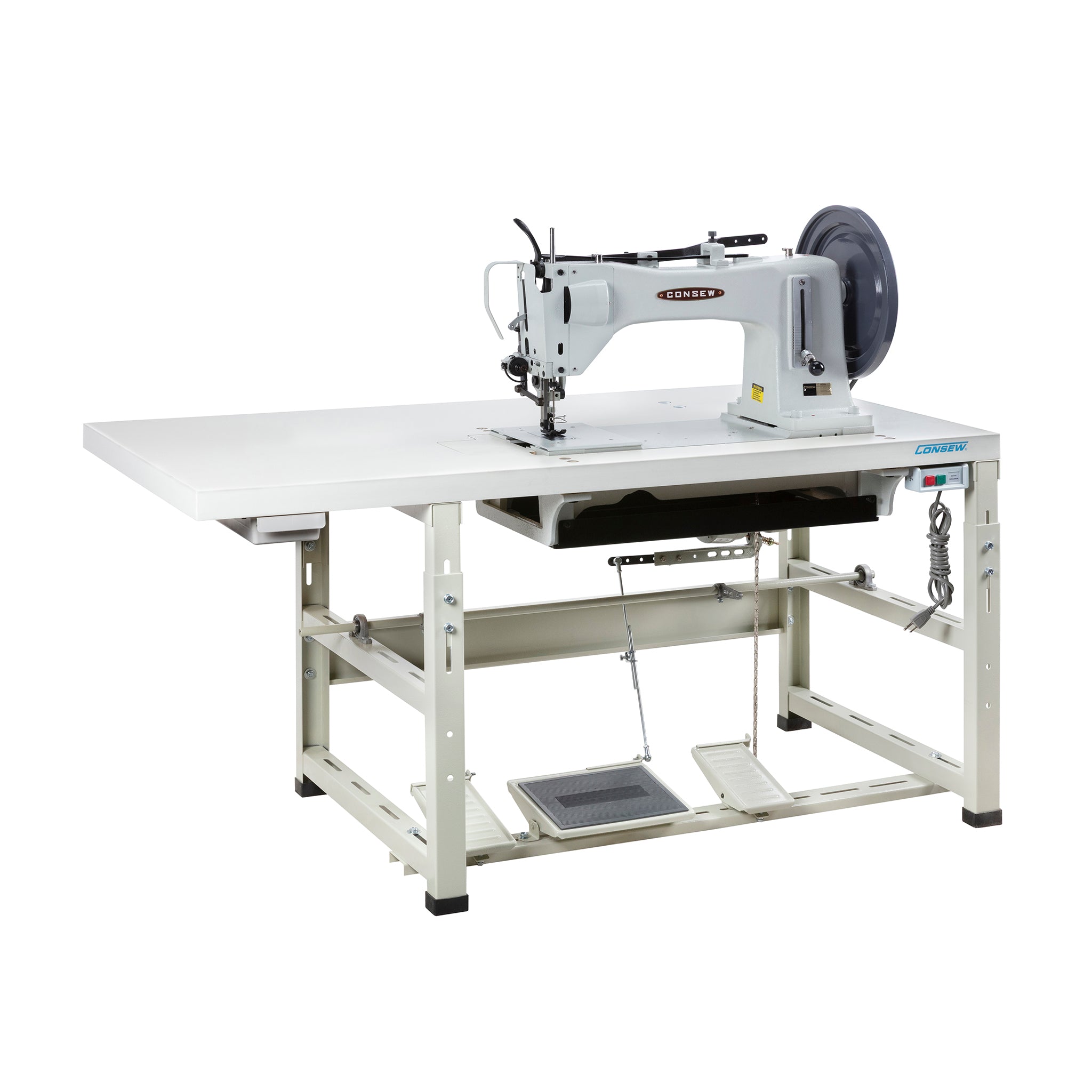

Consew 733R-6

Name: Consew 733R-6
Brand: My Store
SKU: 733R-6
Availability: InStock

SKU: 733R-6

Overview

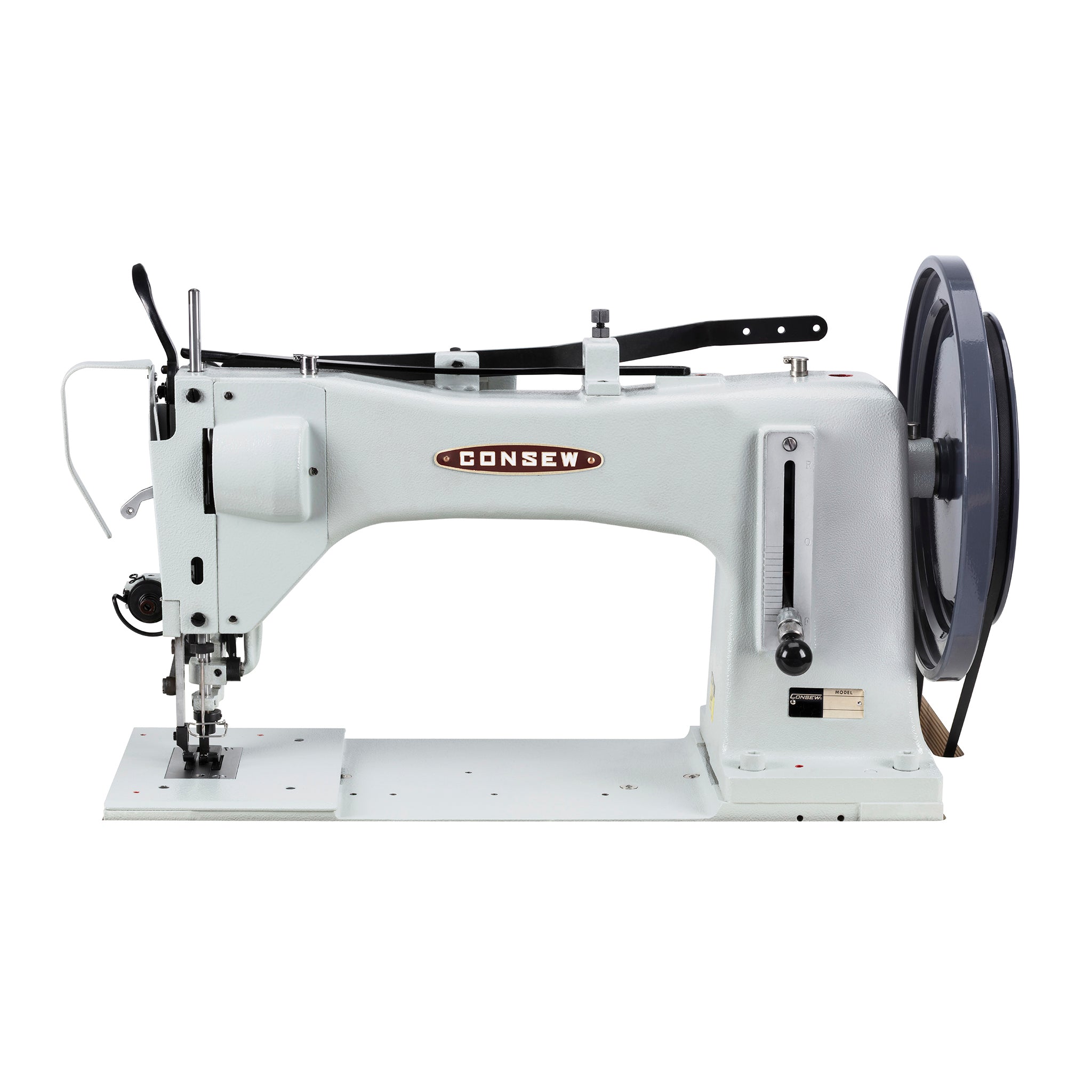

Extra Heavy Duty, Long Arm, Single Needle, Drop Feed, Alternating, Presser Feet, Lockstitch Machine.

With: Extra Large, Long Beak, Oscillating Shuttle Hook and Bobbin, Extra High Foot Lift - (1-11/32” - 34 mm), Two Row Feeder, Reverse Feed

NOTES: (Replaces Model 733R-5)
Also Available:
Model 733R-6AL(N) with air powered reverse and presser footlift
Model 733R-6-36 featuring 36” long arm

Product Resources

Download Manual Download Parts Book Download Catalog Page How To Videos

Applications

For stitching extra heavy-weight materials. Can sew up to size Tex 556 cord (thread)
Designed for such operations and products as extra heavy duty harnesses and slings (can sew up to 18,000 lb strength webbing,) safety and logging belts, cargo slings, tents, sails, tarpaulins and covers, fabric structures, construction barriers, buffing wheels, parachutes, balloons, industrial bags, boot stitching, book binding

Features

Syncronized upper and lower feeding mechanism assures uniform stitching

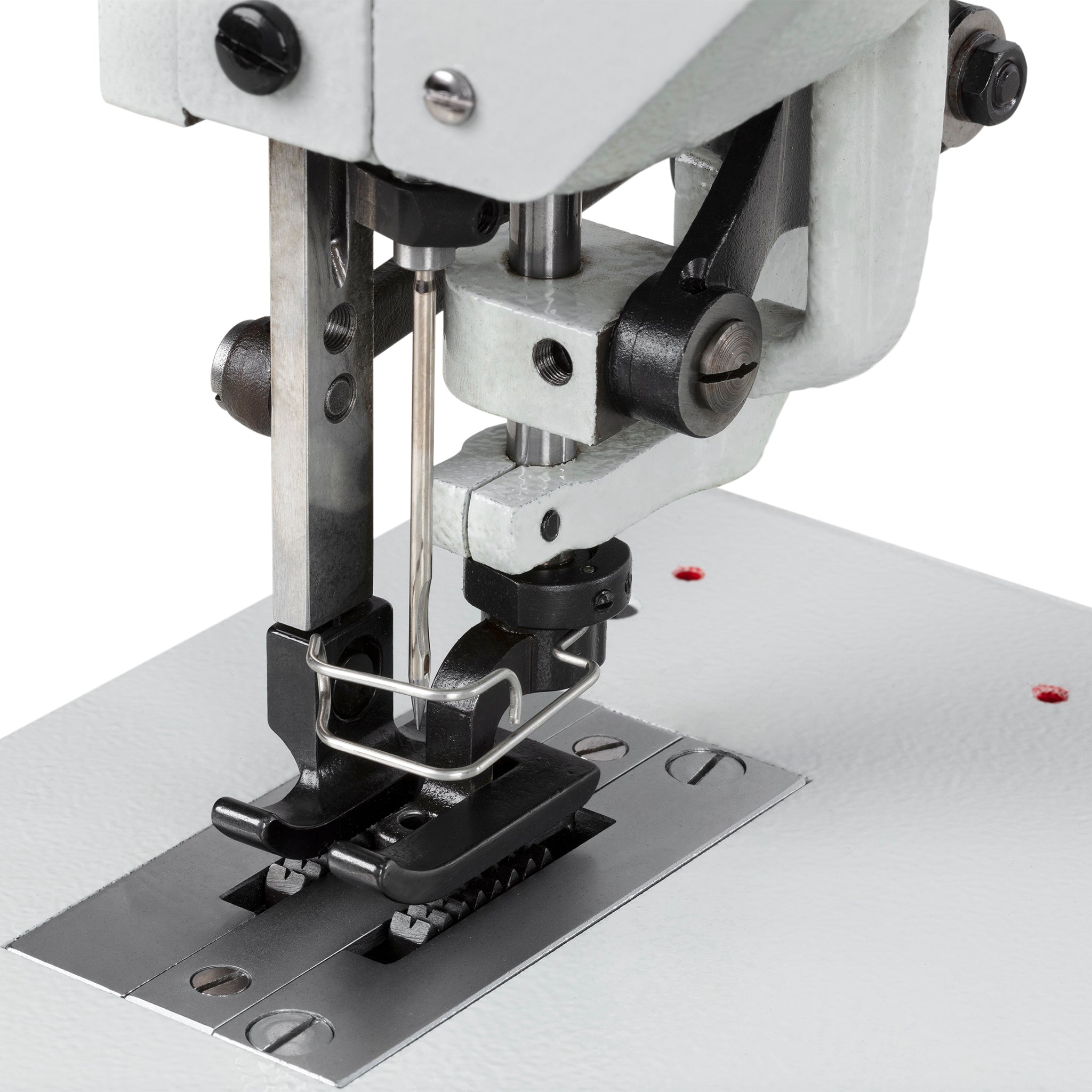

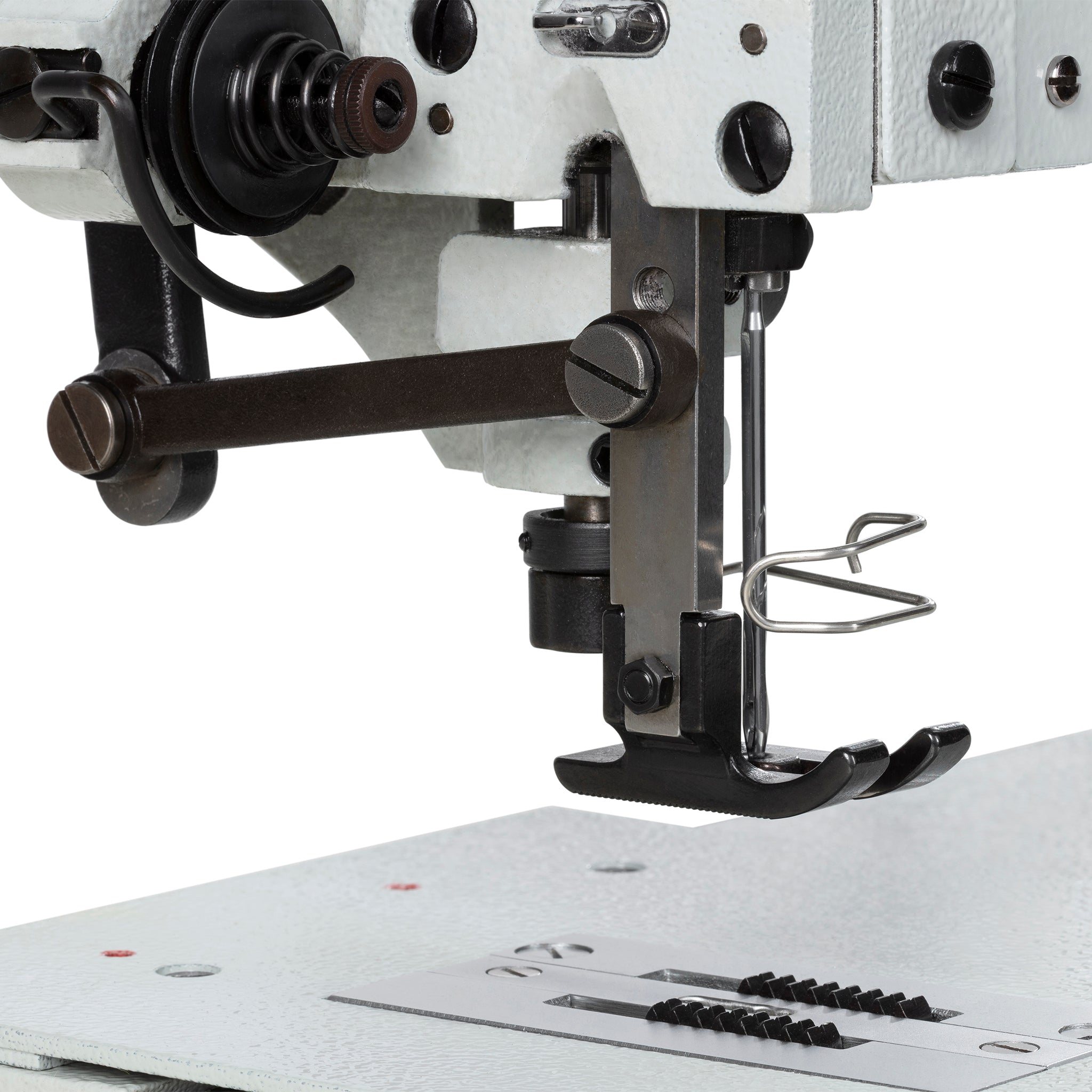

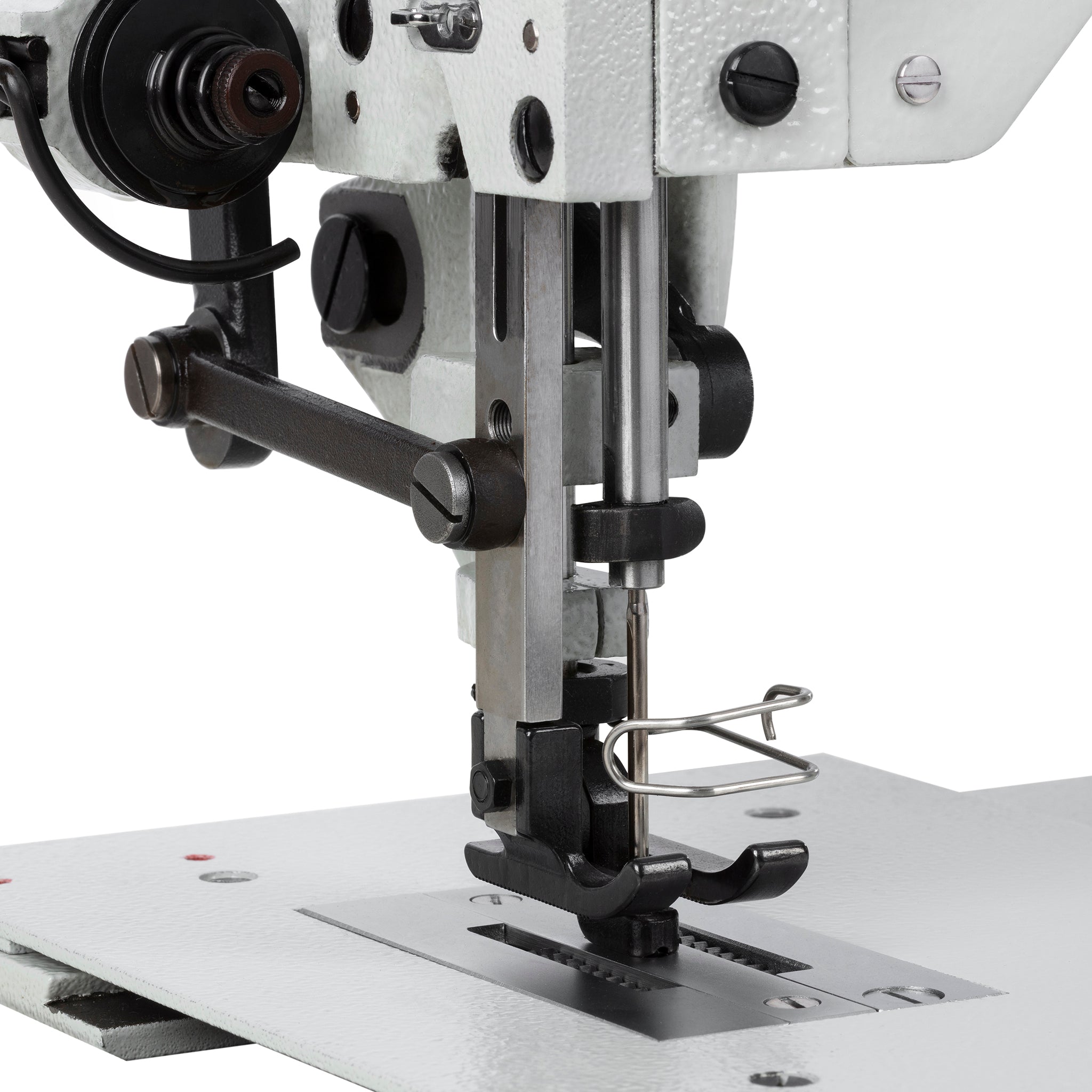

Alternating presser feet
Steel insert for take-up hinge
Reverse stitching - hand or foot operated

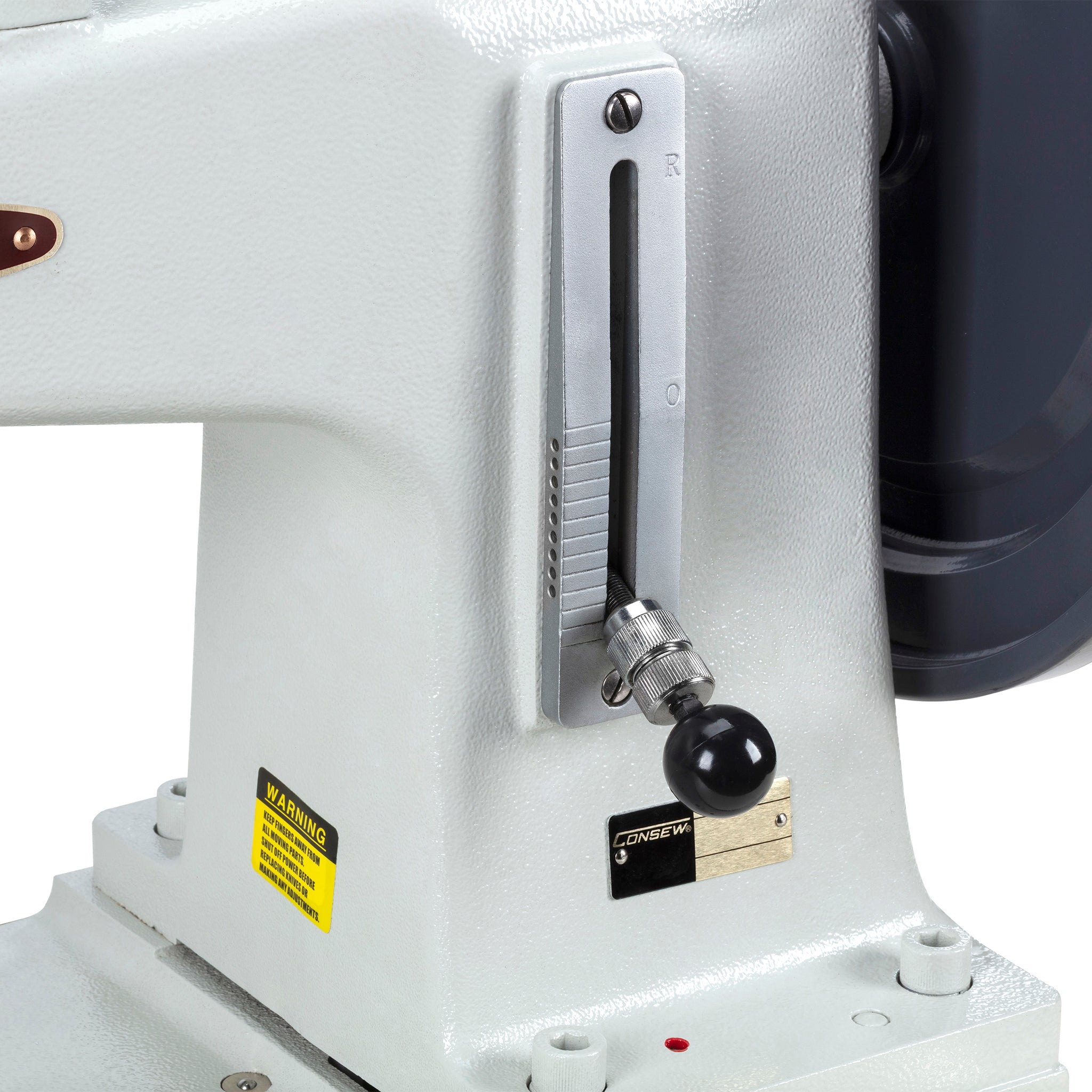

Stitch regulator - hand or foot operated
Presser foot lift - hand or foot operated
1-11/32 inch presser foot lift (Can sew up to 6 plies of webbing)
Two row feeder
Two stitches to the inch
Stitches per minute - 550
Extra large vertical and horizontal workspace, oscillating shuttle, hook and bobbin
Belt guard
Design to sew Cordura and Dyneema material, up to 18,000 lb strength webbing and can use up to size Tex 556 cord (thread.)

Improvements

Improvements allowing for use of thicker thread and heavier materials:
• 1-3/8” (35mm) needle clearance
• More leverage on presser foot lifter for easier lifting
• Now comes with bobbin spindle adapter already installed for pre-wound bobbins
Along with modifications /improvements to
• Needle Plate • Center Foot • Needle Bar Clamp • Shuttle Driver
• Stitch Regulator Limiting Pins and other modifications aimed at smoother running with heavier threads and materials.

Specifications

Number of Needles: 1 (Single)

Feeding Mechanism: Walking Foot

Workspace: Standard

Workspace: Standard or Full Function

Standard Functions: Speed, Max (S.P.M.)550

Clearance Under Presser Foot: 1 1/4" (32mm)

Stitch Length: 2 s.p.i. (13mm)

Hook Size: Large

Work Space: 16 1/4" (413mm)

Needle: 1000 or 1000H

Bobbin: Pre-Wound 41
