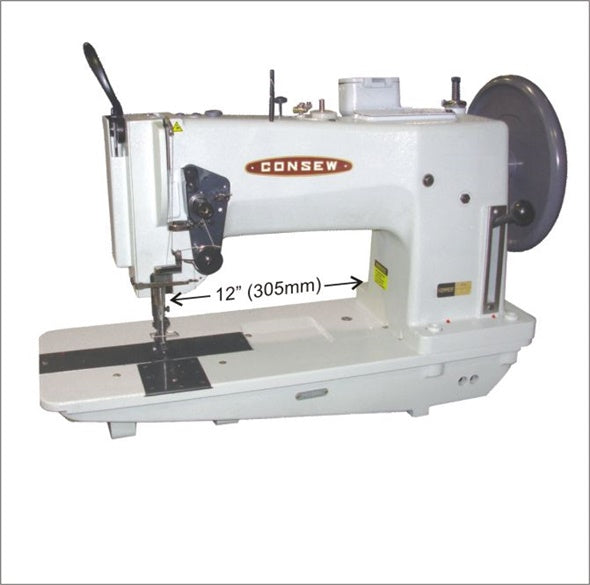

Consew 744R-10

Name: Consew 744R-10
Brand: My Store
SKU: 744R-10
Availability: InStock

SKU: 744R-10

Overview

Extra Heavy Duty, Single Needle (745R10 is 2-needle), Drop Feed, Needle Feed (compound Feed), Alternating Presser Feet, Lockstitch Machine

With: Extra Large Bobbins And Vertical Axis Hooks, Centralized Arm Lubrication, Reservoir-oiled Hooks With Micrometric Control Valve, Presser Foot Locking Lever, Push Button Stitch Regulator, Reverse Feed, Safety Clutch, Built-in Bobbin Winder, Puller (Optional), One Piece Upper Casting, Easy To Convert Between 1 And 2 Needle

Product Resources

Download Manual Download Catalog Page How To Videos

Applications

Suitable for sewing extra heavyweight materials such as canvas, vinyl, leather, synthetics, and various coated, laminated, and rubberized fabrics
Designed for stitching products such as tents, tarps, awnings, truck covers, auto, marine, and furniture upholstery, sails, matting, carpets, polishing wheels, mops, luggage, construction barriers, field covers, divider curtains, fabric structures, and heavy bulky products
Suitable for stitching double seams and lap seaming

Features

Compound feed, walking foot mechanism ensures positive and even feeding of the material
Safety clutch protects hooks from damage in case of accidental strain
Reverse feed operated by foot pedal
Centralized arm lubrication
Reservoir-oiled hooks with micrometric control valve
Presser foot locking lever
Built-in bobbin winder
Push button stitch regulator
Extra heavy-duty top shaft with four ball bearings for support
Extra large bobbins and vertical axis hooks for use of heavy thread; also allows for long operation between bobbin changes
High lift
745RP is available with optional factory-installed, bottom driven, feed-synchronized puller (puller mechanism is completely concealed and does not restrict workspace)
