Consew 697VC

Name: Consew 697VC
Brand: My Store
SKU: 697VC
Availability: InStock

SKU: 697VC

Overview

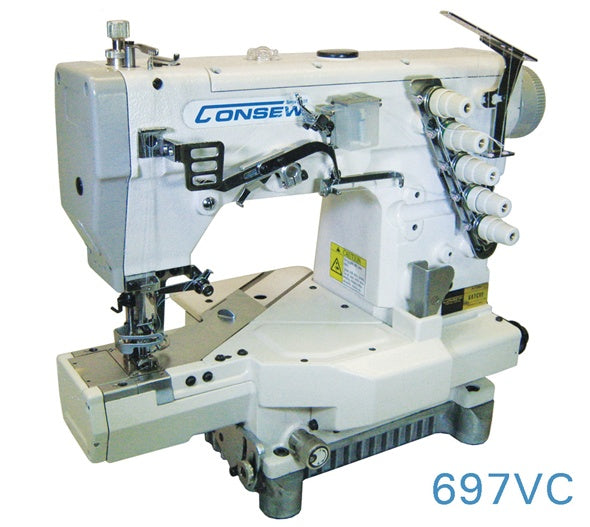

High Speed Coverstitch Machine

With: Fully Automatic Lubrication, Differential Feed With Micrometric Adjustment, Pushbutton Stitch Regulator, Thread Lubricating And Needle Cooling System.
Also available: 697BVC for Binding Attachments

Product Resources

Download Manual Download Parts Book Download Catalog Page

Applications

Suitable for sewing light to heavy-weight materials

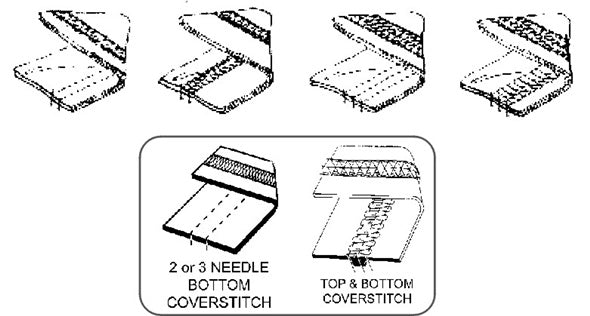

Ideal for hemming, tape binding, elastic inserting, etc.
Model 697VC (Cylinder-bed) designed for general seaming

Features and Specifications

Maximum speed of up to 6000 S.P.M.
Push-button stitch regulator for easy adjustments
External cooling for oil supply to maintain efficiency
Fully automatic lubrication with visual flow controls
Continuously filtered lubricating oil with replaceable filter
Differential feed with micrometric adjustment for shirring and stretching, with a ratio up to 4:1
Intermittent action option for versatile stitching
Uses standard UY128GAS needles
Silicone-based needle cooling and thread lubricating system

Specifications

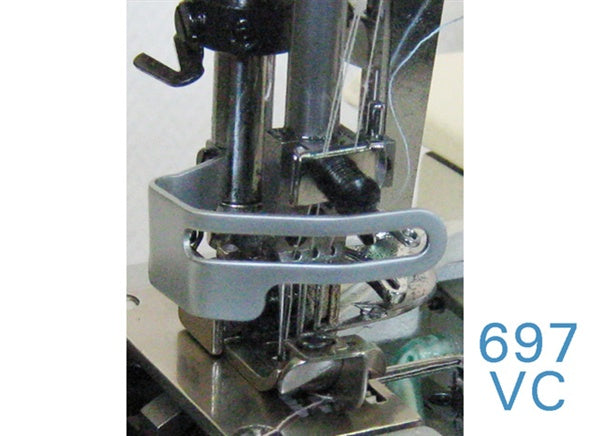

Number of Needles: 2, 3
Feeding Mechanism: Differential
Workspace: Standard Workspace
Standard or Full Function: Standard Functions
Speed, Max (S.P.M.): 6000
Max Stitch Length: 1.4 ~ 3.6mm
Presser Foot Lift: 7.0mm
Needle Bar Stroke: 31mm
Needle Used: UY128GAS
Looper: 2
Standard Distance Between Needles: 5.6mm (3-needle)
Differential Ratio: 1:0.3 ~ 1:2.9
