Consew CN897VF

Name: Consew CN897VF
Brand: My Store
SKU: CN897VF
Availability: InStock

SKU: CN897VF

Overview

The CN897VF is a high-speed flat-bed coverstitch machine designed for plain seaming, bottom hemming, and elastic attaching. It supports both 2-needle/4-thread and 3-needle/5-thread configurations and is suitable for sewing from light to heavy-weight materials. Engineered for precision and durability, it features micrometric differential feed adjustment, fully automatic lubrication, and a silicone-based needle cooling system.

V-series, Flatbed, High Speed Cover stitch Machines

With: Fully Automatic Lubrication; Differential Feed With Micrometric Adjustment; Push-button Stitch Regulator; Thread Lubricating and Needle Cooling System
Also, available: CN897VFB-1 for Binding Attachments

Product Resources

Download Manual Download Parts Book Download Catalog Page How To Videos

Applications

For sewing light to heavy-weight materials.
Flat-bed for general seaming.
Suitable for hemming, tape binding, elastic inserting, etc.
Available in 2-needle (4-thread) and 3-needle (5-thread) configurations.

Features

Speed, Max. up to 6000 s.p.m.
Push-button stitch regulator.
External cooling of oil supply.
Fully automatic lubrication with visual flow controls.
Lubricating oil continuously filtered by replaceable filter.
Differential feed with micrometric adjustment for shirring and stretching, ratio up to 4 to 1.
Intermittent action possible.
Standard type UY128GAS needles.
Silicone-based needle cooling and thread lubricating.

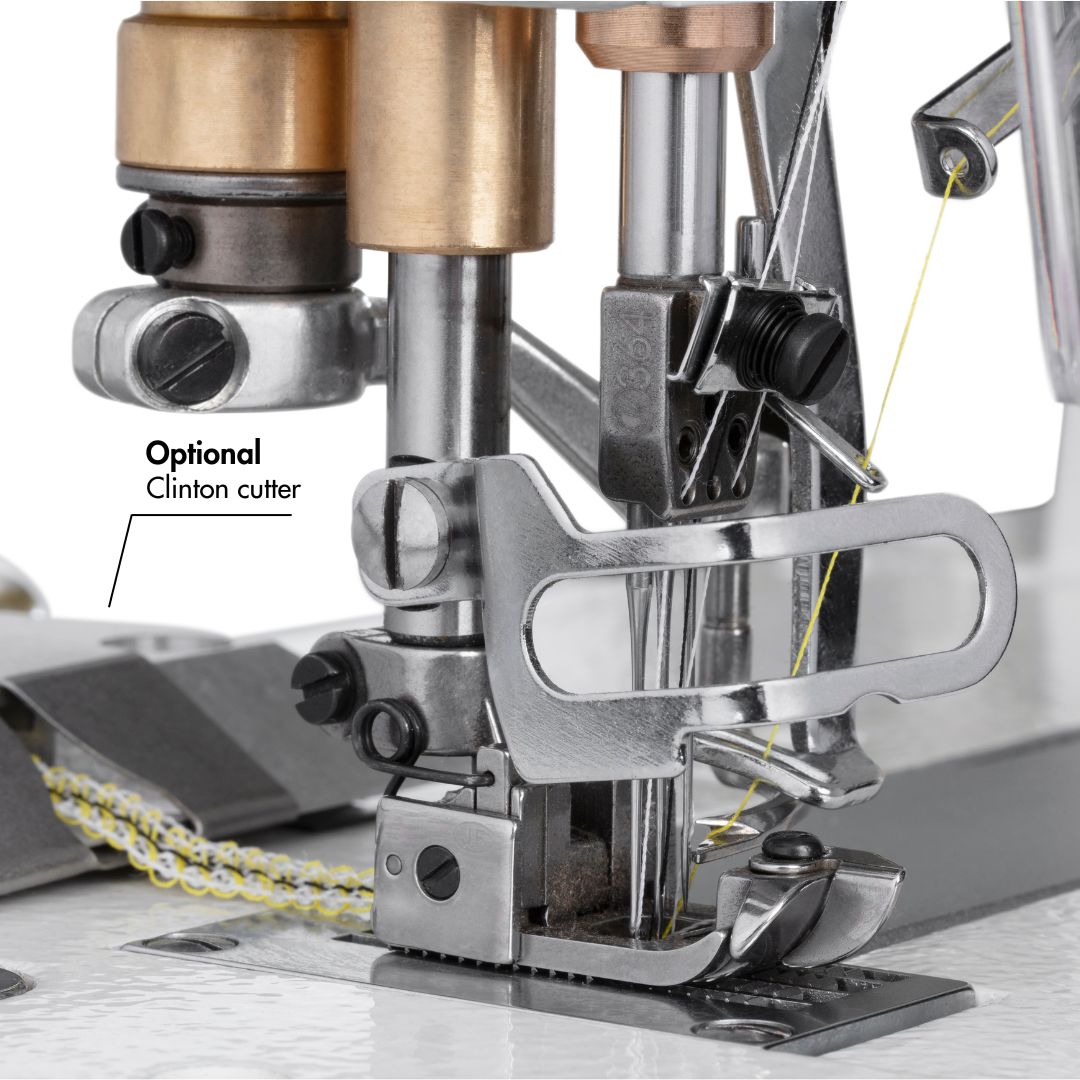

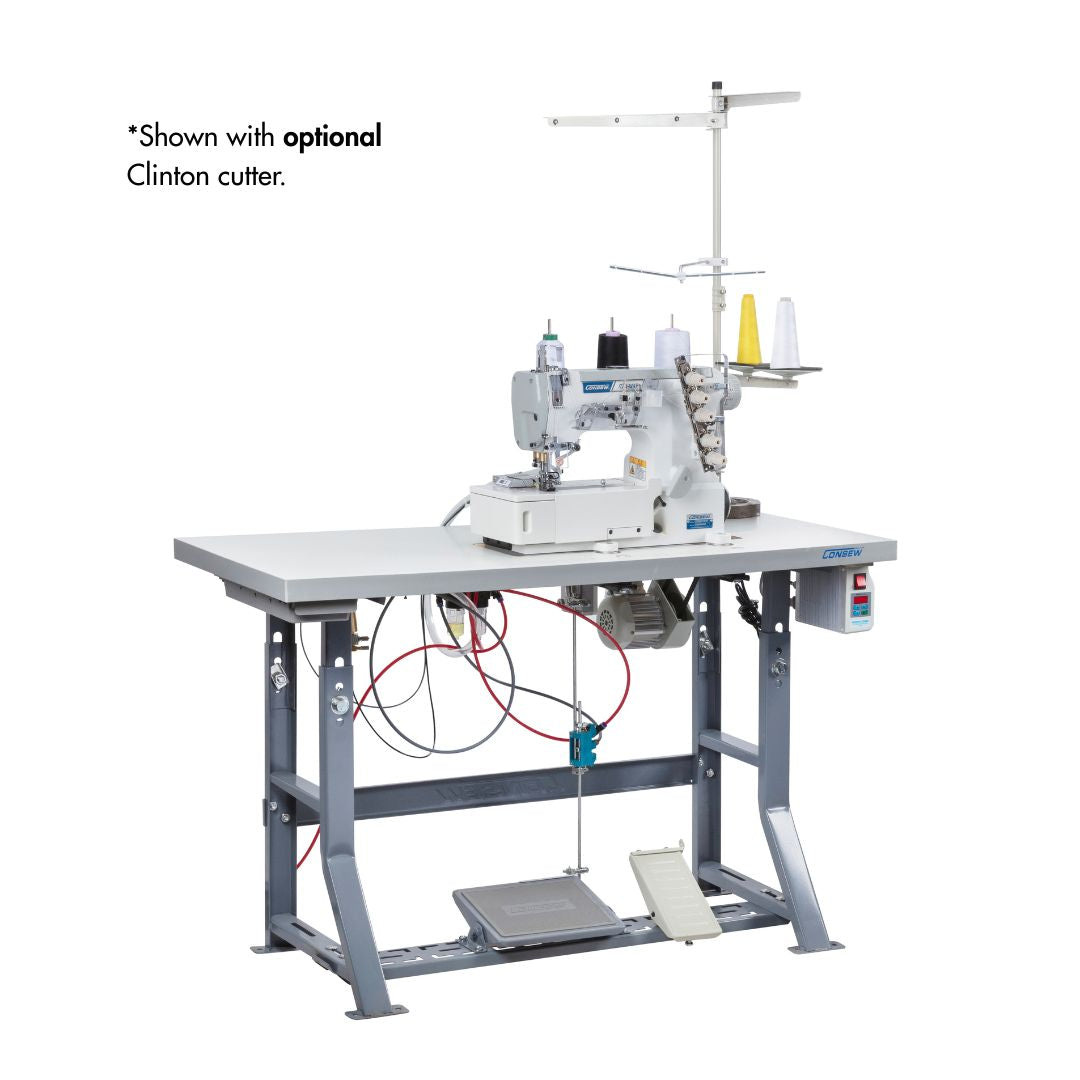

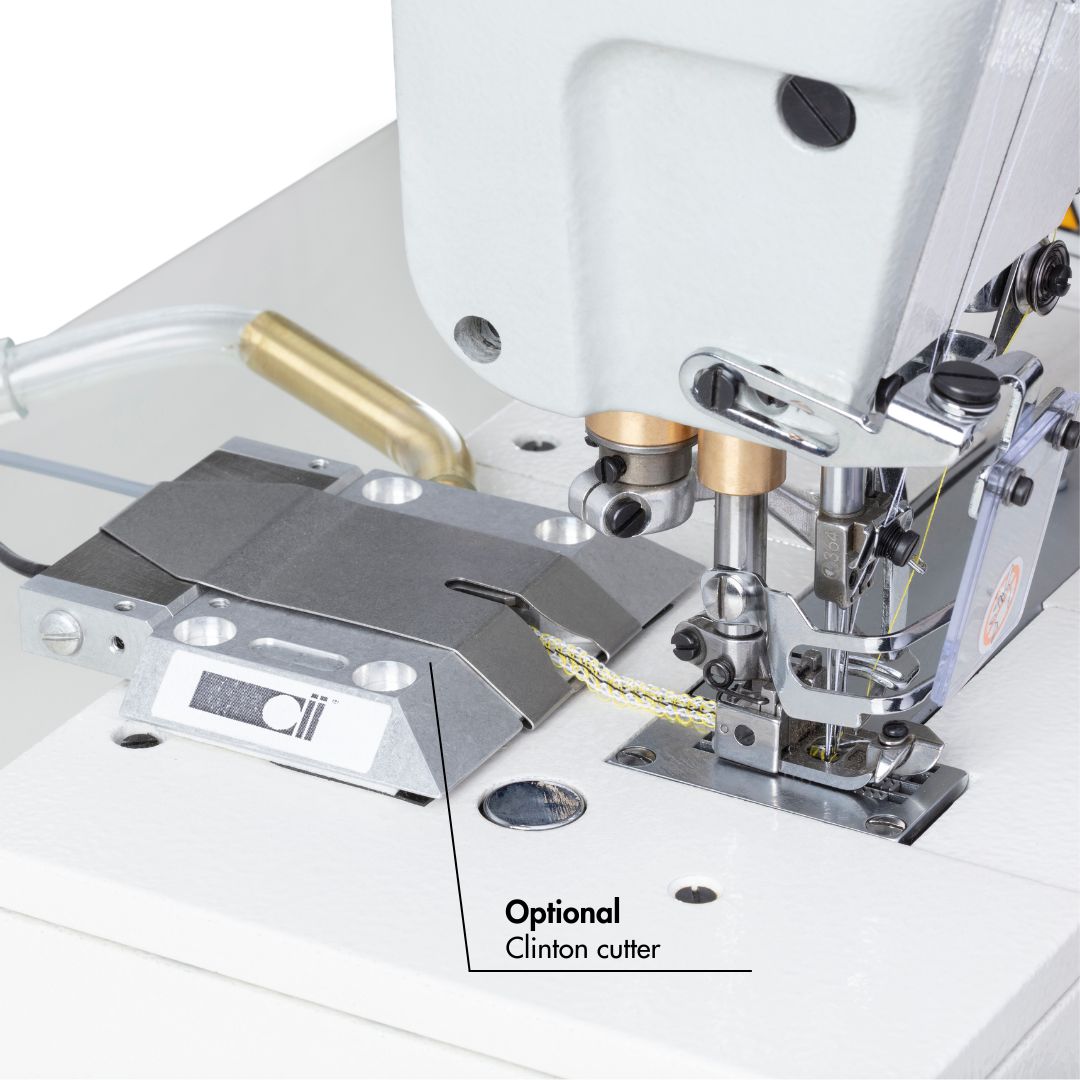

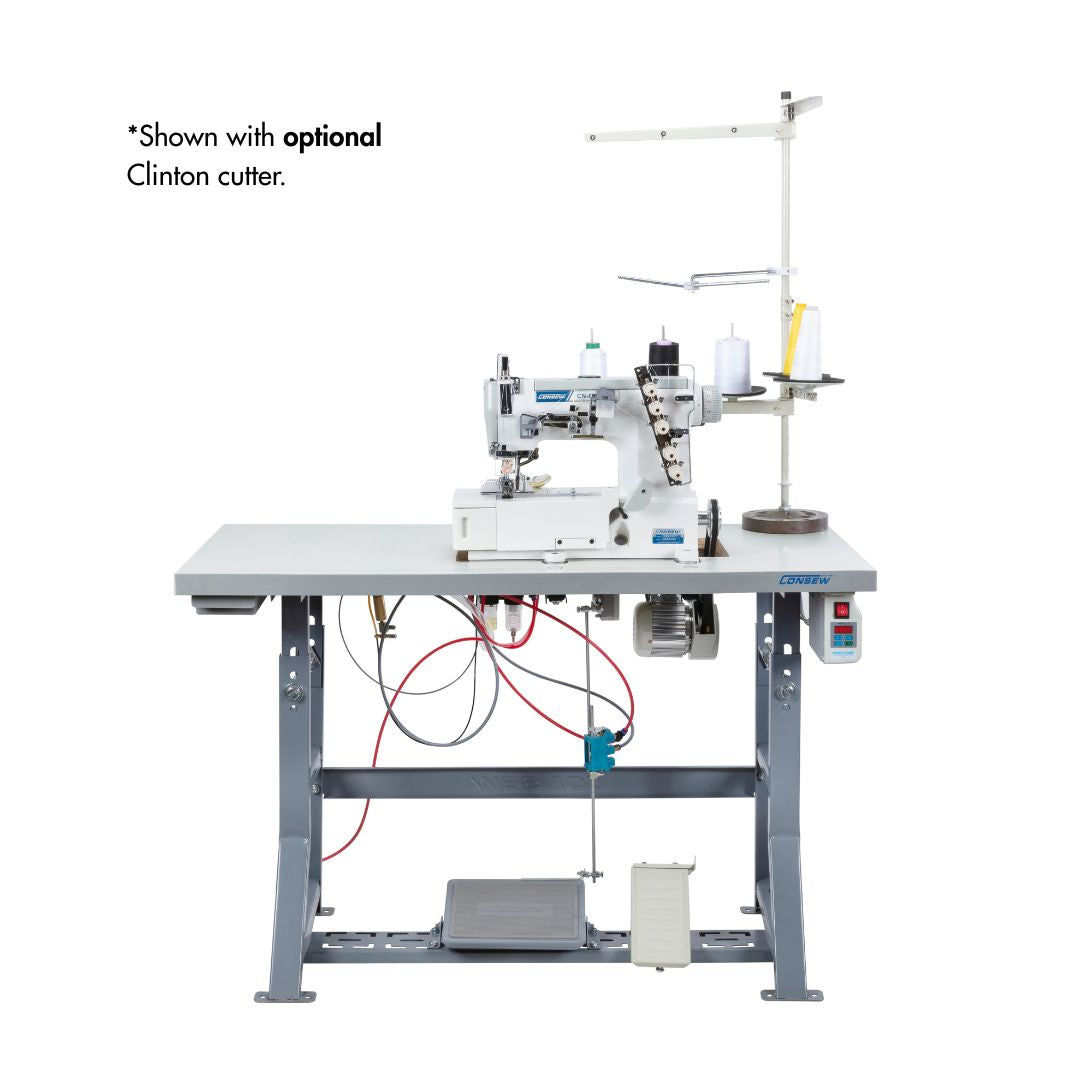

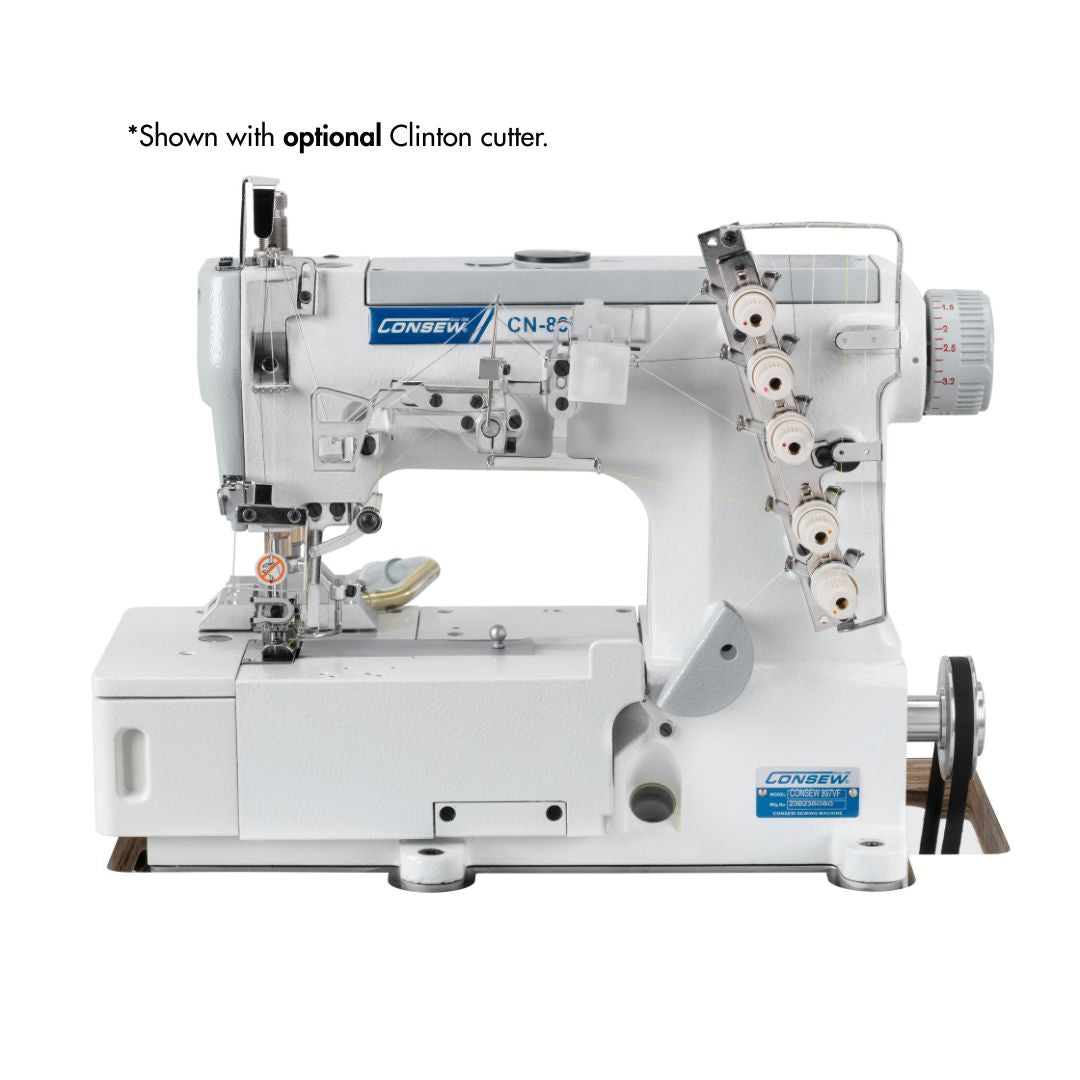

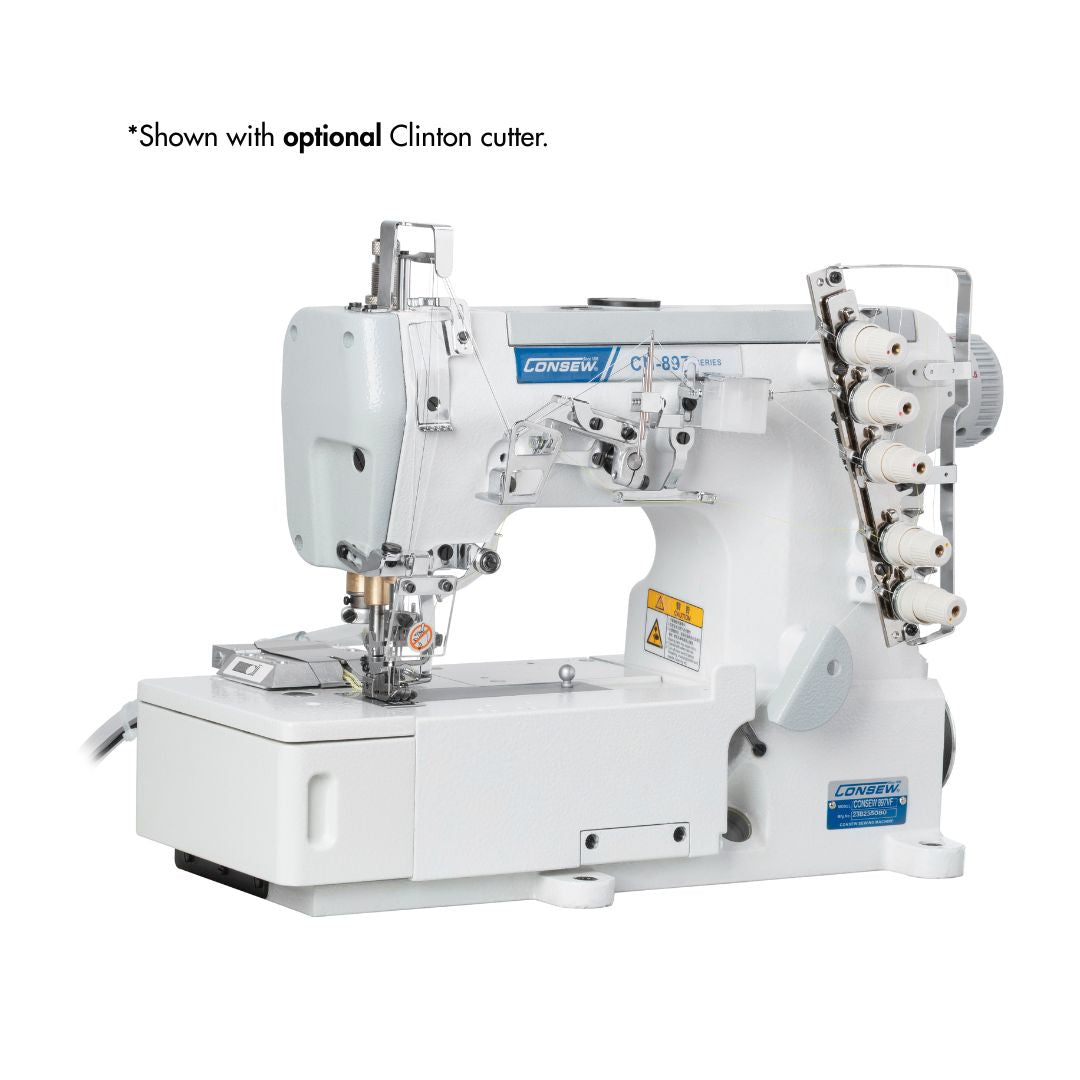

Optional automation upgrades: Tape Cutting Device, Thread Trimmers.
Available options: UTA - Under thread trimming device (pneumatic), ST - Top cover thread trimming device, UTM - Under thread trimming device (electric), W - Thread wiper (electric), EC - Tape Cutter (electric).

Specifications

Number of Needles: 2, 3
Feeding Mechanism: Differential
Speed, Max (S.P.M.): 6000
Max Stitch Length: 1.4 ~ 3.6mm
Presser Foot Lift: 7.0mm
Needle Bar Stroke: 31mm
Needle Used: UY128GAS
Looper: 2
Standard Distance Between Needles: 5.6mm (3-needle)
Differential Ratio: 1 : 0.3 ~ 1 : 2.9
Weight: 183 lbs
Optional Needle Gauges: 2 Needles - 3.2, 4.0, 4.8, 5.6, 6.4 mm, 3 Needles - 5.6, 6.4 mm
